product name

Ryobi RY38BPEMCVNM 38cc Backpack Blower

Model: RY38BPEMCVNM

Save
 Part Not Listed?Part Not Listed?
product name

Ryobi RY38BPEMCVNM

...
...
xx
Operator's Manua HM-995000443
...
1
Lower Blower Tube HM-580471001
...
2
Upper Blower Tube HM-580470001
...
3
Handle Blower Tube HM-580472001
...
4
Adjustment Knob (1/4-20 Unc) HM-518273004
...
5
Screw (10-14 X 19 Mm, T25 Torx Truss Hd. T.F.) HM-660629005
...
6
Cruise Control Lever HM-527985002
...
7
Handle Half Assembly W/Label, Includes #8 &,17 HM-314612001
...
8
Cruise Control Label HM-941657013
...
9
Throttle Trigger HM-534921001
...
10
Washer (22.5Od X 16Id X 0.5T) HM-631049004
...
11
Wavy Washer (Od21.72 X Id16.51) HM-632423001
...
12
Detent Spring HM-632472004
...
13
Cruise Control Actuator HM-534922001
...
14
Throttle Spring HM-690694002
...
15
Assembly Wrench (T25) HM-631055023
...
16
Stop Switch HM-760961002
...
17
Hex Nut (1/4-20 Unc) HM-678190002
...
18
Throttle Cable And Wire Assembly HM-291899002
...
19
Bellows Clamp Assembly, Includes #5 HM-314613001
...
20
Bellows Tube HM-580473001

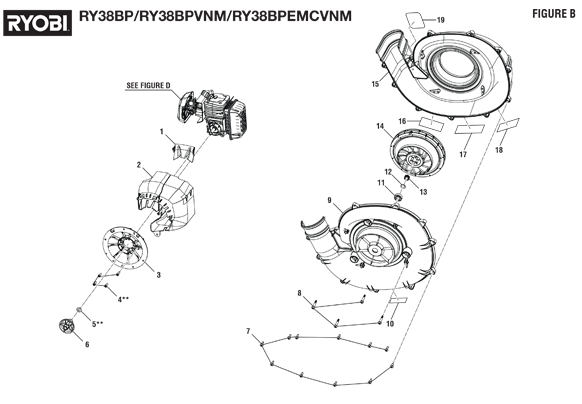

Ryobi RY38BPEMCVNM

...
...
1
Engine Air Guide HM-536124001
...
2
Engine Air Duct, Includes #1 HM-314614001
...
3
Engine Mount HM-643397001
...
4
Screw (M5 X 14 Mm, T25 Torx Soc. Hd.) HM-661600001
...
5
Washer (18Od X 10.2Id X 1.0T) HM-638289001
...
6
Fan Drive Coupler, Includes #5 HM-314615001
...
7
Screw (10-14 X 19 Mm., T25 Torx Truss Hd. T.F.) HM-660629005
...
8
Shoulder Screw (M5-14 X 40 Mm, T25 Torx Truss Hd. T.F.) HM-660466003
...
9
Outer Volute W/Bearing And Label (Inc. Key No. 10-11) HM-314616001
...
10
Hair Ingestion Warning Label HM-941705029
...
11
Ball Bearing (28Od X 12Id X 8T) HM-690697001
...
12
Washer (Od18 X Id12.15 X 1.5T) HM-637311001
...
13
Wavy Spring HM-637049002
...
14
Fan Assembly HM-313723001
...
15
Inner Volute W/Labels, Includes #16-19 HM-314617001
...
16
Mph Label HM-941015028
...
17
Ryobi Logo Label HM-941705025
...
18
Cfm Label HM-941015029
...
19
Warning Icon Label HM-941657012

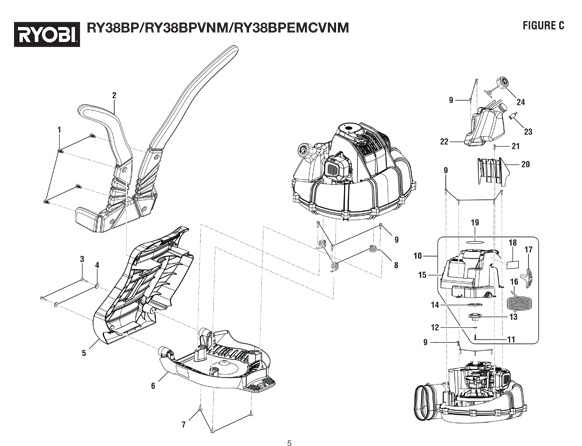

Ryobi RY38BPEMCVNM

...
...
1
Push-In Fastener HM-525644002
...
2
Shoulder Straps HM-901588003
...
3
Screw (10-14 X 25 Mm, T25 Torx Truss Hd. T.F.) HM-660618002
...
4
Washer (18Od X 6.2Id X 1.5T) HM-678587001
...
5
Upper Frame HM-534931003
...
6
Lower Frame HM-534932003
...
7
Screw (10-14 X 17 Mm, T25 Torx Truss Hd. T.F.) HM-660626006
...
8
Isolator Springs HM-679950001
...
9
Screw (10-14 X 19 Mm, T25 Torx Truss Hd. T.F.) HM-660629005
...
10
Engine Housing And Starter Assembly, Includes #11-19 HM-314618001
...
11
Screw (M5 X 19 Mm, T25 Slotted Torx Truss Hd. T.F.) HM-660918004
...
12
Washer (16Od X 5.3Id X 1.0T) HM-678333001
...
13
Starter Pulley HM-518438003
...
14
Recoil Spring Container Assembly HM-308066001
...
15
Engine Housing W/Labels, Includes #18-19 HM-314619001
...
16
Starter Rope (42 Inch) HM-900849002
...
17
Starter Grip HM-525485001
...
18
Mix Ratio Label HM-941012090
...
19
Logo Label HM-941705027
...
20
Spark Plug Cover HM-537630001
...
21
Screw (10-14 X 18 Mm, T25 Torx Truss Hd. T.F.) HM-660629002
...
22
Fuel Tank Assembly W/Fuel Lines, Includes #23,24 HM-313783001
...
23
Fuel Filter HM-310976001
...
24
Fuel Cap W/Tether HM-310816015

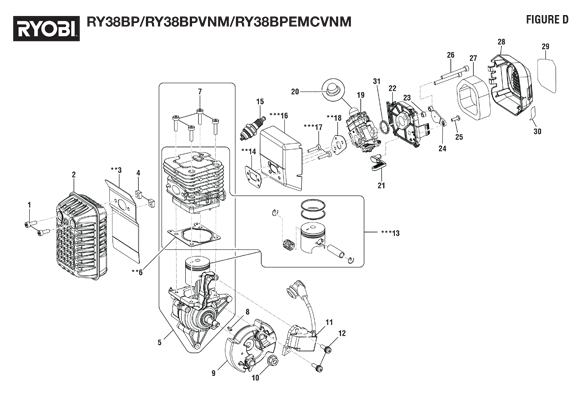

Ryobi RY38BPEMCVNM

...
...
xx
High Altitude Kit HM-120900309
...
1
Screw (M5 X 14 Mm, T25 Torx Soc. Hd.) HM-661600001
...
2
Muffler Assembly HM-300748062
...
3
Exhaust Gasket HM-639243005
...
4
Square Nut (M5) HM-662805001
...
5
Short Block Assembly HM-309893010
...
6
Cylinder Gasket HM-903036003
...
7
Cap Screw (M5 X 20 Mm, T25 Torx Soc. Hd.) HM-660613003
...
8
Woodruff Key HM-690688001
...
9
Flywheel Assembly, Includes #8 HM-314620001
...
10
Hex Nut (M8 X 1.0, Flanged) HM-690689001
...
11
Ignition Module HM-309266005
...
12
Screw W/Washers (M5 X 20, T20 Torx Pan Hd.) HM-660344001
...
13
Top End Engine Kit HM-314621001
...
14
Gasket (Heat Dam To Cylinder) HM-903279003
...
15
Spark Plug (L7Rtc) HM-870174002
...
16
Heat Dam HM-534914001
...
17
Screw (M5 X 25 Mm, T25 Torx Pan Hd.) HM-661889006
...
18
Gasket (Carburetor To Heat Dam) HM-900711015
...
19
Carburetor Assembly, Includes #24, 31 HM-308054129
...
20
Purge Bulb HM-561635002
...
21
Choke Lever HM-591442002
...
22
Air Box Base HM-527989002
...
23
Compression Limiter HM-678515015
...
24
Choke Plate HM-590946009
...
25
Screw (M4 X 12 Mm, T20 Torx Pan Hd. T.F.) HM-660345001
...
26
Screw (M5 X 45 Mm, T25 Torx Soc. Hd.) HM-660347003
...
27
Air Filter HM-560873001
...
28
Air Box Cover W/Labels, Includes #28,29 HM-314622001
...
29
Starting Instructions Label HM-941657016
...
30
Choke Label HM-941657014
...
31
O-Ring HM-566033001

The Ryobi RY38BPEMCVNM 38cc Backpack Blower is powerful for heavy-duty outdoor cleanup tasks. Its backpack design ensures comfort during extended use. PartsWarehouse provides genuine OEM parts to help keep your blower functioning efficiently.

Why Choose Us for Ryobi RY38BPEMCVNM Backpack Blower Parts?

PartsWarehouse offers high-quality, authentic parts for your Ryobi backpack blower, with fast shipping and professional support to ensure reliable performance.



...
...
...
...
...
