Ryobi 510r 21AK510G034 Tiller

Model: 510r 21AK510G034 21AK510G034 510r

Save
 Part Not Listed?Part Not Listed?
product name

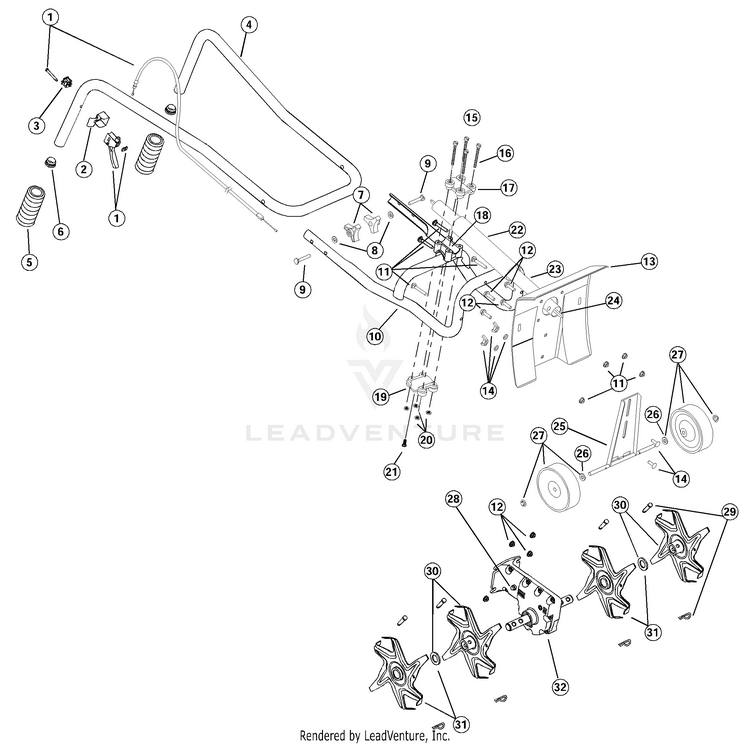

Boom And Cultivator Parts

...
...
1
ASSEMBLY, THRO (includes 2 & 3) MTD-791-182671
...
2
BRACKET, SWITCH MTD-791-182672
...
3
Ignition Switch MTD-791-182673
...
4
UPPER HANDLEBAR AS (includes 5 & 6) MTD-791-00025
...
5
GRIP, RUBBER 5" LG MTD-791-182675
...
6
CAP, PLUG BLACK MTD-791-182676
...
7
Handlebar Knob MTD-791-182677
...
8
WASH, FLAT SPECIAL MTD-4150
...
9
CARRIAGE BOLT MTD-791-182679
...
10
HNDLBAR, C MTD-791-182680
...
11
HARDWARE, MTD-791-182681
...
12
HARDWARE, MTD-791-182682
...
13
GUARD, TILLER TIRE MTD-791-182683
...
14
HARDWARE, WHEEL BR MTD-791-182684
...
15
Handle Bracket Assembly (includes 16-21) MTD-791-683295
...
16
Screw MTD-791-181811
...
17
Upper Handle Clamp MTD-791-181812
...
18
Middle Handle Clamp MTD-791-181813
...
19
Lower Handle Clamp MTD-791-181814
...
20
Nut MTD-791-181815
...
21
Anti-Rotation Screw MTD-791-145569
...
22
GRIP, MAIN HANDLE MTD-791-181575
...
23
ASSEMBLY, BOOM MTD-791-182685
...
24
Flex Shaft MTD-753-06383
...
25
BRACKET ASSEMBLY:WHEEL:CULT MTD-753-05020
...
26
WASH, FLAT .734 OD MTD-791-182216
...
27
ASSEMBLY, CULTIVATOR WHEEL (includes 26) MTD-791-180944
...
28
Hex Tap Scr. 1/4-20 x .5" Lg. MTD-710-0599
...
29
ASSEMBLY, TINE FASTENER MTD-791-147473
...
30
TINE, LT/OUTER OR MTD-791-182729
...
31
TINE, LT/INNER OR MTD-791-182730
...
32
GEARBOX ASSEMBLY COMPLETE MTD-753-04489

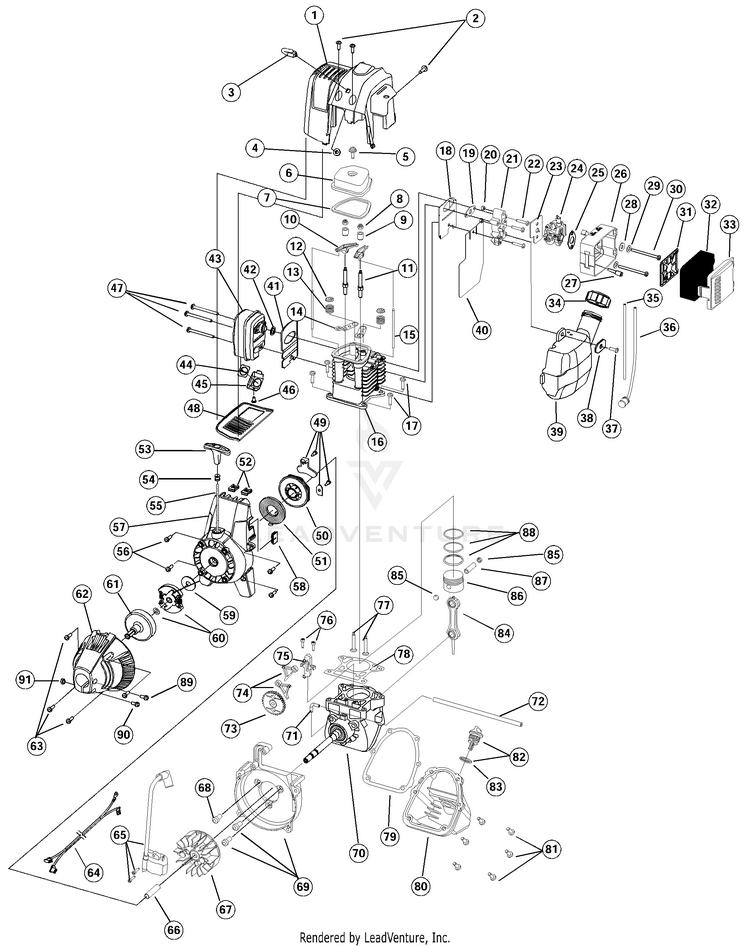

Engine Parts

...
...
1
COVER, AC- MTD-791-182650
...
2
Engine Cover Screws MTD-753-04994
...
3
GUIDE, ROPE (AC-2. MTD-791-182651
...
4
LOCKNUT, ¼ "-20 W/ MTD-791-182652
...
5
Valve Cover Screw MTD-791-181025
...
6
COVER, VALVE W/O BRE MTD-791-182098
...
7
Valve Cover Gasket MTD-791-182099
...
8
NUT, ROCKER ADJUST MTD-791-182340
...
9
PIVOT, ROCKER ARM MTD-791-182101
...
10
ARM, ROCKER MTD-791-182100
...
11
STUD, ROCKER ARM MTD-791-182341
...
12
RET, VALVE SPRING MTD-791-182103
...
13
SPRING, VALVE MTD-791-181038
...
14
GUIDE, PUSH ROD MTD-791-182102
...
15
ROD, PUSH MTD-791-181033
...
16
CYLINDER ASSEMB (includes 11-14) MTD-791-182745
...
17
SCREW, M5 X18 MTD-9052-1
...
18
Intake Baffle MTD-792-182345
...
19
Carburetor Mount Gasket MTD-791-182749
...
20
NUT-DEE HANDLE MTD-791-181034
...
21
CARBURETOR INSULATOR (includes 20) MTD-753-04029
...
22
SCR, CARBU MTD-791-182348
...
23
CARBURETOR GASKET MTD-791-182732
...
24
Carburetor with Primer MTD-791-182654
...
25
Air Filter Gasket MTD-753-04030
...
26
AIR CLEANE (includes 27, 28, 31-33) MTD-791-182655
...
27
Breather Tube Assembly MTD-791-182097
...
28
WASH, .39 x .29 X MTD-791-182656
...
29
Washer MTD-791-182409
...
30
CARB STUD MTD-792-9973
...
31
PLATE, WALBRO AIR MTD-791-182657
...
32
Air Filter MTD-791-182658
...
33
COVER, AIR CLEANER ( MTD-791-182659
...
34
FUEL CAP ASSEMBLY 43MM-6 W/O HOLE MTD-791-182271
...
35
Fuel Return Line MTD-791-182352
...
36
Fuel Pick-Up Line with Filter MTD-791-182353
...
37
SCREW, FUEL TANK BRA MTD-791-181080
...
38
RET, LOWER STAMPIN MTD-791-182354
...
39
TANK ASSEMBLY:F (includes 34-36) MTD-791-182660
...
40
BAFFLE, FU MTD-791-182356
...
41
BAFFLE, MUFFLER MTD-791-182358
...
42
MUFFLER GASKET MTD-9094-1
...
43
MUFFLER (includes 42, 44-46) MTD-791-181047
...
44
SCREEN, AC MUFFLER SPARK MTD-791-180890
...
45
COVER, SCREEN MTD-791-181045
...
46
SCREW, SCREEN COVER MTD-791-181046
...
47
SCREW, MUFFLER MTD-791-182361
...
48
COVER, MUFFLER MTD-791-182362
...
49
ASSEMBLY, PULLEY RETAIN MTD-791-182363
...
50
Recoil Pulley MTD-791-182748
...
51
SPR START MTD-753-1236
...
52
Nut Clip MTD-791-182366
...
53
Pull Handle MTD-631-04164B
...
54
Rope Guide MTD-791-611061
...
55
ROPE, STARTER .112 MTD-791-182661
...
56
Screw MTD-9054
...
57
STARTER FAN HO (includes 49-56) MTD-791-182662
...
58
GROMMET, WIRE (AC- MTD-791-182537
...
59
Washer MTD-9162-1
...
60
Clutch with Washer MTD-753-1238
...
61
Clutch Drum MTD-791-153592
...
62
CLUTCH COVER MTD-791-182664
...
63
Clutch Cover Screw MTD-791-181345
...
64
WIRE LEAD MTD-9681
...
65
Ignition Module with Screws MTD-753-04040
...
66
SPACER MTD-791-181065
...
67
Flywheel Assembly MTD-753-05240
...
68
SCREW, 1/4-20X.562 F MTD-791-181861
...
69
ASSEMBLY, SHROUD (AC-2. (includes 68) MTD-791-182743
...
70
ASSEMBLY, CRANKCASE & P (includes 71 & 72) MTD-791-182376
...
71
FITTING, BREATHER MTD-791-182375
...
72
Breather Hose MTD-791-182379
...
73
CAM GEAR MTD-791-181015
...
74
FOLLOWER, MTD-753-1242
...
75
BRACKET, CAM MTD-791-181013
...
76
SCR, CAM BRACKET MTD-791-181012
...
77
VALVE MTD-791-181040
...
78
GASKET, CYLINDER B MTD-791-182374
...
79
GASKET, OIL PAN MTD-791-181018
...
80
PAN, OIL W/ GASKET (includes 79 & 81) MTD-791-182377
...
81
Screw MTD-9054
...
82
Dipstick Assembly (includes 83) MTD-791-182378
...
83
O-Ring MTD-791-182290
...
84
ROD, CONNECTING MTD-791-181009
...
85
BUTTON, WRIST PIN MTD-791-181008
...
86
PISTON ASSEMBLY:PSTN MTD-753-1243
...
87
PIN, WRIST MTD-791-181006
...
88
RING SET:PISTON MTD-753-04801
...
89
Anit-Rotation Screw MTD-791-145569
...
90
SCREW:8-32X1.00":MAC MTD-753-1240
...
91
NUT:#8-32: MTD-753-1241
...
xx
Spark Plug Part not shown MTD-794-00082
...
xx
SHORTBLOCK ASSEMBLY (includes 5-17, 70-88); Part not shown MTD-753-04087
...
xx
Flywheel Assembly Part not shown MTD-753-05240
...
xx
Carburetor Repair Kit Part not shown MTD-753-04014
...
xx
Gasket/Diaphragm Repair Kit Part not shown MTD-753-1248
