Ryobi 320BVR 41AS320G734 (2004) Gas Blower

Model: 320BVR 41AS320G734 41AS320G734 320BVR (2004)

Save
Part Not Listed?Part Not Listed?

product name

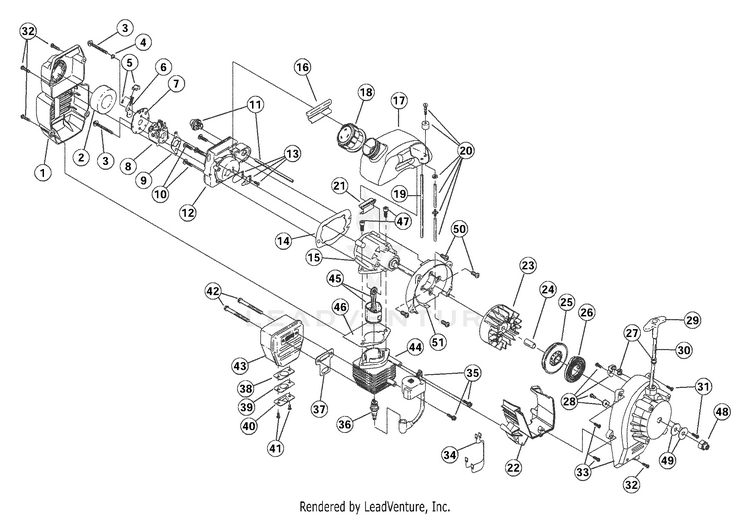

Housing Parts - Part 1

...
...
1
COVER ASSEMBLY (includes 2 & 32) MTD-753-04105

...
2
Air Cleaner Filter MTD-791-180350B

...
3
ASSEMBLY, CARBURETOR MO MTD-791-180351

...
4
SPRING WASHER .317 X .625 X .020 MTD-936-0271

...
5
ASSEMBLY, CHOKE KNOB & MTD-791-182202

...
6
CHOKE LEVER ASSEMBLY:W/ (includes 5) MTD-753-04418

...
7
PLATE ASSEMBLY:CHOKE:WV (includes 6) MTD-753-04419

...
8
CARBURETOR ASSEMBLY W/FUEL LINE (includes 9 & 20) MTD-753-04333

...
9
CARBURETOR GASKET MTD-791P610675

...
10
SCREW, 10-24X.75 T-2 MTD-791-181860

...
11
Primer and Hose Assembly MTD-791-683974B

...
12
CARBURETOR MOUNT ASSEMBLY (includes 10,13 & 14) MTD-753-1196

...
13
REED VALVE ASSEMBLY MTD-791-684451

...
14
Carburetor Mount Gasket MTD-753-1208

...
15
CCASE SERV (includes 10) MTD-753-04449

...
16
PAD, REAR MOUNT PAD MTD-791-612134

...
17
TANK ASSEMBLY:BK CAP W/ (includes 18-20) MTD-753-04310

...
18
Fuel Tank Cap MTD-791-182612

...
19
Fuel Return Line MTD-791-181086

...
20
Fuel Line Assembly MTD-791-682039

...
21
PAD, FRONT MOUNTING MTD-791-145308

...
22
EXT ASSEMBLY:SHRD (includes 32) MTD-753-05091

...
23
Flywheel Assembly MTD-753-05240

...
24

...
25
START PULLEY KIT MTD-753-04232

...
26
Recoil Spring MTD-791-613102

...
27
Rope Guide MTD-791-611061

...
28
ASSEMBLY, PULLEY RETAINER MTD-791-180930

...
29
Pull Handle MTD-631-04164B


...
31
SCREW:10-32X.5 MTD-1964

...
32
Cover Screw MTD-791-181345

...
33
ASSEMBLY, STARTER HOUSING (includes 25-32) MTD-791-181931

...
34
LEAD, WIRE 10.5" B MTD-791-182402

...
35
MODULE ASSEMBLY PULSE CARBURETOR MTD-753-04109

...
36
Spark Plug MTD-791-610311B

...
37
MUFFLER ASSEMBLY WITH GASKET MTD-753-04110

...
38
SCREEN-SPARK AR MTD-753-04312

...
39
MUFFLER ASSEMBLY MTD-753-04313

...
40
MUFFLER ASSEMBLY MTD-753-04314

...
41
MUFFLER ASSEMBLY MTD-753-04315

...
42
ASSEMBLY, MUFFLER MOUNTING BOLTS MTD-791-147575

...
43
MUFFLER ASSEMBLY WITH GASKET (includes 37-42) MTD-753-04110

...
44
Cylinder Assembly (includes 51 & 52) (includes 46 & 47) MTD-753-04814

...
45
PISTON ASSEMBLY:W/ROD/RIN MTD-753-04367

...
46
Cylinder Gasket MTD-753-04182

...
47
Cylinder Bolt MTD-791-182723

...
48
NUT, DRIVE IMPELLE MTD-791-181524

...
49

...
50
SCREW, 1/4-20X.562 F MTD-791-181861

...
51
ASSEMBLY, SHROUD ASSEMB (includes 50) MTD-791-153520

...
xx
KIT-ENGINE GASKET Item Not Shown MTD-753-04183

...
xx
O.E.M. Carburetor Repair Kit Item Not Shown MTD-791-180602

...
xx
Gasket Diaphragm Repair Kit Item Not Shown MTD-791-181069

...
xx
Piston Ring Item Not Shown MTD-753-1209

...
xx
SHORTBLOCK ASSEMBLY (includes 10, 15, 36, 44-46 & 51) Item Not Shown MTD-753-04181

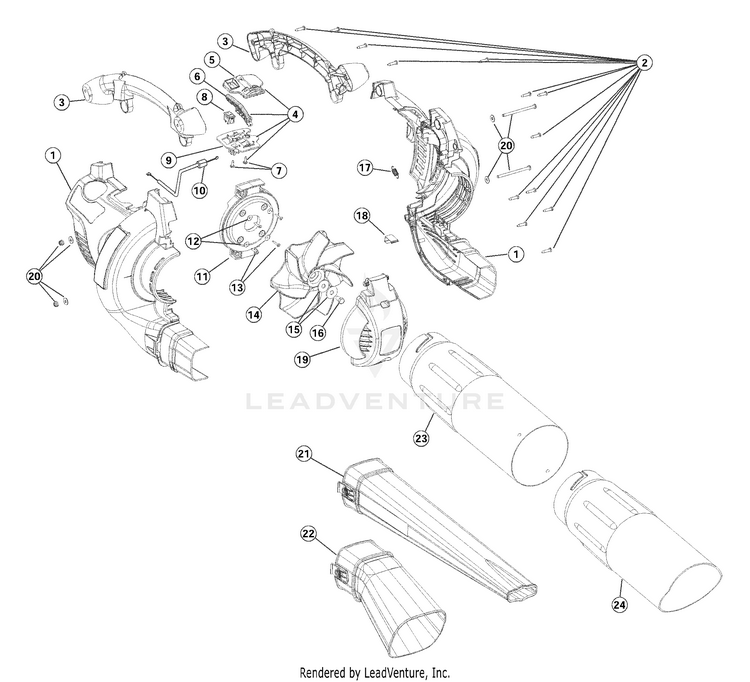

Housing Parts - Part 2

...
...
1
ENG COVER ASSEMBLY (includes 2) MTD-753-04450


...
3
BLOWER HANDLE ASSEMBLY (includes 2) MTD-753-05047

...
4
LEVER ASSEMBLY:THRO (includes 5-7 & 9) MTD-791-182419

...
5
LEVER ASSEMBLY:THRO MTD-791-182420

...
6
Throttle Control Lever MTD-791-00048

...
7
SCREW, 6X.375X1/2 PL MTD-791-182423

...
8
Rocker Switch Assm MTD-791-182405

...
9
LEVER ASSEMBLY:THRO MTD-791-182422

...
10
THROTTLE CABLE MTD-791-00049

...
11
ADAPTER-ENG MOU (includes 12 & 13) MTD-791-182408

...
12

...
13
SCREW, 10-9X1.00 PH MTD-791-181903

...
14
Impeller Blade MTD-731-04275

...
15
HDWE-IMPELLER MTD-753-04482


...
17
SPRING-DOOR MTD-753-04456

...
18
Vacuum Door Lock MTD-732-04092A

...
19

...
20
MOUNTING PLATE HARDWARE MTD-791-182424

...
21
TUBE, BLOWER (HIGH MTD-791-182647

...
22
Vacuum Bag Adaptor MTD-791-182477

...
23
TUBE, UPPER VACUUM (ELEC BLWR- MTD-791-180466

...
24
Lower Vacuum Tube MTD-791-180467

...
xx
CLAMP, BAG NYLON Item Not Shown MTD-791-612930

...
xx
BAG ASSEMBLY-VAC W/BAG & CABLE TIE (includes 23, Bag, & Cable Tie) Item Not Shown MTD-753-04458

...
xx
Shoulder Strap Assembly Item Not Shown MTD-791-682075B
