Ryobi 320BVR 41AS320G034 (2004) Gas Blower

Model: 320BVR 41AS320G034 41AS320G034 320BVR (2004)

Save
 Part Not Listed?Part Not Listed?
product name

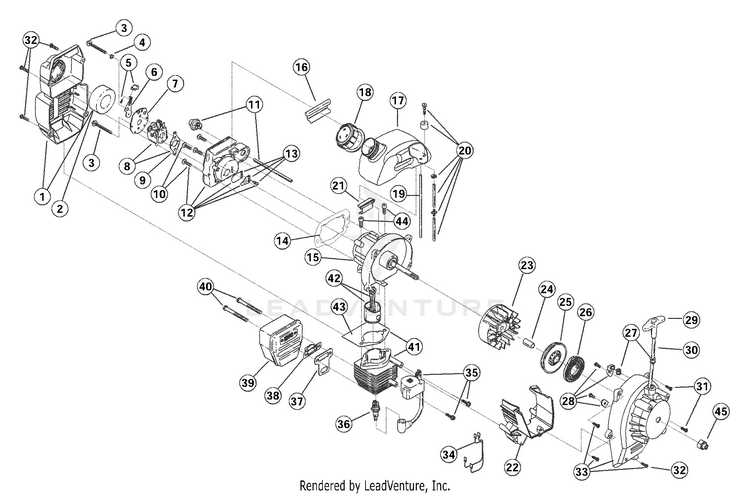

Housing Parts - Part 1

...
...
1
Air Cleaner Cover Assembly (includes 2 & 38) (includes 2 & 32) MTD-753-04511
...
2
Air Cleaner Filter MTD-791-180350B
...
3
ASSEMBLY, CARBURETOR MO MTD-791-180351
...
4
SPRING WASHER .317 X .625 X .020 MTD-936-0271
...
5
ASSEMBLY, CHOKE KNOB & MTD-791-182202
...
6
CHOKE LEVER ASSEMBLY:W/ (includes 5) MTD-753-04418
...
7
PLATE ASSEMBLY:CHOKE:WV (includes 6) MTD-753-04419
...
8
Carburetor Assembly (includes 9 & 20) MTD-753-04408
...
9
CARBURETOR GASKET MTD-791P610675
...
10
SCREW, 10-24X.75 T-2 MTD-791-181860
...
11
Primer and Hose Assembly MTD-791-683974B
...
12
CARBURETOR MOUNT ASSEMBLY (includes 10,13 & 14) MTD-753-1196
...
13
REED VALVE ASSEMBLY MTD-791-684451
...
14
Carburetor Mount Gasket MTD-753-1208
...
15
CRANKCASE & PSHF ASSEMBLY (includes 10) MTD-753-04328
...
16
PAD, REAR MOUNT PAD MTD-791-612134
...
17
TANK ASSEMBLY:BK CAP W/ (includes 18-20) MTD-753-04310
...
18
Fuel Tank Cap MTD-791-182612
...
19
Fuel Return Line MTD-791-181086
...
20
Fuel Line Assembly MTD-791-682039
...
21
PAD, FRONT MOUNTING MTD-791-145308
...
22
EXT ASSEMBLY:SHRD (includes 32) MTD-753-05091
...
23
Flywheel Assembly MTD-753-05240
...
24
SPACER MTD-750-04245
...
25
START PULLEY KIT MTD-753-04232
...
26
Recoil Spring MTD-791-613102
...
27
Rope Guide MTD-791-611061
...
28
ASSEMBLY, PULLEY RETAINER MTD-791-180930
...
29
Pull Handle MTD-631-04164B
...
30
Rope MTD-791-613103
...
31
SCREW:10-32X.5 MTD-1964
...
32
Cover Screw MTD-791-181345
...
33
ASSEMBLY, STARTER HOUSING (includes 25-32) MTD-791-181931
...
34
LEAD, WIRE 10.5" B MTD-791-182402
...
35
MODULE ASSEMBLY WITH HARDWARE MTD-753-04324
...
36
Spark Plug MTD-791-610311B
...
37
Muffler Gasket MTD-753-04619
...
38
SCRN:SPK ARST:A-31 MTD-791-182747
...
39
MUFFLER ASM CAT NLAUD (includes 37, 38 & 40) MTD-753-05169
...
40
ASSEMBLY, MUFFLER MOUNTING BOLTS MTD-791-147575
...
41
CYL ASSEMBLY:3 (includes 43 & 44) MTD-753-04377
...
42
PISTON ASSEMBLY:W/ROD/RIN MTD-753-04367
...
43
CYLINDER GASKET MTD-721-04053
...
44
Cylinder Bolt MTD-791-182723
...
45
NUT, DRIVE IMPELLE MTD-791-181524
...
xx
GASKET KIT Item Not Shown MTD-753-04379
...
xx
O.E.M. Carburetor Repair Kit Item Not Shown MTD-791-180602
...
xx
Gasket Diaphragm Repair Kit Item Not Shown MTD-791-181069
...
xx
Piston Ring Item Not Shown MTD-753-1209
...
xx
SHBLK 31CC (includes 10, 15, 36, 41-44) Item Not Shown MTD-753-04380

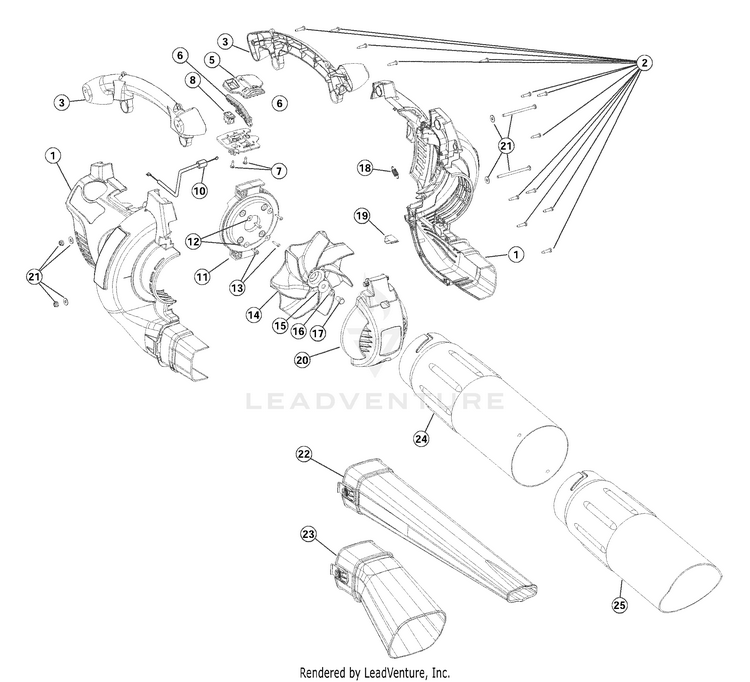

Housing Parts - Part 2

...
...
1
ENG COVER ASSEMBLY (includes 2) MTD-753-04450
...
2
Screw MTD-791-181345
...
3
BLOWER HANDLE ASSEMBLY (includes 2) MTD-753-05047
...
4
LEVER ASSEMBLY:THRO (includes 5-7 & 9) MTD-791-182419
...
5
LEVER ASSEMBLY:THRO MTD-791-182420
...
6
Throttle Control Lever MTD-791-00048
...
7
SCREW, 6X.375X1/2 PL MTD-791-182423
...
8
Rocker Switch Assm MTD-791-182405
...
9
LEVER ASSEMBLY:THRO MTD-791-182422
...
10
THROTTLE CABLE MTD-791-00049
...
11
ADAPTER-ENG MOU (includes 12 & 13) MTD-791-182408
...
12
Washer MTD-791-182409
...
13
SCREW, 10-9X1.00 PH MTD-791-181903
...
14
Impeller Blade MTD-731-04275
...
15
HDWE-IMPELLER MTD-753-04482
...
16
L-Wash. 3/8" I.D. MTD-736-0169
...
17
Bolt MTD-791-182414
...
18
SPRING-DOOR MTD-753-04456
...
19
Vacuum Door Lock MTD-732-04092A
...
20
DOOR-VAC MTD-753-04454
...
21
MOUNTING PLATE HARDWARE MTD-791-182424
...
22
TUBE, BLOWER (HIGH MTD-791-182647
...
23
Vacuum Bag Adaptor MTD-791-182477
...
24
TUBE, UPPER VACUUM (ELEC BLWR- MTD-791-180466
...
25
Lower Vacuum Tube MTD-791-180467
...
xx
CLAMP, BAG NYLON Item Not Shown MTD-791-612930
...
xx
BAG ASSEMBLY-VAC W/BAG & CABLE TIE (includes 23, Bag, & Cable Tie) Item Not Shown MTD-753-04458
...
xx
Shoulder Strap Assembly Item Not Shown MTD-791-682075B
