Ryobi 31AE660F013 (2001) Snow Thrower

Model: 31AE660F013 (2001)

Save
 Part Not Listed?Part Not Listed?
product name

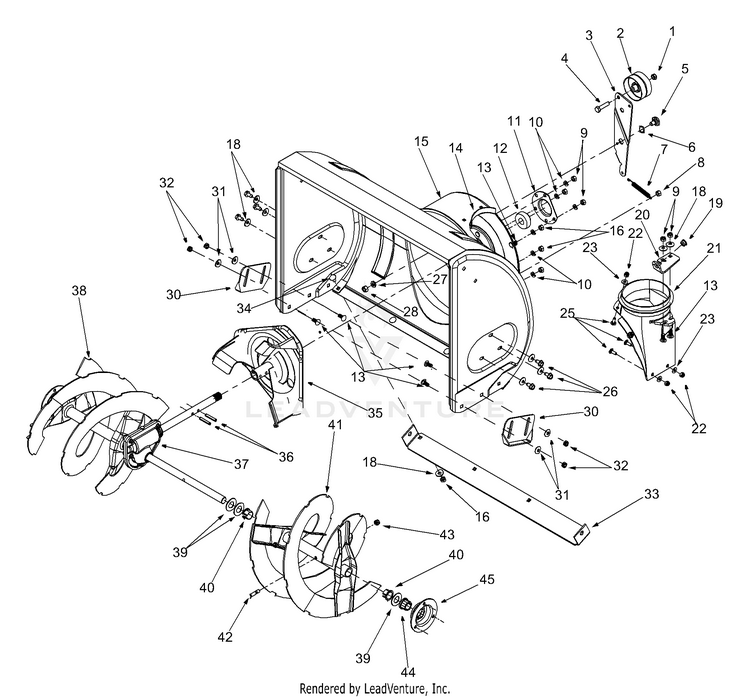

Blower Housing

...
...
1
Lock Jam Nut 3/8-24 MTD-712-0116
...
2
Flat Idler MTD-756-0178
...
3
Auger Idler Brkt. MTD-984-0064-0637
...
4
Hex Cap Screw 3/8-24 x 1.50 MTD-710-0459A
...
5
Shoulder Screw MTD-738-0281
...
6
Wave Washer MTD-736-0174
...
7
Ext. Spring 3.6" Lg. MTD-932-0611
...
8
Hex L-Nut 5/16-18 Thd. MTD-712-3009
...
9
HEX NUT 5/16-18 MTD-712-3010
...
10
Lock Wash. 5/16" I.D. MTD-936-0119
...
11
Bearing Housing MTD-05931A
...
12
Flange Ball Bearing MTD-941-0309
...
13
Carriage Bolt 5/16-18 x .75 MTD-710-0451
...
14
Reinforcement Chute MTD-705-5226
...
15
24" HOUSING ASSEMBLY MTD-684-0039D
...
xx
26" HOUSING ASSEMBLY MTD-684-0040D
...
xx
28" HOUSING ASSEMBLY MTD-684-0041D
...
16
HEX NUT 5/16-18 MTD-712-3010
...
18
Bell Washer MTD-736-0242
...
19
BUSHING .380 ID MTD-941-0475
...
20
Chute Crank Bracket MTD-784-5647-0637
...
21
Adapter Chute MTD-731-1379D
...
22
Hex Lock Nut 1/4-20 MTD-712-0324
...
23
Flat Washer MTD-736-0463
...
25
Carriage Screw 1/4-20 x .75 MTD-710-0703
...
26
Screw, 5/16-18 x .625 MTD-710-0604A
...
27
Lock Washer 3/8 MTD-736-0169
...
28
Hex Nut 3/8-16 MTD-712-0798
...
30
Snow Shoe MTD-784-5580
...
31
Bell Washer MTD-736-0242
...
32
HEX NUT 5/16-18 MTD-712-3010
...
33
Shave Plate MTD-790-00120-0637
...
xx
Shave Plate: Auger 26" MTD-790-00121-0637
...
xx
Shave Plate: Auger 28" MTD-790-00118-0637
...
34
Carriage Bolt 5/16-18 x.62 MTD-710-0260A
...
35
12" IMPELLER (3 BLADE) (POWDER BLACK) MTD-684-06276-0637
...
36
Pin MTD-715-0114
...
37
GEARBOX ASSEMBLY 24" W FITTING MTD-918-0414B
...
xx
Gear Assembly: Auger 26" MTD-918-0415B
...
xx
Gear Assembly: Auger 28" MTD-918-0416B
...
38
24" SPIRAL ASSEMBLY (RH) (POWDER BLACK) MTD-684-04180-0637
...
xx
Spiral Assembly: RH 26" MTD-684-04182-0637
...
xx
Spiral Assembly: RH 28" MTD-684-04184-0637
...
39
Flat Washer MTD-736-0188
...
40
FLANGE BUSHING MTD-741-0493C
...
41
Spiral 24" LH MTD-684-04181-0637
...
xx
26" SPIRAL ASSEMBLY (LH) (POWDER BLACK) MTD-684-04183-0637
...
xx
28" SPIRAL ASSEMBLY (LH) (POWDER BLACK) MTD-684-04185-0637
...
42
Shear Bolt 5/16-18 x 1.5 MTD-710-0890A
...
43
Lock Nut 5/16-18 MTD-712-0429
...
44
Hex Flange Bearing MTD-941-0245
...
45
Bearing Housing MTD-784-5618A-0637

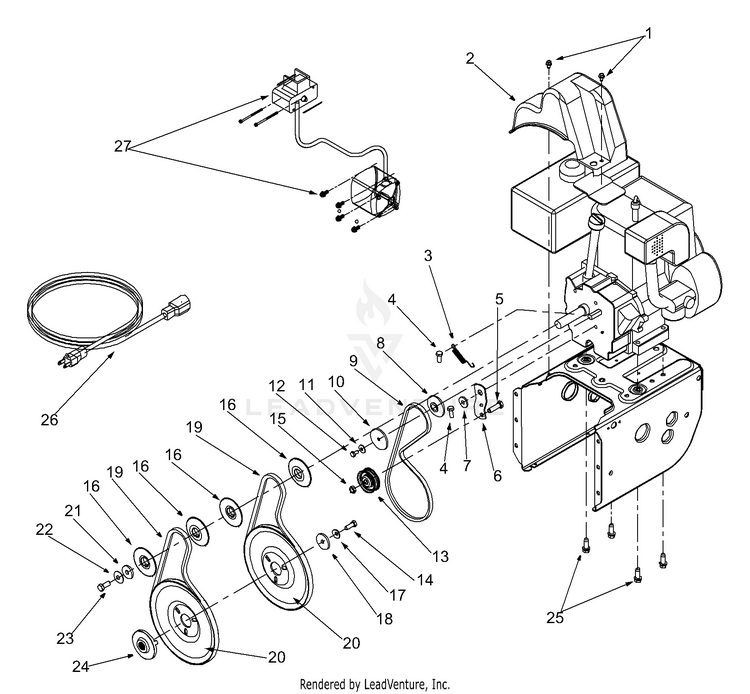

Engine And V-Belts

...
...
1
Hex Washer Screw 1/4-20 x .625 MTD-710-1652
...
2
Belt Cover MTD-731-1324
...
3
Extension Spring MTD-932-0710
...
4
Hex Screw 5/16-24 x .75 MTD-710-0627
...
5
Hex Cap Screw 3/8-16 x 1.25 MTD-710-3005
...
6
BRACKET-IDLR- MTD-05896A
...
7
Shoulder Spacer MTD-748-0234
...
8
HALF PULLEY MTD-956-0987
...
9
V - Belt MTD-954-0346
...
10
HALF PULLEY MTD-756-0986
...
11
SPRING WASHER BELL MTD-736-0270
...
12
HEX SCREW 1/4-28 x .50 GR5 MTD-710-0230
...
13
Flat Idler MTD-756-0313
...
14
SCREW 5/16-24X.875 GR5 MTD-710-1245
...
15
Lock Jam Nut 3/8-16 MTD-712-0181
...
16
Pulley Half MTD-756-0569
...
17
Bell Washer MTD-736-0242
...
18
Flat Washer MTD-736-0505
...
19
BELT: 3V X 35.00 LG MTD-954-0430C
...
20
Auger Pulley MTD-756-0967
...
21
Flat Washer 3/8 x 1.25 OD MTD-736-0247
...
22
Bell Washer MTD-736-0331
...
23
Hex Cap Screw 3/8-24 MTD-710-0696
...
24
Adapter Pulley MTD-948-0360
...
25
Hex Screw 3/8-16 x 1.0 MTD-710-0654A
...
26
3-Prong Extension Cord MTD-929-0071B
...
27
STARTER MOTOR MTD-TC-33329H

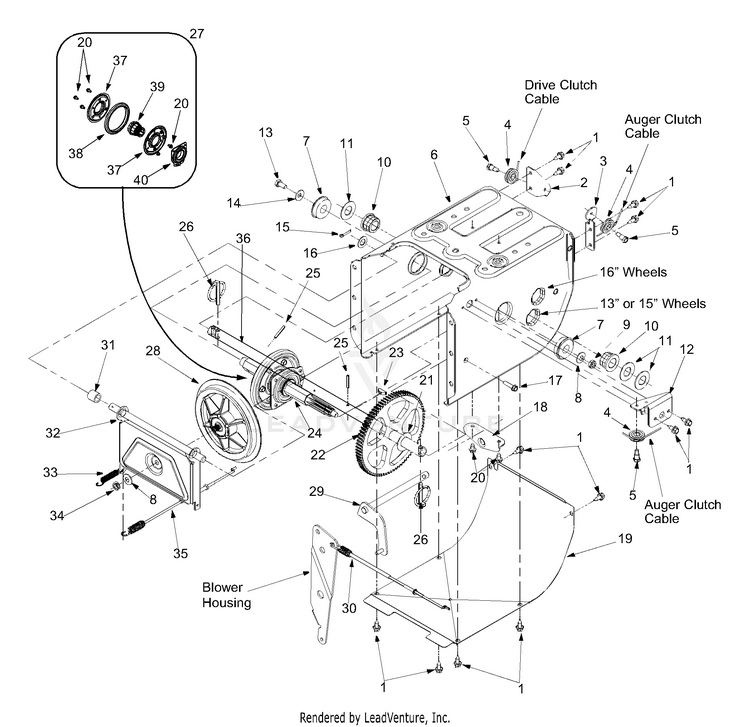

Frame Assembly

...
...
1
Hex Screw MTD-710-1652
...
2
DRIVE GUIDE BRACKET MTD-784-5688
...
3
AUGER GUIDE BRACKET MTD-784-5687
...
4
Roller Cable MTD-756-0625
...
5
Shlder Screw, .375 ID x 1/4-14 MTD-738-0924A
...
6
FRAME MTD-684-0030
...
7
BALL BEARING MTD-941-0563
...
8
Bell Washer MTD-736-0105
...
9
Lock Jam Nut MTD-712-0116
...
10
Hex Flange Brg. .752" I.D. MTD-941-0598
...
11
Flat Washer MTD-736-0188
...
12
GUIDE BRACKET MTD-784-5689A-0637
...
13
Lock Hex Screw MTD-710-0538
...
14
Bell Washer .340 ID x .872 OD MTD-736-0242
...
15
Cotter Pin MTD-714-0474
...
16
Flat Washer .536 ID x .930 OD MTD-736-0160
...
17
Hex Washer Screw 1/4-20 MTD-710-0788
...
18
Frame Shift Bracket MTD-784-5590
...
19
FRAME COVER MTD-784-5638A
...
20
Hex Washer Screw 1/4-20 MTD-710-0599
...
21
Flat Washer .760 ID x .50 OD MTD-736-0351
...
22
Gear MTD-717-1445
...
23
Key MTD-714-0126
...
24
7-Tooth Shaft MTD-917-04094
...
25
Spring Roll Pin 1.12" Lg. MTD-915-0249
...
26
Click Pin MTD-714-0143A
...
27
Wheel Assembly Friction MTD-984-0042C
...
28
Friction Wheel Disc Ass'y. MTD-956-0012A
...
29
SHIFT ROD ASSEMBLY MTD-684-04243
...
30
Cable-Auger Clutch MTD-946-0897
...
31
Spacer MTD-748-0190
...
32
BRACKET ASSEMBLY MTD-984-0021-0637
...
33
Ext. Spring .38n O.D. x 2.5" MTD-932-0264
...
34
Jam Nut 3/8-24 MTD-712-0711
...
35
Cable-Drive Clutch MTD-946-0898
...
36
Axle 13" Wheels Model E MTD-738-0869
...
xx
AXLE .750X24.5 Model F, G MTD-738-0830
...
37
Wheel Assembly Friction MTD-984-0042C
...
38
Rubber Only MTD-935-0243B
...
39
Wheel Assembly Friction MTD-984-0042C
...
40
FRICTION WHEEL BEARING ASSEMBLY MTD-618-0063

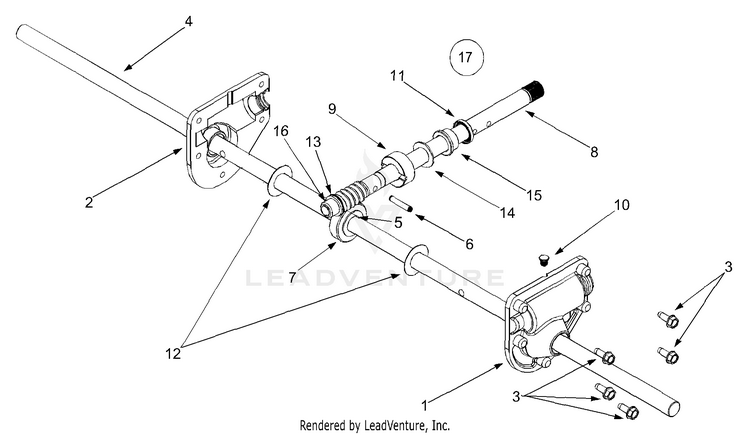

Gear Assembly

...
...
1
RH Housing MTD-918-0123A
...
2
LH Housing MTD-918-0124A
...
3
Hex Screw 1/4-20 x .75 MTD-710-0642
...
4
24"AUGER SHAFT MTD-711-0908A
...
xx
26"AUGER SHAFT MTD-711-0909A
...
xx
Spiral Axle 28" MTD-711-0910A
...
5
KEY 3/16 x 5/8 H MTD-914-0161
...
6
Pin-Spiral MTD-715-0143
...
7
WORM GEAR 20T MTD-917-04861
...
8
IMPELLER SHAFT MTD-717P0526
...
9
Thrust Collar MTD-718-0186
...
10
Grease Plug MTD-721-0325
...
11
Grease Seal MTD-721-0327
...
12
Flat Washer .76 x 1.5 x .030 MTD-736-0351
...
13
Flat Washer .508 x 1.0 x .020 MTD-736-0369
...
14
Flat Washer .76 x 1.5 x .060 MTD-736-0445
...
15
Flange Bearing .75 x 1.0 x .59 MTD-741-0662
...
16
Flange Bearing .75 x 1.0 x .925 MTD-741-0663
...
17
GEARBOX ASSEMBLY 24" W FITTING MTD-918-0414B
...
xx
Gear Assembly: Auger 26" MTD-918-0415B
...
xx
Gear Assembly: Auger 28" MTD-918-0416B

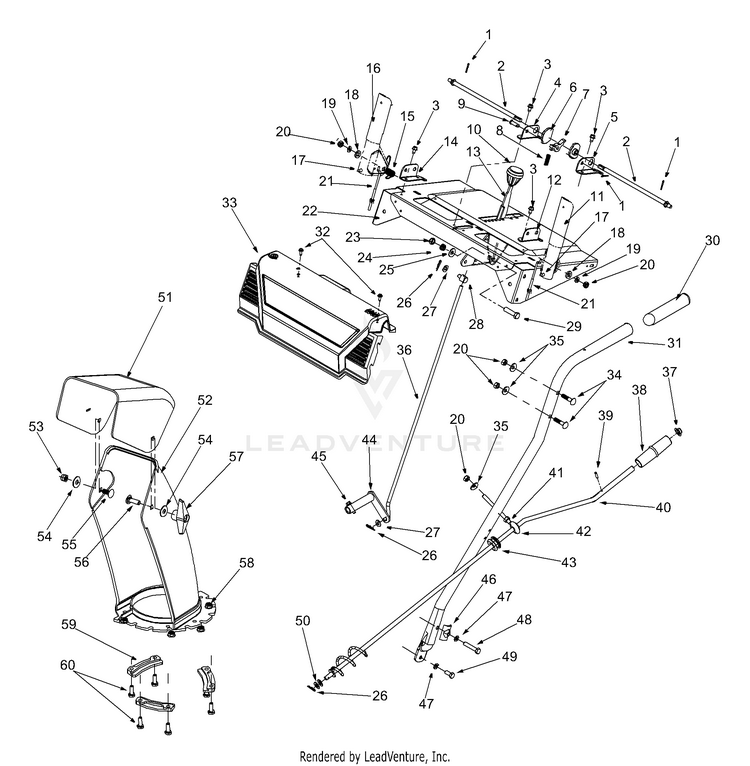

Handle Assembly

...
...
1
Cotter Pin MTD-714-0507
...
2
Rod MTD-747-0877
...
3
Hex Washer Screw 1/4-20 x .5 MTD-710-0599
...
4
Brkt., Handle Support - RH MTD-784-5680-0637
...
5
HANDLE BRACKET (LH) MTD-784-5679-0637
...
6
Cam Lock Handle MTD-748-0362
...
7
Handle Lock Pawl MTD-948-0363
...
8
Compression Spring MTD-732-0145
...
9
Clevis Pin MTD-711-0653
...
10
Knob MTD-920-0232
...
11
HANDLE-ENGAGEMENT (LH) MTD-684-0037B
...
12
Handle Support Bracket - LH MTD-784-5681
...
13
KIT-SHIFT HANDLE:S MTD-753-05395
...
14
Brkt., Handle Support - RH MTD-784-5682-0637
...
15
Torsion Spring MTD-732-0746
...
16
HANDLE-ENGAGEMENT (RH) MTD-684-0036A
...
17
Rubber Bumper MTD-735-0199A
...
18
Washer MTD-736-0509
...
19
Lock Wash. 5/16" I.D. MTD-936-0119
...
20
HEX NUT 5/16-18 MTD-712-3010
...
21
Cable "Z" Fitting MTD-946-0778
...
22
HANDLE PANEL ASSEMBLY MTD-684-0103A
...
23
Jam Lock Nut 3/8-24 MTD-712-0116
...
24
Compression Spring MTD-732-0193
...
25
Bell Washer MTD-736-0105
...
26
Cotter Pin MTD-714-0104
...
27
FLAT WASHER MTD-736-0275
...
28
Engagement Ferru MTD-911-0677
...
29
Hex Cap Screw 3/8-24 x 1.50 MTD-710-0459A
...
30
Grip MTD-720-0274
...
31
HANDLE (RH) MTD-749-0910C-0637
...
xx
HANDLE (LH) MTD-749-0911B
...
32
Special Screw, #10-16 x .625 MTD-710-04669
...
33
Handle Panel MTD-731-1391
...
xx
HANDLE PANEL (BLACK) MTD-931-1393
...
34
Carriage Bolt 5/16-18 x 1.50 MTD-710-0262
...
35
Bell Washer .340 ID x .872 OD MTD-736-0242
...
36
Shift Rod MTD-747-0798A
...
37
Push Cap MTD-726-0100
...
38
Chute Knob MTD-720-0201A
...
39
Rolled Pin, 1/8 x .63 MTD-915-0138
...
40
Chute Crank Ass'y MTD-984-0022
...
41
HEX NUT 5/16-18 MTD-712-3010
...
42
EYEBOLT MTD-747-0697
...
43
Rubber Grommet MTD-735-0234
...
44
SHIFT ARM ASSEMBLY (POWDER BLACK) MTD-684-0008A-0637
...
45
Hex Washer Screw 1/4-20 x 1.0 MTD-710-0788
...
46
Handle Tab MTD-984-5599
...
47
Lock Wash. 5/16" I.D. MTD-936-0119
...
48
Hex Cap Screw 5/16-18 x 1.75 MTD-710-3180
...
49
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
50
Flat Washer MTD-736-0185
...
51
UPPER CHUTE (W/LBL MANUAL TILT) MTD-731-04426C
...
52
Lower Chute MTD-731-1300E
...
53
Hex Lock Nut 5/16-18 MTD-712-0429
...
54
5/16 Washer MTD-736-0159
...
55
Carriage Bolt 5/16-18 x .75 MTD-710-0451
...
56
Carriage Screw 5/16-18 x 1.0 MTD-710-0276
...
57
Knob MTD-720-0284
...
58
LOCK NUT 1/4 MTD-912-3027
...
59
Flange Keeper MTD-731-0851A
...
60
Hex Cap Screw 1/4-20 x .75 MTD-710-3015

The Ryobi 31AE660F013 2001 Snow Thrower offers powerful snow-clearing performance and is built to withstand harsh winter conditions. PartsWarehouse supplies genuine OEM parts to ensure your snow thrower remains in excellent working condition, season after season.

Why Choose Us for Ryobi 31AE660F013 2001 Snow Thrower Parts?

PartsWarehouse provides high-quality, original parts for your Ryobi snow thrower. It offers fast shipping and excellent support to help you maintain peak performance during winter.



...
...
...
...
...
