Ryobi 31AE162-013 (2002) Snow Thrower

Model: 31AE162-013 (2002)

Save
 Part Not Listed?Part Not Listed?
product name

Accessories & Kits

...
...
xx
Electric Start Kit (fits models with a two-cycle Tecumseh 3 HP or 3.5 HP engine) MTD-OEM-390-697
...
xx
STARTER KI (fits models with a two-cycle Tecumseh 4.5 HP - 5 HP engine) MTD-OEM-390-996
...
xx
OIL:50:1 2 CYCLE (contains six 2.6 oz. bottles) MTD-490-000-0047
...
xx
Shave Plate (includes replacement shave plate and hardware) MTD-753-0451
...
xx
Auger Rubber Paddle Kit (includes replacement rubber paddles and hardware) MTD-753-0613

General Assembly

...
...
1
DASH PANEL 21" SNT (Includes Plastic Cup for Mitten Grip) MTD-684-0054A
...
2
Spacer.325" I.D. Model 140 MTD-950-0589
...
3
Special Screw, #10-16 x .625 MTD-710-04669
...
4
Hex Flange Screw, 5/16-18 x 1.25 MTD-710-1090
...
5
Screw, #10-16 x .375 MTD-710-1268
...
6
Self-tapping Screw, 1/4-20 x .625 MTD-710-1652
...
7
HEX NUT 5/16-18 MTD-712-3010
...
8
V-Belt 1/2 x 35.0" Lg. Model 150, E150, E162, E172 MTD-954-0101A
...
xx
Wheel Drive Belt Model 140 MTD-954-0367
...
9
Pulley Half, .625 x 2.25 MTD-956-0416B
...
10
Auger Drive Pulley MTD-756-0475
...
11
WHEEL ASSEMBLY W/TIRE MTD-734-1176
...
12
Key MTD-925-0201
...
13
Ignition Key w/ Plastic Cover MTD-725-1341B
...
14
IGNITION SWITCH NUT Model E162, E172 MTD-925-1346
...
xx
Jam Nut, 5/8-32-Model 140, 150, E150 Model 140, 150, E150 MTD-712-0252
...
15
Ignition Switch Cap MTD-725-1347
...
16
Ignition Switch MTD-925-1425
...
17
CHUTE CRANK BRACKET Model 140 MTD-784-5178A
...
18
COVER-CHOK MTD-731-1089A
...
19
SPARK PLUG CAP MTD-731-1133C
...
20
HANDLE-RECOIL MTD-7510009630
...
21
Fuel Line Hose MTD-751-0535
...
22
Lock Wash. 5/16" I.D. MTD-936-0119
...
23
SPACER MTD-750-0716A
...
24
Internal Lock Washer, 5/8 x 1.058 x .046 MTD-736-0225
...
25
FUEL TANK Model 140 MTD-TC-32660A
...
26
FUEL CAP MTD-TC-410240
...
27
FUEL TANK 2 QT. Model 150, E150, E162, E172 MTD-751-0540A
...
28
TANK CAP (50:1 Red Print) MTD-751-0603B
...
29
HANDLE-MITTEN GRIP MTD-7510009636
...
30
LINE-PRIMER MTD-TC-32180C
...
31
Primer MTD-TC-570682A
...
32
21" HOUSING MTD-684-0114A
...
33
CARRIAGE BOLT 1/4-20X.50" MTD-710-05177
...
34
Cap Screw, 3/8-24 x 1.25 MTD-710-0191
...
35
Trus Machine Screw, 5/16-18 x .75 MTD-710-0323
...
36
Hex Index Washer Screw, 1/4-14 x .375 MTD-710-0352
...
37
Carriage Bolt, 5/16-18 x .75 MTD-710-0451
...
38
Self-tapping Screw 1/4-20 x .75 MTD-710-0642
...
39
Self-tapping Screw 3/8-16 x .50 MTD-710-0773
...
40
Self-tapping Screw, 1/4-14 x .625 MTD-710-0896
...
41
Hex Tap Scr. 1/4-20 x .5" Lg. MTD-710-0599
...
42
WHEEL AXLE SERVICE KIT MTD-753-05480
...
43
Jam Lock Nut, 3/8-24 MTD-712-0116
...
44
LOCK NUT 1/4 MTD-912-3027
...
45
BRACKET-EN Model 140 MTD-784-5177
...
46
Shave Plate, 2.66 x 19.88 MTD-731-1033
...
47
Extension Spring, .33 x 1.12 MTD-732-0357A
...
48
Flat Washer, .51 x .75 x .033 MTD-736-0108
...
49
Flat Washer, .265 x .938 x .120 MTD-736-0176
...
50
Belleville Washer, .340 x .872 MTD-736-0242
...
51
Flat Washer, .51 x 1.0 x .125 MTD-736-0326
...
52
L-Wash. 1/4" I.D. MTD-936-0329
...
53
BUSHING .380 ID MTD-941-0475
...
54
BALL BEARING MTD-941-0600
...
55
Cable, 41.78" (Includes end spring) MTD-946-0910A
...
56
Shoulder Spacer MTD-748-0234
...
57
Hose Clamp, .49 MTD-726-0205
...
58
BUSHING .380 ID MTD-941-0475
...
59
Flat Idler Pulley, 1.88 x .50 x 2.12 MTD-756-0313
...
60
Hi-Lo Self-tapping Screw, 1/4-15 x .75 MTD-710-0895
...
61
BEARING CUP (POWDER BLACK) MTD-784-5174-0637
...
62
KIT-IDLER/BRAKE BRACKET MTD-753-05156
...
63
BELT COVER SINGLE (POWDER BLACK) MTD-790-00045C-0637
...
64
AUGER ASSEMBLY MTD-984-04027A
...
65
CRANK BRACKET MTD-784-5720-0637
...
66
2 PRONG EXTENSION CORD MTD-629-0236
...
67
FUEL TANK BRACKET Model 150, E150, E162 & E172 MTD-705-5139A-0637
...
68
Hex Cap Screw, 5/16-24 x .75 MTD-710-0157
...
69
Hex Cap Screw, 1/4-20 x .50 MTD-710-3013
...
70
Hex Cap Screw, 5/16-24 x .625 -Model 150, E150, E162, E172 Model 150, E150, E162, E172 MTD-710-3025
...
xx
SCREW 5/16-18 x 1.5 LG Model 140 MTD-710-0805A
...
71
CLAMP-MTG (For starter cable) MTD-726-0152
...
72
Rubber Paddle MTD-931-0782A
...
73
Rubber Spiral - L.H. MTD-931-0780A
...
74
CHUTE CRANK ASSEMBLY Model 140 MTD-784-5344

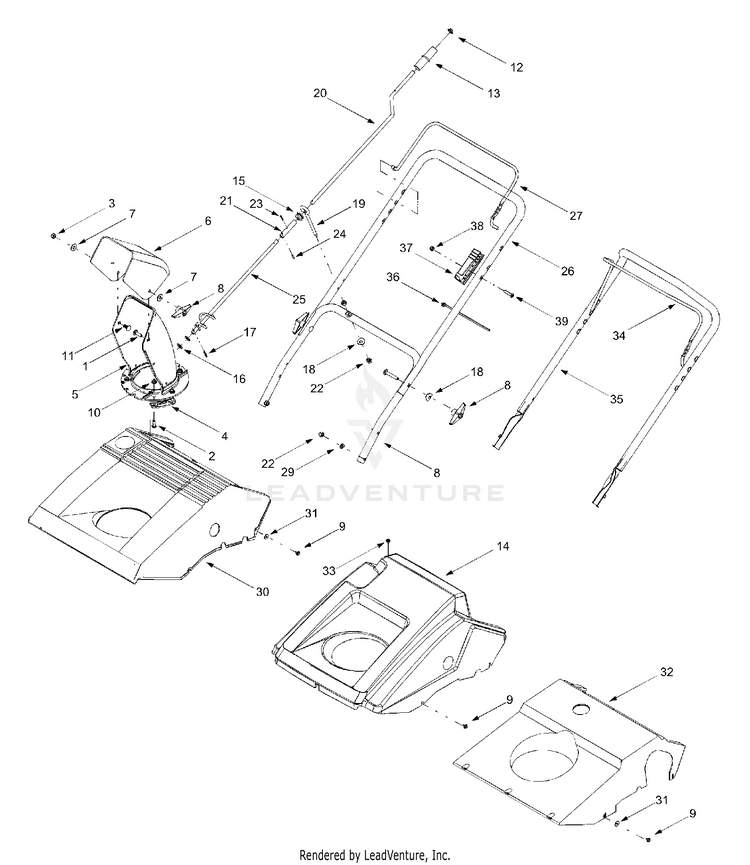

Handle & Chute

...
...
1
Splined Carriage Screw, 5/16-18 x 1.0 MTD-710-0276
...
2
Hex Cap Screw, 1/4-20 x.75 MTD-710-3015
...
3
Hex L-Nut 5/16-18 Thd. MTD-712-3009
...
4
Chute Flange Keeper MTD-731-0851A
...
5
LOWER CHUTE MTD-731-0915B
...
6
UPPER CHUTE (W/LBL MANUAL TILT) MTD-731-04426C
...
7
Washer, .349 x .879 x .063 MTD-736-0159
...
8
Wingnut Knob, 5/16-18 MTD-720-0284
...
9
Screw, #10-16 x .375 MTD-710-1268
...
10
LOCK NUT 1/4 MTD-912-3027
...
11
Carriage Bolt, 5/16-18 x .75 MTD-710-0451
...
12
Push Cap, 3/8 MTD-726-0100
...
13
Knob, 1.0 x 3.2 MTD-720-0201A
...
14
SHROUD - BLACK MTD-731-1765
...
15
Rubber Grommet, .44 x .94 x .50 MTD-735-0234
...
16
Flat Washer, .375 x .738 x .063 MTD-736-0185
...
17
Internal Cotter Pin, .072 x 1.12 MTD-714-0104
...
18
Saddle Washer, .320 x .93 MTD-736-0451
...
19
EYEBOLT MTD-747-0697
...
20
Upper Chute Crank MTD-747-0737-0637
...
21
SPACER-.38IDX.500 x 2.50LG MTD-950-0785
...
22
HEX NUT 5/16-18 MTD-712-3010
...
23
Cotter Pin, 3/32 x .75 MTD-714-0507
...
24
Rolled Pin, 1/8 x .63 MTD-915-0138
...
25
LOWER CHUTE CRANK (POWDER BLACK) MTD-684-0126-0637
...
26
UPPER HANDLE MTD-749-0705
...
27
AUGER BAIL MTD-747-0946
...
?28
LOWER HANDLE MTD-749-0796B
...
29
Lock Wash. 5/16" I.D. MTD-936-0119
...
30
SHROUD MTD-731-1087
...
31
Flat Washer, .194 x .62 x .063 MTD-736-0400
...
32
SHROUD MTD-731-0702
...
33
Special Screw, #10-16 x .625 MTD-710-04669
...
34
Auger Bail (Control Handle), Gullwing-style MTD-747-0956
...
35
UPPER HANDLE MTD-749-0711A
...
xx
Foam Grip, 22" (not included with handle) MTD-720-0295
...
36
Cable Tie MTD-725-0157
...
37
Control (Cable) Housing MTD-746-0883
...
38
Nylon Hex Lock Nut, 1/4-20 MTD-712-0324
...
39
SCREW 1/4-20 x 1.310 MTD-710-1270

The Ryobi 31AE162-013 2002 Snow Thrower is engineered for heavy-duty snow removal, delivering powerful performance even in extreme conditions. PartsWarehouse offers a wide range of genuine OEM parts for this model, ensuring that your machine remains in optimal working condition.

Why Choose Us for Ryobi 31AE162-013 2002 Snow Thrower Parts?

At PartsWarehouse, we provide genuine parts for your Ryobi snow thrower, ensuring quick shipping and exceptional support to help you keep your machine in top shape.



...
...
...
...
...
