Ryobi 310BVr 41ES310G034 Gas Blower

Model: 310BVr 41ES310G034 41ES310G034 310BVr

Save
 Part Not Listed?Part Not Listed?
product name

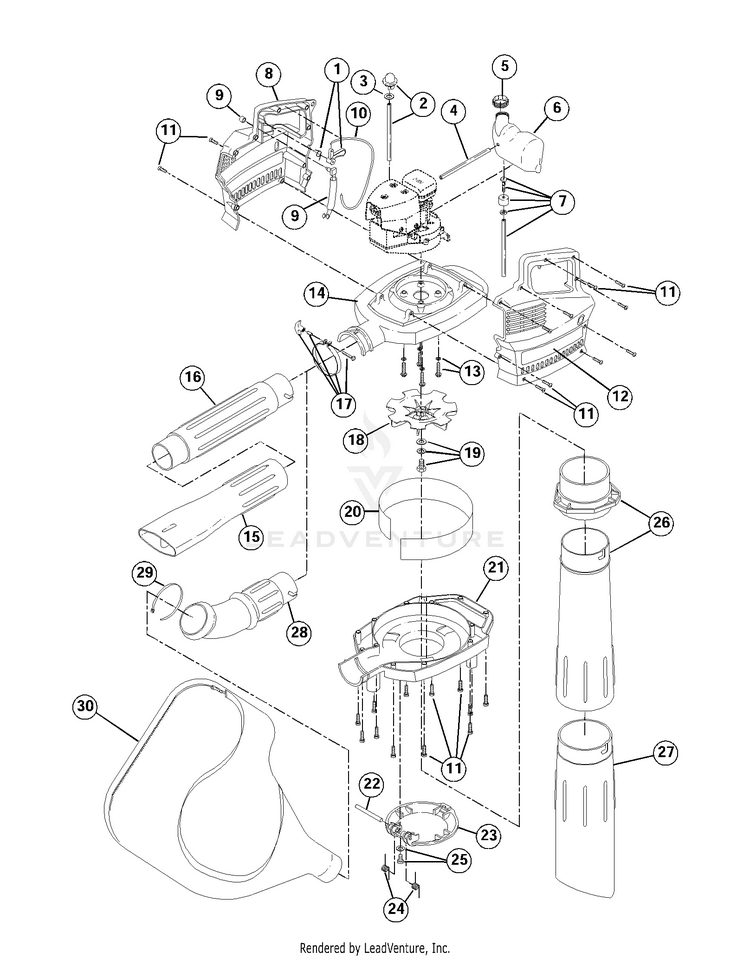

Blower Vac Parts

...
...
1
ASSEMBLY, TRIGGER MTD-791-00036
...
2
ASSEMBLY, PRIMER BULB & HOSE MTD-791-147351
...
3
WASH, PRIM MTD-791-181671
...
4
Fuel Return Line MTD-791-181086
...
5
Fuel Cap Assembly MTD-791-182612
...
6
ASSEMBLY, FUEL TANK COMPLETE (includes 4, 5 & 7) MTD-791-147350
...
7
FUEL LINE ASSEMBLY MTD-791-147036
...
8
ASSEMBLY, R.H. ENGINE C MTD-791-180484
...
9
ASSEMBLY, SWITCH & WIRE LEAD MTD-791-180450
...
10
THROTTLE CABLE MTD-791-00029
...
11
Screws MTD-791-181345
...
12
ASSEMBLY, L.H. ENGINE C MTD-791-180485
...
13
ASSEMBLY, SCREW & WASHE MTD-791-180058
...
14
HSG, UPPER BLOWER/ MTD-791-180478
...
15
NOZ:DISCH TUBE:MAC MTD-791-180469
...
16
BLOWER TUBE MTD-791-180480
...
17
ASSEMBLY, CLAMP MTD-791-180481
...
18
IMPELLER BLOWER-VAC MTD-791-147353
...
19
ASSEMBLY, MOUNTING BOLT MTD-791-181514
...
20
SHIELD, IMPACT MTD-791-181586
...
21
HSG, LOWER BLOWER/ MTD-791-180487
...
22
SHAFT, HINGE MTD-791-181516
...
23
DOOR, INLET BLOWER MTD-791-181523
...
24
SET INTAKE COVER SPRING MTD-791-147051
...
25
SCREW, MOUNTING W/WA MTD-791-181515
...
xx
Shoulder Strap Assembly Optional Accessory; Not Shown MTD-791-682075B
...
xx
2-CYCLE OIL Optional Accessory; Not Shown MTD-791-147543
...
26
ASSEMBLY, UPPER VAC TUB Vacuum Parts MTD-791-180712
...
27
Lower Vacuum Tube Vacuum Parts MTD-791-180467
...
28
TUBE, ELBOW 60 DEG Vacuum Parts MTD-791-180489
...
29
CLAMP, BAG NYLON Vacuum Parts MTD-791-612930
...
30
ASSEMBLY, PLAIN VAC BAG & ELBOW (includes 28 & 29); Vacuum Parts MTD-791-180490

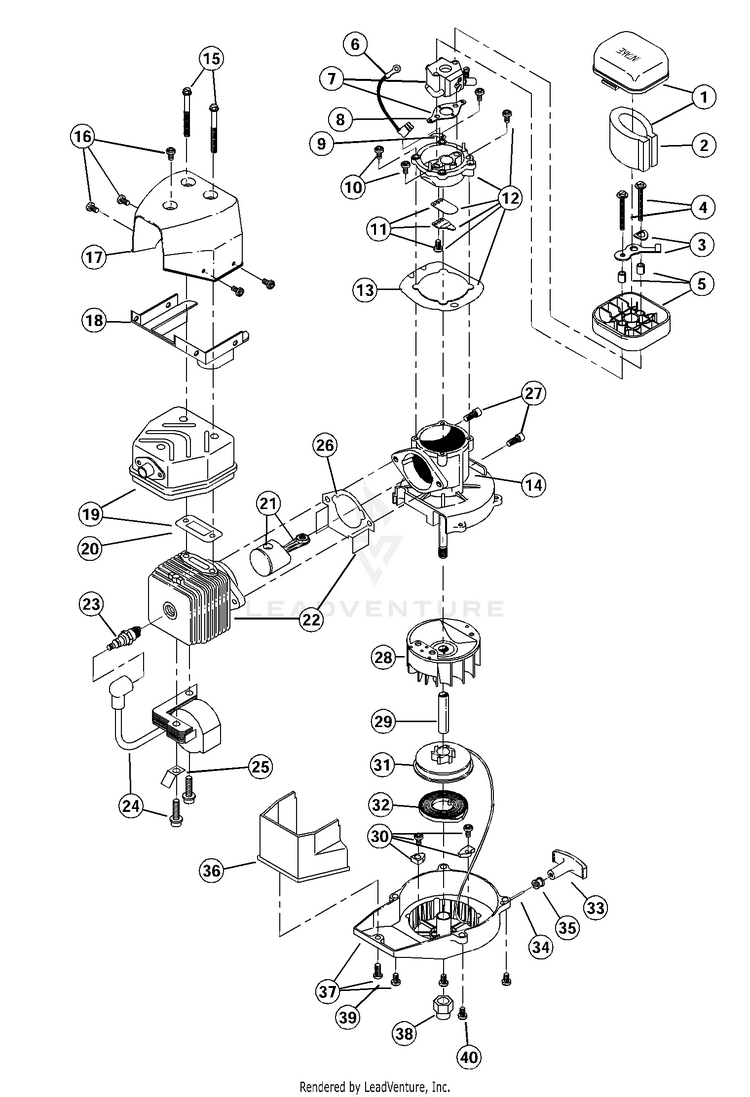

Engine Parts

...
...
1
ASSEMBLY:AIR CLNR COVER MTD-791-683378
...
2
FILTER, AI MTD-791-612111
...
3
ASSEMBLY Choke MTD-791-683380
...
4
ASSEMBLY, CARBURETOR MO MTD-791-180351
...
5
BASE, AIR MTD-791-181512
...
6
LEAD, WIRE 3" BLAC MTD-791-180360
...
7
Carburetor Assembly MTD-753-04349
...
8
CARBURETOR GASKET MTD-791P610675
...
9
TAB, GROUND MTD-791-611063
...
10
SCR, 10-24X.750 PH MTD-791-180221
...
11
CARB MT AS MTD-753-04350
...
12
REED VALVE ASSEMBLY MTD-791-684451
...
13
Reed Plate Gasket MTD-753-1208
...
14
CRANKCASE & PSHF ASSEMBLY (includes items 10) MTD-753-04328
...
15
ASSEMBLY, MUFFLER MOUNTING BOLTS MTD-791-147575
...
16
ASSEMBLY, MOUNT MTD-791-181517
...
17
SHIELD, HE MTD-791-181522
...
18
SHIELD, HE MTD-791-181518
...
19
MFLR ASSEMBLY (Includes item 15 & 22) MTD-791-181521
...
20
MUFFLER GASKET MTD-791-00027
...
21
PISTON ASSEMBLY:W/ROD/RIN MTD-753-04367
...
22
CYL:31CC: BLO/VAC: MTD-753-04358
...
23
Spark Plug MTD-791-610311B
...
24
MODULE ASSEMBLY WITH HARDWARE MTD-753-04324
...
25
TAB, GROUND MTD-791-611063
...
26
GASKET, CYLINDER MTD-791-181519
...
27
Cylinder Bolt MTD-791-182723
...
28
Flywheel Assembly MTD-753-05240
...
29
Spacer MTD-791-181525
...
30
ASSEMBLY, PULLEY RETAINER MTD-791-180930
...
31
PULLEY:START MTD-753-1199
...
32
Recoil Spring MTD-791-613102
...
33
Pull Handle MTD-631-04164B
...
34
Rope MTD-791-613103
...
35
Rope Guide MTD-791-611061
...
36
EXTEN, SHR MTD-791-181585
...
37
ASSEMBLY, STARTER HOUSING (includes 30-35, 39 & 40) MTD-791-181931
...
38
NUT, DRIVE IMPELLE MTD-791-181524
...
39
Shroud Extension Screw MTD-791-181345
...
40
SCREW:10-32X.5 MTD-1964
...
xx
Piston Ring Not Shown MTD-753-1209
...
xx
KIT, ENGINE GASKET Not Shown MTD-791-181520
...
xx
O.E.M. Carburetor Repair Kit Not Shown MTD-791-180602
...
xx
Gasket-Diaphragm Repair Kit Not Shown MTD-791-181069
