product name

Ryobi 310BVr 41CS310G034 Gas Blower

Model: 310BVr 41CS310G034 41CS310G034 310BVr

Save
 Part Not Listed?Part Not Listed?
product name

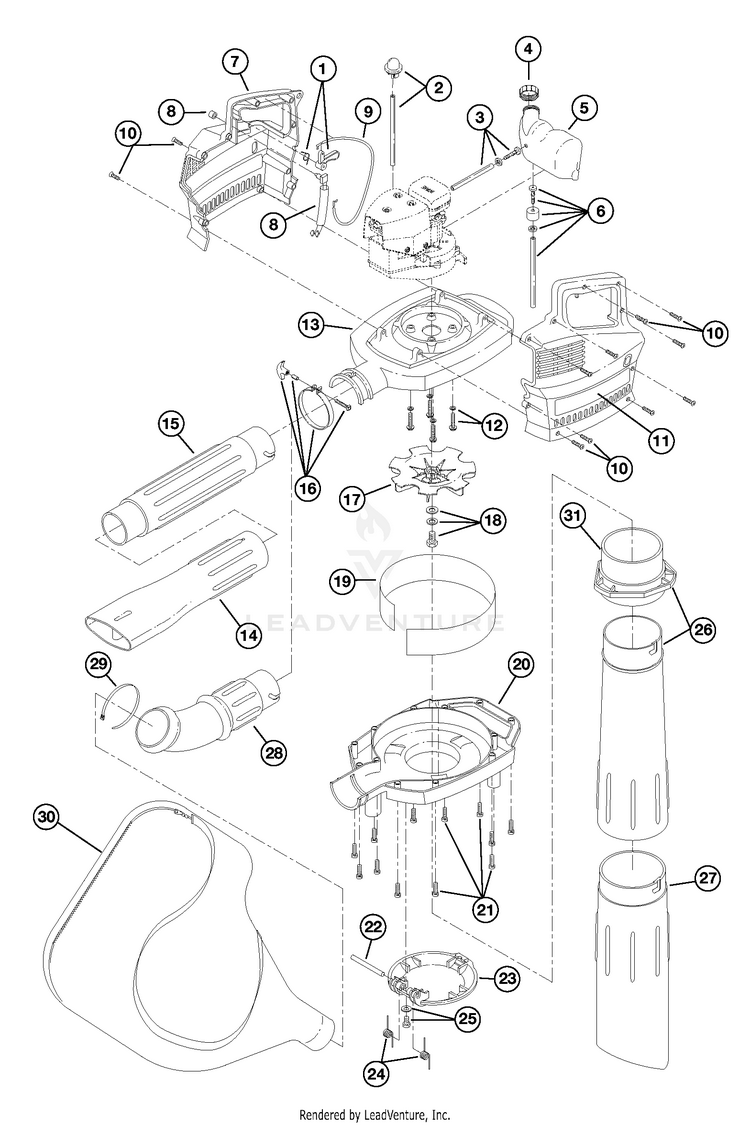

Blower/Vacuum

...
...
1
ASSEMBLY, TRIGGER MTD-791-00036
...
2
ASSEMBLY, PRIMER BULB & HOSE MTD-791-147351
...
3
RETURN LINE ASSEMB MTD-791-00028
...
4
Fuel Cap Assembly MTD-791-180000B
...
5
ASSEMBLY, FUEL TANK COMPLETE (includes items 3, 4 and 6) MTD-791-147350
...
6
FUEL LINE ASSEMBLY MTD-791-147036
...
7
ASSEMBLY, R.H. ENGINE C MTD-791-180484
...
8
SWITCH AND LEAD ASSEMBLY MTD-791-147038
...
9
THROTTLE CABLE MTD-791-00029
...
10
MOUNTING SCREW ASSEMBLY MTD-791-147049
...
11
ASSEMBLY, L.H. ENGINE C MTD-791-180485
...
12
ASSEMBLY, SCREW & WASHE MTD-791-180058
...
13
HSG, UPPER BLOWER/ MTD-791-180478
...
14
NOZ:DISCH TUBE:MAC MTD-791-180469
...
15
BLOWER TUBE MTD-791-180480
...
16
ASSEMBLY, CLAMP MTD-791-180481
...
17
IMPELLER BLOWER-VAC MTD-791-147353
...
18
ASSEMBLY, MOUNTING BOLT MTD-791-181514
...
19
SHIELD, IMPACT MTD-791-181586
...
20
HSG, LOWER BLOWER/ MTD-791-180487
...
21
MOUNTING SCREW ASSEMBLY MTD-791-147049
...
22
Hinge Shaft MTD-791-147053
...
23
Intake Cover MTD-791-147817
...
24
SET INTAKE COVER SPRING MTD-791-147051
...
25
SCREW, MOUNTING W/WA MTD-791-181515
...
26
ASSEMBLY, UPPER VAC TUB Vacuum Part MTD-791-180712
...
27
Lower Vacuum Tube Vacuum Part MTD-791-180467
...
28
TUBE, ELBOW 60 DEG Vacuum Part MTD-791-180489
...
29
CLAMP, BAG NYLON Vacuum Part MTD-791-612930
...
30
ASSEMBLY, PLAIN VAC BAG & ELBOW (includes 28 & 29); Vacuum Part MTD-791-180490
...
31
ADAPTOR, VAC TUBE Vacuum Part MTD-791-181553
...
xx
Engine Decal Kit Optional Accessories; not shown MTD-791-180479
...
xx
Shoulder Strap Assembly Optional Accessories; not shown MTD-791-682075B
...
xx
Ryobi 2-Cycle Oil (48-4 oz bottles) Optional Accessories; not shown MTD-791-147541

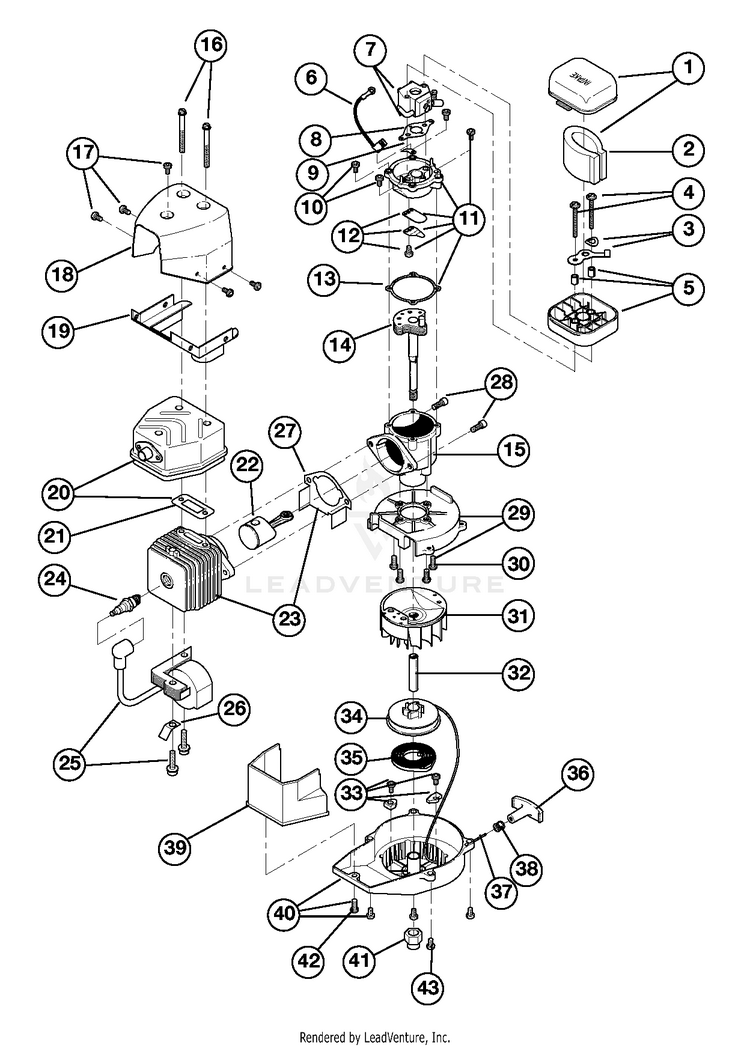

Engine

...
...
1
ASSEMBLY:AIR CLNR COVER (includes 2) MTD-791-683378
...
2
FILTER, AI MTD-791-612111
...
3
ASSEMBLY Choke MTD-791-683380
...
4
ASSEMBLY, CARBURETOR MO MTD-791-180351
...
5
BASE, AIR MTD-791-181512
...
6
LEAD, WIRE 3" BLAC MTD-791-180360
...
7
CARB ASSEMBLY A-SERIES MTD-791-182875
...
8
CARBURETOR GASKET MTD-791P610675
...
9
TAB, GROUND MTD-791-611063
...
10
SCREW, .190-24 UNRC MTD-791-147835
...
11
ASSEMBLY, REED (includes 10, 12 and 13) MTD-791-684757
...
12
REED VALVE ASSEMBLY MTD-791-684451
...
13
Carburetor Mount Gasket MTD-753-1208
...
14
ASSEMBLY, POWE MTD-791-182774
...
15
ASSEMBLY, CRANK (includes items 14) MTD-791-182775
...
16
SET, TUBE EXHAUST MTD-791-147781
...
17
ASSEMBLY, MOUNT MTD-791-181517
...
18
SHIELD, HE MTD-791-181522
...
19
SHIELD, HE MTD-791-181518
...
20
MFLR ASSEMBLY (includes 17 & 22) MTD-791-181521
...
21
MUFFLER GASKET MTD-791-00027
...
22
PISTON ASSEMBLY:W/ROD/RIN MTD-753-04367
...
23
Cylinder Assembly (includes 51 & 52) (includes 28 & 29) MTD-753-04814
...
24
Spark Plug MTD-791-610311B
...
25
IGNITION MODULE ASSEMBLY MTD-753-04125
...
26
TAB, GROUND MTD-791-611063
...
27
GASKET, CYLINDER MTD-791-181519
...
28
SCREW, 1/4-20X.625 S MTD-791-181870
...
29
ASSEMBLY, SHROUD ASSEMB MTD-791-153520
...
30
SCREW, 1/4-20X.562 F MTD-791-181861
...
31
Flywheel Assembly MTD-753-05240
...
32
Spacer MTD-791-181525
...
33
ASSEMBLY, PULLEY RETAINER MTD-791-180930
...
34
START PULLEY KIT MTD-753-04232
...
35
Recoil Spring MTD-791-613102
...
36
Pull Handle MTD-631-04164B
...
37
Rope MTD-791-613103
...
38
Rope Guide MTD-791-611061
...
39
EXTEN, SHR MTD-791-181585
...
40
ASSEMBLY, STARTER HOUSING (includes 34-39) MTD-791-181931
...
41
NUT, DRIVE IMPELLE MTD-791-181524
...
42
Shroud Extension Screw MTD-791-181345
...
43
SCREW:10-32X.5 MTD-1964
...
xx
RING:31CC:PSTN:BARREL FACED not shown MTD-791-180530
...
xx
KIT, ENGINE GASKET not shown MTD-791-181520
...
xx
O.E.M. Carburetor Repair Kit (Walbro) not shown MTD-791-180602
...
xx
KIT, OEM CARB REPA not shown MTD-791-147170
...
xx
KIT, GASKET-DIAPH. not shown MTD-791-147171
...
xx
SEAL, SEAL not shown MTD-791-610309

PartsWarehouse is your trusted source for Ryobi 310BVr 41CS310G034 Gas Blower parts. Whether you're conducting routine maintenance or making necessary repairs, our extensive selection of OEM parts ensures you’ll find the components you need. All parts are sourced directly from the manufacturer, guaranteeing the durability and performance that Ryobi tools are known for. Rely on PartsWarehouse to provide genuine Ryobi 310BVr 41CS310G034 Gas Blower parts to keep your equipment running efficiently.
