Ryobi 290r 41AR290G734 (2004) Gas Blower

Model: 290r 41AR290G734 41AR290G734 290r (2004)

Save
 Part Not Listed?Part Not Listed?
product name

Popular Parts

Popular Parts

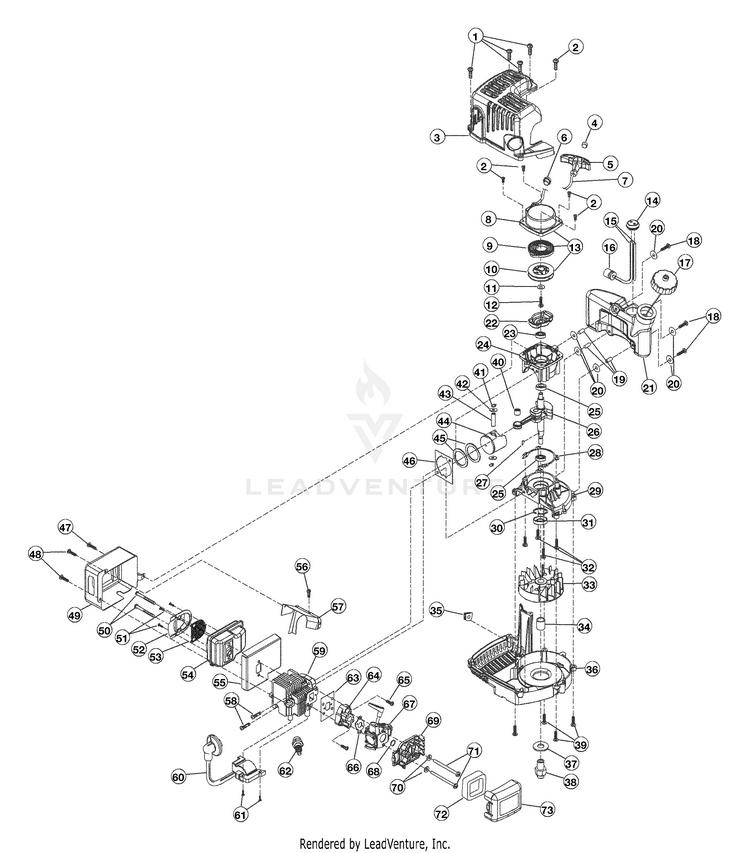

General Assembly

...
...
1
SCREW MTD-710-04232
...
2
SCREW MTD-753-04519
...
3
ENGINE COVER MTD-753-04520
...
4
PULL HANDLE BUSHING MTD-753-04521
...
5
STARTER HANDLE 9196 MTD-753-04522
...
6
GUIDE ROPE MTD-753-04523
...
7
ROPE MTD-753-04524
...
8
HOUSING:STARTER MTD-MC-9017-MD0103
...
9
RECOIL SPRING MTD-753-04526
...
10
RECOIL PULLEY MTD-753-04527
...
11
WASHER MTD-MC-9014-MD0106
...
12
SCREW MTD-MC-9SGKB-4.8
...
13
RECOIL ASSEMBLY (includes 4-12) MTD-753-04530
...
14
FUEL LINE GROMMET MTD-753-04531
...
15
FUEL LINE MTD-791-181828
...
16
TANK ASSEMBLY-F MTD-753-04533
...
17
Fuel Tank Cap MTD-791-182612
...
18
SCREW MTD-753-04535
...
19
SPACER MTD-753-04536
...
20
WASHER 90 MTD-753-04537
...
21
TANK ASSEMBLY-F (includes 14-17) MTD-753-04538
...
22
PAWL ASSEMBLY MTD-753-04539
...
23
OIL SEAL MTD-MC-9157-332101
...
24
ENGINE ASSEMBLY 290BLO MTD-753-05004
...
25
BEARING-BA MTD-753-04542
...
26
CRANKSHFT ASSEMBLY MTD-753-04543
...
27
FLYWHEEL KEY MTD-753-04544
...
28
GASKET-CRA MTD-753-04545
...
29
CASE ASSEMBLY-CRANK MTD-753-04546
...
30
CLIP-C MTD-753-04547
...
31
OIL SEAL MTD-753-04548
...
32
CRANKSHAFT SCREW MTD-753-04549
...
33
FLYWHEEL MTD-MC-9151-MD0103
...
34
SPACER MTD-753-04551
...
35
Spark Wire Grommet MTD-753-04552
...
36
HOUSING-FL MTD-753-04553
...
37
WASHER MTD-753-04554
...
38
SHAFT/NUT MTD-753-04555
...
39
Shroud Screws MTD-753-04556
...
40
BEARING-NE MTD-753-04557
...
41
CLIP MTD-MC-9131-MD0101
...
42
SPACER MTD-MC-9057-MD0201
...
43
PIN MTD-753-04560
...
44
PISTON MTD-MC-9290-MD0101
...
45
PISTON RING MTD-753-04562
...
46
CYLINDER GASKET MTD-753-04563
...
47
SCREW MTD-753-04564
...
48
SCREW MTD-753-04565
...
49
BAFFLE-MUFFLER MTD-MC-9082-MD0101
...
50
SCREW MTD-753-04567
...
51
MUFFLER AS MTD-753-04568
...
52
MUFFLER AS MTD-753-04569
...
53
MUFFLER AS MTD-753-04570
...
54
MUFFLER AS (includes 51-53) MTD-753-04571
...
55
GASKET-MUF MTD-753-04572
...
56
Screw MTD-753-04573
...
57
BAFFLE-CYL MTD-753-04574
...
58
SCREW MTD-753-04575
...
59
CYLINDER MTD-753-04576
...
60
IGNITION ASSEMBLY MTD-MC-9228-MD0104
...
61
SCREW MTD-MC-9SQKBM04-20
...
62
Spark Plug MTD-791-610311B
...
63
INSULATOR GASKET MTD-753-04580
...
64
INSULATOR MTD-753-04581
...
65
SCREW MTD-MC-9SKKB-05-19
...
66
CARBURETOR GASKET MTD-753-04582
...
67
CARBURETOR MTD-753-04584
...
68
O-RING MTD-753-04585
...
69
AIRCLEANER (includes 72 and 73) MTD-753-04586
...
70
SCREW MTD-MC-9SKKBM05-64
...
71
SCREW MTD-MC-9SKKBM05-64
...
72
AIR FILTER MTD-753-04589
...
73
AIR COVER MTD-753-04590

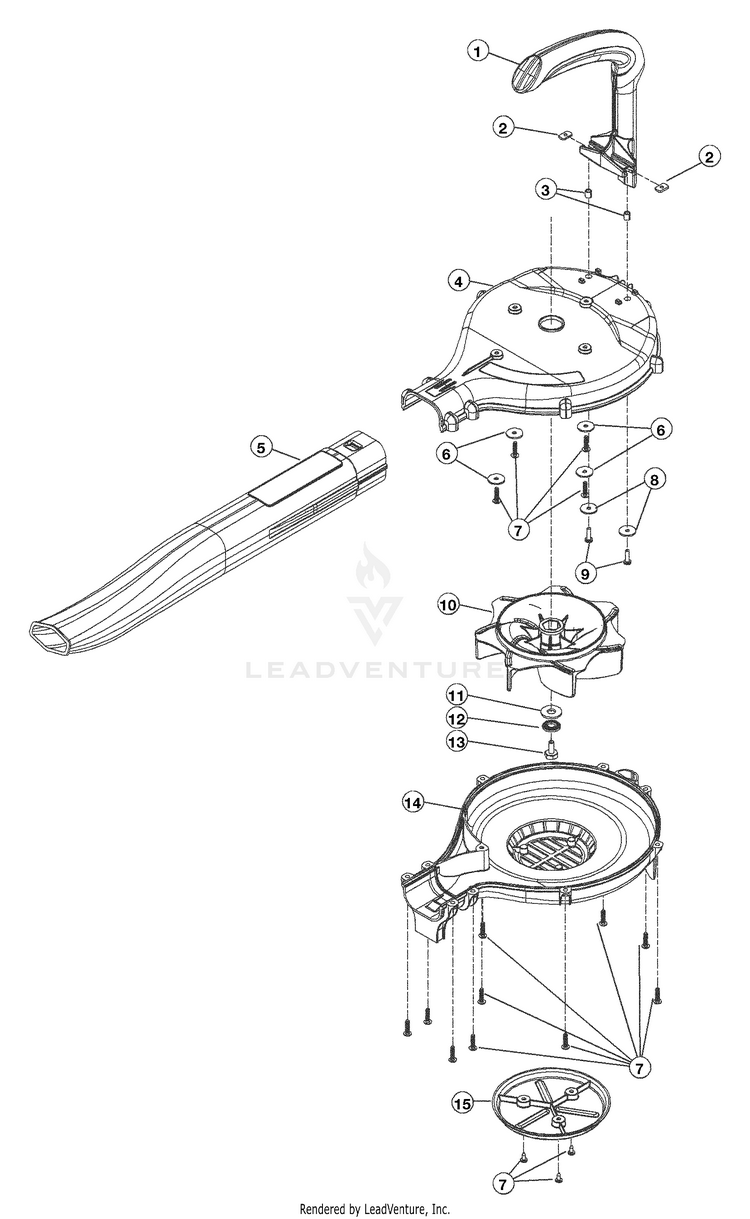

Impeller Housing Parts

...
...
1
BLOWER HANDLE MTD-731-04452
...
2
WELDNUT:RN1510 #10 MTD-753-04186
...
3
SPACER-SPLIT MTD-797-00015
...
4
UPPER IMPELLER HOUSING MTD-753-04593
...
5
BLOWER TUBE MTD-731-04444
...
6
Washer MTD-791-182409
...
7
Screw MTD-710-04194
...
8
WASH, BLAC MTD-791-181904
...
9
ASSEMBLY, COUPLING BOLT MTD-791-683606
...
10
Impeller Blade MTD-731-04275
...
11
FLAT WASHER 1.0 OD:.331 ID MTD-736-04117
...
12
LOCK WASHER MTD-736-04118
...
13
BOLT 8 x 1-16MM MTD-710-04218
...
14
HOUSING-LOWER I MTD-753-04600
...
15
INTAKE DEFLECTOR MTD-753-04601
