Ryobi 25A-208G013 (2001) Wheeled Trimmer

Model: 25A-208G013 (2001)

Save
Part Not Listed?Part Not Listed?

product name

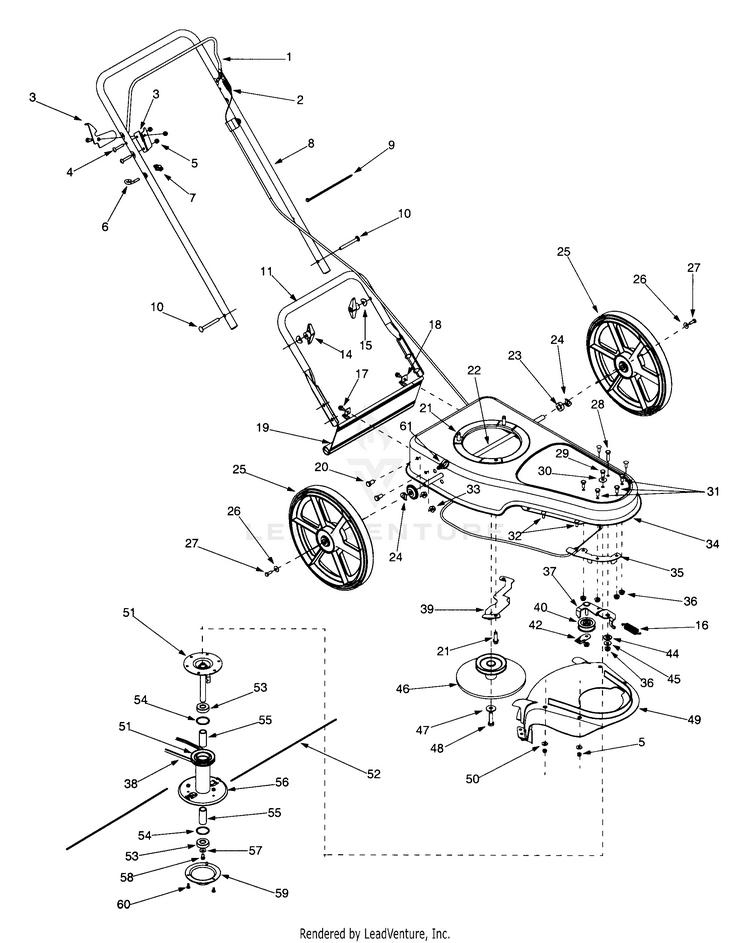

General Assembly

...
...
1
CONTROL LEVER MTD-747-1287-0637

...
2
Engagement Cable MTD-946-1116A

...
3
BRACKET ASSEMBLY MTD-981-0166

...
4
Machine Screw 1/4-20 x 1.50 MTD-710-0578

...
5
Hex Lock Nut 1/4-20 MTD-712-0324

...
6
Eye Bolt 1/4-20 MTD-710-1205

...
7
Wing Nut MTD-720-0279

...
8
UPPER HANDLE MTD-749-1403-0637

...
9
Cable Tie MTD-725-0240

...
10
Carriage Screw 5/16-18 x 2.0 MTD-710-1174

...
11
LOWER HANDLE MTD-749-1254

...
12
Upper Handle Connector MTD-731-1268

...
13
LOWER HANDLE INSULATOR MTD-731-1267

...
14
Wing Nut MTD-720-0284

...
15
Shoulder Washer.320 ID x .93 OD MTD-736-0451

...
16
Extension Spring .50 Dia x 1.88 Lg MTD-732-1166

...
17
Hex Washer Screw 1 /4-14 x .625 MTD-710-0896

...
18
Trail Shield Clip MTD-782-9065

...
19
Trail Shield MTD-731-2329

...
20
Hex Cap Screw 3/8-16 x .750 MTD-710-0216

...
21
Hex Washer Screw 3/8-16 x 1.25 MTD-710-0502A

...
22
AXLE ASSEMBLY MTD-681P0159A

...
23
Spacer.51 ID x 1.0 OD MTD-750-1240

...
24
Spacer Washer.501 ID x 1.0 OD MTD-736-0182

...
25
WHEEL ASSEMBLY 14X1.8 MTD-734-04030

...
26
SPRING WASHER BELL MTD-736-0270

...
27
Hex Cap Screw 1/4-20 x .75 MTD-710-3015

...
28
Screw 5/16-18 x 1.25 MTD-710-1694

...
29
Hex Cap Screw 5/16-24 x .625 MTD-710-0237

...
30
Bell Washer.325 ID x .930 OD MTD-736-0425

...
31
Screw 5/16-18 x .75 MTD-710-1307

...
32
Hex Carriage Screw 1/4-20 x .75 MTD-710-0703

...
33
Flange Lock Nut 3/8-16 MTD-712-3005

...
34
DECK ASSEMBLY MTD-681-0165

...
35
Belt Keeper Bracket Front MTD-781-1020

...
36
HEX FLANGE NUT MTD-712-3004A

...
37
IDLER BRACKET MTD-981-1008A

...
38
Drive Belt MTD-954-0625A

...
39
BELT KEEPER BRACKET ENGINE MTD-781-1007

...
40
Idler Pulley MTD-756-1198

...
41
IDLR ENGAGEMENT TORSION SPRING (LH) MTD-732-1007

...
42
Idler Keeper Bracket MTD-781-1028

...
43
IDLER SPACER MTD-750-1277

...
44
Idler Spacer MTD-750-1275

...
45
Flat Washer MTD-736-0371

...
46
Flywheel Pulley MTD-756-1223

...
47
Bell Washer 396 ID x 1.14 OD MTD-736-0452

...
48
Hex Cap Screw 3/8-24 x 1.50 MTD-710-1044

...
49
Trimmer Deflector Assembly MTD-631-0096

...
50
Flat Washer.28 ID x .74 OD MTD-736-0173

...
51
Spindle Assembly MTD-NA

...
52
Trimmer Line 130 Dia MTD-OEM-743-0113

...
53
BALL BEARING MTD-741P0919B

...
54
Retainer Ring MTD-NA

...
55
Spacer MTD-NA

...
56
SPINDLE ASSEMBLY Spindle Assembly, includes 782-0143 MTD-618-0558

...
57
Bell Washer 325 ID x .930 OD MTD-736-0425

...
58
Hex Cap Screw 5/16-24 x .625 MTD-710-0237

...
59
SKID ASSEMBLY MTD-982-0143A

...
60
Hex Cap Screw 1/4-20 x .50 MTD-710-3013

...
61
Cable Retainer Clip MTD-726-3055
