Ryobi 24A-203B013 (2001) Chipper-Shredder & Vac

Model: 24A-203B013 (2001)

Save
 Part Not Listed?Part Not Listed?
product name

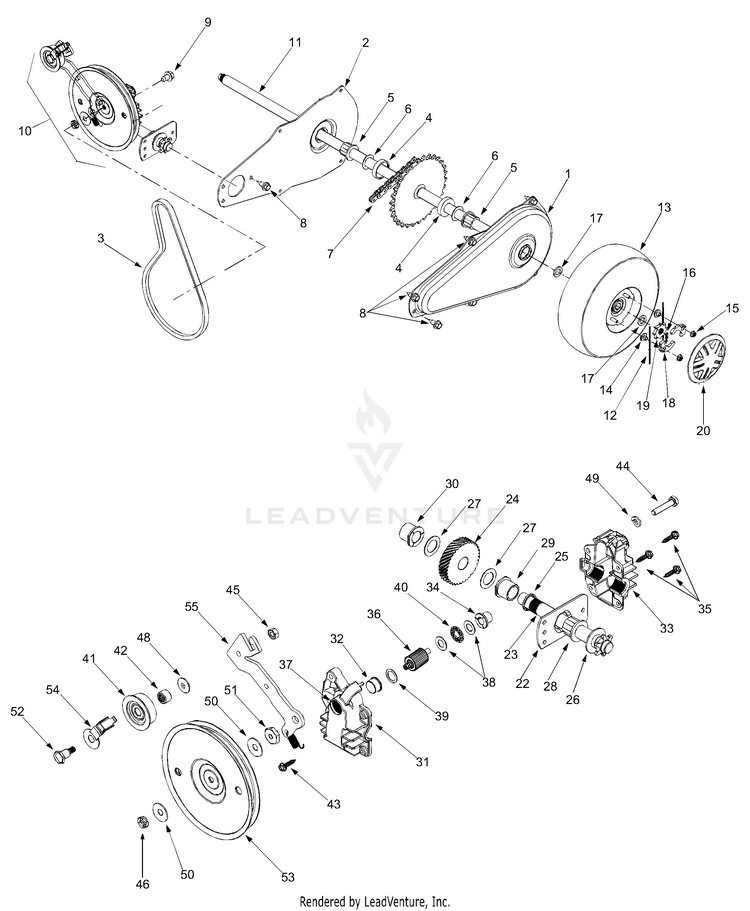

Drive Assembly

...
...
1
CASE CHAIN (LH) MTD-781-0677
...
2
CASE CHAIN (RH) MTD-781-0676
...
3
V-Belt MTD-954-0457
...
4
Spacer MTD-748-0313
...
5
Hex Flange Bearing MTD-741-0413
...
6
FLAT WASHER MTD-936-0336
...
7
CHAIN #41X.500 END MTD-913-0422
...
8
Hex Washer Screw 1/4-14 MTD-710-0896
...
9
Hex Washer Screw 5/16 MTD-710-0603
...
10
Transmission Assembly MTD-618-0256
...
11
AXLE SHAFT ASSEMBLY MTD-611-0063
...
12
Plastic Spring Ratchet MTD-10622B
...
13
Wheel Complete 10 x 4 x 4 MTD-634-0244
...
14
Hex Nut 1/4-20 MTD-712-0456
...
15
LOCK NUT 1/4 MTD-912-3027
...
16
Cotter Pin MTD-714-0104
...
17
Flat Washer 5/8 ID x 1.0 OD MTD-736-0366
...
18
PAWL - (LH) MTD-948-0188B
...
xx
Pawl RH .345 ID MTD-748-0381
...
19
Wheel Ratchet 1.62 OD x .5 serr MTD-748-0405
...
20
HUB CAP 4" (YELLOW) MTD-931-1825
...
?21
Transmission Assembly Complete MTD-918-0255
...
22
CUP BEARING HEX MTD-16500A-0637
...
23
SHAFT W/SPRKT. 6TH MTD-911-1118
...
24
HELICAL GEAR 34T MTD-717-1432
...
25
Oil Seal MTD-721-0213
...
26
Flat Washer .64 ID x 1.24 OD MTD-736-0187
...
27
FLAT WASHER MTD-936-0336
...
28
Hex Flange Bearing .631 ID MTD-741-0413
...
29
Flange Bearing .629 ID MTD-741-0414
...
30
Flange Bearing .566 ID MTD-941-0415
...
31
LOWER HOUSING MTD-719-0325
...
32
Flange Bearing .503 ID MTD-748-0373
...
33
UPPER HOUSING MTD-719-0324A
...
34
Flange Bearing .378 ID MTD-748-0208A
...
35
Hex Washer Screw #10-16 x .75 MTD-710-0589
...
36
Pinion Shaft 10T MTD-717-1433
...
37
Oil Seal MTD-921-0329
...
38
Thrust Washer .382 ID x .684 OD MTD-736-0314
...
39
Flat Washer .504 ID x .70 OD MTD-936-0520
...
40
Thrust Bearing .375 ID x .812 OD MTD-741-0479
...
41
Pulley Ass'y Idler w/ Bearing MTD-956-0008
...
42
Needle Bearing .375 ID x .375 OD MTD-741-0556
...
43
Hex Screw #10-16 x .75 MTD-710-0589
...
44
Hex Cap Screw 1/4-20 x 1.25 MTD-710-1062
...
45
Hex Nut 1/4-28 MTD-712-0138
...
46
Hex Jam Nut 5/16 Thd. L.H. MTD-912-3045
...
?47
Extension Spring 1.12 Lg MTD-732-0357A
...
48
SPRING WASHER BELL MTD-736-0270
...
49
L-Wash. 1/4" I.D. MTD-936-0329
...
50
Bell Washer .325 ID x .930 OD MTD-736-0425
...
51
Shoulder Spacer .375 ID x .165 OD MTD-738-0440
...
52
Shoulder Bolt 1/4-28 x .375 MTD-738-0826
...
53
Pulley MTD-756-0656
...
54
Belt Keeper MTD-782-7569
...
55
Idler Bracket MTD-682-0054

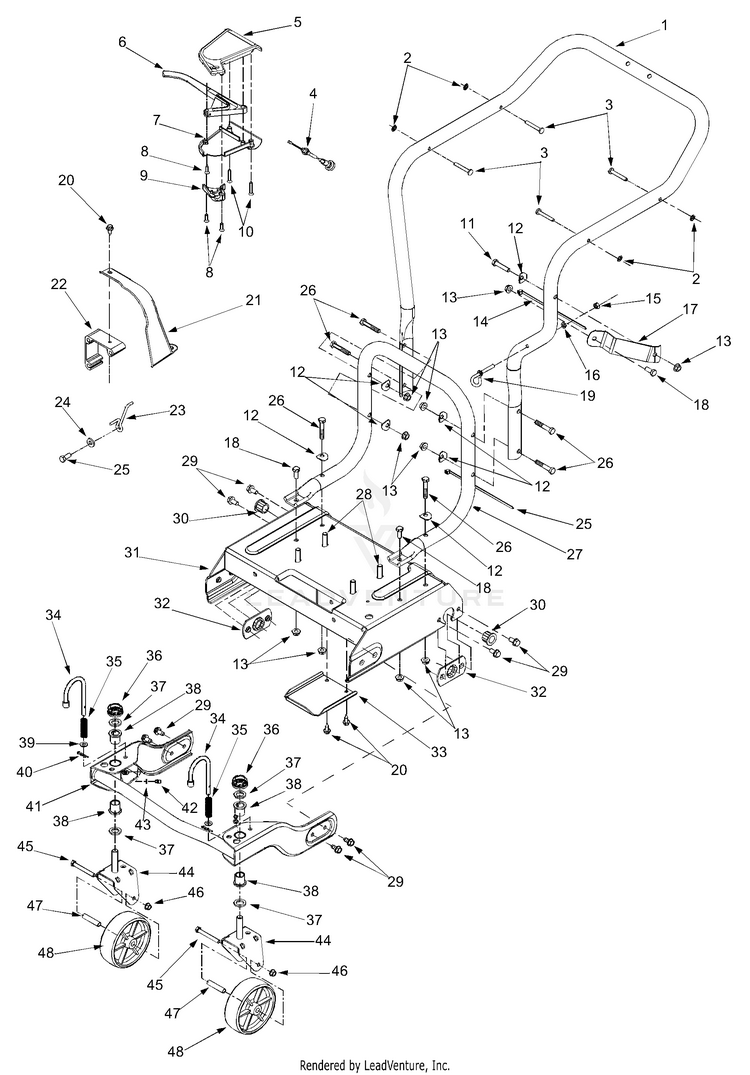

General Assembly

...
...
1
UPPER HANDLE MTD-749-1095
...
2
Push Nut MTD-1539-019
...
3
Stud Pin .250" Dia. x 1.75" MTD-911-0737
...
4
Clutch Cable 56" MTD-946-0714
...
5
Upper Clutch Cover MTD-753-0832
...
6
Drive Control MTD-731-0620A
...
7
Lower Clutch Cover MTD-731-1736
...
8
Screw #10-12 x .750 MTD-710-0841
...
9
Control Cover Half-Lower MTD-753-0833
...
10
Screw #10-16 x 1.25 MTD-710-1331
...
11
SCREW 5/16-18 x 1.5 LG MTD-710-0805A
...
12
Shoulder Washer .320 ID x .93 OD MTD-736-0451
...
13
HEX FLANGE NUT MTD-712-3004A
...
14
Cable Tie MTD-725-0157
...
15
Hex Nut 1/4-28 MTD-712-0138
...
16
L-Wash. 1/4" I.D. MTD-936-0329
...
17
STABILIZER BRACKET MTD-781-0647
...
18
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
19
EYE-BOLT MTD-747-0815
...
20
Hex Washer Screw 1/4-14 x .625 MTD-710-0896
...
21
BELT COVER MTD-731-1646
...
22
ENGINE MOUNTING ADAPTER MTD-719-0359
...
23
BELT KEEPER MTD-747-0929A
...
24
FLAT WASHER MTD-936-3008
...
25
Hex Cap Screw 5/16-24 x .75 MTD-710-0157
...
26
Hex Cap Screw 5/16-18 x 1.75 MTD-710-3103
...
27
Lower Push Handle MTD-749-1094
...
28
Screw 3/8-16 x 1.25 MTD-710-0502A
...
29
Screw, 5/16-18 x .625 MTD-710-0604A
...
30
Hex Flange Bearing .631 x .720 MTD-741-0413
...
31
FRAME ASSEMBLY MTD-681-0097A
...
32
AXLE BRACKET MTD-781-0700-0637
...
33
TRANSMISSION COVER MTD-781-0697-0637
...
34
Lock Pin MTD-747-0924
...
35
Compression Spring MTD-932-0306A
...
36
Push Cap MTD-726-0214
...
37
Flat Washer 5/8 ID x 1.0 OD MTD-736-0366
...
38
Flange Bearing .632 ID MTD-741-0487C
...
39
Flat Washer .330 ID x .630 OD MTD-736-0264
...
40
Cotter Pin MTD-714-0104
...
41
Bracket Assembly MTD-681-0087
...
42
GREASE FITTING MTD-937-3000
...
43
Flat Washer.203 ID x .403 OD MTD-736-0931
...
44
Bracket Assembly MTD-681-0088
...
45
Hex Cap Screw 3/8-16 x 3.0 MTD-710-0521
...
46
Flange Lock Nut 3/8-16 MTD-912-0431
...
47
Spacer MTD-750-1042
...
48
Wheel 6.0 x 2.0 MTD-734-1804A

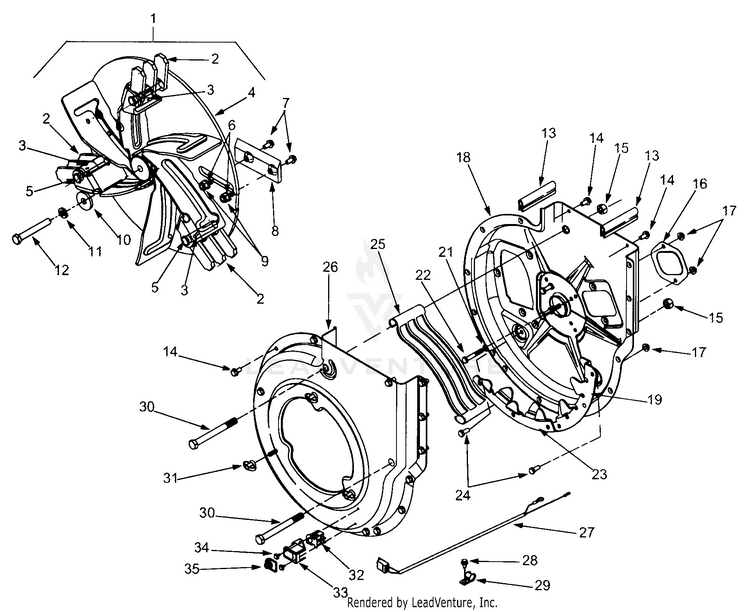

Impeller Assembly

...
...
1
IMPELLER ASSEMBLY MTD-981-04090
...
2
Flail Blade MTD-719-0329
...
3
Spiral Pin MTD-715-0166
...
4
IMPELLER ASSEMBLY MTD-981-04090
...
5
Clevis Pin .496" Dia. MTD-911-0833B
...
6
Lock Wash. 5/16" I.D. MTD-936-0119
...
7
Cap Screw 5/16-24 x 1.0 MTD-710-1054
...
8
CHIPPER BLADE MTD-981-0490
...
9
Hex Lock Nut 5/16-24 MTD-712-0411
...
10
Flat Washer .406 x 1/1/4 MTD-736-0247
...
11
Lock Washer 3/8 MTD-736-0217
...
12
Hex Cap Screw 3/8-24 x 2.75 MTD-710-1273
...
13
Rubber Seal MTD-723-0438
...
14
Screw, 5/16-18 x .625 MTD-710-0604A
...
15
Hex Lock Nut, 1/2-13 Thread MTD-912-0384
...
16
Chipper Blade Cover MTD-781-0627
...
17
HEX FLANGE NUT MTD-712-3004A
...
18
Housing Ass'y Inner Flail MTD-681-0098
...
19
Blade, Upper Shredder MTD-781-0599-0637
...
21
Lock Wash. 5/16" I.D. MTD-936-0119
...
22
Hex Cap Screw 5/16-18 x 2 MTD-710-0772
...
23
Flail Housing Blade MTD-781-0653-0637
...
24
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
25
Discharge Screen MTD-719-0326
...
26
OUTER FLAIL HOUSING ASSEMBLY MTD-681-0060
...
27
Wire Harness MTD-929-0241A
...
28
Hex Washer Screw 1/4-14 MTD-710-0896
...
29
Clamp MTD-726-0272
...
30
Hex Cap Screw 1/2-13 x 5.0 MTD-710-0382
...
31
Knob 5/16-18 MTD-712-0421
...
32
SNAP MOUNT SWITCH MTD-925-3166
...
33
SWITCH COVER MTD-931-1613
...
34
Hex Washer Screw MTD-710-1268
...
35
SWITCH COVER MTD-925-1700

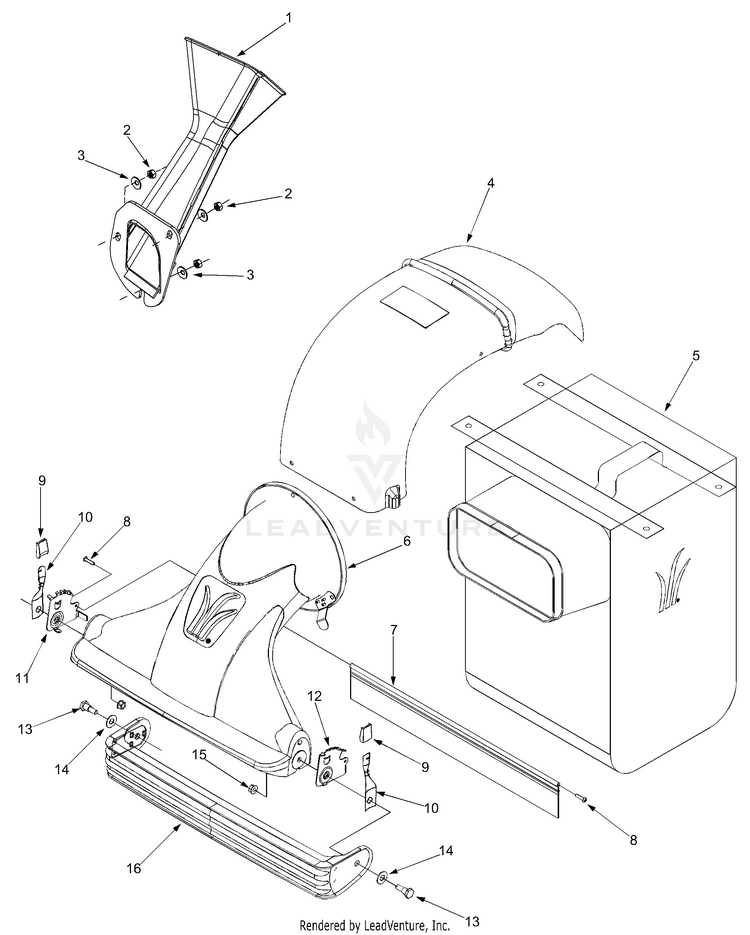

Nozzle & Bag

...
...
1
Chipper Chute MTD-681-0095
...
2
HEX NUT 5/16-18 MTD-712-3010
...
3
Bell Washer .340 ID x .872 OD MTD-736-0242
...
4
DISCHARGE CHUTE MTD-731-1690A
...
5
Bag MTD-964-04001
...
6
NOZZLE ASSEMBLY (W/O LOGO BLACK) MTD-631-0086
...
7
Nozzle Flap MTD-731-1831
...
8
Screw MTD-710-0969
...
9
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
...
10
Spring Lever MTD-732-0754
...
11
Index Bracket RH MTD-781-0702-0637
...
12
Index Bracket LH MTD-781-0703-0637
...
13
Shoulder Screw MTD-738-0913
...
14
Flat Washer .510 x 1.12 x .060 MTD-736-3084
...
15
Flange Lock Nut 3/8-16 MTD-912-0431
...
16
DOOR ASSEMBLY (YELLOW) MTD-631-0047
...
xx
LABEL-YARDMAN CHIP MTD-777D00121
...
xx
LABEL-YARDMAN 5.5H MTD-777D00183
...
xx
LABEL-1-800# W/MODEL PLATE MTD-777D01301
...
xx
LABEL-CASTOR WHL LK MTD-777I20123
...
xx
LABEL SP MECH MTD-777I20373
...
xx
LABEL-WARNING AVOID INJURY MTD-777S30041
...
xx
LABEL-CAUTION DO NOT OPERATE MTD-777S30131
...
xx
LABEL-WARNING FLAIL MTD-777S30183
