Ryobi 21AB454B734 (2004) Tiller

Model: 21AB454B734 (2004)

Save
 Part Not Listed?Part Not Listed?
product name

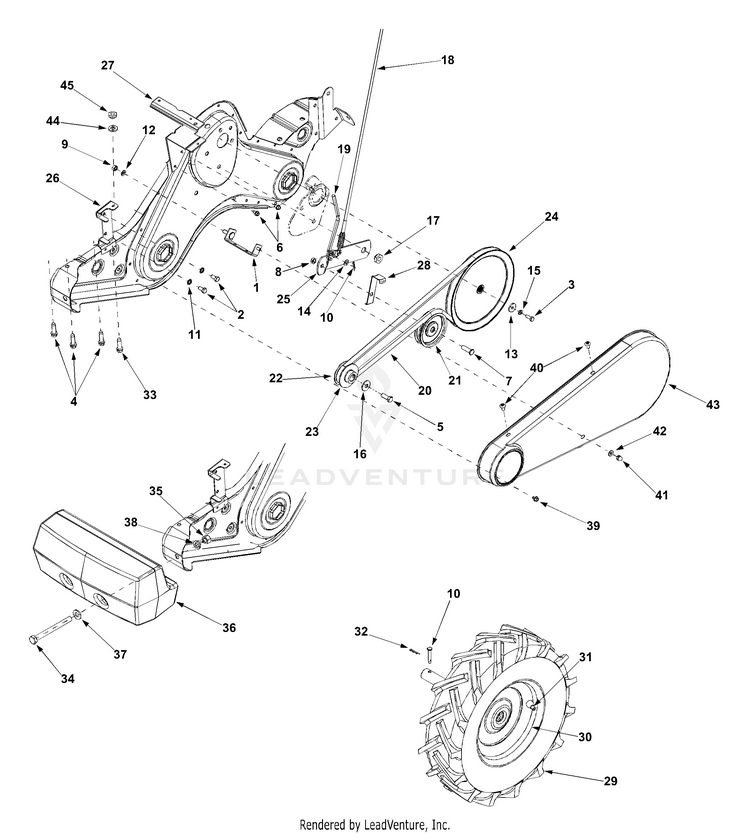

Drive

...
...
1
Belt Cover Bracket Ass'y MTD-686-0111
...
2
Hex Bolt 5/16-24 x .62" MTD-710-0237
...
3
Hex Bolt 1/4-28 x .75" MTD-710-0412
...
4
Hex Washer Screw 3/8-16 x 1.25" MTD-710-0502A
...
5
Hex Bolt 3/8-24 x 1" Lg. MTD-710-1039
...
6
Hex Washer Screw MTD-710-0599
...
7
Hex Cap Screw 3/8-16 x 1.25 MTD-710-0723
...
8
JAM LOCK NUT MTD-712-0266A
...
9
HEX NUT 5/16-18 MTD-712-3010
...
10
Internal Cotter Pin MTD-714-0104
...
11
Washer, Lock, 5/16 MTD-936-0104
...
12
Lock Wash. 5/16" I.D. MTD-936-0119
...
13
Flat Washer .25 ID x.93 OD MTD-736-0176
...
14
SPRING WASHER .317 X .625 X .020 MTD-936-0271
...
15
L-Wash. 1/4" I.D. MTD-936-0329
...
16
Bell Washer .396 ID x 1.14 OD MTD-736-0452
...
17
SHOULDER NUT MTD-738-0876A
...
18
CLUTCH CABLE MTD-946-1117
...
19
Idler Pulley Rod MTD-747-1159
...
20
BELT 1/2 X 58.16 MTD-954-0434
...
21
Flat Idler w/Flange 3.75 OD MTD-756-0405
...
22
Engine Inner Pulley Half MTD-756-0971
...
23
Engine Outer Pulley Half MTD-756-0972
...
24
Input Pulley MTD-756-1162
...
25
Idler Pulley Bracket MTD-786-0064A
...
26
Belt Keeper Bracket MTD-785-0186
...
27
SHIFT COVER BRACKET MTD-786-0187-0637
...
28
IDLER BELT KEEPER MTD-786-0193-0637
...
29
WHEEL ASSEMBLY MTD-634-0238
...
xx
WHEEL ASSEMBLY MTD-634-0239
...
xx
TIRE 16.25 X 4.5-8 MTD-734-0808A
...
30
RIM MTD-634-0108
...
31
TUBELESS VALVE MTD-934-0255
...
32
Clevis Pin MTD-711-1017
...
33
SCREW 5/16-18 x 1.5 LG MTD-710-0805A
...
34
Hex Bolt 1/2-13 x 5.0 MTD-710-0382
...
35
HEX NUT MTD-712-0206
...
36
Counterweight MTD-731-1595
...
37
Flat Washer.50 ID x 1.25 OD MTD-736-0179
...
38
Lock Washer 1/2 MTD-736-0921
...
39
Hex Screw 1/4-20 x.375 MTD-710-0653
...
40
Screw 1/4-14 x.625 MTD-710-1017
...
41
Lock Nut MTD-712-0392
...
42
Flat Washer.271 ID x.630 OD MTD-736-3020
...
43
BELT COVER MTD-784-0158B
...
44
Bell Washer.340 ID x.872 OD MTD-736-0242
...
45
HEX NUT 5/16-18 MTD-712-3010

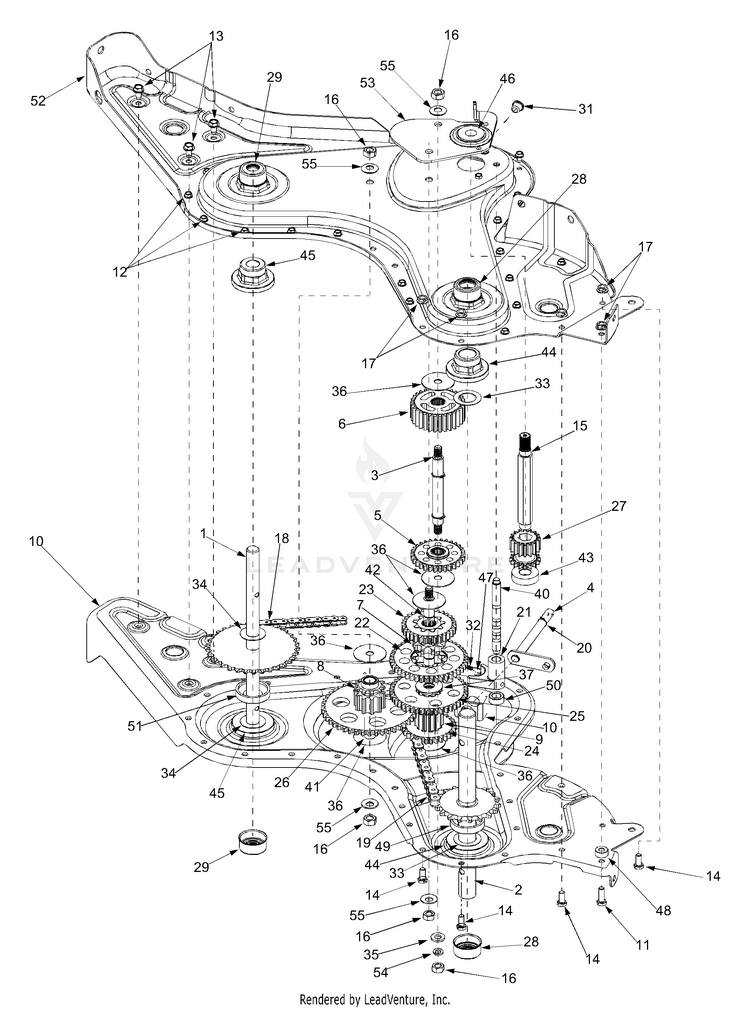

Gear Case Assembly

...
...
1
KIT-SERVICE WHEEL SHAFT 611-0020 MTD-753-05575
...
2
TINE SHAFT ASSEMBLY W/18T MTD-611-0021A
...
3
Jack Shaft Ass'y MTD-611-0128
...
4
Input Shaft Ass'y MTD-611-0129
...
5
30T REVERSE IDLER GEAR ASSEMBLY MTD-617-0058A
...
6
GEAR ASSEMBLY (FORWARD TINE) MTD-917-0059B
...
7
SPROCKET ASSEMBLY TINE INPUT 9T MTD-617-0060A
...
8
Wheel Input Sprocket Ass'y: 10T MTD-617-0061
...
9
11T GEAR ASSEMBLY MTD-617-0062A
...
10
R.H. Housing Ass'y MTD-686-0108A-0637
...
11
Hex Bolt 5/16-18 x 1" Lg. MTD-710-0376
...
12
Hex S-Tap Scr. 1/4- 20 x.5 MTD-710-0599
...
13
Hex S-Tap Scr. 5/16-18 x.625" MTD-710-0604A
...
14
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
15
INPUT SHAFT MTD-711-1349B
...
16
Hex Nut 7/16-20 MTD-712-0378
...
17
HEX FLANGE NUT MTD-712-3004A
...
18
#420 Chain 1/2 Pitch x 50 Links MTD-913-0367
...
19
#50 Chain 5/8 Pitch x 54 Links MTD-913-0484
...
20
Snap Ring MTD-716-0865
...
21
Shifting Fork MTD-717-0853A
...
22
SPUR GEAR 44T MTD-717-1582B
...
23
Spur Gear 30T MTD-717-1583
...
24
Spur Gear 30T MTD-717-1584
...
25
Spur Gear 44T MTD-717-1585
...
26
Spur Gear 44T MTD-717-1587
...
27
Spur Gear 16T MTD-717-1594
...
28
Seal 1.0 Shaft MTD-921-0378
...
29
.75 Shaft Seal MTD-721-0379
...
31
Tapered Cap Ring MTD-726-0277
...
32
Compression Spring .50" Lg. MTD-932-0496
...
33
Flat Wash. 1.03" I.D. x 1.62" MTD-736-0163
...
34
Flat Wash.76" I.D. x 1.5" O.D. MTD-736-0351
...
35
Flat Wash.474" I.D. x.879" MTD-736-0226
...
36
Thrust Wash.445 x 1.92 x.060 MTD-736-0518
...
37
Fl-Wash.635" I.D. x 1.59 O.D. MTD-736-3088
...
40
Detent Shaft 1/2" Dia. MTD-738-0645
...
41
Jack Shaft.625 x 2.385 MTD-738-0648
...
42
Jack Shaft.625 x 5.0 MTD-738-1013
...
43
BALL BEARING MTD-941-0600
...
44
BEARING MTD-941-0420B
...
45
BEARING MTD-741-0421B
...
46
BALL BEARING MTD-941-0563
...
47
DETENT BALL .250 MTD-741-0862
...
48
Spacer.315 MTD-750-0258
...
49
Step Spacer MTD-950-0570
...
50
Spacer.505 I.D. x.88 O.D. x.440 MTD-750-0664
...
51
Spacer .75 x 2.0 x .50 MTD-950-0671
...
52
LH Chain Case Housing MTD-686-04129-0637
...
53
GEAR POSITIONER BRACKET MTD-786-0238A
...
54
Lock Washer 7/16 MTD-736-0171
...
55
Bell Washer .45" I.D. x 1.0" MTD-736-0407
...
xx
KIT-GEAR CASE W/WH MTD-753-05331

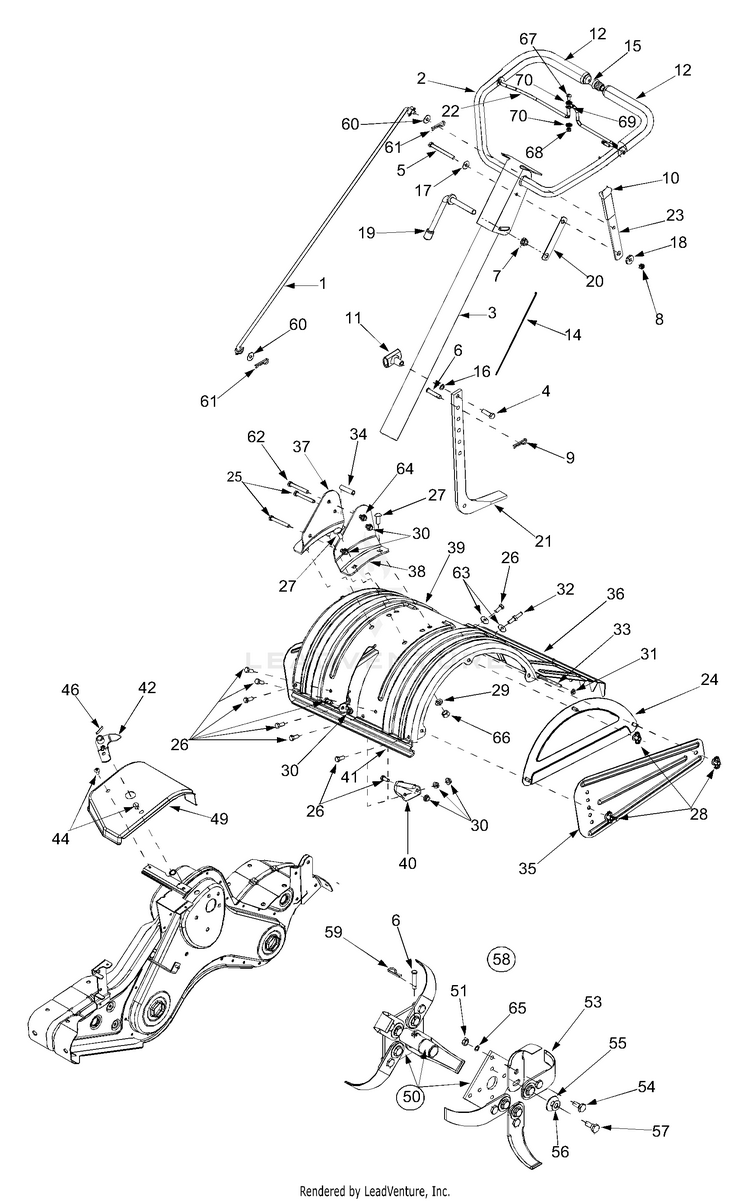

General Assembly

...
...
1
Shift Rod MTD-747-1152
...
2
Upper Handle Ass'y MTD-649-0041
...
3
Lower Handle Ass'y MTD-649-0034
...
4
Hex Screw 3/8-16 x 1.25 MTD-710-3005
...
5
Hex Screw 5/16-18 x 3.25 MTD-710-3056
...
6
Clevis Pin 3/8-1.62 MTD-711-0415
...
7
Flange Lock Nut 3/8-24 MTD-712-0379
...
8
Hex Lock Nut 5/16-18 MTD-712-0429
...
9
Cotter Pin MTD-714-0147
...
10
Grip MTD-720-0313
...
11
T-Knob MTD-720-0210A
...
12
Foam Grip MTD-720-0278A
...
14
Cable Tie MTD-726-0317
...
15
END PLUG MTD-735-0246A
...
16
Fl-Wash. MTD-936-0117
...
17
Bell Washer.340 ID x.872 OD MTD-736-0242
...
18
Spacer, .50 x .190 x .360 LG MTD-938-0958
...
19
Handle Adjustment Crank MTD-784-0190
...
20
Hex Nut Retainer Bracket MTD-784-0191
...
21
Depth Bar MTD-786-0120-0637
...
22
Clutch Bail MTD-747-1219-0637
...
23
Shift Rod Lever MTD-786-0181
...
24
END COVER ASSEMBLY MTD-686-0044B
...
25
Hex Cap Screw 5/16-18 x 2.75 MTD-710-0176
...
26
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
27
Carriage Bolt 3/8-16 x 1.0 MTD-710-3097
...
28
Wing Nut MTD-712-0421
...
29
Lock Washer 3/8 MTD-736-0169
...
30
HEX FLANGE NUT MTD-712-3004A
...
31
PUSH NUT MTD-726-0106
...
32
Screw, Hex, 5/16-18 x .75 MTD-938-0849
...
33
Rod MTD-747-0432
...
34
Spacer.322 x.625 x 2.0 MTD-750-0885A
...
35
Side Shield MTD-786-0090A
...
36
Rear Tine Shield MTD-786-0113
...
37
RH Handle Mounting Bracket MTD-786-0176
...
38
LH Handle Mounting Bracket MTD-786-0177
...
39
TINE SHIELD MTD-786-0178A
...
40
FRT Tine Shield Bracket MTD-786-0179-0637
...
41
FRT Tine Shield Spacer Bracket MTD-786-0180-0637
...
42
Shift Crank Assembly MTD-686-0109A
...
44
Screw 1/4-14 x.625 MTD-710-1017
...
46
Spiral Pin 3/16 x 1.0 MTD-715-0120
...
49
SHIFT COVER MTD-784-0208C
...
50
TINE ADAPTER ASSEMBLY MTD-784-0160-0637
...
51
Hex Nut 3/8-24 MTD-712-3054
...
53
ARTICULATING TINE MTD-742-0305A-0637
...
54
SHOULDER SCREW MTD-938-0689
...
55
Flat Washer .51" ID x 1.50" OD MTD-736-0208
...
56
Bell Washer .515" ID x 1.14" OD MTD-736-0253
...
57
SHOULDER SCREW MTD-938-0688
...
58
TINE ASSEMBLY MTD-984-0205A-0637
...
59
Internal Cotter Pin MTD-714-0149B
...
60
Rubber Washer MTD-735-0127
...
61
Cotter Pin MTD-714-0104
...
62
Hex Screw 3/8-16 x 2.75" MTD-710-3022
...
63
Flat Washer MTD-736-0204
...
64
Flange Lock Nut 3/8-16 MTD-912-0431
...
65
Lock Washer MTD-736-0169
...
66
Hex Nut 3/8-16 MTD-712-0798
...
67
Truss Screw 1/4-20 x.65 MTD-710-0946
...
68
Hex Lock Nut 1/4-20 MTD-712-0324
...
69
Battery Hose Clamp 5/16 MTD-726-0273
...
70
Flat Washer.260 ID x.720 OD MTD-736-3090
