Ryobi 13AN688G034 (2003) Lawn Tractor

Model: 13AN688G034 (2003)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

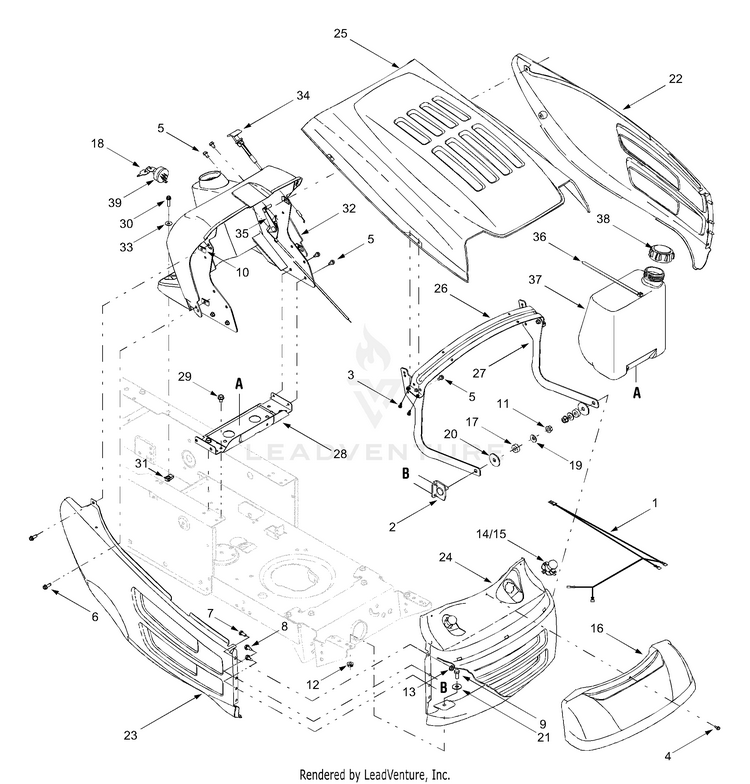

Hood Style 8

...
...
1
HEADLIGHT HARNESS MTD-929-0469B
...
2
BRACKET ASSEMBLY (POWDER BLACK) MTD-683-0195-0637
...
3
Screw, #10-16 x .50 MTD-710-0351
...
4
HEX SCREW #10-16 x 0.500 MTD-710-0456
...
5
Self-tapping Screw, 1/4-20 x .5 MTD-710-0599
...
6
Self-tapping Screw, 1/4-20 x .75 MTD-710-0642
...
7
SCREW 1/4-20 x .620 GR5 MTD-710-0751
...
8
Hex Index Washer Screw, 1/4-14 x .0625 MTD-710-0896
...
9
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
10
SPEED NUT 1/4-20 MTD-712-0185
...
11
Flange Lock Nut 3/8-16 MTD-912-0431
...
12
HEX FLANGE NUT MTD-712-3004A
...
13
LOCK NUT 1/4 MTD-912-3027
...
14
Headlamp, 12V MTD-925-0963
...
15
HEADLIGHT SOCKET (1/4 TURN) MTD-925-1649A
...
16
Headlight Lens (8-style) MTD-931-1854A
...
17
RUBBER WASHER MTD-735-0126A
...
18
Keys (pair) MTD-925-0201
...
19
Fl-Wash. .385" I.D. x 7/8" MTD-736-0300
...
20
Flat Washer, .406 x 1.5 x 11 gauge MTD-736-3039
...
21
Flat Washer, .344 x 1.0 x .063 MTD-736-3078
...
22
SIDE PANEL (LH) 8STY MTD-783-0475C
...
23
SIDE PANEL (RH) 8STY MTD-783-0476C
...
24
GRILLE MTD-783-0477A
...
25
HOOD-8 STYLE MTD-983-0478B
...
26
HOOD SUPPORT BRACKET MTD-783-0553A-0637
...
27
HOOD BRACKET MTD-783-1495-0637
...
28
BRACKET-GAS TANK (POWDER BLACK) MTD-17632D-0637
...
29
Self-tapping Screw, 5/16-18 x .5 MTD-710-0607
...
30
Self-tapping Screw, 1/4-20 x 1.0 MTD-710-0788
...
31
U-type Speed Nut, 1/4-20 MTD-726-3054
...
32
DASH PANEL W/O CHOKE 13AD688G300 & 13AN688G034 MTD-931-04180A
...
32
DASH PANEL W/CHOKE 13A7688G300 & 13AT688H131 MTD-931-04080A
...
33
Flat Washer, .260 x .720 x .060 MTD-736-3090
...
34
Choke Control, 38" MTD-746-0614A
...
34
Choke Control, 23" MTD-946-0616A
...
35
Throttle / Choke Control, 18.5" MTD-746-04020A
...
35
THROTTLE CABLE 35.5 x 1.06 MTD-946-04023B
...
35
THROTTLE CABLE EXP MTD-746-04030A
...
36
Cable Tie MTD-726-0230
...
37
FUEL TANK 1.36 GAL MTD-751-0555D
...
38
TANK CAP MTD-751-0603B
...
39
Ignition Switch, 6-pin MTD-925-1396A
