Ryobi 130r 41AC130A034 Electric String Trimmer

Model: 130r 41AC130A034 41AC130A034 130r

Save
 Part Not Listed?Part Not Listed?
product name

Boom And Trimmer Parts

...
...
1
D-HANDLE AND HARDWARE (includes 2) MTD-791-153064
...
2
D-Handle Hardware Assembly MTD-791-181587
...
3
HOUSING ASSEMBLY UPPER W/FLEXSHAFT MTD-753-04345
...
4
Split Boom Coupler (Incl Ref No. 10-13) (includes 5-8) MTD-753-1190
...
5
Screw MTD-791-182057
...
6
Bolt MTD-791-181617
...
7
ADJUSTMENT KNO MTD-791-181618
...
8
NUT, ELASTIC LOCK MTD-791-181886
...
9
Drive Shaft Housing Assembly MTD-753-1218
...
10
CLAMP ASSEMBLY-LOWER (includes 13) MTD-791-153597
...
11
Flexible Drive Shaft MTD-791-181852
...
12
SHAFT ASSEMBLY-BRG HOUSING MTD-791-181784
...
13
Anti-Rotation Screw MTD-791-145569
...
14
SCREW, #10-24X.50 M MTD-791-181858
...
15
Guard and Blade Assembly MTD-791-683274
...
16
Blade Assembly MTD-791-682061
...
17
Outer Spool Assembly w/ Retainer MTD-791-153619
...
18
Retainer MTD-791-610660
...
19
Spring MTD-791-610317B
...
20
Inner Reel MTD-753-1155
...
21
Bump Head Knob Assembly MTD-791-153066B
...
xx
LINE .080 Optional Accessory; not shown MTD-791-610375
...
xx
Reel & Line Assembly Optional Accessory; not shown MTD-791-153577B
...
xx
DUAL LINE CUTTING HEAD ASSEMBLY (includes 10, 12-21); Optional Accessory; not shown MTD-791-147823

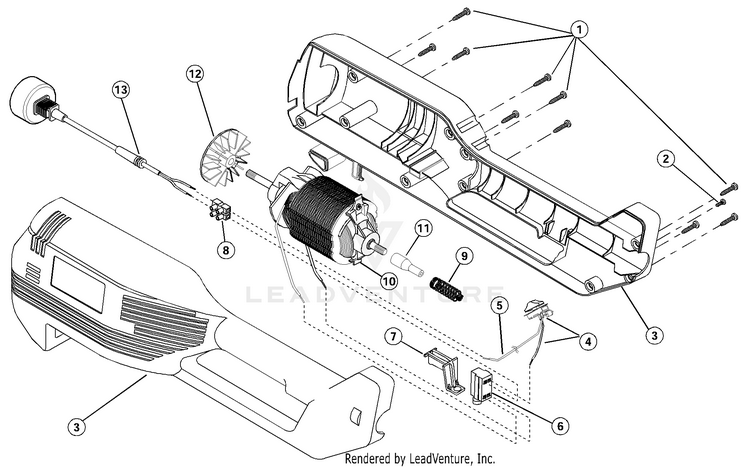

Motor And Housing Parts

...
...
1
Housing Screw MTD-791-181482
...
2
Anti-Rotation Screw MTD-791-145569
...
3
ASSEMBLY, MOTOR MTD-791-181928
...
4
ASSEMBLY, 2-SPEED SWITCH MTD-791-180302
...
5
LEAD, WIRE MTD-791-180559
...
6
ASSEMBLY, SWITCH MTD-791-180150
...
7
TRIGGER, ELECT MTD-753-04275
...
8
BLOCK, TERMINAL MTD-791-180305
...
9
SPRING, COMPRESSION S MTD-791-612468
...
10
MOTOR, 115V 2 1/2" STACK (includes 11 & 12) MTD-791-180154
...
11
DRIVER, ELECTRIC TRIMMER MTD-791-180152
...
12
Cooling Fan MTD-791-180155
...
13
PLUG, RECESSED MTD-791-181645

The Ryobi 130r Electric String Trimmer is engineered for efficiency and ease of use, making it an excellent choice for homeowners looking for a reliable trimming solution. With its lightweight design and powerful electric motor, this trimmer provides consistent performance, allowing you to tackle grass and weeds with minimal effort. The ergonomic handle ensures comfort during extended use, while the electric design eliminates the hassle of fuel mixing. Ideal for trimming around flower beds, driveways, and fences, the Ryobi 130r is perfect for maintaining a tidy yard.

Why Choose Us for Ryobi 130r Electric String Trimmer Parts?
At PartsWarehouse, we provide OEM parts specifically designed for your Ryobi 130r Electric String Trimmer. Our high-quality parts ensure your trimmer operates at peak performance, and our knowledgeable support team is ready to help you find the exact components you need.



...
...
...
...
...
