Ryobi 12A-568Q034 (2003) Self-Propelled Walk-Behind Mower

Model: 12A-568Q034 (2003)

Save
 Part Not Listed?Part Not Listed?
product name

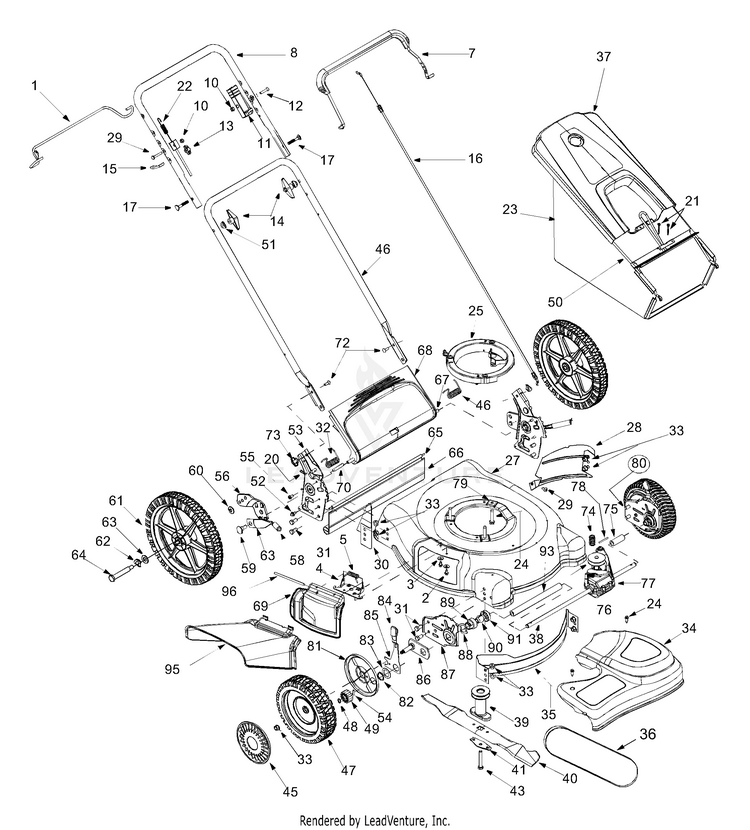

General Assembly

...
...
1
DRIVE BAIL MTD-747-2136-0637
...
2
TT Screw 1/4-20 x 0.5 MTD-710-0599
...
3
SPRING WASHER BELL MTD-736-0270
...
4
PLATE-ADAPTER MTD-17032A
...
5
Torsion Spring MTD-732-1014C
...
?6
Lock Nut MTD-712-3005
...
7
Std. Control Handle MTD-747-0824B-0637
...
8
UPPER HANDLE MTD-749-1499
...
?9
Axle: Rear MTD-711-1513
...
10
Hex Lock Nut, 1/4-20 MTD-712-0324
...
11
Control Housing MTD-746-0883
...
12
SCREW 1/4-20 x 1.310 MTD-710-1270
...
13
Handle Knob MTD-720-0279
...
14
Handle Knob MTD-720-0284
...
15
Eye Bolt MTD-710-1205
...
16
39" CONTROL CABLE (HONDA) MTD-946-04003
...
17
Carriage Bolt 5/16-18 x 2.0 MTD-710-1174
...
?18
HANDLE BRACKET (RH) MTD-687-02034
...
xx
BRACKET ASSEMBLY (LH) MTD-687-02032
...
19
Cable Tie (Not shown) MTD-725-0157
...
20
Cotter Pin MTD-714-0104
...
21
Self-Tapping Sems Screw MTD-710-0896
...
22
CONTROL CABLE MTD-946-04026
...
23
Grass Bag Assembly MTD-964-04007A
...
24
TT-Tap Screw 3/8-16 MTD-710-1008
...
25
ENGINE SPACER ASSEMBLY MTD-631-0075B
...
27
SERVICE KIT:21" DE MTD-753-05203
...
28
LH Rear Baffle MTD-782-5003A
...
29
Screw AB: 1/4-14: .625 MTD-710-1017
...
30
Mulching Baffle - R.R. MTD-782-5004B
...
31
Hex Screw 3/8-16 x .75 MTD-710-0216
...
32
Torsion Spring - RH MTD-732-04090A
...
33
Flange Lock Nut 3/8-16 MTD-912-0431
...
34
TRANSMISSION COVER (BLACK) MTD-931-05132A
...
35
FRONT BAFFLE MTD-782P5002B
...
36
V-Belt MTD-954-0637A
...
37
HARDTOP COVER MTD-931-04302
...
38
Axle: Front MTD-711-04058
...
39
Blade Adapter MTD-948-04015A
...
40
21-inch Mulching Blade MTD-942-0741A
...
41
BLADE BELL SUPPORT MTD-736-0524B-1
...
?42
Hex Screw 1/4-20 x 1.50 MTD-710-0606
...
43
Hex Screw 3/8-24 x 2.50 MTD-710-1257
...
?44
Lower Handle MTD-749-0907B
...
45
Hub Cap MTD-731-0981C
...
46
Torsion Spring - LH MTD-732-04089A
...
47
Front Wheel MTD-734-04223A
...
48
Snap Ring MTD-716-0865
...
49
Gear 14T LH FWD MTD-717-1761
...
xx
Gear 14T RH FWD Not Shown MTD-717-1762
...
50
Grass Bag Frame MTD-747-04080A
...
51
Saddle Washer MTD-736-0451
...
52
Hex Scr. w/Washer 1/4-14 x .625 MTD-710-0896
...
53
HANDLE BRACKET (RH) MTD-687-02034
...
xx
BRACKET ASSEMBLY (LH) MTD-687-02032
...
54
Dowel Pin MTD-915-0221
...
55
Pan Head Screw MTD-710-0286
...
56
RH Pivot Bar MTD-17488A
...
xx
LH Pivot Bar Not Shown MTD-17489A
...
?57
HEIGHT ADJUSTMENT LEVER MTD-732-0866
...
58
Foam Grip MTD-720-0312
...
59
Shoulder Scr .500 Dia. x .434 MTD-738-0507B
...
60
Washer .401 x .870 x .063 MTD-736-0105
...
61
Wheel, 14 x 2 Zag Tread MTD-734-1861
...
62
Spring Washer .50 I.D. x 1.0 O.D. MTD-736-0182
...
63
FLAT WASHER .510 x .995 MTD-736-0272
...
64
Shoulder Screw MTD-938-0481A
...
65
TRAILSHIELD WIRE MTD-732P0700
...
66
Rear Trailing Shield MTD-731-04998
...
67
Pivot Rod MTD-747-0996
...
68
REAR DOOR 21" MTD-931-04134
...
69
Mulch Plug Complete MTD-689-02055
...
70
SPACER MTD-950-04162
...
?71
SHOULDER SCREW .375X.25AB1/4-20 MTD-738-1002
...
72
Carriage Bolt 1/4-20 MTD-710-0703
...
73
Wing Nut MTD-712-0397A
...
74
Belt Tension Spring MTD-732-1043
...
75
Slev. Spacer 2.1" LG MTD-750-1166
...
76
INPUT PULLEY W/PIN MTD-756-1231
...
77
Transmission Assembly MTD-753-05465
...
78
ROLL PIN MTD-715-0169
...
79
Self Tapping Screw, 5/16-18 MTD-710-0650
...
80
Height Adjustment Ass’y - RH MTD-987-02194A
...
xx
Height Adjustment Ass’y - LH Not Shown MTD-987-02193A
...
81
Wheel Dust Cap MTD-782-7551A
...
82
Snap Ring MTD-716-0102
...
83
Washer MTD-736-0474
...
84
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
...
85
Lever Assembly RH MTD-987-02018
...
xx
LEVER ASSEMBLY (LH) Not Shown MTD-987-02017
...
86
PIVOT PLATE ASSEMBLY MTD-687-02044
...
87
Height Adjuster Plate - RH MTD-782-0512B-0637
...
xx
HEIGHT ADJUSTMENT PLATE (LH) Not Shown MTD-782-0511A-0637
...
88
Wave Washer MTD-736-0447
...
89
SUPPORT BEARING MTD-748-0355
...
90
Bearing Sleeve MTD-741-0604A
...
91
BEARING RETAINER MTD-732-0708
...
?92
Hinge Pin MTD-747-0710A
...
93
Sleeve Spacer 8.9" LG MTD-750-1346
...
95
Chute Deflector MTD-731-04177
...
96
Hinge Pin MTD-747-0710A
