Ryobi 12A-389I013 (2001) Self-Propelled Walk-Behind Mower

Model: 12A-389I013 (2001)

Save
 Part Not Listed?Part Not Listed?
product name

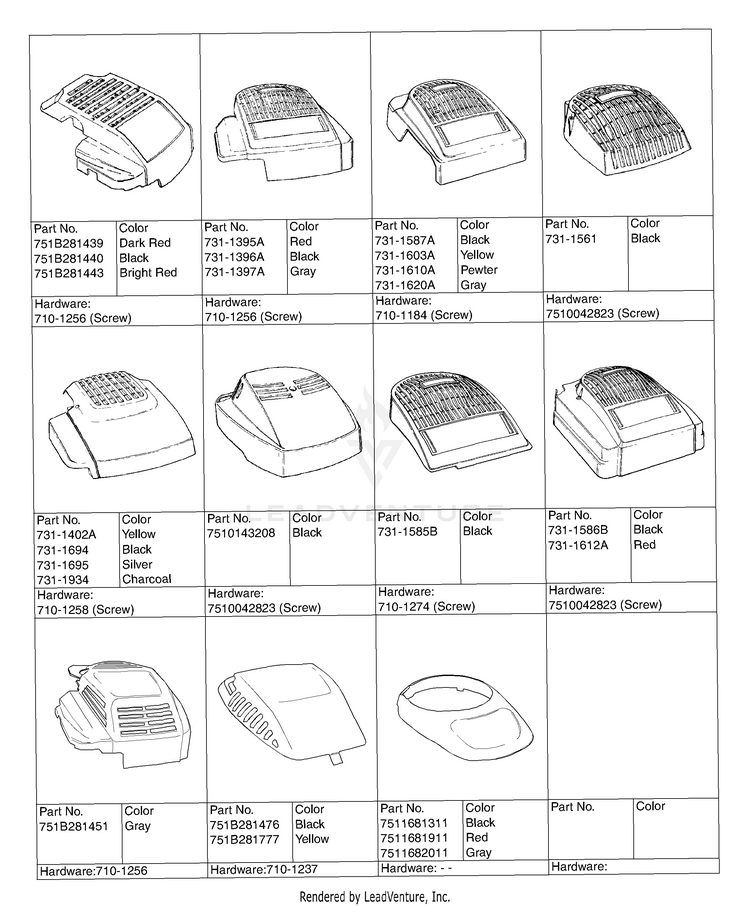

Engine Shrouds

...
...
751B281439
SHROUD MTD-751B281439
...
751B281440
SHROUD MTD-751B281440
...
751B281443
SHROUD MTD-751B281443
...
710-1256
(Screw) Hardware: MTD-710-1256
...
731-1395A
ENGINE SHROUD RED MTD-731-1395A
...
731-1396A
ENGINE SHROUD BLACK MTD-731-1396A
...
731-1397A
ENGINE SHROUD BLACK MTD-731-1396A
...
710-1256
(Screw) Hardware: MTD-710-1256
...
731-1587A
SHRD-ENG-QUATRO-52 MTD-731-1587A
...
731-1603A
ENGINE SHROUD - YELLOW MTD-731-1603A
...
731-1610A
ENGINE SHROUD PEWT MTD-731-1610A
...
731-1620A
ENGINE SHROUD GRAY MTD-731-1620A
...
710-1184
PAN SCREW 10-32 x 2.00 MTD-710-1184
...
731-1561
ENGINE SHROUD BLK TEC MTD-731-1561
...
7510042823
SHOULDER SCREW MTD-7510042823
...
731-1402A
ENGINE SHROUD - YELLOW MTD-731-1402A
...
731-1694
SHRD:ENG:BLK QUAN STY 3 MTD-731-1694
...
731-1695
ENGINE SHROUD SILVER QUAN STY MTD-731-1695
...
731-1934
ENGINE SHROUD MTD-731-1934
...
710-1258
SCREW THUMB ADJ 5/16-18 x .63 MTD-710-1258
...
7510143208
SHROUD ENG MTD-7510143208
...
7510042823
SHOULDER SCREW MTD-7510042823
...
731-1585B
SHRD-ENG-VECTOR-BL MTD-731-1585B
...
710-1274
SCREW-PAN #10-32X1 MTD-910-1274
...
731-1586B
SHRD-ENG-VECTOR-S2 MTD-731-1586B
...
731-1612A
ENGINE SHROUD MTD-731-1612A
...
7510042823
SHOULDER SCREW MTD-7510042823
...
751B281451
SHROUD MTD-751B281451
...
710-1256
Hardware: MTD-710-1256
...
751B281476
ENGINE SHROUD MTD-751B281476
...
751B281777
ENGINE SHROUD MTD-751B281476
...
710-1237
Hardware: MTD-710-1237
...
7511681311
ENGINE SHROUD MTD-7511681311
...
7511681911
Red MTD-7511681911
...
7511682011
SHROUD-ENG MTD-7511682011

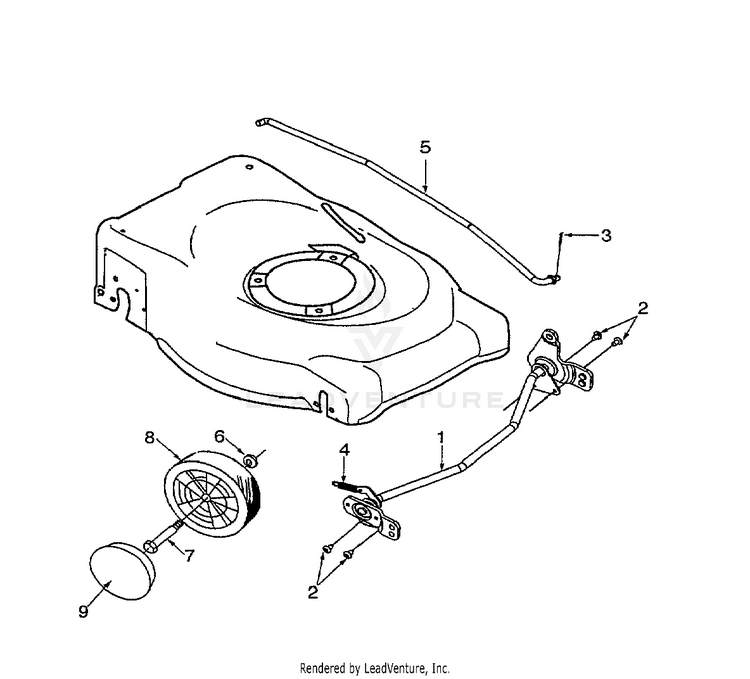

Front Axle Assembly & Height Adjuster

...
...
1
FRONT AXLE ASSEMBLY (POWDER BLACK) MTD-611-0060-0637
...
2
AB Pan Scr. 1/4-14 x .50 Lg. MTD-710-1348
...
3
Cotter Pin .072 x 1.12 Lg. MTD-714-0104
...
4
SPRING EXTENSION MTD-932-0820
...
5
SINGLE LEVER ADJUSTMENT ROD MTD-747-0920A
...
6
Spr. Washer MTD-736-0105
...
7
Shl. Bolt .498 x 1.445 3/8-16 MTD-738-0102
...
8
Wheel Ass'y - Complete See Wheel and Hub Cap MTD-NA
...
9
Hub Cap See Wheel and Hub Cap MTD-NA

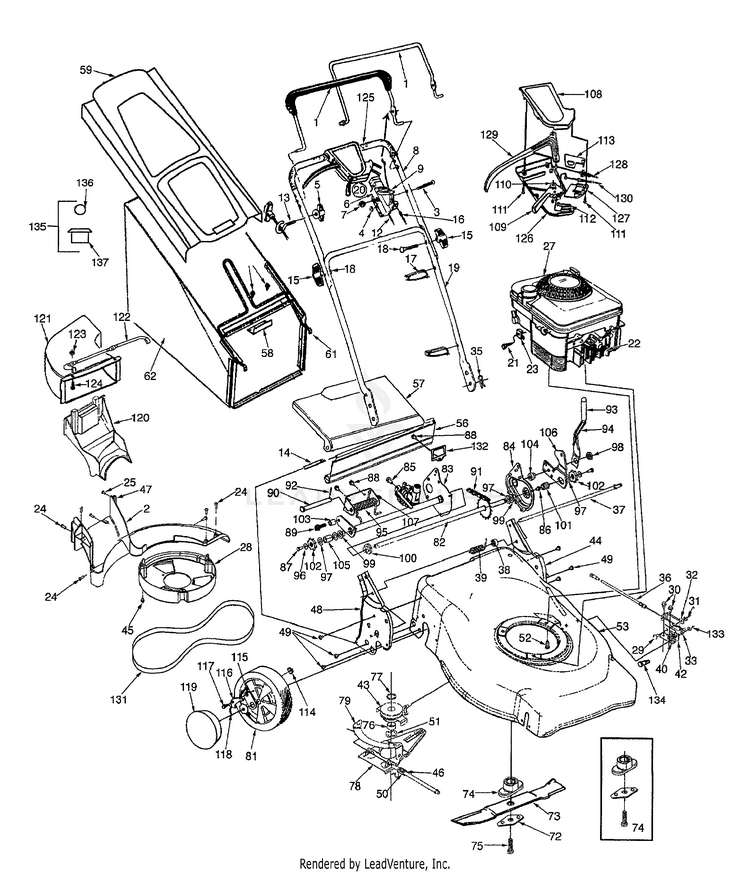

General Assembly

...
...
1
Std. Control Handle (Std) MTD-747-0824B-0637
...
xx
Std. Control Handle (Deluxe) MTD-747-0824B-0637
...
2
BAFFLE RR 21" MTD-731-1639
...
3
Oval C-Sunk Mach - Screw If Equipped MTD-710-0605
...
4
Curved Spring Wash. .66" I.D. If Equipped MTD-936-0501
...
5
Handle Knob 1/4-20 Thd. MTD-720-0279
...
6
Throttle Body If Equipped MTD-946-0875
...
xx
THROTTLE WITH CHOKE HOUSING If Equipped; (Model 378Q) MTD-646-0876
...
7
Hex L-Nut 1/4-20 MTD-712-0324
...
8
Upper Handle MTD-749-0439E-0637
...
9
Throttle Lever If Equipped MTD-946-0876
...
12
Throttle Wire 55" Lg. If Equipped MTD-946-0671A
...
xx
Throttle Cable If Equipped MTD-946-1115
...
xx
Throttle Cable If Equipped; (Model 378Q only) MTD-946-1115
...
xx
Throttle Wire-58" Lg. If Equipped MTD-946-0674A
...
13
Rope Guide MTD-710-1205
...
14
TRAILSHIELD WIRE MTD-732P0700
...
15
Hand Knob MTD-920-0276
...
16
Control Cable (brake) MTD-946-0554
...
xx
CONTROL CABLE 55" MTD-946-0555
...
xx
Control Cable MTD-946-0557
...
xx
Control Cable MTD-946-0557
...
17
Cable Tie MTD-725-0157
...
18
Curved Hd. Bolt 5/16-18x2" Lg. MTD-710-1174
...
19
Lower Handle MTD-749-0907B
...
20
Throttle Box Comp. (Incl. 3,4,6,7,9); If Equipped MTD-811-0185
...
xx
THROTTLE CONTROL BOX COMPLETE (Model 378Q) MTD-811-00748
...
21
Hex Self-Tap Scr. #10-32 x .62" Lg. (B&S) If Equipped MTD-710-1237
...
xx
SCREW #10-32 x .38 If Equipped MTD-710-0871
...
22
INSULATOR-SPARK PLUG MTD-735-0639
...
23
Cable Clamp (B&S) If Equipped MTD-BS-690798
...
xx
CLIP-CONDUIT If Equipped MTD-TC-27793
...
24
Screw H.L. 12-24 MTD-710-1220
...
25
Screw Mach. B Tapp. MTD-710-0351
...
27
Engine MTD-NA
...
28
COVER BELT MTD-731-1714A
...
29
CARRIAGE BOLT 1/4-20X.50" MTD-710-05177
...
30
Scr.:AB 1/4-20: .625 Lg. MTD-710-0896
...
31
HEX NUT 1/4-20 MTD-912-0287
...
32
SPRING WASHER BELL MTD-736-0270
...
33
L-Wash. 1/4" I.D. MTD-936-0329
...
35
Int. Cotter Pin 5/15" Dia. MTD-714-0104
...
36
UNKNOWN MTD-NA
...
37
PIVOT ROD MTD-747-0922
...
38
SHOULDER SPACER MTD-950-1068
...
39
Torsion Spring MTD-932-0809
...
40
Roller Cable MTD-756-0625
...
?41
CABLE ADJUSTMENT BRACKET MTD-782-7574A-0637
...
42
CABLE MOUNTING BRACKET MTD-782-7575-0637
...
43
Pulley Assembly MTD-956-0613A
...
44
HANDLE BRACKET (LH) MTD-782-3029
...
45
Screw, Tap 1/4-20 MTD-710-0653
...
46
Pivot Shaft MTD-711-1114
...
47
U-NUT MTD-912-0400
...
48
HANDLE BRACKET (RH) MTD-782-3030
...
49
Screw AB 1 /4-20 MTD-710-1348
...
50
TORSION SPRING (LH) MTD-932-0807
...
51
Wv.Wash.1.38 O.D. x .88 I.D:.029 MTD-736-0526
...
52
Hx L-Wash Hd. Scr. 3/8-16 : 1" Lg. MTD-710-0654A
...
53
21" Deck Ass'y w/Icon MTD-682-0037A
...
xx
21" Deck Ass'y w/o Icon MTD-682-0075A
...
56
Rear Trailing Shield MTD-731-04998
...
57
GRASSBAG DOOR MTD-782-7599B-0637
...
58
MOUNTING BRACKET MTD-782-9050-0637
...
59
HARDTOP COVER MTD-731-0068
...
xx
HARDTOP BAG COVER W/LOGO MTD-731-1769
...
61
GRASSCATCHER FRAME MTD-747-0919-0637
...
62
GRASSBAG - BLACK MTD-664-0080
...
xx
GRASSBAG - SOFT TOP W/LOGO MTD-664-0079
...
72
BLADE BELL SUPPORT MTD-736-0524B-1
...
73
21-inch Mulching Blade MTD-942-0741A
...
74
Blade Adaptor Kit w/Star MTD-753-0609
...
75
Hex Bolt 3/8-24 x 2.5 Lg. MTD-710-1257
...
76
Slve Spacer, .88 ID x 1.00 OD MTD-950-1070
...
77
Sleeve Spacer, .88ID x 1.13OD MTD-950-1071
...
78
CONTROL ARM 6 SPEED MTD-782-7596A
...
79
6 Sp. Pivot Bracket MTD-782-7597
...
81
Wheel Assembly MTD-NA
...
xx
8" x 1.75" Bar Tread Front and Rear Wheels MTD-634-0020
...
xx
8" x 1.75" "T" Tread Front Wheels MTD-734-1268
...
xx
WHEEL ASSEMBLY W/TIRE-T-TREAD MTD-734-1412
...
xx
Wheels - Front MTD-753-08093
...
xx
8" x 2" "S" Wave Front and Rear Wheels MTD-734-1826
...
xx
8" x 2" Link Tread Front Wheels MTD-734-1978
...
xx
8" x 2" Link Tread Rear Wheels MTD-734-1979
...
xx
Wheels - Front MTD-753-08093
...
xx
Wheels - Front MTD-753-08093
...
82
AXLE:REAR MTD-638-0005
...
83
CHAIN AXLE ASSEMBLY MTD-682-7518-0637
...
84
CHAIN COVER ASSEMBLY MTD-682-7524
...
85
Scr. TT 5/16-18 MTD-710-0604A
...
86
Scr. TT 1/4-20 MTD-710-0653
...
87
SCREW 1/4-20 x .620 GR5 MTD-710-0751
...
88
Scr. AB 1/4-20 MTD-710-0896
...
89
Scr 3/8-16 x 1.25 MTD-710-1315
...
90
Clevis Pin .50 Dia x 4.82 Lg. MTD-911-0835
...
91
ENDLESS CHAIN #48 MTD-913-0421
...
92
Pin-Cotter. 125 O.D. x .75 MTD-714-0474
...
93
Grip-Foam MTD-720-0230
...
94
Spring Lever MTD-732-0803A
...
95
TORSION SPRING MTD-732-0818
...
96
SPRING WASHER BELL MTD-736-0270
...
97
Wash.-Fl.508 I.D. x 1.0 O.D. x.020 MTD-736-0369
...
98
Shoulder Nut.825 x .165 Lg. MTD-938-0529
...
99
Flge Bearing .506 ID x .590 Lg MTD-741-0324A
...
100
Bearing-Flg. Hex MTD-741-0522
...
101
Bearing-Sleeve MTD-741-0978
...
102
Wheel Ratchet MTD-948-0318
...
103
Spacer - .385 x .625 x .700 MTD-750-0807
...
104
Shlder Spacer, .385ID x .715Lg MTD-950-1056
...
105
SLEV SPACER MTD-750-1075
...
106
Pivot Arm Assembly MTD-782-0566B-0637
...
107
LIFT BRACKET SPRING (POWDER BLACK) MTD-782-0568B-0637
...
108
HOUSING CONTROL KIT MTD-753-0717
...
109
6 SPEED SHIFT LEVER MTD-731-0924
...
110
Gear Insert MTD-913-0397
...
111
C-Sunk Tap Scr. #10 x .75" Lg. MTD-710-0841
...
112
Shift Lever Spring MTD-732-0627A
...
113
6 Sp. Rack Cable Bracket MTD-16864
...
114
Weld Top L. 1/4-20 MTD-712-0414
...
115
Pawl Plate MTD-16855
...
116
Pawl R.H. MTD-748-0381
...
xx
PAWL - (LH) (Not Shown) MTD-948-0188B
...
117
Shldr. Scr. .340 x .285 MTD-738-0137A
...
118
Spring, Rachet MTD-10622B
...
119
Hub Cap MTD-NA
...
xx
HUB CAP Optional MTD-920-0249
...
xx
HUB CAP-BLACK Optional MTD-731-0354
...
xx
HUB CAP-GRAY Optional MTD-731-0355A
...
xx
Hub Cap Optional MTD-731-0981C
...
xx
HUBCAP-SPOKE YELLOW Optional MTD-731-1426B
...
120
MULCH PLUG MTD-931-1685
...
121
CHUTE DEFLECTOR MTD-931-1461
...
122
ROD MOUNT. MTD-747-0958
...
123
Hex-L-Nut 1/4-20 thd. MTD-712-0324
...
124
Mach. Scr. 1/4-20 MTD-710-0924
...
125
FOAM GRIP - 9" (Optional) MTD-720-0294A
...
126
HOUSING CONTROL KIT MTD-753-0717
...
127
HOUSING CONTROL KIT MTD-753-0717
...
128
Drive Cable MTD-946-0711B
...
129
Drive Control MTD-731-0620A
...
130
6 Speed Cable MTD-946-0939A
...
131
V-BELT 3/8 x 39 MTD-954-0271
...
132
INSPECTION WINDOW MTD-782-7018-0637
...
133
Nut 1 /4-28 MTD-712-0138
...
134
Shlder Screw, .375 ID x 1/4-14 MTD-738-0924A
...
135
UNKNOWN MTD-NA
...
136
UNKNOWN MTD-NA
...
137
UNKNOWN MTD-NA
...
?138
Hex Washer Screw 1/4-20 x .625 MTD-710-0896
...
?139
Housing (w/o Throttle) MTD-746-0883
...
?140
SCREW 1/4-20 x 1.310 MTD-710-1270
...
?141
SLEEVE SPACER .878X 1.25X (Model 388Q Only) MTD-750-1260

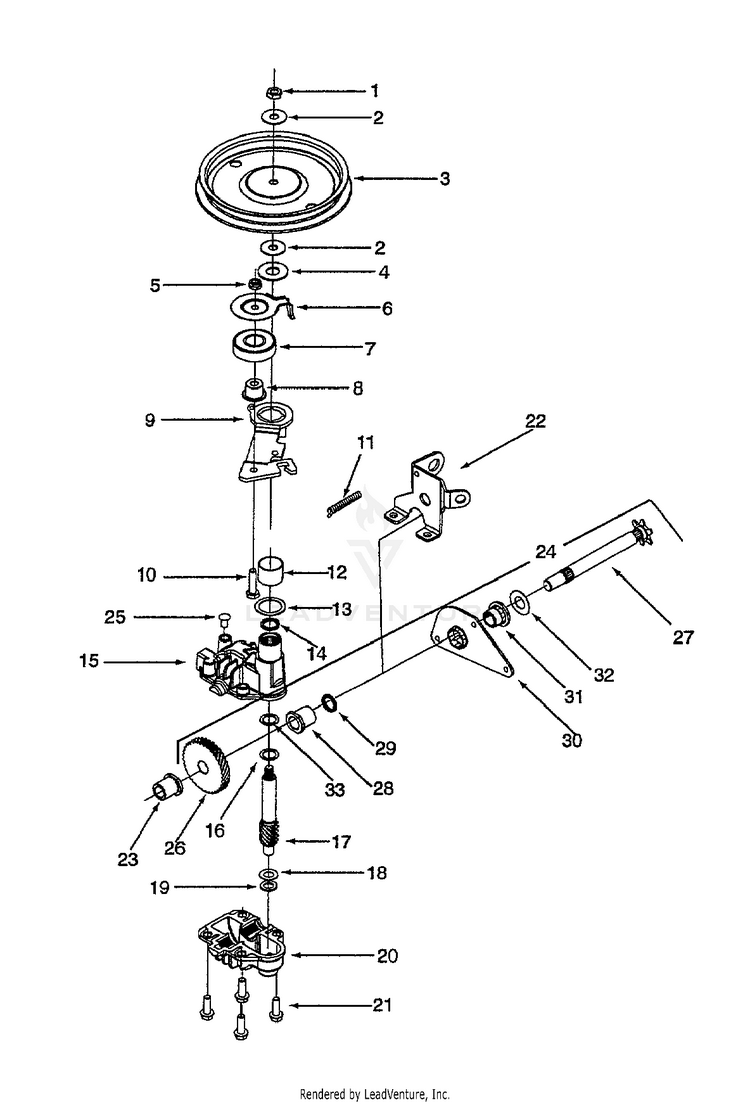

Transmission Assembly

...
...
1
Hx. Jam Nut 5/16-24 MTD-712-3025
...
2
Bell Wash. .325 x .930 x .045 MTD-736-0425
...
3
Pulley MTD-756-0656
...
4
Fl. Wash. .510 x 1.120 x .060 MTD-736-3084
...
5
Hx. Jam Nut 1/4-28 MTD-712-0896
...
6
Belt Keeper MTD-782-7598
...
7
BALL BEARING MTD-941-0600
...
8
Flange Spacer MTD-750-1050
...
9
IDLER BRACKET ASSEMBLY MTD-982-0027A
...
10
Hx. Cap Scr. 1/4-28 x 1.00 Gr. 5 MTD-710-0299
...
11
Extension Spring MTD-932-0849A
...
12
Bearing Sleeve MTD-741-0682A
...
13
FLAT WASHER MTD-936-0570
...
14
Oil Seal MTD-921-0329
...
15
UPPER HOUSING ASSEMBLY MTD-618-0253
...
16
Thrust Washer.504 ID x.70 OD MTD-936-0616
...
17
Pinion Shaft 10T MTD-917-1487
...
18
Thr. Wash. 3/8 x .70 x .030 MTD-736-0314
...
19
THRUST WASHER MTD-936-0569
...
20
LOWER HOUSING ASSEMBLY MTD-918-0252
...
21
Hx. Scr. 1/2-20 x .75 MTD-710-0642
...
22
CABLE GUARD BRACKET MTD-782-7601A-0637
...
23
BEARING MTD-941-0674
...
24
OUTPUT SHAFT ASSEMBLY MTD-911-0066
...
25
Plug MTD-721-0325
...
26
Gear 34 T. MTD-717-1469
...
27
OUTPUT SHAFT 6T MTD-711-1168
...
28
Bearing MTD-941-0673
...
29
Oil Seal MTD-921-0329
...
30
Pivot Bracket MTD-782-7595
...
31
Flge Bearing .506 ID x .590 Lg MTD-741-0324A
...
32
Wash. Fl. .508 I.D. x 1.00 O.D. x .020 MTD-736-0369
...
33
Thrust Bearing MTD-741-0690
...
xx
TRANSMISSION MTD-918-0263A
