Ryobi 11A-589B013 (2001) Push Walk-Behind Mower

Model: 11A-589B013 (2001)

Save
 Part Not Listed?Part Not Listed?
product name

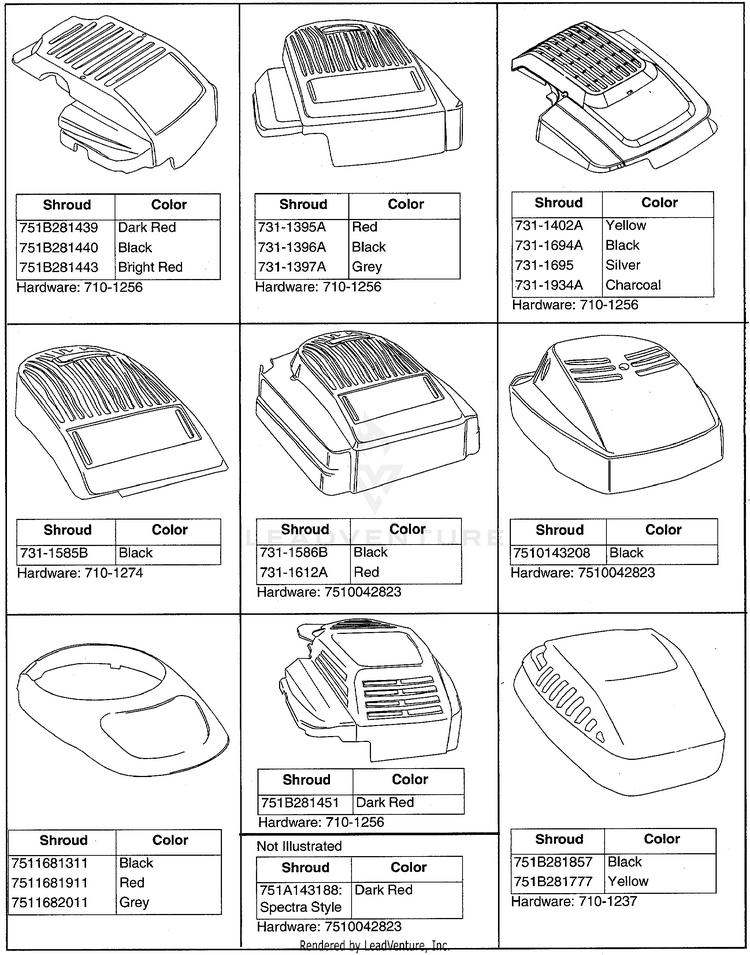

Engine Shrouds

...
...
751B281439
SHROUD MTD-751B281439
...
751B281440
SHROUD MTD-751B281440
...
751B281443
SHROUD MTD-751B281443
...
731-1395A
ENGINE SHROUD RED MTD-731-1395A
...
731-1396A
ENGINE SHROUD BLACK MTD-731-1396A
...
731-1397A
ENGINE SHROUD BLACK MTD-731-1396A
...
710-1256
USE 910-1256 MTD-710-1256
...
731-1402A
ENGINE SHROUD - YELLOW MTD-731-1402A
...
731-1694A
SHRD:ENG:BLACK QUA MTD-731-1694A
...
731-1695
ENGINE SHROUD SILVER QUAN STY MTD-731-1695
...
731-1934A
ENGINE SHROUD MTD-731-1934A
...
731-1586B
SHRD-ENG-VECTOR-S2 MTD-731-1586B
...
731-1612A
ENGINE SHROUD MTD-731-1612A
...
7510042823
SHOULDER SCREW MTD-7510042823
...
7510143208
SHROUD ENG MTD-7510143208
...
751B281857
ENGINE SHROUD MTD-751B281857
...
751B281777
ENGINE SHROUD MTD-751B281476
...
710-1237
SCREW-TAP MTD-710-1237
...
751A143188
SHROUD ENGINE MTD-751A143188
...
751B281451
SHROUD MTD-751B281451
...
731-1585B
SHRD-ENG-VECTOR-BL MTD-731-1585B
...
710-1274
SCREW-PAN #10-32X1 MTD-910-1274
...
7511681311
ENGINE SHROUD MTD-7511681311
...
7511681911
SHROUD-ENGINE RED MTD-7511681911
...
7511682011
SHROUD-ENG MTD-7511682011

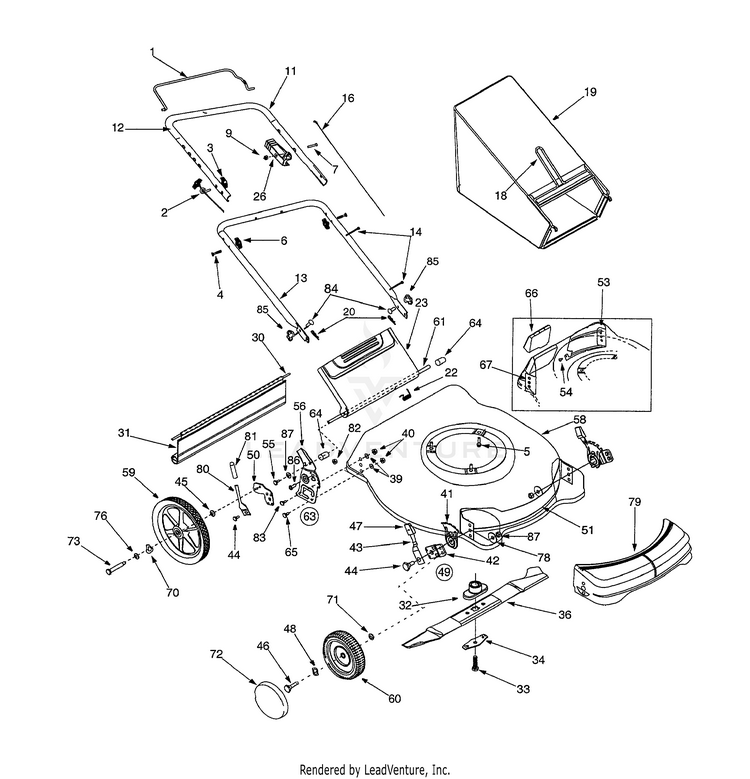

General Assembly

...
...
1
Std. Control Handle MTD-747-0824B-0637
...
2
Rope Guide MTD-710-1205
...
3
Handle Knob MTD-720-0279
...
4
Carriage Bolt 5/16-18 x 2" MTD-710-1174
...
5
Hex Washer Screw 3/8-16 x 1.00" MTD-710-0654A
...
6
Hand Knob MTD-720-0314
...
7
SCREW 1/4-20 x 1.310 MTD-710-1270
...
9
Hex Lock Nut 1/4-20 MTD-712-0324
...
11
UPPER HANDLE MTD-749-0438D-0637
...
12
Foam Grip MTD-720-0295
...
13
Lower Handle MTD-749-0907B
...
14
Cable Tie MTD-725-0157
...
16
Control Cable MTD-946-0557
...
18
Grasscatcher Frame MTD-747-0995A-0637
...
19
Grassbag MTD-964-0084
...
20
Hairpin Clip MTD-714-0104
...
22
Torsion Spring MTD-932-0809
...
23
GRASSBAG DOOR MTD-782-7599B-0637
...
26
Throttle Housing MTD-746-0883
...
30
TRAILSHIELD WIRE MTD-732P0700
...
31
Rear Trailing Shield MTD-731-04998
...
32
Blade Adapter MTD-748-0376E
...
33
Hex Bolt 3/8-24 x 1.5 MTD-710-1044
...
34
BLADE BELL SUPPORT MTD-736-0524B-1
...
36
21-inch Mulching Blade MTD-942-0741A
...
39
BELL WASHER MTD-936-0356
...
40
Hex Nut 3/8-16 MTD-712-0798
...
41
Height Adjustment Plate MTD-787-01290A
...
42
Pivot Bar MTD-152628
...
43
Front Spring Lever MTD-94832
...
44
SHOULDER SCREW MTD-738-0507B
...
45
Bell Wash. .38" I.D. x .88" O.D. MTD-736-0105
...
46
Front Axle Bolt MTD-738-0102
...
47
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
...
48
Wave Washer.510 ID x.750 OD MTD-936-0504
...
49
Height Adj. Ass'y. Comp. (R.H.) MTD-753-06761
...
xx
Height Adj. Ass'y. Comp. (R.H.) (Not Shown) MTD-753-06761
...
50
Pivot Bar - R. H. MTD-17488A
...
xx
Pivot Bar - L.H. MTD-17489A
...
51
FRONT BAFFLE MTD-782P5002B
...
53
LH Rear Baffle MTD-782-5003A
...
54
Tap Screw 1/4-14 x .625. MTD-710-1017
...
55
Hew Washer Screw 1/4-20 x .500 MTD-710-0599
...
56
Handle Bracket - R.H. MTD-682-3056A
...
xx
RH Bracket Ass'y (Not Shown) MTD-753-05922
...
58
DECK ASSEMBLY-21IN COLOR MTD-782-0310A
...
59
COMPLETE WHEEL 14 x 2 YELLOW MTD-734-1860A
...
60
Front Wheel Assembly 8 x 2 MTD-734-1978
...
61
Chute Door Pivot Rod MTD-747-0996
...
63
RH Bracket Ass'y MTD-753-05922
...
xx
RH Bracket Ass'y (Not Shown) MTD-753-05922
...
64
Spacer .375 O.D. x .50 I.D. x 1.02" MTD-750-0434
...
65
Hex Cap Screw 3/8-16 x 1.0" MTD-710-0514
...
66
Mulching Baffle Plug MTD-782-5007C
...
67
Mulching Baffle - R.R. MTD-782-5004B
...
70
Wave Washer MTD-736-0182
...
71
Spring Washer MTD-736-0105
...
72
HUBCAP-SPOKE YELLOW MTD-731-1426B
...
73
Shoulder Screw MTD-938-0481A
...
76
FLAT WASHER MTD-936-0456
...
78
BELL WASHER MTD-936-0356
...
79
FRONT END COVER MTD-731-1506A
...
80
HEIGHT ADJUSTMENT LEVER MTD-732-0866
...
81
Foam Grip MTD-720-0312
...
82
Hex Flange Lock Nut 3/8-16 MTD-712-3005
...
83
Hex Washer Screw 1/4-14 x .625 MTD-710-0896
...
84
Carriage Bolt 14-20 MTD-710-0703
...
85
Wing Nut MTD-712-0397A
...
86
Hex Scr. w/Washer 1/4-14 x .625" MTD-710-0896
...
87
Hex Nut 3/8-16 MTD-712-0798
