Ryobi 11A-546P034 (2002) Push Walk-Behind Mower

Model: 11A-546P034 (2002)

Save
 Part Not Listed?Part Not Listed?
product name

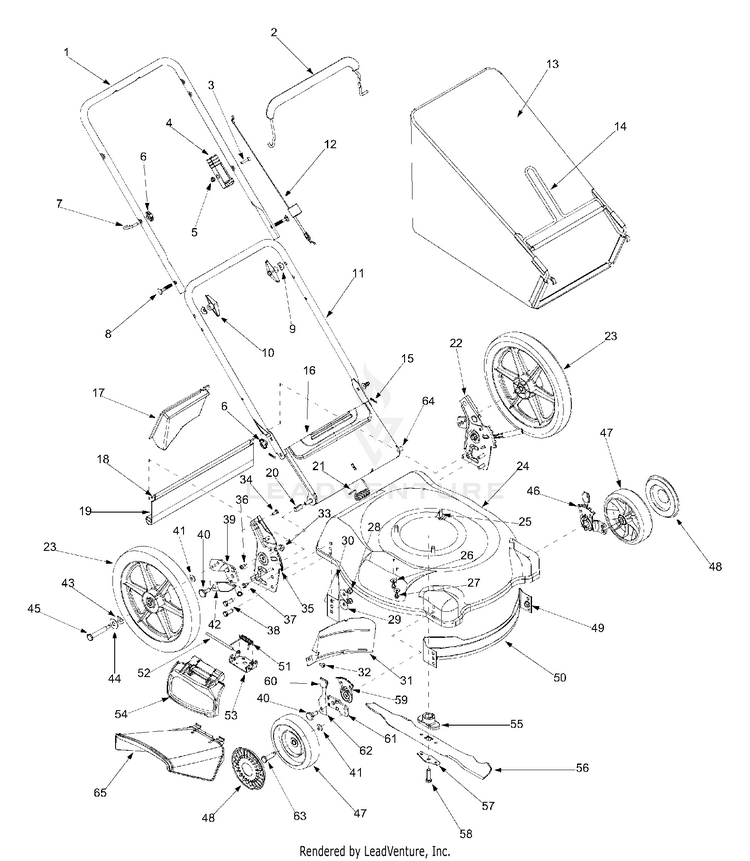

General Assembly

...
...
1
Upper Handle MTD-749-1092A
...
2
Control Handle MTD-747-1161A
...
2
Control Handle Cover MTD-731-2626
...
3
SCREW 1/4-20 x 1.310 MTD-710-1270
...
4
Throttle Housing MTD-746-0883
...
5
Hex Lock Nut 1/4-20 MTD-712-0324
...
6
Handle Knob MTD-720-0279
...
7
Rope Guide MTD-710-1205
...
8
Carriage Bolt 5/16-18 x 2" MTD-710-1174
...
9
Shoulder Washer .320 ID x .930 OD MTD-736-0451
...
10
Wing Nut MTD-720-0284
...
11
Lower Handle MTD-749-0928A-0637
...
12
Control Cable 40" MTD-946-1130
...
12
Control Cable 37" MTD-946-0957
...
12
Control Cable (Tecumseh engine) MTD-946-0946
...
13
Grassbag MTD-964-0084
...
14
Grasscatcher Frame MTD-747-0995A-0637
...
15
Hairpin Clip MTD-714-0104
...
16
GRASSBAG DOOR MTD-782-7599B-0637
...
17
Mulching Baffle Plug MTD-782-5007C
...
18
TRAILSHIELD WIRE MTD-732P0700
...
19
Rear Trailing Shield MTD-731-04998
...
20
Spacer .375 O.D. x .50 I.D. x 1.02" MTD-750-0434
...
21
Torsion Spring MTD-932-0809
...
22
RH Bracket Ass'y MTD-753-05922
...
22
RH Bracket Ass'y MTD-753-05922
...
23
Rear Wheel Assembly 14 x 2 MTD-734-1861
...
24
DECK SHELL 21" MTD-782-0047A
...
25
Hex Washer Screw 3/8-16 x 1.0 MTD-710-0654A
...
26
SPRING WASHER BELL MTD-736-0270
...
27
Hex Washer Screw 1/4-20 x .500 MTD-710-0599
...
28
Hex Lock Nut 3/8-16 MTD-712-0130
...
29
BELL WASHER MTD-936-0356
...
30
Mulching Baffle - R.R. MTD-782-5004B
...
31
LH Rear Baffle MTD-782-5003A
...
32
Tap Screw 1/4-14 x .625. MTD-710-1017
...
33
Flange Lock Nut 3/8-16 MTD-712-3005
...
34
Hex Carriage Screw 1/4-20 MTD-710-0703
...
35
Handle Bracket - RH MTD-682-3056A
...
35
RH Bracket Ass'y MTD-753-05922
...
36
Machine Screw 1/4-20 x .500 MTD-710-0286
...
37
Hex Washer Screw 1/4-14 x .625 MTD-710-0896
...
38
Hex Cap Screw 3/8-16 x 1.0 MTD-710-0514
...
39
Pivot Bar - RH MTD-17488A
...
39
Pivot Bar - LH MTD-17489A
...
40
Shoulder Screw MTD-738-0507B
...
41
Spring Washer .375 ID x .870 OD MTD-736-0105
...
42
HEIGHT ADJUSTMENT LEVER MTD-732-0866
...
43
Wave Washer .500 ID x 1.0 OD MTD-736-0182
...
44
FLAT WASHER MTD-936-0456
...
45
Shoulder Screw MTD-938-0481A
...
46
Height Adj. Ass'y. Comp. (R.H.) MTD-753-06761
...
46
Height Adj. Ass'y. Comp. (R.H.) MTD-753-06761
...
47
Front Wheel Assembly 7 x 2 MTD-734-1980
...
48
Hub Cap MTD-731-0981C
...
49
Flange Lock Nut 3/8-16 MTD-912-0431
...
50
FRONT BAFFLE MTD-782P5002B
...
51
Torsion Spring MTD-932-0731
...
52
Hinge Pin MTD-747-0710A
...
53
MOUNTING BRACKET MTD-782-7006
...
54
MULCH PLUG ASSEMBLY MTD-731-1404A
...
55
Blade Adapter MTD-748-0376E
...
56
21-inch Mulching Blade MTD-942-0741A
...
56
21" BLADE (HI LIFT BOW-TIE) MTD-742-0641-0637
...
57
BLADE BELL SUPPORT MTD-736-0524B-1
...
58
Hex Cap Screw 3/8-24 x 1.5 MTD-710-1044
...
59
Height Adjustment Plate MTD-787-01290A
...
60
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
...
61
Pivot Bar MTD-15262B
...
62
Front Spring Lever MTD-94832
...
63
Shoulder Bolt MTD-738-0102
...
64
Chute Door Pivot Rod MTD-747-0996
...
65
Side Discharge Deflector MTD-731-1409B

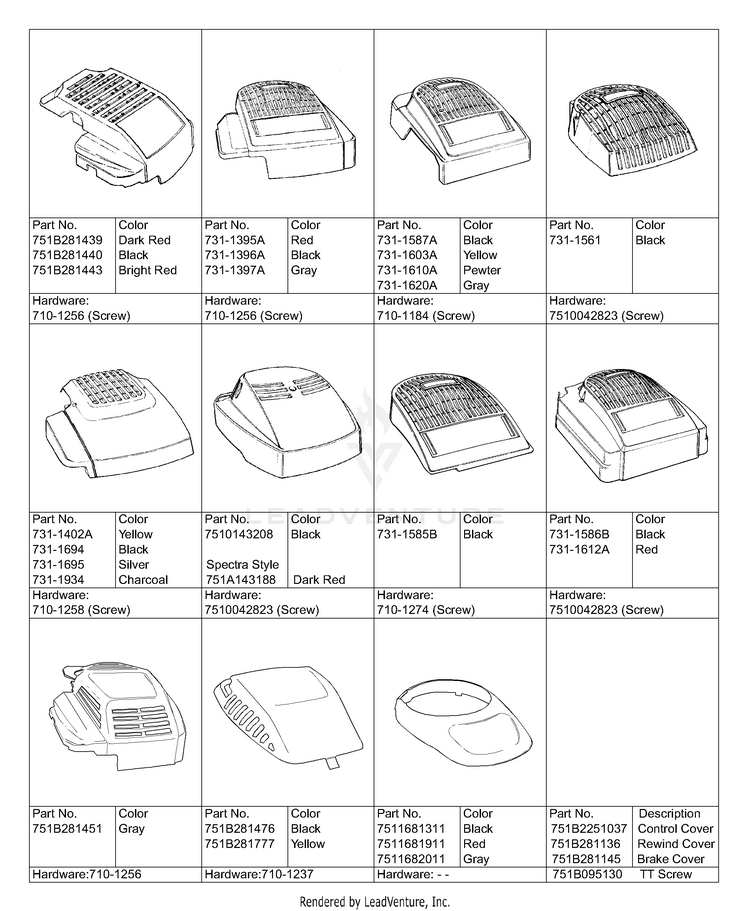

Shroud Chart

...
...
751B281439
SHROUD MTD-751B281439
...
751B281440
SHROUD MTD-751B281440
...
751B281443
SHROUD MTD-751B281443
...
710-1256
Screw MTD-710-1256
...
731-1395A
ENGINE SHROUD RED MTD-731-1395A
...
731-1396A
ENGINE SHROUD BLACK MTD-731-1396A
...
731-1397A
ENGINE SHROUD BLACK MTD-731-1396A
...
710-1256
Screw MTD-710-1256
...
731-1587A
SHRD-ENG-QUATRO-52 MTD-731-1587A
...
731-1603A
ENGINE SHROUD - YELLOW MTD-731-1603A
...
731-1610A
ENGINE SHROUD PEWT MTD-731-1610A
...
731-1620A
ENGINE SHROUD GRAY MTD-731-1620A
...
710-1184
PAN SCREW 10-32 x 2.00 MTD-710-1184
...
731-1561
ENGINE SHROUD BLK TEC MTD-731-1561
...
7510042823
SHOULDER SCREW MTD-7510042823
...
731-1402A
ENGINE SHROUD - YELLOW MTD-731-1402A
...
731-1694
SHRD:ENG:BLK QUAN STY 3 MTD-731-1694
...
731-1695
ENGINE SHROUD SILVER QUAN STY MTD-731-1695
...
731-1934
ENGINE SHROUD MTD-731-1934
...
710-1258
SCREW THUMB ADJ 5/16-18 x .63 MTD-710-1258
...
7510143208
SHROUD ENG MTD-7510143208
...
751A143188
SHROUD ENGINE MTD-751A143188
...
7510042823
SHOULDER SCREW MTD-7510042823
...
731-1585B
SHRD-ENG-VECTOR-BL MTD-731-1585B
...
710-1274
SCREW-PAN #10-32X1 MTD-910-1274
...
731-1586B
SHRD-ENG-VECTOR-S2 MTD-731-1586B
...
731-1612A
ENGINE SHROUD MTD-731-1612A
...
7510042823
SHOULDER SCREW MTD-7510042823
...
751B281451
SHROUD MTD-751B281451
...
710-1256
SCREW-PAN HD PHILS MTD-710-1256
...
751B281476
ENGINE SHROUD MTD-751B281476
...
751B281777
ENGINE SHROUD MTD-751B281476
...
710-1237
SCREW-TAP MTD-710-1237
...
7511681311
ENGINE SHROUD MTD-7511681311
...
7511681911
Shroud - Red MTD-7511681911
...
7511682011
SHROUD-ENG MTD-7511682011
...
751B2251037
Control Cover MTD-751B2251037
...
751B281136
REWIND COVER MTD-751B281136
...
751B281145
LINKAGE COVER MTD-BS-690595
...
751B095130
HEX SCREW MTD-BS-691147
