Ryobi 11A-545D734 (2004) Push Walk-Behind Mower

Model: 11A-545D734 (2004)

Save
 Part Not Listed?Part Not Listed?
product name

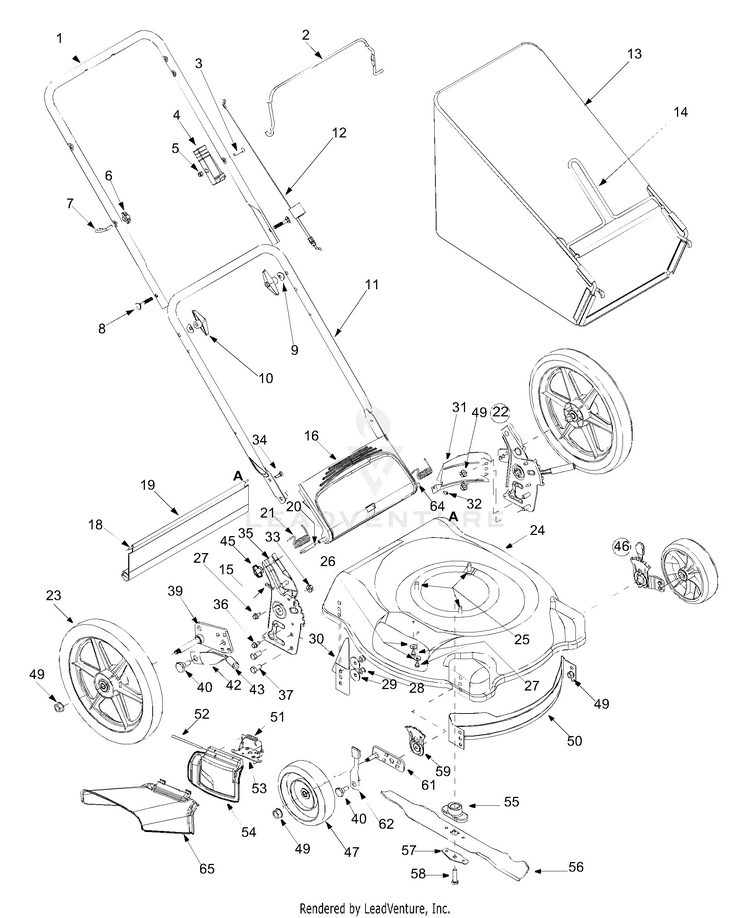

General Assembly

...
...
1
Upper Handle MTD-749-1092A
...
2
Control Handle MTD-747-1161A
...
3
SCREW 1/4-20 x 1.310 MTD-710-1270
...
4
Throttle Housing MTD-746-0883
...
5
Hex Lock Nut 1/4-20 MTD-712-0324
...
6
Handle Knob MTD-720-0279
...
7
Rope Guide MTD-710-1205
...
8
Carriage Bolt 5/16-18 x 2" MTD-710-1174
...
9
Shoulder Washer .320 ID x .930 OD MTD-736-0451
...
10
Wing Nut MTD-720-0284
...
11
Lower Handle MTD-749-0928A-0637
...
12
Control Cable (brake) MTD-946-0957
...
xx
Control Cable - 40.00" MTD-946-1130
...
xx
Control Cable (brake) MTD-946-1137
...
13
GRASS CATCHER MTD-964-04007A
...
14
Grass Bag Frame MTD-747-04080A
...
15
Hairpin Clip MTD-714-0104
...
16
REAR DOOR 21" MTD-931-04134
...
17
Mulching Baffle Plug MTD-782-5007C
...
18
TRAILSHIELD WIRE MTD-732P0700
...
19
Rear Trailing Shield MTD-731-04998
...
20
SPACER MTD-950-04162
...
21
Torsion Spring - RH Right Hand MTD-732-04090A
...
xx
Torsion Spring - LH Left Hand MTD-732-04089A
...
22
HANDLE BRACKET ASSEMBLY (RH) Right Hand MTD-687-02056
...
xx
HANDLE BRACKET ASSEMBLY (LH) Left Hand MTD-687-02057
...
23
Rear Wheel: 8-Spoke Bar Gray 12 x 2 MTD-734-04082
...
xx
Rear Wheel: Zag Trd. Gray 12 x 2.125 If equipped MTD-734-04093
...
24
21" DECK MTD-787-01104
...
25
Hex Washer Screw 3/8-16 x 1.0 MTD-710-0654A
...
26
SPRING WASHER BELL MTD-736-0270
...
28
Hex Lock Nut 3/8-16 MTD-712-0130
...
29
BELL WASHER MTD-936-0356
...
30
Mulching Baffle - R.R. MTD-782-5004B
...
31
LH Rear Baffle MTD-782-5003A
...
32
Tap Screw 1/4-14 x .625. MTD-710-1017
...
33
Flange Lock Nut 3/8-16 MTD-712-3005
...
34
Hex Carriage Screw 1/4-20 MTD-710-0703
...
35
HANDLE BRACKET ASSEMBLY (RH) Right Hand MTD-987-02033
...
xx
HANDLE BRACKET (LH) Left Hand MTD-687-02031
...
36
TT Screw 1/4-14 x .625 MTD-710-1652
...
37
Hex Screw 3/8-16 x 0.75 MTD-710-0216
...
38
Hex Cap Screw 3/8-16 x 1.0 MTD-710-0514
...
39
Rear Pivot Arm Assy - RH Right Hand MTD-987-02335
...
xx
PIVOT ARM ASSEMBLY (LH) Left Hand MTD-987-02336
...
40
Shoulder Screw MTD-738-0507B
...
42
HEIGHT ADJUSTMENT LEVER MTD-732-0866
...
43
Grip: Spring Lever MTD-720-0312
...
45
Wing Nut MTD-712-0397A
...
46
Front Hgt. Adj. Assy., 8" Whl. - RH Right Hand MTD-987-02074B
...
xx
Front Hgt. Adj. Assy., 8" Whl. - LH Left Hand MTD-987-02075B
...
47
Front Wheel: 8-Spoke Bar Gray 8 x 2 MTD-734-1987
...
xx
Wheels - Front If equipped MTD-753-08093
...
49
Flange Lock Nut 3/8-16 MTD-912-0431
...
50
FRONT BAFFLE MTD-782P5002B
...
51
Torsion Spring MTD-732-1014C
...
52
Hinge Pin MTD-747-0710A
...
53
MOUNTING BRACKET MTD-782-7006
...
54
Mulch Cover MTD-987-02055
...
55
Blade Adapter MTD-748-0376E
...
56
21-inch Mulching Blade MTD-942-0741A
...
57
BLADE BELL SUPPORT MTD-736-0524B-1
...
58
Hex Cap Screw 3/8-24 x 1.5 MTD-710-1044
...
59
Height Adjustment Plate MTD-787-01290A
...
60
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
...
61
Pivot Arm Assembly -RH Right Hand MTD-987-02077A
...
xx
PIVOT ARM ASSEMBLY (RH) Left Hand MTD-987-02076A
...
62
Front Spring Lever MTD-94832
...
64
Chute Door Pivot Rod MTD-747-0996
...
65
Side Discharge Deflector MTD-731-04177
...
66
HUBCAP-SPOKE YELLOW If equipped; Not shown MTD-731-1426B
...
xx
Hub Cap If equipped; Not shown MTD-731-0981C
...
xx
SPARK PLUG RJ19LM MTD-759-3338
