Ryobi 11A-545D034 (2003) Push Walk-Behind Mower

Model: 11A-545D034 (2003)

Save
 Part Not Listed?Part Not Listed?
product name

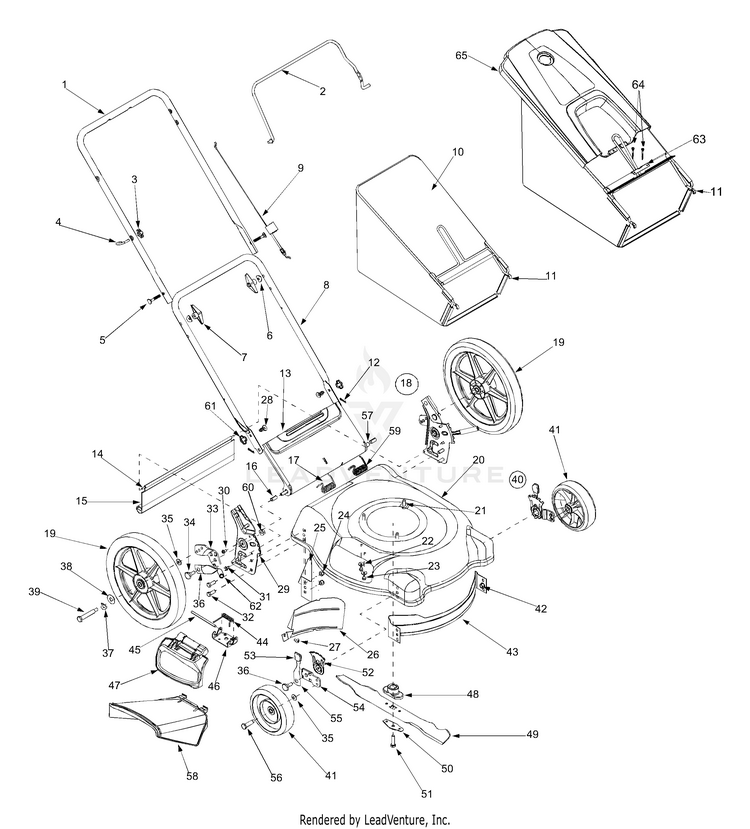

General Assembly (Plastic Rear Door)

...
...
1
Upper Handle MTD-749-1092A
...
2
Control Handle MTD-747-1161A
...
3
Handle Knob MTD-720-0279
...
4
Rope Guide MTD-710-1205
...
5
Carriage Bolt 5/16-18 x 2" MTD-710-1174
...
6
Shoulder Washer.320 ID x.930 OD MTD-736-0451
...
7
Wing Nut MTD-720-0284
...
8
Lower Handle MTD-749-0928A-0637
...
9
Control Cable - 40.00" MTD-946-1130
...
10
Grassbag MTD-964-0084
...
11
Grass Bag Frame MTD-747-04080A
...
12
Hairpin Clip MTD-714-0104
...
13
REAR DOOR 21" MTD-931-04134
...
14
TRAILSHIELD WIRE MTD-732P0700
...
15
Rear Trailing Shield MTD-731-04998
...
16
SPACER MTD-950-04162
...
17
Torsion Spring - RH MTD-732-04090A
...
18
BRACKET ASSEMBLY (LH) MTD-687-02032
...
xx
HANDLE BRACKET (RH) MTD-687-02034
...
19
WHEEL ASSEMBLY 14X1.8 MTD-734-04030
...
20
21" DECK MTD-787-01104
...
21
Hex Washer Screw 3/8-16 x 1.0 MTD-710-0654A
...
22
SPRING WASHER BELL MTD-736-0270
...
23
Hex Washer Screw 1/4-20 x.500 MTD-710-0599
...
24
Flange Lock Nut 3/8-16 MTD-912-0431
...
25
Mulching Baffle - R.R. MTD-782-5004B
...
26
LH Rear Baffle MTD-782-5003A
...
27
Tap Screw 1/4-14 x.625. MTD-710-1017
...
28
Hex Carriage Screw 1/4-20 MTD-710-0703
...
29
HANDLE BRACKET ASSEMBLY (RH) MTD-987-02033
...
xx
HANDLE BRACKET (LH) MTD-687-02031
...
30
Machine Screw 1/4-20 x.500 MTD-710-0286
...
31
Hex Washer Screw 1/4-14 x.625 MTD-710-0896
...
32
Hex Cap Screw 3/8-16 x 1.0 MTD-710-0216
...
33
Pivot Bar - RH MTD-17488A
...
xx
Pivot Bar - LH MTD-17489A
...
34
Shoulder Screw MTD-738-0507B
...
35
Spring Washer.375 ID x.870 OD MTD-736-0105
...
36
HEIGHT ADJUSTMENT LEVER MTD-732-0866
...
37
Wave Washer.500 ID x 1.0 OD MTD-736-0182
...
38
FLAT WASHER .510 x .995 MTD-736-0272
...
39
Shoulder Screw MTD-938-0481A
...
40
Height Adj. Ass'y. Comp. (R.H.) MTD-753-06761
...
xx
Height Adj. Ass'y. Comp. (R.H.) MTD-753-06761
...
41
Front Wheel Assembly 7 x1.8 MTD-734-1988
...
42
Flange Lock Nut 3/8-16 MTD-912-0431
...
43
FRONT BAFFLE MTD-782P5002B
...
44
Torsion Spring MTD-732-1014C
...
45
Hinge Pin MTD-747-0710A
...
46
PLATE-ADAPTER MTD-17032A
...
47
Mulch Cover MTD-987-02055
...
48
Blade Adapter MTD-748-0376E
...
49
21-inch Mulching Blade MTD-942-0741A
...
50
BLADE BELL SUPPORT MTD-736-0524B-1
...
51
Hex Cap Screw 3/8-24 x 1.5 MTD-710-1044
...
52
Height Adjustment Plate MTD-787-01290A
...
53
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
...
54
Pivot Bar MTD-15262B
...
55
Front Spring Lever MTD-94832
...
56
Shoulder Bolt MTD-738-0102
...
57
Chute Door Pivot Rod MTD-747-0996
...
58
Side Discharge Deflector MTD-731-04177
...
59
Torsion Spring - LH MTD-732-04089A
...
60
Flange Lock Nut 3/8-16 MTD-712-3005
...
61
Wing Nut MTD-712-0397A
...
62
Foam Grip MTD-720-0312
...
63
MOUNTING BRACKET If Equipped MTD-787-01113-0637
...
64
Hex Washer Screw 1/4-14 x.625 If Equipped MTD-710-0896
...
65
HARDTOP COVER If Equipped MTD-931-04302
...
xx
Hard Top w/Logo If Equipped MTD-731-04300
...
xx
Hard Top w/Indicator If Equipped MTD-731-04301
...
xx
HARDTOP COVER If Equipped MTD-931-04302

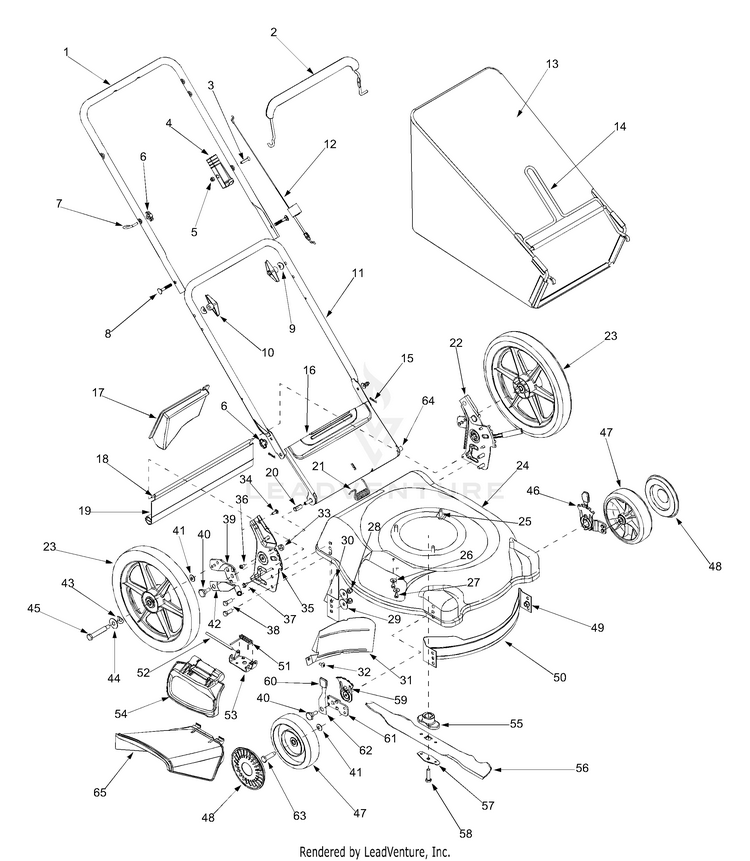

General Assembly (Steel Rear Door)

...
...
1
Upper Handle MTD-749-1092A
...
2
Control Handle MTD-747-1161A
...
xx
Control Handle Cover MTD-731-2626
...
3
SCREW 1/4-20 x 1.310 MTD-710-1270
...
4
Throttle Housing MTD-746-0883
...
5
Hex Lock Nut 1/4-20 MTD-712-0324
...
6
Handle Knob MTD-720-0279
...
7
Rope Guide MTD-710-1205
...
8
Carriage Bolt 5/16-18 x 2" MTD-710-1174
...
9
Shoulder Washer .320 ID x .930 OD MTD-736-0451
...
10
Wing Nut MTD-720-0284
...
11
Lower Handle MTD-749-0928A-0637
...
12
Control Cable - 40.00" MTD-946-1130
...
13
Grassbag MTD-964-0084
...
14
Grasscatcher Frame MTD-747-0995A-0637
...
15
Hairpin Clip MTD-714-0104
...
16
GRASSBAG DOOR MTD-782-7599B-0637
...
17
Mulching Baffle Plug MTD-782-5007C
...
18
TRAILSHIELD WIRE MTD-732P0700
...
19
Rear Trailing Shield MTD-731-04998
...
20
Spacer .375 O.D. x .50 I.D. x 1.02" MTD-750-0434
...
21
Torsion Spring MTD-932-0809
...
22
RH Bracket Ass'y MTD-753-05922
...
xx
RH Bracket Ass'y MTD-753-05922
...
23
Rear Wheel Assembly 14 x 2 MTD-734-1861
...
24
DECK SHELL 21" MTD-782-0047A
...
25
Hex Washer Screw 3/8-16 x 1.0 MTD-710-0654A
...
26
SPRING WASHER BELL MTD-736-0270
...
27
Hex Washer Screw 1/4-20 x .500 MTD-710-0599
...
28
Hex Lock Nut 3/8-16 MTD-712-0130
...
29
BELL WASHER MTD-936-0356
...
30
Mulching Baffle - R.R. MTD-782-5004B
...
31
LH Rear Baffle MTD-782-5003A
...
32
Tap Screw 1/4-14 x .625. MTD-710-1017
...
33
Flange Lock Nut 3/8-16 MTD-712-3005
...
34
Hex Carriage Screw 1/4-20 MTD-710-0703
...
35
Handle Bracket Assembly - RH MTD-682-3056A
...
xx
RH Bracket Ass'y MTD-753-05922
...
36
Machine Screw 1/4-20 x .500 MTD-710-0286
...
37
Hex Washer Screw 1/4-14 x .625 MTD-710-0896
...
38
Hex Cap Screw 3/8-16 x 1.0 MTD-710-0514
...
39
Pivot Bar - RH MTD-17488A
...
xx
Pivot Bar - LH MTD-17489A
...
40
Shoulder Screw MTD-738-0507B
...
41
Spring Washer .375 ID x .870 OD MTD-736-0105
...
42
HEIGHT ADJUSTMENT LEVER MTD-732-0866
...
43
Wave Washer .500 ID x 1.0 OD MTD-736-0182
...
44
FLAT WASHER MTD-936-0456
...
45
Shoulder Screw MTD-938-0481A
...
46
Height Adj. Ass'y. Comp. (R.H.) MTD-753-06761
...
xx
Height Adj. Ass'y. Comp. (R.H.) MTD-753-06761
...
47
Front Wheel Assembly 7 x 2 MTD-734-1980
...
48
Hub Cap MTD-731-0981C
...
49
Flange Lock Nut 3/8-16 MTD-912-0431
...
50
FRONT BAFFLE MTD-782P5002B
...
51
Torsion Spring MTD-932-0731
...
52
Hinge Pin MTD-747-0710A
...
53
MOUNTING BRACKET MTD-782-7006
...
54
MULCH PLUG ASSEMBLY MTD-731-1404A
...
55
Blade Adapter MTD-748-0376E
...
56
21-inch Mulching Blade MTD-942-0741A
...
xx
21" BLADE (HI LIFT BOW-TIE) MTD-742-0641-0637
...
57
BLADE BELL SUPPORT MTD-736-0524B-1
...
58
Hex Cap Screw 3/8-24 x 1.5 MTD-710-1044
...
59
Height Adjustment Plate MTD-787-01290A
...
60
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
...
61
Pivot Bar MTD-15262B
...
62
Front Spring Lever MTD-94832
...
63
Shoulder Bolt MTD-738-0102
...
64
Chute Door Pivot Rod MTD-747-0996
...
65
Side Discharge Deflector MTD-731-1409B
