ProTeam ProForce 1500XP HEPA Upright Vacuum

Model: 1500XP HEPA

Save
 Part Not Listed?Part Not Listed?
product name

ProTeam 1500XP HEPA

...
...
1
Cover, Bag Housing, Grey F/XP PRT-104234
...
2
Latch, Release, Bag Cover PRT-104232
...
3
Spring, Release Button, F/Bag Cover Latch PRT-104233
...
4
Seal, Transition Duct/Bag Cover, Upper PRT-104235
...
5
Duct, Transition, Bag Cover, F/XP PRT-104236
...
6
Seal, Transition Duct/Bag Cover Nozzle Plate, Lower PRT-104238
...
7
Plate, Bag Cover Nozzle, F/XP PRT-104239
...
8
Spring, Bag Cover Latch PRT-104242
...
9
Plate, Bag Cover Latch PRT-104243
...
10
Screw, Phillips, 4mm x 9.5mm PRT-104505
...
11
Gasket, Bag Cover PRT-104241
...
12
Screw, Phillips, 4.2mm x 38mm (includes: #112) PRT-104493
...
13
Filter Cover Kit w/Riveted Hinge and 6 Rivets Hinge & Decal Incl: Bag Cover Nozzle Plate PRT-105486

ProTeam 1500XP HEPA

...
...
14
1500XP HEPA Bag Housing Assembly, Grey w/RivetedHinge & Decal Incl: Bag Cover Nozzle Plate PRT-107260
...
15
Rivet F/Bag Housing Assembly (includes: #30, 43) PRT-104491
...
16
Cord, Power, w/Strain Relief, 50' Yellow PRT-104284
...
17
Intercept Micro Filter PRT-103483
...
18
Seal, Gasket, Bag Housing PRT-104738
...
19
Switch, Filter, Lock-Out PRT-104283
...
20
Filter, Double Layer Motor Intake PRT-104281
...
21
Cover, Switch, Filter Lock-out PRT-104282
...
22
Bracket, Cord Wrap PRT-104268
...
23
Spring, Compression, Cord Wrap Bracket Bracket PRT-104269
...
24
Washer, Compression Spring, Cord Wrap PRT-104270
...
25
Switch, Rocker, On/Off PRT-105147
...
26
Bushing, Handle Tube PRT-104264
...
27
Plate, Handle Nut PRT-104259
...
28
Handle, Carry w/Tool Caddy, F/XP (HEPA) PRT-107256
...
29
Wand, F/XP PRT-104294
...
30
Clasp, Strain Relief Kit w/Fastener (include: #42) Phillips Round Head PRT-105091
...
31
Screw, Cord Wrap, 4mm x 35mm,F/Handle Assembly PRT-104271
...
32
Screw, Phillips, 4mm x 10mm x .07 Pitch, PRT-104509
...
33
Screw, Phillips, 2.9mm x 13mm, F/Switch Cover PRT-105075
...
34
Screw, Handle Assembly PRT-104266
...
35
Screw, Phillips, 4.2mm x 38mm (includes: #26, 38) PRT-104493
...
36
Handle, Tube Assembly Complete, F/XP PRT-106618
...
37
Hose, Assembly w/Cuffs, F/XP (includes: #39) (includes: #22, 23, 24, 25, 31, 32, 40, 41) PRT-104961
...
38
Handle Kit PRT-106617
...
39
Quick Release Hose Cuff PRT-105573
...
40
Impact Bumper PRT-107093
...
41
Handle/Bezel Assembly (PF 1500XP) PRT-105502
...
42
Fastener PRT-105320
...
43
Cord Retention Clip PRT-107203

ProTeam 1500XP HEPA

...
...
xx
Wire Harness Kit PRT-105754
...
1
Screw, Phillips, 4mm x 12mm F/Wand Guide PRT-104267
...
2
Guide, Wand, Upper Left PRT-104261
...
3
Guide, Wand, Upper Right PRT-104260
...
4
Switch, Wand Lockout PRT-104263
...
5
1500XP HEPA Bulkhead, Dark Grey PRT-107255
...
6
Seal, Lower Air Duct , Nitrile PRT-104253
...
7
Screw, Phillips, 4mm x 12mm F/Lower Air Duct PRT-104267
...
8
Air Duct PRT-104250
...
9
1500XP HEPA Motor Housing, Charcoal PRT-107257
...
10
Bearing, Pivot PRT-104504
...
11
Wheel, Rear PRT-104306
...
12
1500XP HEPA Filter, Exhaust, HEPA Media PRT-107005
...
12
Filter, Exhaust, HEPA Media PRT-105136
...
13
1500XP HEPA Cover, Filter Cartridge, Charcoal PRT-107258
...
14
Foam, Sound, Motor Housing, Front Panel PRT-103532
...
15
Foam, Sound, Motor Housing, Left Panel PRT-103533
...
16
Foam, Sound, Motor Housing, Rear Panel PRT-103531
...
17
Motor Mount, Lower Nitrile PRT-104247
...
18
Motor Mount, Upper Nitrile PRT-104249
...
19
Motor Assembly w/Jumpers (includes: A, B) PRT-104957
...
20
Motor Housing Sound Filter (includes: #14,15,16) PRT-105488
...
21
Wand Kit (includes: #1, 2, 3, 4) PRT-105490
...
22
Air Duct Kit (includes: #6, 7, 8) PRT-105489
...
23
1500XP HEPA Power Nozzle Cover w/Detent Springs & Decal PRT-107282
...
24
Switch, Safety, Power Nozzle Lockout PRT-104279
...
25
Circuit Breaker PRT-104212
...
26
Screw, Phillips, 2.9mm x 35mm, F/Brush Retainer PRT-104496
...
27
Retainer, Brush Roll PRT-104499
...
28
Brush Roll, Power Nozzle, 14" PRT-104216
...
29
Bumper, Power Nozzle, Vinyl PRT-104218
...
30
Brace, Formed Wire, F/Power Nozzle Base PRT-104500
...
31
Baseplate, Power Nozzle PRT-104221
...
32
Screw, Phillips, 4mm x 35mm F/Base Cover PRT-104497
...
33
Roller, Front PRT-104501
...
34
Shaft, Front Roller Axle PRT-104502
...
35
Clamp, Rear Wheel PRT-104503
...
36
Screw, Phillips, 4mm x 19mm F/Powerhead PRT-104495
...
37
Sleeve, Hose, Air Duct PRT-104227
...
38
Hose, Power Nozzle to Air Duct, Lower PRT-104230
...
39

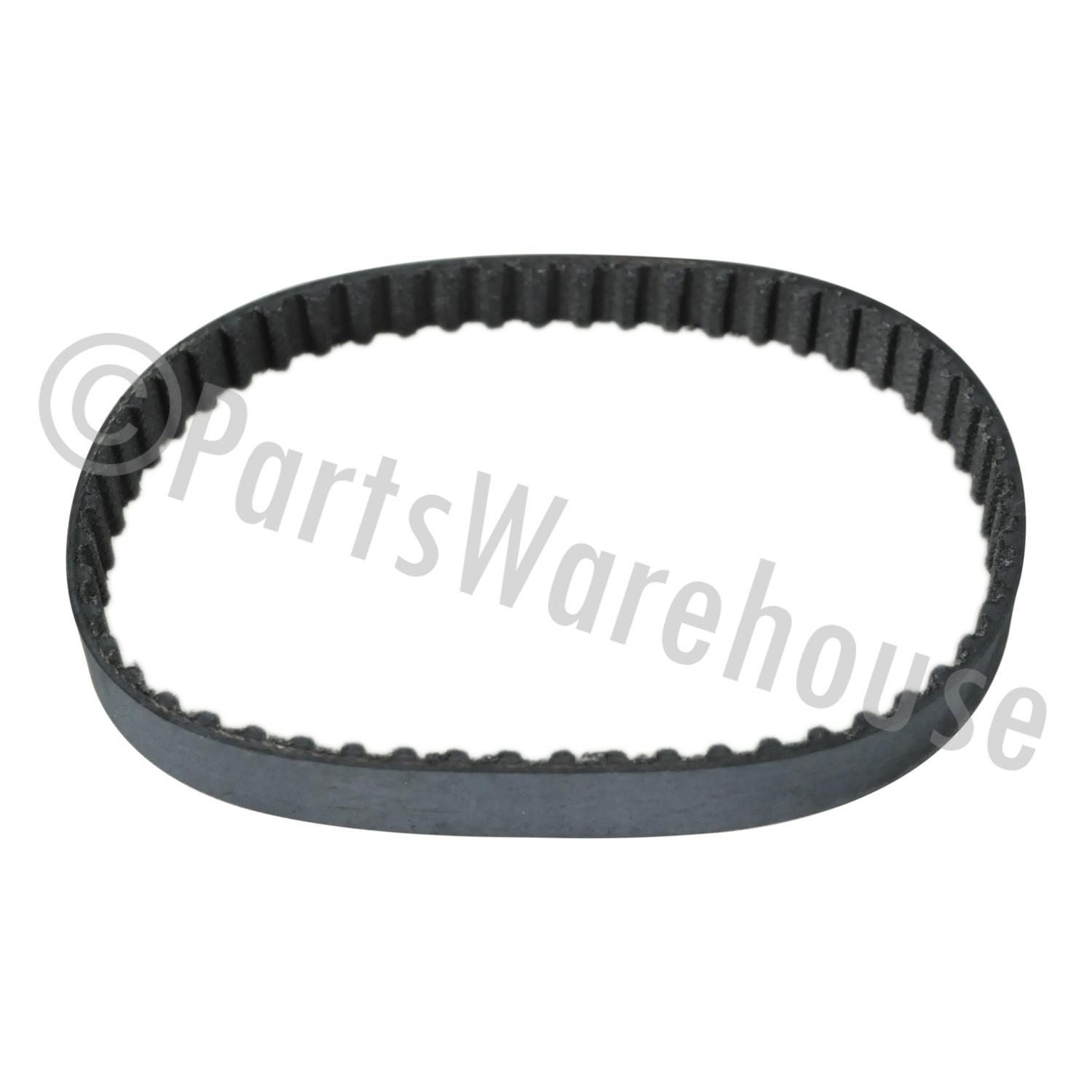

Belt, Drive, F/Brush Roll PRT-104217
...
40
Motor, Power Nozzle with Crimps PRT-104506
...
41
Grommet, Vibration, Power Nozzle Motor, Nitrile PRT-104498
...
42
Cover, Air Duct, Power Nozzle PRT-104224
...
43
Board, Vacuum Operation Indicator PRT-104226
...
44
Spring, Detent, Upright Lock PRT-104507
...
45
Screw, Phillips, 4.2mm x 19mm, F/Power Nozzle Motor PRT-105371
...
46
Carbon Brush Set for ProForce Motor PRT-105281
...
47
Thermal Protector PRT-105760
...
...
...
...
...
