product name

Oreck U2251RS XL Classic

Model: U2251RS

Save
 Part Not Listed?Part Not Listed?
product name

Oreck U2251RS

...
...
xx
Screw, 7-18X0.75 Torx (Use T-20 Bit Screwdriver) 03-00688-01M
...
xx
Screw, #8 X .75 03-00476-01M
...
xx
Screw, #8 - 32 X 29/32 W/ Washer 03-00605-01M
...
xx
Screw, #8-32 X .545 W/ Washer 03-00504-02M
...
xx
Screw, #8 X .811 W/ Int Washer 03-00608-01M
...
xx
Cord Clamp 03-00619-01M
...
xx
User'S Manual FNLA
...
xx
Stiffener, Through Bolt Connector (Uses Different Length Screws) ORE-75619-01
...
xx
U2251Rs: Aluminum Motor Kit ORE-09-75886-01
...
xx
U2251Rs: Cord Set, White 75163-06-328
...
xx
U2251Rs: Switch Assembly 75842-01
...
xx
Dust Bag, (25 Pk.) ORE-PK800025DW
...
xx
Dust Bag, (25 Pk.) Regular ORE-AK1CC25
...
1g
U2251Rs: Handle Assembly FNLA
...
1g
Handle Assembly 09-75093-59
...
2
Cord Clamp 03-00613-01M
...
3
Screw 8-32 X .440 03-00478-02M
...
4
Bag Retainer Spring ORE-75035-02
...
4a
Docking Clip, Rear, Type Cc (Use W/#67 Or Order #83) 75583-03-480
...
5
Filtration Bag With Docking, 6 Bags. Manufacturing upgrade replacing CCPK8 ORE-AK1CC6
...
5
Dust Bag, (8 Pk.) ORE-PK80009DW
...
6
Outer Bag ORE-75246-16
...
6
U2251Rs: Outer Bag, Jcp 76063-05
...
8
Connector Assembly Kit 09-75308-57
...
9
Collar 75199-02-0327
...
10
Tube Assembly 75198-05
...
12
Fan Housing Assembly Includes Rivet & Spring ORE-09-75343-03
...
13
Switch Cover ORE-09-75266-01
...
14
Switch, Foot ORE-75084-07
...
15
Screw, #8 X .5 Phillips 03752-01M
...
16
End Cap ORE-0134623
...

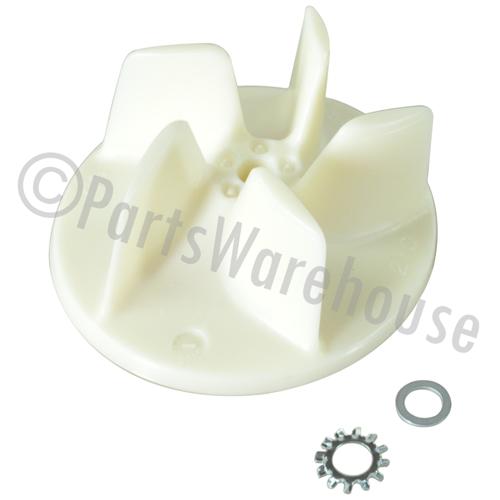

18
Metaxalloytm Fan Kit W/Washers ORE-09-75300-01
...
19
Fan Seal Cup ORE-75012-01
...
20
Power Cord - 3 Wire 35' Red 75080-05-441
...
20
Cord Set, White 75163-03-328
...
26
Top Cover W/Belt Door Assembly 09-76031-03
...
26
U2251Rs: Top Cover W/Belt Door Assembly Jcp 09-76031-04
...
27
Bumper, Clear 75181-04
...
27
Bumper, Clear ORE-75765-01
...
28
Intake Pivot Assembly With Felt Seal ORE-09-75066-02
...
29
Felt Seal ORE-75065-01
...
30
1/4 X 32 Yellow Chrome 03-00448-01M
...
32
Felt Seal, Motor ORE-75117-01M
...
33
Strain Relief ORE-03-00494-01
...
34
Motor Assembly Kit ORE-09-75505-01
...
35
Motor Seal ORE-75095-01
...
36
Kit, Motor Brush (Large & Small) / Spring ORE-09-75514-01
...
38
Screw #8 - 6 X .75 Small Head 100 Pack 03-00456-01M
...

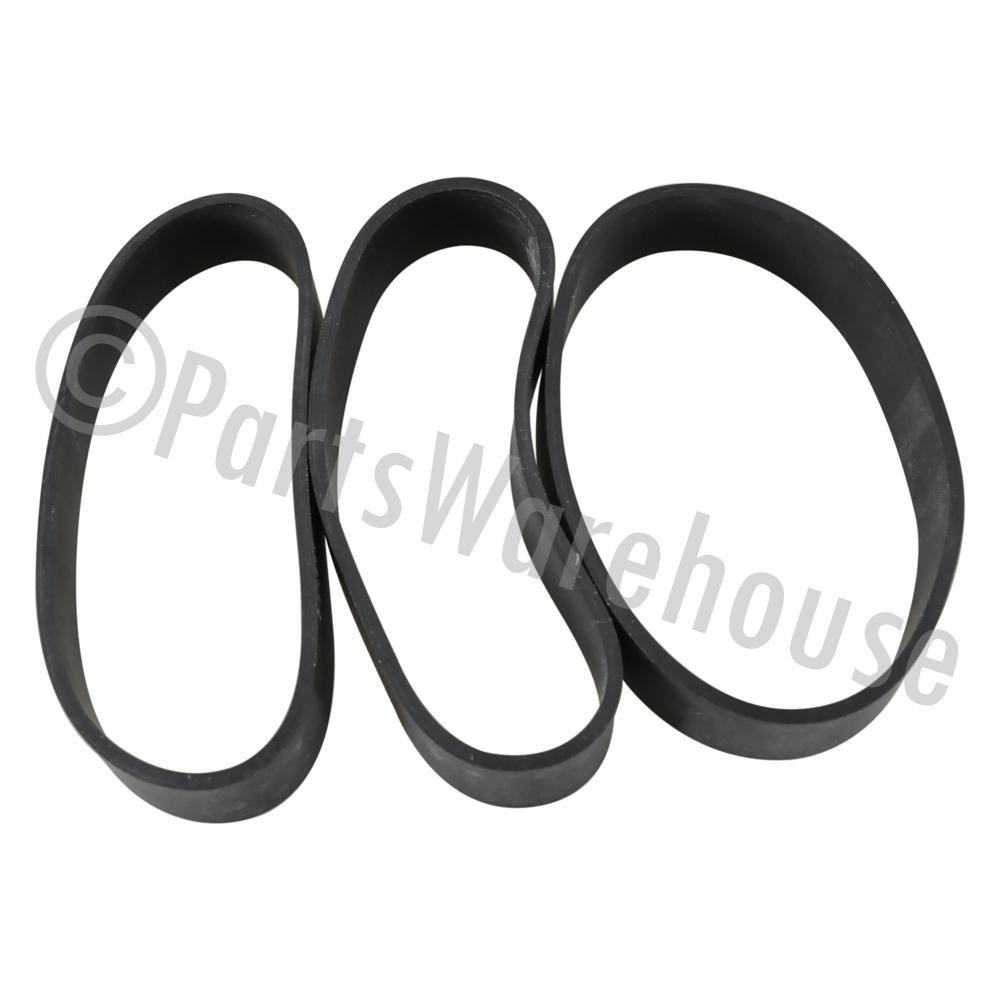

39
Drive Belt / 3 Pack ORE-0300604
...
39a
Drive Belt, Single ORE-75024-01
...
40
Door Belt, Red 76002-01-441
...
40
U2251Rs: Door Belt, Jcp 76002-01-0431
...
41
Wire Nut 03-00599-01M
...
42
Brush Roll Assembly 75104-02
...
43
Seal, Baseplate ORE-75008-01
...
44
Plastic Detent, (Uses 2 #49 Screws) ORE-75299-01
...
45
Complete Baseplate Assembly 09-75715-07
...
45
Complete Baseplate Assembly ORE-09-75715-03
...
46
Micro Sweep Blade 75700-01
...
46
Micro Sweep Blade 75700-02
...
47
Channel 75701-01
...
48
Screw, #8 X .75 Phillips 03-00476-01M
...
49
Screw, #7 X .38 Phillips 03-00475-01M
...
50
Edge Brush 75766-03
...
51
Wheel Axle 03-00630-01M
...
52
Soft Rear Wheel, Black 75187-02-0327
...
55
Grips, Red Set, W/O Switch 09-75301-25
...
60
Motor Spring ORE-75283-01
...
61
Tube Label 75087-05
...
63
Screw 10 X .5 - Phillips 03-00450-01M
...
67
Bag Dock Hinge, Type Cc (Use W/#4A Or Order #83) 75582-03-480
...
68
Screw, #6-20 X 1/4" 03-00482-01M
...
69
O-Ring 75191-02M
...
72
Washer, Thrust 03-00479-01M
...
73
Washer, Lock External Tooth 03-00480-01M
...
74
1" X 3", Loop Fastener 75304-01M
...
75
1" X 1", Hook Fastener 75303-01M
...
76a
Handle Brace Kit ORE-75435-01
...
76
Handle Brace 75432-01
...
77
Retainer Clip ORE-03528M
...
78
Wireform 75194-03M
...
79
Stiffener (Uses Same Length Screws, Notched) ORE-75189-02
...
81
Strain Relief - Heyco Spiral ORE-03-00600-01
...
82
Steel Bushing Ring 03-00598-01M
...
83
Kit - Bag Dock Type Cc - Blue ORE-09-75657-01
...
84
Nut, Square ORE-03-00606-01M
...
85
Screw, #6-20 X 7/16 Flat Undercut ORE-03-00626-01M
...
86
Wireform, One-Piece 75698-01
...
87
Wheel And Tire Overmolded ORE-75709-01
...
88
Insulator - Jst 75679-01M
...
89
Rivet 03-00453-01M
...
90
Bag Spring 75015-01M
...
91
Push Nut 03-00636-01M
...
92
Bag Stiffener 76061-01-0327
...
98
U2251Rs: Jumper Wire For Motor 75843-01
...
99
U2251Rs: Mounting Bracket 75824-01
...
100
U2251Rs: Jst Insulator 75888-01
...
...
...
...
...
