Metabo TS36-18LTXBL254 Type 13025000 Table Saw

Model: TS36-18LTXBL254 Type 13025000

Save
 Part Not Listed?Part Not Listed?
product name

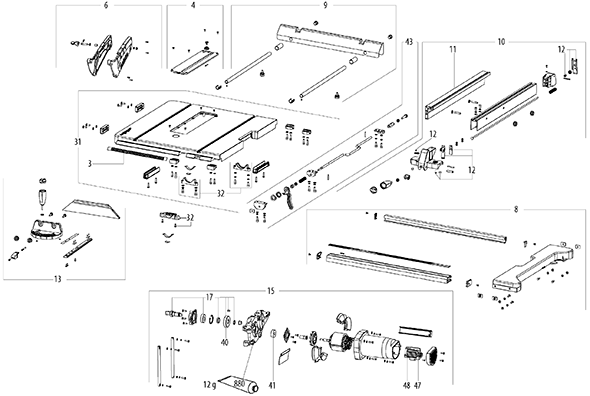

Metabo TS36-18LTXBL254 Type 13025000

...
...
3
Scale MTB-338123670
...
4
Table Insert Compl. MTB-316052410
...
6
Wheel Guard Compl. MTB-316096420
...
8
Table Side Extension Compl. MTB-315418220
...
9
Table Extension Compl. MTB-316097080
...
10
Parallel Guide Compl. MTB-316052450
...
11
Guide Rail MTB-341161460
...
12
Parallel Guide (Lever Ass`Y) MTB-331054730
...
13
Angular Guide Compl. MTB-316052460
...
15
Motor Compl. MTB-317004960
...
17
Gear-Box Compl. MTB-316052490
...
31
Table Compl. MTB-316052590
...
32
Guide Swivelling Frame Compl. MTB-316052600
...
40
Bevel Gear MTB-340033540
...
41
Ball Bearing MTB-320050750
...
43
Table Side Extension MTB-339148860
...
47
Holder MTB-343438720
...
48
Electronic Ass. For Tsa 2X18 Ltx Bl 254 MTB-343086320
...
880
Gear Grease MTB-136012860

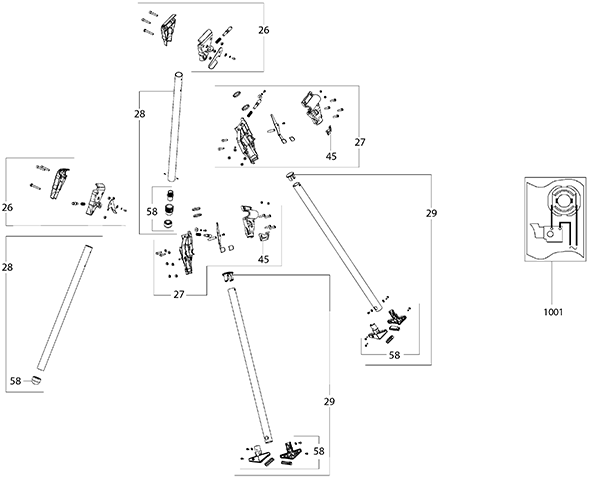

Metabo TS36-18LTXBL254 Type 13025000

...
...
26
Joint Arm Left, Cpl. MTB-316052530
...
27
Joint Arm Right, Cpl. MTB-316052540
...
28
Leg Adjustable MTB-344099460
...
29
Leg Cpl. MTB-316052570
...
45
Hinweisschild Funktionserklaerung Lock MTB-338123720
...
58
Foot Compl. MTB-316097240
...
1001
Wiring Diagram MTB-338506260

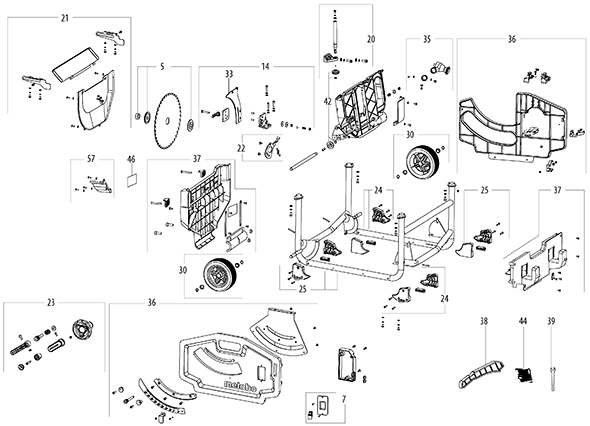

Metabo TS36-18LTXBL254 Type 13025000

...
...
5
Blade Collar MTB-316052420
...
7
Switch MTB-343411620
...
14
Riving Knife Compl. MTB-316097110
...
20
Height-Adjustment MTB-316052500
...
21
Saw Blade Cover Lower MTB-343433170
...
22
Spindle Stop Compl. MTB-316052510
...
23
Handwheel Compl. MTB-316052520
...
24
Rubber Foot Right MTB-344099440
...
25
Rubber Foot Left MTB-344099450
...
30
Wheel Compl. MTB-316052580
...
33
Riving Knife MTB-339149100
...
35
Exhaust Nozzle Incl. Cyclone MTB-316096440
...
36
Housing Compl. MTB-316096450
...
37
Housing Left MTB-316096460
...
38
Push Stick MTB-343433180
...
39
Key MTB-341210480
...
42
Bevel Gear Set MTB-340033550
...
44
Chip Bag MTB-344113700
...
46
Rating Plate MTB-338068700
...
57
Chip Guide MTB-344113800
...
...
...
...
...
