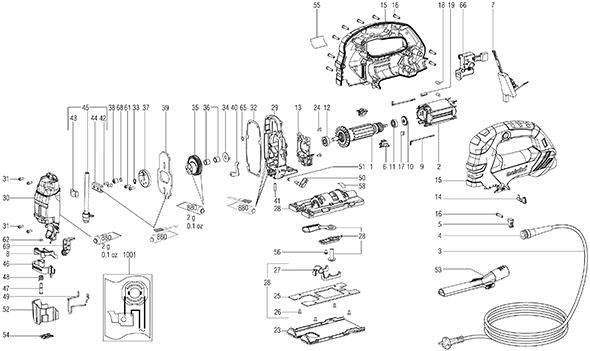

Metabo STEB140 PLUS IK Type 21033000 Jig Saw

Model: STEB140 Plus IK Type 21033000

Save
 Part Not Listed?Part Not Listed?
product name

Metabo STEB140 Plus IK Type 21033000

...
...
1
Armature Compl. MTB-310011930
...
2
Field Coil Compl.,230V MTB-311012510
...
3
Cable With Cee Plug MTB-344493170
...
4
Cable Sleeve MTB-344101140
...
5
Cable Clip MTB-343362490
...
6
Brush Holder Set MTB-316049070
...
7
Electronic Unit, 230V 50-60Hz MTB-343082550
...
8
Led With Cable MTB-343082590
...
9
Strand Compl. MTB-344498890
...
10
Tacho Disc MTB-343399750
...
11
Ball Bearing, 6X19X6 MTB-143115660
...
12
Ball Bearing, 8X22X7 MTB-143114880
...
13
Baffle MTB-343430280
...
14
Shift Lever MTB-343399730
...
15
Housing W.Cover MTB-343430320
...
16
Self-Tap Fill H Screw MTB-141116020
...
17
Rubber Plug MTB-344091420
...
18
Rubber Plug MTB-344092220
...
19
Rubber Stopper MTB-344092550
...
23
Protective Plate Compl. MTB-343430760
...
24
Countersunk Screw MTB-141122320
...
25
Base Plate MTB-339134980
...
26
Countersunk Screw MTB-141122860
...
27
Plug Housing MTB-343430560
...
28
Base Plate W. Clamping MTB-316065980
...
29
Gear Housing Cpl. MTB-316050320
...
30
Gear-Box Cover Compl. MTB-316052910
...
31
Fillister Head Screw MTB-141110540
...
32
Gasket MTB-339011920
...
33
Retaining Ring MTB-141180020
...
34
Butting Washer MTB-339129470
...
35
Gear Wheel Compl. MTB-316055630
...
36
Needle Sleeve MTB-143113930
...
37
Eccenter Compl. MTB-316055640
...
38
Needle Bearing MTB-320054610
...
39
Balancing Plate MTB-339160910
...
40
Pressure Lever MTB-339160920
...
41
Cylindrical Pin MTB-141162570
...
42
Tight-Fit Screw MTB-341705590
...
43
Cover Plate MTB-341070310
...
44
Connecting Link MTB-339129450
...
45
Ram Compl. MTB-316052920
...
46
Clamping Lever, Quick MTB-315417740
...
47
Tight-Fit Screw MTB-341704600
...
48
Spring Clip MTB-342022260
...
49
Protective Strap MTB-342200670
...
50
Shift Lever Compl. MTB-316048510
...
51
Ring MTB-141156580
...
52
Eye Shield MTB-344350470
...
53
Nozzle MTB-343399740
...
54
Anti-Splintering Insert MTB-343395480
...
55
Rating Plate MTB-338065250
...
56
Screw MTB-341704830
...
58
Graduation Plate MTB-338123510
...
61
Fillister Head Screw MTB-141111410
...
62
Washer MTB-339134390
...
65
Washer MTB-339007600
...
66
Poti Switch MTB-343409540
...
68
Shim MTB-339007660
...
69
Supporting Lever Compl. MTB-316069010
...
75
Slotted Ring MTB-339041020
...
880
Grease 50Gr 1,8Oz MTB-344131280
...
1001
Wiring Diagram MTB-338505700
...
...
...
...
...
