Metabo STEB135 PLUS Type 11000420 Jig Saw

Model: STEB135 Plus Type 11000420

Save
 Part Not Listed?Part Not Listed?
product name

Metabo STEB135 Plus Type 11000420

...
...
1
Gear-Box Cover Cpl. MTB-316031260
...
2
Tight-Fit Screw MTB-341702980
...
3
Supporting Lever MTB-316037680
...
4
Cylindrical Pin MTB-341513860
...
5
Fillister Head Screw MTB-141110540
...
6
Felt Ring MTB-344070700
...
7
Oscillating Guide MTB-316031290
...
8
Guide Plate MTB-339129460
...
9
Pressure Spring MTB-342001730
...
10
Washer MTB-344000160
...
11
Tight-Fit Screw MTB-341705590
...
12
Connecting Link MTB-339129450
...
13
Pestle Guide Cpl. MTB-316031250
...
14
Pressure Spring MTB-342021680
...
15
Cover Plate MTB-341070310
...
16
Ram MTB-341055890
...
17
Cylindrical Pin MTB-141163640
...
18
Spiral Tightening Pin MTB-141160770
...
19
Drift Key MTB-342200520
...
20
Tightening Pin MTB-141160810
...
21
Clamping Piece MTB-341070260
...
22
Tension Spring MTB-342021540
...
23
Clamping Lever MTB-341070280
...
24
Ram With Guide MTB-316031240
...
25
Gear-Box Cover Cpl. MTB-316037670
...
26
Self-Tap Fill H Screw MTB-141116020
...
27
Fillister Head Screw MTB-141118140
...
28
Jig Saw Handle W / Overmold MTB-343390260
...
29
Fillister Head Screw MTB-141116970
...
30
Pressure Switch Black MTB-343408920
...
31
Cover MTB-343380140
...
32
Rating Plate MTB-338045510
...
33
Brush Holder Cpl.,120V MTB-316028700
...
34
Cable Strand MTB-344493960
...
36
Cable Clip MTB-343362490
...
39
Electronic Unit 120 V MTB-343079580
...
40
Armature Cpl. MTB-310007980
...
41
Ball Bearing, 6X19X6 MTB-143115660
...
42
Rubber Bushing MTB-344095260
...
43
Baffle MTB-339150930
...
44
Field Coil MTB-311009970
...
45
Motor Housing MTB-315012680
...
46
M-Label,08 52X22 MTB-338122160
...
49
Needle Bearing MTB-341002610
...
50
Retaining Ring MTB-141180020
...
51
Eccentric Washer MTB-316031280
...
52
Balancing Plate MTB-339129480
...
53
Ball Bearing, 8X22X7 MTB-143115800
...
54
Pressure Spring MTB-339129440
...
55
Butting Washer MTB-339129470
...
56
Tight-Fit Screw MTB-341701490
...
57
Rubber Plug MTB-344092220
...
58
Gasket MTB-339210840
...
59
Gear Housing Cpl. MTB-316031220
...
60
Gear Wheel Cpl. MTB-316031270
...
62
O-Ring MTB-143193620
...
63
Cylindrical Pin MTB-141163740
...
64
Square Nut MTB-141130660
...
65
Claw MTB-315414980
...
66
Circlip MTB-141181710
...
67
Shift Lever Compl. MTB-316046020
...
69
Cable Sleeve MTB-344101140
...
70
Anti-Splintering Insert MTB-343375040
...
71
Countersunk Screw MTB-141119950
...
72
Base Plate MTB-339129420
...
73
Champing Claw MTB-339133640
...
74
Tight-Fit Screw MTB-341702620
...
75
Base Plate MTB-315414990
...
76
Hexagonal Key MTB-344161530
...
77
Nozzle MTB-343375090
...
78
Cable With Plug MTB-344494490
...
79
Protective Strap MTB-342200580
...
80
Eye Shield MTB-344350420
...
81
Self-Tap. Fill. H. Screw MTB-141116990
...
82
Part Not Needed MTB-399999990
...
83
Set Carbon Brush MTB-316034930
...
880
Grease 50Gr 1,8Oz MTB-344130990
...
1001

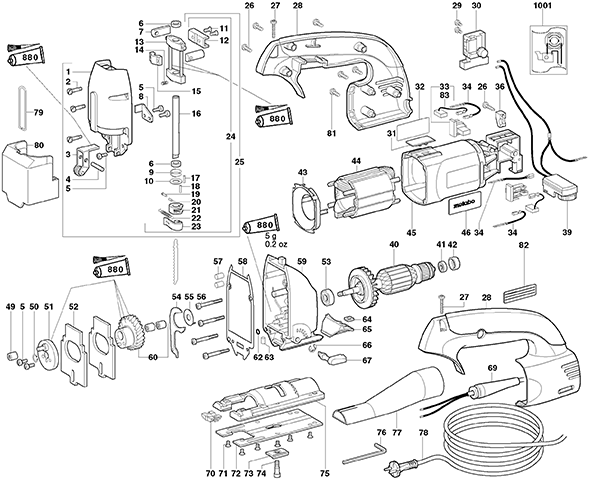

Diagram MTB-338502420
...
...
...
...
...
