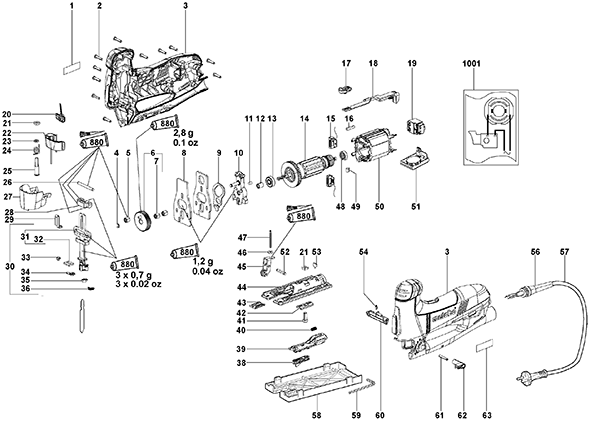

Metabo STE100SCS Type 01043420 Jig Saw

Model: STE100SCS Type 01043420

Save
 Part Not Listed?Part Not Listed?
product name

Metabo STE100SCS Type 01043420

...
...
2
Self-Tap Fill H Screw MTB-141116020
...
3
Housing MTB-343397630
...
4
Circlip MTB-141181810
...
5
Needle Bearing MTB-320054610
...
6
Spur Gear Compl. MTB-316043990
...
7
Needle Sleeve MTB-143111430
...
8
Balancing Plate MTB-339133650
...
9
Pressure Lever MTB-339133460
...
10
Bearing Bridge Compl. MTB-316044000
...
11
Rubber Plug MTB-344098660
...
12
Cover Brush MTB-343380060
...
13
Ball Bearing, 8X22X7 MTB-143115800
...
14
Armature Cpl. 230 V MTB-310009630
...
15
Brush Holder Compl.,230V MTB-316043490
...
16
Rubber Plug MTB-344093350
...
17
Switch Slide, H/L MTB-343397810
...
18
Switch Rod MTB-343397580
...
19
Switch MTB-343409200
...
20
Led Compl. MTB-343081830
...
21
Square Nut MTB-141131370
...
22
Lever Compl. MTB-343397600
...
23
Washer MTB-339007340
...
24
Spring Clip MTB-342022180
...
25
Collar Screw MTB-341704490
...
26
Cylindrical Pin MTB-141164050
...
27
Eye Shield MTB-343398000
...
28
Guide Piece Top MTB-341070660
...
29
Flat Spring MTB-342050890
...
30
Ram Compl. MTB-316045100
...
31
Ram Welded MTB-316045090
...
33
Cap MTB-343397610
...
34
Lever MTB-339134280
...
35
Clamping Piece MTB-341070830
...
36
Tension Spring MTB-342003550
...
38
Guide MTB-343397640
...
39
Latch MTB-343397650
...
40
Pressure Spring MTB-342002440
...
41
Cap Screw MTB-141122300
...
42
Champing Claw MTB-339133640
...
43
Anti-Splintering Insert MTB-343395480
...
44
Base Plate Compl. MTB-316043480
...
45
Supporting Lever Compl. MTB-316043470
...
46
Washer MTB-339007300
...
47
Cylindrical Pin MTB-341520210
...
48
Ball Bearing, 6X19X6 MTB-143115660
...
49
Rubber Plug MTB-344091420
...
50
Field Coil Compl.,230V MTB-311011080
...
51
Electronic Unit, 230V 55/60Hz MTB-343081410
...
52
Cylindrical Pin MTB-141164040
...
53
Position Plate MTB-339129310
...
54
Index Bolt MTB-342001140
...
56
Cable Sleeve MTB-344101140
...
57
Cable With Plug MTB-344490960
...
58
Slide Block MTB-343375130
...
59
Hexagonal Key MTB-344161530
...
60
Slider MTB-343397570
...
61
Cylindrical Pin MTB-141163320
...
62
Control Knob Compl. MTB-316044010
...
63
Part Not Needed MTB-399999990
...
880
Grease 50Gr 1,8Oz MTB-344130930
...
1001
Wiring Diagram MTB-338504890
...
...
...
...
...
