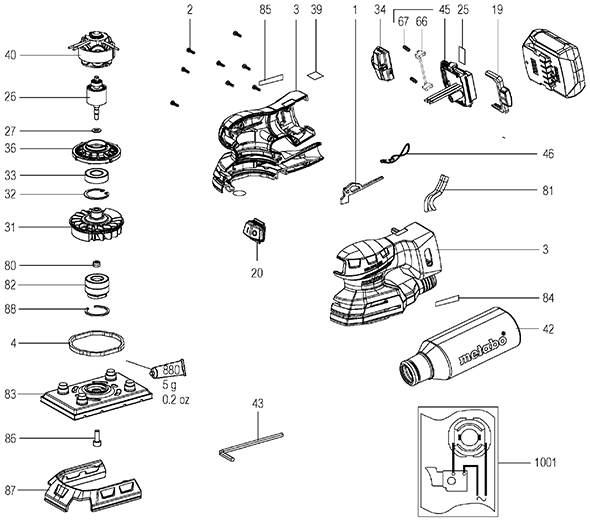

Metabo PowerMaxx SRA12BL Type 02036000 Sander

Model: SRA12BL Type 02036000

Save
 Part Not Listed?Part Not Listed?
product name

Metabo SRA12BL Type 02036000

...
...
1
Retaining Sheet MTB-339138760
...
2
Screw, St2,9X13 MTB-341704710
...
3
Housing MTB-343454080
...
4
Felt Ring F. Fan Cover MTB-344071200
...
19
Locking Slide MTB-343447510
...
20
Switch Compl. MTB-316069350
...
25
Rating Plate MTB-338075860
...
26
Rotor Compl. 18V MTB-310013250
...
27
Washer MTB-339008180
...
31
Extraction Fan MTB-330002440
...
32
Retaining Ring MTB-141181680
...
33
Ball Bearing, 15X32X9 MTB-143112030
...
34
Selector Wheel Compl.,Bldc MTB-343087250
...
36
Motor Flange MTB-315203360
...
39
Indication Label, Cas MTB-338133100
...
40
Stator Compl. 12V MTB-311013350
...
42
Dust Bag MTB-316069470
...
43
Cranked Wrench Key MTB-344161520
...
45
Electronic Unit, Sxe 12 Bl MTB-343088350
...
46
Strand Set Compl. MTB-316069320
...
66
Latch Compl. MTB-316066720
...
67
Pressure Spring MTB-342004180
...
80
Hexagon Nut W.Recess MTB-341102260
...
81
Insulating Hose MTB-339041310
...
82
Carrier Cpl. MTB-316069340
...
83
Backing Plate Cpl. MTB-344102810
...
84
Type Label, Features MTB-338133790
...
85
Type Label, Features MTB-338133800
...
86
Cap Screw MTB-141113850
...
87
Protective Strap MTB-343454800
...
88
Circlip MTB-141154890
...
880
Grease Sf 016 50Gr 1,8Oz MTB-344130130
...
1001
Diagram MTB-338506620
...
...
...
...
...
