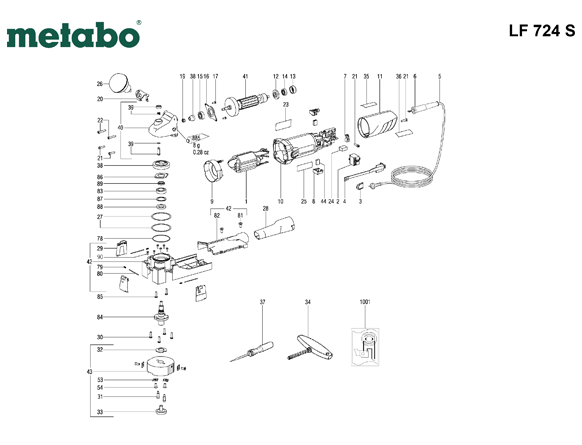

Metabo LF724S Type 00724421 Router

Model: LF724S Type 00724421

Save
 Part Not Listed?Part Not Listed?
product name

Metabo LF724S Type 00724421

...
...
1
Field Coil MTB-311011830
...
2
Hy-28 Switch (120V+Rsp+Emc-Cap.) MTB-343411890
...
3
Switch Slide MTB-343409810
...
4
Switch Rod MTB-343446110
...
5
Cable With Ul-Csa-Plug MTB-344494030
...
6
Cable Sleeve MTB-344097360
...
7
Cable Clip MTB-343362490
...
8
Brush Holder MTB-343012950
...
9
Baffle MTB-343399200
...
10
Motor Housing MTB-343399180
...
11
Motor Cap MTB-343399190
...
12
Sealing Washer MTB-343392740
...
13
Rubber Bushing MTB-344095260
...
14
Ball Bearing, 6X19X6 MTB-143115870
...
15
Ball Bearing,8X22X7 MTB-143115700
...
16
Fixed Bearing Cover MTB-315417490
...
17
Fillister Head Screw MTB-141110460
...
19
Hexagon Nut W. Recess MTB-341100940
...
20
Retaining Sheet MTB-339136600
...
21
Self-Tap Fill H Screw MTB-141116020
...
22
Self-Tap. Fill. H. Screw MTB-141117060
...
23
Rating Plate MTB-338062460
...
25
Metabo Plate MTB-338122540
...
26
Handle Bottom Part MTB-316033040
...
27
Compensating Washer MTB-339011860
...
28
Exhaust Nozzle MTB-343371390
...
29
Protecting Cap MTB-343374060
...
30
Schraubensatz MTB-316076660
...
31
Flat Headed Screw MTB-341702900
...
32
Cup Spring MTB-342070550
...
33
Adjusting Screw MTB-341702800
...
34
Universal Spanner MTB-344162450
...
35
Indication Labe MTB-338121250
...
36
Warning Label 50 X 16 MTB-338121950
...
37
Pick W. Handle MTB-344162540
...
38
Bevel Gear And Pinion MTB-316051070
...
39
Spindle Stop Compl. MTB-316040610
...
40
Gear Housing Compl. MTB-316046070
...
41
Armature Cpl. 120 V MTB-316066550
...
42
Table Cpl. MTB-316061360
...
43
Knife Holder Compl. MTB-316026770
...
44
Carbon Brush MTB-316049670
...
53
Revers. Solid Tungsten Carb. Blades (10Pcs) MTB-631660000
...
54
Countersunk Screw MTB-341702810
...
78
O-Ring MTB-143195320
...
79
Pressure Spring MTB-342002680
...
80
Pin MTB-341520040
...
81
Fillister Head Screw MTB-141110590
...
82
Extraction Cover MTB-343371380
...
83
Ball Bearing, MTB-143115620
...
84
Routing Spindle MTB-341604690
...
85
Fillister Head Screw MTB-141119870
...
86
Bearing Cover MTB-339190630
...
87
Shim Ring MTB-6306028055
...
88
Felt Ring Impregnated MTB-339012040
...
89
Spacer Sleeve MTB-341210850
...
90
Fillister Head Screw MTB-141123990
...
885
Grease 100G MTB-344130910
...
...
...
...
...
