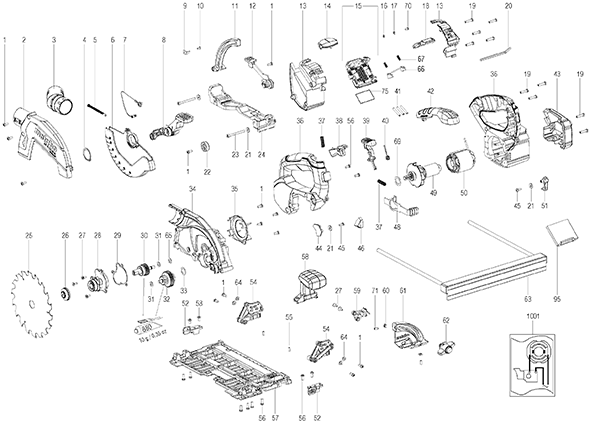

Metabo KS18LTX66BL Type 11866000 Circular Saw

Model: KS18LTX66BL Type 11866000

Save
 Part Not Listed?Part Not Listed?
product name

Metabo KS18LTX66BL Type 11866000

...
...
1
Fillister Head Screw MTB-141110540
...
2
Saw Housing Cover MTB-315420620
...
3
Exhaust Nozzle Compl. MTB-318004040
...
4
Retaining Ring MTB-141181650
...
5
Tension Spring MTB-342004210
...
6
Wheel Guard MTB-343447140
...
7
Tow Cpl. MTB-316099260
...
8
Guard Lever Cpl. MTB-316099250
...
9
Pointer MTB-339138290
...
10
Fillister Head Screw MTB-141122210
...
11
Depth Stop Compl. MTB-316099280
...
12
Bevel Clamping Comp. MTB-316099270
...
13
Battery Housing W.Cover MTB-343449640
...
14
Cover Electronic Unit MTB-343449650
...
15
Electronics Unit Ks 18 Ltx 66 Bl MTB-343088150
...
16
Serrated Lock Washer MTB-141152270
...
17
Washer MTB-141155950
...
18
Release Button MTB-343449050
...
19
Self-Tap Fill H Screw MTB-141116020
...
20
Hexagonal Key MTB-344161530
...
21
Washer MTB-141150110
...
22
Rubber Ring MTB-344102870
...
23
Cap Screw MTB-141113640
...
24
Swivelling Segment Compl. MTB-316099240
...
25
Tct Sawblade MTB-344164260
...
26
Flange Compl. MTB-316099140
...
27
Countersunk Screw MTB-141120550
...
28
Gear-Box Cover Cpl. MTB-316099170
...
29
Geargasket MTB-339012250
...
30
Output Shaft Comp. MTB-316099150
...
31
Washer MTB-141152070
...
32
Intermediate Pully Comp. MTB-316099160
...
33
Washer MTB-141152150
...
34
Saw Housing Cpl. MTB-316099230
...
35
Baffle MTB-339151270
...
36
Support Handle W.Cover MTB-343449630
...
37
Pressure Spring MTB-342001770
...
38
Switch Trigger MTB-343446350
...
39
Release Button MTB-343446360
...
40
Spring Clip MTB-342022550
...
41
Shrink Hose MTB-341213440
...
42
Handle Element MTB-343449660
...
43
Motor Cap MTB-315013870
...
44
Cover MTB-343452260
...
45
Self-Tap. Fill. H. Screw MTB-141118130
...
46
Electronic Unit Led-Illumination MTB-343087830
...
48
Spindle Stop MTB-316066420
...
49
Armature Compl. MTB-316099300
...
50
Stator Compl. 18V MTB-311013260
...
51
Cover MTB-343452250
...
52
Clamping Device Compl. MTB-316099090
...
53
Fillister Head Screw MTB-141119850
...
54
Swivel Part Cpl. MTB-316099080
...
55
Grub Screw MTB-141119880
...
56
Fillister Head Screw MTB-141119860
...
57
Base Plate MTB-315419960
...
58
Side Support Handle Compl. MTB-316099290
...
59
Guide Angle MTB-316099310
...
60
Square Nut MTB-141131210
...
61
Console MTB-343412720
...
62
Thumb-Nut Compl. MTB-316099100
...
63
Parallel Guide MTB-316068270
...
64
Washer MTB-141150010
...
65
Cup Spring MTB-141152550
...
66
Latch Compl. MTB-316066720
...
67
Pressure Spring MTB-342004180
...
69
Shim MTB-141156450
...
70
Fillister Head Screw MTB-141110460
...
71
Fitting Screw MTB-341724010
...
72
Sliding Bushing MTB-343456720
...
75
Rating Plate MTB-338073170
...
95
Cover Cap MTB-343439680
...
880
Grease 50Gr 1,8Oz MTB-344130970
...
1001
Wiring Diagram MTB-338506550
...
...
...
...
...
