Metabo KS18LTX57 Type 01857000 Circular Saw

Model: KS18LTX57 Type 01857000

Save
 Part Not Listed?Part Not Listed?
product name

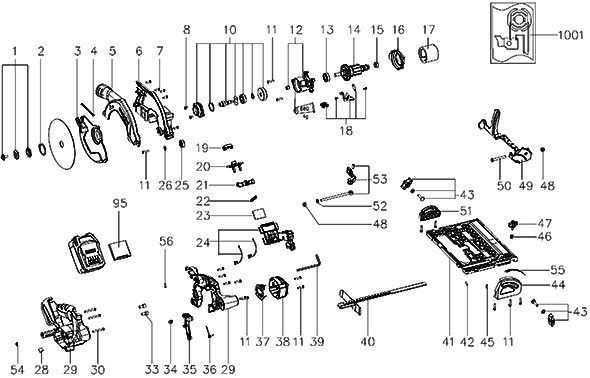

Metabo KS18LTX57 Type 01857000

...
...
1
Flange Compl. MTB-316066620
...
2
Retaining Ring MTB-141180170
...
3
Pendulum Guard Comp. MTB-316098620
...
4
Extension Spring MTB-342010940
...
5
Saw Housing Cover MTB-315420040
...
6
Saw Housing MTB-343443970
...
7
Self-Tap. Fill. H. Screw MTB-141118730
...
8
Countersunk Screw MTB-141112210
...
10
Gear Parts Compl. MTB-316066590
...
11
Self-Tap Fill H Screw MTB-141116020
...
12
Gear Housing Compl. MTB-316066600
...
13
Ball Bearing, 12X28X8 MTB-143111440
...
14
Armature Compl.,18 V MTB-310012500
...
15
Rubber Bushing MTB-344098740
...
16
Air Baffle MTB-343443990
...
17
Field Coil Compl.,2 Pol. MTB-311011880
...
18
Spindle Lock Compl. MTB-316066630
...
19
Press Button MTB-343440140
...
20
Switch Slide MTB-343410570
...
21
Pressure Plate MTB-343440150
...
22
Pressure Spring MTB-342001770
...
23
Rating Plate 01857000 Ks 18 Ltx 57 MTB-338069180
...
24
Switch Compl. MTB-343412360
...
25
Rubber Ring MTB-344113580
...
26
Washer MTB-141150110
...
28
Indication Label MTB-338129940
...
29
Motor Housing MTB-343443980
...
30
Screw MTB-341704820
...
33
Part Not Needed MTB-399999990
...
34
Toroidal Ferrite MTB-343255250
...
35
Switch-On Lock MTB-343444020
...
36
Handle Trigger Spring MTB-342024090
...
37
Brush Holder Compl.,18 V MTB-316053210
...
38
Motor Cap MTB-343447660
...
39
Cranked Wrench Key MTB-344161520
...
40
Parallel Guide MTB-331054720
...
41
Guide Plate MTB-339148530
...
42
Index Bolt MTB-342001140
...
43
Thumb-Nut Compl. MTB-316066640
...
44
Turning Support MTB-343444900
...
45
Grub Screw MTB-141123910
...
46
Depth Plate Spring MTB-342024140
...
47
Thumbscrew MTB-341722800
...
48
Hexagonal Lock Nut MTB-141130650
...
49
Depth Rule Guide MTB-339148570
...
50
Fillister Head Screw MTB-341722870
...
51
Console MTB-343411590
...
52
Friction Washer MTB-339006470
...
53
Clamping Lever Compl. MTB-316066610
...
54
Washer Zn5Bk MTB-141153390
...
55
Bevel Angle Scale MTB-339130190
...
56
Rubber Plug MTB-344092220
...
95
Cover Cap MTB-343439680
...
880
Grease 50Gr 1,8Oz MTB-344130970
...
1001
Wiring Diagram MTB-338510510
...
...
...
...
...
