Metabo KHE-D28 Type 00224420 Rotary Hammer

Model: KHE D28 Type 00224420

Save
 Part Not Listed?Part Not Listed?
product name

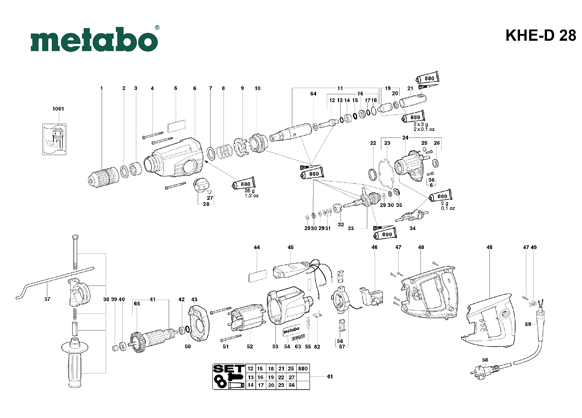

Metabo KHE D28 Type 00224420

...
...
1
Adaptor Sds-Plus MTB-316029590
...
2
Shaft Sealing Ring MTB-143194910
...
3
Needle Sleeve MTB-143113830
...
4
Self-Tap. Fill. H. Screw MTB-141122490
...
5
Indication Label MTB-338114490
...
6
Gear Housing Cpl. MTB-316031850
...
7
Supporting Disc MTB-141153750
...
8
Pressure Spring MTB-342002690
...
9
Retaining Ring MTB-343374440
...
10
Sliding Sleeve Cpl. MTB-316031500
...
11
Drill Driving Sleeve Cpl. MTB-316032230
...
12
Intermediate Striker Cpl. MTB-316031910
...
13
O-Ring MTB-143192400
...
14
Supporting Ring MTB-341012550
...
15
O-Ring MTB-143193910
...
16
Catching Sleeve Cpl. MTB-316032200
...
17
O-Ring MTB-143193920
...
18
Circlip MTB-141181840
...
19
Striker Cpl. MTB-316017660
...
20
Sealing Ring MTB-344093140
...
21
Exciter Sleeve MTB-341056150
...
22
Ball Holder MTB-320050480
...
23
Seal MTB-344095570
...
24
Gear Flange Cpl. MTB-316030540
...
25
Felt Seal MTB-344070670
...
26
Rubber Buffer MTB-344095920
...
27
Seal MTB-343376750
...
28
Control Knob Cpl. MTB-316032640
...
29
Washer MTB-339129610
...
30
Axial Needle Bearing MTB-143114280
...
31
Cup Spring MTB-141154920
...
32
Coupling Sleeve MTB-340003220
...
33
Intermediate Gear Cpl. MTB-316031610
...
34
Switch Element Cpl.W. Rot. Stop MTB-316031370
...
35
Butting Sheet MTB-339130980
...
36
Fill. Head Screw (Din 7985) MTB-141119440
...
37
Depth Stop MTB-341511630
...
38
Support Handle Compl. MTB-314000770
...
39
Sealing Ring MTB-343376040
...
40
Ball Bearing, 8X22X7 MTB-143114880
...
41
Armature Cpl. 120V MTB-310007850
...
42
Ball Bearing, 6X 19X 6 MTB-143114750
...
43
Intermediate Flange MTB-343374270
...
44
Rating Plate MTB-338044810
...
45
Electronic Unit 120V MTB-343078740
...
46
Poti Switch MTB-343407460
...
47
Self-Tap. Fill. H. Screw MTB-141117060
...
48
D-Handle MTB-343379260
...
49
Cable Clip MTB-343362490
...
50
O-Ring MTB-143192430
...
51
Self-Tap. Fill. H. Screw MTB-141118260
...
52
Field Coil 120V MTB-311009840
...
53
Motor Housing MTB-315012650
...
54
M-Label, 08 52X22 MTB-338122160
...
55
Indication Label MTB-338115410
...
56
Carbon Brush Set MTB-343011830
...
57
Brush Holder Module MTB-316036070
...
58
Cable With Ul-Csa-Plug MTB-344494030
...
59
Cable Sleeve MTB-344101140
...
61
Maintenance Kit MTB-316032690
...
62
Brush Contact MTB-339129390
...
63
Warning Label MTB-338115880
...
64
Ring MTB-341012630
...
65
Fan W. Prot. Grid MTB-316035740
...
880
Grease Fg 126 MTB-344130800
...
890
Grease Sf 011 50Gr 1, 8Oz MTB-344130560
...
1001
Diagram MTB-338504080
...
...
...
...
...
