product name

Metabo FM500-6 Type 01741420 Router

Model: FM500-6 Type 01741420

Save
 Part Not Listed?Part Not Listed?
product name

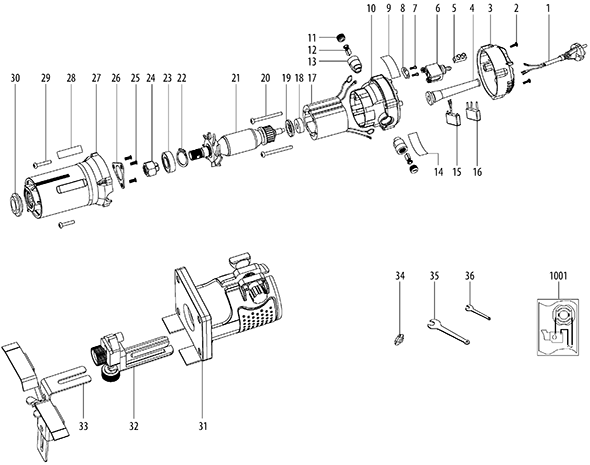

Metabo FM500-6 Type 01741420

...
...
1
Cable W.Ul/Csa-Plug MTB-344534450
...
2
Screw, St4*16 (Black) MTB-341720440
...
3
Motor End Cap MTB-343461230
...
4
Cord Sleeve MTB-344104470
...
5
Terminal Rail MTB-343461240
...
6
Switch MTB-343461250
...
7
Screw, St4-C MTB-341720460
...
8
Cable Clip MTB-343461260
...
9
Nameplate Fm 500-6 01741Xxx MTB-338137520
...
10
Motor Holder MTB-343461270
...
11
Brush Cover MTB-343461280
...
12
Carbon Brush Set MTB-343010080
...
13
Brush Holder MTB-343461290
...
14
Rating Plate MTB-338081460
...
15
Part Not Needed MTB-399999990
...
16
Restart Protecton Module MTB-341167710
...
17
Field MTB-311014030
...
18
Ball Bearing MTB-320054790
...
19
Sealing Washer MTB-343461340
...
20
Screw, St4*65-C MTB-341720470
...
21
Armature MTB-310150180
...
22
Retaining Ring MTB-342024780
...
23
Ball Bearing MTB-320054800
...
24
Collet W. Clamping Nut MTB-344650030
...
25
Screw, St4*12-C MTB-341720480
...
26
Bearing Flange MTB-343461300
...
27
Motor Housing MTB-343461310
...
28
Indication Label, Fm 500-6 01741Xxx MTB-338137530
...
29
Screw,St4*22 MTB-341720450
...
30
Dust Cover MTB-343461330
...
31
Base Plate MTB-316079400
...
32
Parallel Guide Compl. MTB-316079440
...
33
Parallel Guide Compl. MTB-316079410
...
34
Template Follower (Copy Ring) MTB-341030060
...
35
Spanner 17Mm MTB-344164750
...
36
Spanner 12Mm MTB-344164760
...
1001
Diagram MTB-338506930
...
...
...
...
...
