Metabo CS23-355 Type 02335420 Chop Saw

Model: CS23-355 Type 02335420

Save
 Part Not Listed?Part Not Listed?
product name

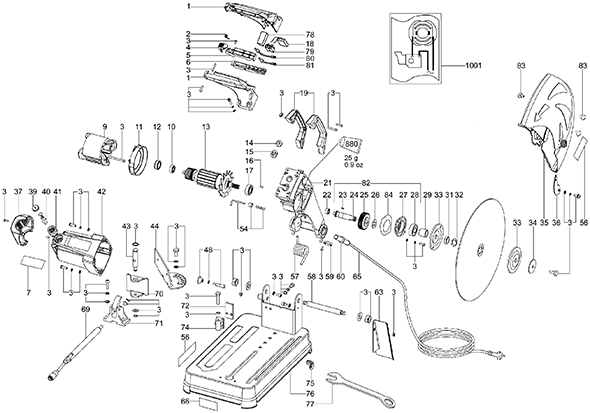

Metabo CS23-355 Type 02335420

...
...
1
Handle Half Compl. MTB-316043680
...
2
Torsion Spring MTB-342022140
...
3
Screw Set MTB-316042960
...
4
Switch Lock MTB-343394670
...
5
Switch, 120V MTB-343408770
...
6
Switch Guard MTB-344098340
...
7
Name Plate MTB-338049710
...
9
Field Coil Assembly W.Field Coil, 120V MTB-311010890
...
10
Ball Bearing MTB-143114860
...
11
Baffle MTB-343394600
...
12
Rubber Ring MTB-344098370
...
13
Armature Compl. 120V MTB-310009350
...
14
Cable Sleeve, 230V MTB-344098350
...
15
Cable Sleeve, 120V MTB-344098360
...
16
Rubber Plug MTB-344098380
...
17
Ball Bearing, 15X 35X 11 MTB-143115100
...
18
Part Not Needed MTB-399999990
...
19
Handle Compl. MTB-316043690
...
21
Motor Bracket MTB-315416390
...
22
Ball Bearing, 10X26X8 MTB-143114040
...
23
Key MTB-341147850
...
25
Gear Wheel MTB-341201020
...
26
Ring MTB-344098320
...
27
Gear Box Cover MTB-315416380
...
28
Ball Bearing, 17X40X12 MTB-143110460
...
29
Spacer Sleeve MTB-341005750
...
31
Spacer Sleeve MTB-341005760
...
32
Retaining Ring MTB-141180110
...
33
Flange MTB-341031980
...
34
Supporting Disc MTB-341012990
...
35
Wheel Guard Compl. MTB-339203110
...
36
Flange Protection MTB-341032010
...
37
Motor Housing Cover MTB-343394620
...
39
Cover Cap For Kohlebuersten MTB-343000940
...
40
Carbon Brush Set, 120V MTB-316042980
...
41
Brush Holder MTB-343000930
...
42
Motor Housing MTB-343394610
...
43
Connector Bolt MTB-341515330
...
44
Stop Gauge MTB-343394570
...
48
Locking Bolt Compl. MTB-316043700
...
54
Spindle Stop Compl. MTB-316043720
...
56
Metabo Label MTB-338121160
...
57
Spring MTB-342050850
...
58
Bolt MTB-341520180
...
60
Cable Sleeve MTB-344098330
...
63
Guard Plate MTB-339160780
...
65
Cable W.Ul/Csa-Plug MTB-344530790
...
66
Indication Label MTB-338121170
...
69
Spindle MTB-341147840
...
70
Clamping Jaws MTB-339133390
...
71
Threaded Spindle Holder MTB-343394580
...
72
Steelplate MTB-339133420
...
74
Depth Stop MTB-341515360
...
75
Rubber Foot MTB-344098280
...
76
Base Table MTB-339133410
...
77
Spanner Kentool MTB-344163520
...
78
Dummy Plug MTB-343394890
...
79
Part Not Needed MTB-399999990
...
80
Part Not Needed MTB-399999990
...
81
Part Not Needed MTB-399999990
...
82
Spindle Compl. MTB-316043800
...
83
Rubber Plug MTB-344098550
...
84
Gasket MTB-143195240
...
880
Grease Tube MTB-344131180
...
1001
Wiring Diagram, 120V MTB-338504540
...
...
...
...
...
