Metabo BFE9-90 Type 02134420 Stainless Steel Machining

Model: BFE9-90 Type 02134420

Save
 Part Not Listed?Part Not Listed?
product name

Metabo BFE9-90 Type 02134420

...
...
1
Side Support Handle Compl. MTB-316046590
...
2
Push Button Black MTB-343373720
...
3
Pressure Spring MTB-342001550
...
4
Sealing Washer MTB-339006520
...
5
Bolt MTB-341513790
...
6
Gear Housing Compl. Black MTB-316056560
...
7
Hexagon Nut W.Recess MTB-341100940
...
8
Bevel Gear MTB-316030170
...
9
Washer MTB-339006810
...
10
Ball Bearing, 8X22X7 MTB-143115700
...
11
Washer MTB-339132280
...
12
Cover MTB-343373670
...
13
Fan W. Prot. Grid MTB-316031210
...
14
Armature Cpl.120V MTB-310007730
...
15
Ball Bearing, 6X19X6 MTB-143115690
...
16
Rubber Bushing MTB-344095260
...
17
Washer MTB-141153340
...
18
Baffle MTB-339150880
...
19
Self-Tap Fill H Screw MTB-141116020
...
20
Friction Washer Cpl. MTB-316029480
...
21
Intermediate Piece MTB-341051480
...
22
Flange MTB-315202470
...
23
Fillister Head Screw MTB-141119860
...
24
Spindle Shaft MTB-341160820
...
25
Safety Clutch, MTB-316056470
...
36
Cranked Wrench Key, Sw 3,5 MTB-344163810
...
39
Driving Roller MTB-341201070
...
43
Ball Bearing, 10X30X9 MTB-143115650
...
44
Fill. Head Screw(Din 7985) MTB-141119570
...
45
Compensating Washer MTB-339060160
...
46
Washer 10,2 X 14,8X 0,1 MTB-141152300
...
47
Washer 10,2 X 14,8X 0,2 MTB-141151120
...
48
Washer 10,2 X 14,8X 0,5 MTB-141153920
...
49
Rating Plate MTB-338053780
...
50
Switch Slide MTB-343394180
...
51
Switch Rod MTB-343373640
...
52
Cable Clip MTB-343362490
...
53
Self-Tap. Fill. H. Screw MTB-141116990
...
54
2 Part Motor Cap MTB-343375680
...
55
Cable Sleeve MTB-344100970
...
56
Cable With Ul-Csa-Plug MTB-344492750
...
57
Field Coil Assembly W.Field Coil, 230V MTB-311010230
...
58
Shrink Hose MTB-344096920
...
59
Motor Housing MTB-315012620
...
60
Warning Label 50 X 16 MTB-338121950
...
61
M-Label, 08 52X22 MTB-338122160
...
62
Set Carbon Brush MTB-316034930
...
63
Brush Holder Cpl.,120V MTB-316028700
...
64
Switch MTB-343406730
...
65
Vsc-Electronic 120V 60Hz MTB-343079420
...
71
Band File Attachment MTB-316064570
...
880
Special Grease 100Gr 3,6Oz MTB-344130840
...
885
Grease Sf 011 50Gr 1,8Oz MTB-344130560
...
1001

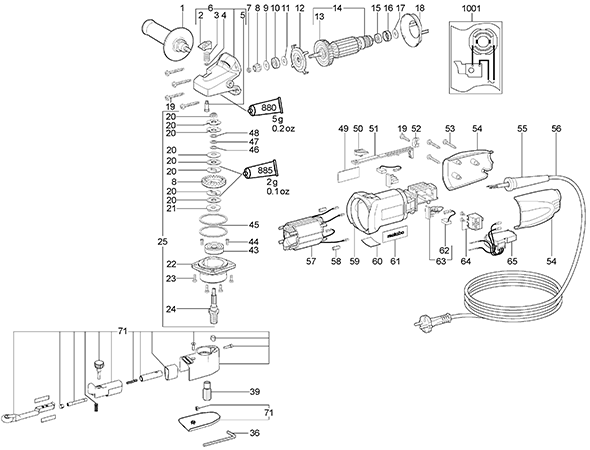

Diagram MTB-338504160
...
...
...
...
...
