Makita DPC7331 Industrial Power Cutter

Model: DPC7331

Save
 Part Not Listed?Part Not Listed?
product name

Makita DPC7331

...
...
"2
ThrottleMechanism,Cpl. MK-957117020
...
""3
ThrottleLinkage MK-394117011
...
""4
Half-ThrotTle Lock,Cpl. MK-957117030
...
""5
ScrewPlug MK-394114100
...
""6
RubberFoot MK-394114070
...
""7
AngularUnion Assy., Inc. 10 MK-010114081
...
""8
Tank Cap Cpl., Inc. 9 MK-010114091
...
"9
O-Ring, Red, Diameter30X3 MK-963230031
...
"83
ThrottleLinkage MK-395117011
...
"208
Screw, M6X35 MK-908006356
...
1
Tank Cpl., Blue MK-394-114-605
...
1
Tank Cpl., Blue MK-394114605
...
1
Tank CPL , Blue MK-394114605
...
2
Throttle Mechanism, Cpl. MK-957-117-020
...
2
Throttle Mechanism, CPL MK-957117020
...
3
Throttle Linkage MK-394-117-011
...
3
Throttle Linkage MK-394117011
...
4
Half-Throttle Lock, Cpl. MK-957-117-030
...
4
Half-Throt Tle Lock, CPL MK-957117030
...
5
Screw Plug MK-394-114-100
...
5
Screw Plug MK-394114100
...
6
Rubber Foot MK-394-114-070
...
6
Rubber Foot MK-394114070
...
7
Angular Union Assy. MK-010-114-081
...
7
Angular Union Assy., Inc. 10 MK-010114081
...
8
Tank Cap Cpl. MK-010-114-091
...
8
Tank Cap CPL , Inc. 9 MK-010114091
...
9
O-Ring, Red 30X3 MK-963-230-031
...
9
O-Ring, Red, Diameter30X3 MK-963230031
...
10
O-Ring, Red 30X3 MK-963-230-031
...
10
O-Ring, Red, Diameter30X3 MK-963230031
...
11
Suction Head MK-963-601-121
...
11
Suction Head, Inc. 12 MK-010114010
...
12
Felt MK-963-601-240
...
12
Rep. Kit, Filter (5 Of Each), For 010114010 MK-010114020
...
13
Air Valve Cpl. MK-010-175-050
...
13
Air Valve Cpl. MK-010175050
...
13
Air Valve CPL MK-010175050
...
14
Fuel Line MK-965-404-911
...
14
Fuel Line MK-965404913
...
15
Bracket Makita MK-394-114-661
...
15
Bracket, Makita, Grey MK-394114661
...
15
Bracket, Makita, Black, Etched MK-395310600
...
16
Rubber Buffer MK-965-403-535
...
16
Rubber Buffer MK-965403535
...
17
Rubber Buffer MK-965-403-535
...
17
Rubber Buffer MK-965403535
...
18
Rubber Buffer MK-965-403-535
...
18
Rubber Buffer MK-965403535
...
19
Rubber Buffer MK-965-403-535
...
19
Rubber Buffer MK-965403535
...
20
Axle MK-394-114-280
...
20
Axle MK-394114281
...
21
Axle MK-394-114-280
...
21
Axle MK-394114281
...
22
Axle MK-394-114-280
...
22
Axle MK-394114281
...
23
Washer MK-900-005-078
...
23
Washer MK-900005078
...
24
Washer MK-900-005-078
...
24
Washer MK-900005078
...
25
Screw 5,5X45 MK-913-455-454
...
25
Screw, 5,5X45 MK-913455454
...
26
Screw 5,5X45 MK-913-455-454
...
26
Screw, 5,5X45 MK-913455454
...
27
Screw 5,5X45 MK-913-455-454
...
27
Screw, 5,5X45 MK-913455454
...
28
Screw 5,5X20 MK-913-455-204
...
28
Screw, 5,5X20 MK-913455204
...
29
Screw M5X20X40 MK-908-305-405
...
29
H.L. Socket Head Bolt, M5X40 MK-908305405
...
30
Pot MK-394-114-050
...
30
Pot, Black, Etched MK-395310020
...
30
Pot MK-394114051
...
31
Wrap Around Handle MK-394-310-100
...
31
Wrap Around Handle Assy. MK-394310101
...
32
Foot MK-394-114-190
...
32
Stand Set MK-395250020
...
33
Label Makita MK-980-115-215
...
33
Label, Makita MK-980115215
...
34
Screw 5,5X45 MK-913-455-454
...
34
Screw, 5,5X45 MK-913455454
...
35
Foot Cpl. MK-394-114-270
...
35
Foot Cpl., Inc. 36-38,208,209 MK-394114272
...
35
Foot CPL , Inc. 36-38,208,209 MK-394114272
...
37
Roller MK-394-114-230
...
37
Roller MK-394114230
...
38
Bushing MK-394-114-240
...
38
Bushing MK-394114240
...
56
Label Mix MK-980-115-099
...
58
Label, Makita, Mix, Usa-Cdn-Aus MK-980115100
...
79
Tank Cpl., Blue, Usa (Epa), Inc.296Inc. 5,6,14,80,81,269,299 MK-395114641
...
79
Tank CPL , Blue, Usa (Epa), Inc.296Inc. 5,6,14,80,81,269,299 MK-395114641
...
80
Throttle Mechanism, Cpl., Inc. 83 MK-957117040
...
80
Throttle Mechanism, CPL , Inc. 83 MK-957117040
...
81
Air Valve Cpl. MK-170175010
...
81
Air Valve CPL MK-170175010
...
83
Throttle Linkage MK-395117011
...
208
Screw M6X35 MK-908-006-355
...
208
Screw, M6X35 MK-908006356
...
209
Screw 5X16 MK-908-905-165
...
209
Screw, 5X16 MK-908905165
...
214
Washer MK-900-005-076
...
214
Washer MK-900005076
...
215
Angular Union Assy, Inc. 216,217 MK-395114300
...
216
Tank Cap Cpl., Inc. 217 MK-181114202
...
216
Tank Cap CPL , Inc. 217 MK-181114202
...
217
Packing Ring, 29,3X3,6 MK-963229036
...
297
Plug, Eu, Usa MK-395114040
...
299
Label, Start MK-980115699

Makita DPC7331

...
...
XX
Label Mix MK-980-114-999
...
39
Cover Assy. MK-395-118-610
...
39
Cover Assy., Black, Etchedinc. 41,47,56 MK-395118122
...
41
Fixing MK-395-118-010
...
41
Fixing MK-395118010
...
44
Safety Label MK-980-115-486
...
44
Safety Label MK-980115870
...
45
Rubber Part MK-395-118-050
...
45
Rubber Part, Deko MK-395118050
...
47
Prefilter MK-395-173-080
...
47
Prefilter MK-395173081
...
48
Packing Ring MK-395-118-020
...
48
Packing Ring MK-395118021
...
49
Air Filter MK-395-173-010
...
49
Air Filter MK-395173011
...
50
Inner Filter MK-395-173-020
...
50
Inner Filter MK-395173020
...
51
Hood Cpl. Kat MK-395-118-091
...
51
Hood Cpl., Kat, Etchedinc. 44,45,48,265 MK-395118093
...
51
Hood CPL , Kat, Etchedinc. 44,45,48,265 MK-395118093
...
54
Screw M5X50 MK-908-605-505
...
54
Screw, M5X50 MK-908605505
...
56
Label, 2-Takt Mix MK-980114999
...
293
Label MK-980115602
...
293
Label MK-980115607

Makita DPC7331

...
...
59
Connecting Sleeve Cpl. MK-395-171-070
...
59a
Connecting Muff Cpl., Inc. 285,268A MK-395171071
...
59b
Connecting Muff Cpl., Inc. 268B,271 MK-395171072
...
59a
Connecting Muff CPL , Inc. 285,268A MK-395171071
...
59b
Connecting Muff CPL , Inc. 268B,271 MK-395171072
...
60
Insert For Suction Hose MK-024-131-032
...
60
Insert For Suction Hose MK-024131032
...
61
Suction Line MK-394-131-101
...
61
Suction Line MK-394131101
...
62
Hose Clip MK-965-603-050
...
62
Hose Clip MK-965603050
...
63
Gasket MK-965-518-120
...
63
Gasket MK-965518120
...
64
Screw M4X55 MK-908-204-555
...
64
Screw, M4X55 MK-908204555
...
65
Tube 37Mm; 1 1/2" MK-970-502-050
...
65
Tube, 37Mm; 1 1/2" MK-970502050
...
66
Choke Shaft MK-394-150-030
...
66
Choke Shaft MK-394150030
...
67
Choke Shaft MK-394-150-042
...
67
Choke Shaft MK-394150042
...
68
Tube 116Mm; 4 1/2" MK-965-452-380
...
68
Tubo, 120Mm; 4 3/4" MK-965452382
...
69
Rubber Bush MK-965-401-016
...
69
Rubber Bush MK-965401016
...
71
Muffler Usa MK-394-174-152
...
71
Muffler, Usainc. 77 MK-394174152
...
72
Gasket MK-965-531-131
...
72
Gasket MK-395174120
...
73
Cooling Plate MK-394-174-051
...
73
Cooling Plate MK-395174110
...
74
Screw M5X20 MK-908-405-205
...
74
H.L. Socket Head Bolt, M5X20 MK-908405205
...
76
Square Nut M5, Sw10 MK-038-111-060
...
76
Square Nut, M5, Sw10 MK-038111060
...
77
Spark Arrestor Screen MK-394-174-142
...
77
Spark Arrester Screen, Inc. 78 MK-394174142
...
78
Screw MK-915-035-120
...
78
Screw MK-915035120
...
83
Throttle Linkage MK-395117011
...
86
Kit Choke Shaft / Contact Spring MK-957395001
...
205
Disc MK-928-405-000
...
205
Disc MK-928405000
...
213
Screw M5X12 MK-908-005-125
...
213
Screw, M5X12 MK-908005125
...
263
Screw, M5X9 MK-908005095
...
264
Spark Arrester Screen MK-394174340
...
266
Square Nut, M5, Sw10 MK-038111060
...
268
Tube L=155Mm MK-395-171-022
...
268a
Tube, L=155Mm, Black MK-395171022
...
268b
Tube, L=138Mm, Red/Black MK-395171025
...
269
Hose Clip MK-038131070
...
270
Suction Hose MK-394131200
...
271
Suction Hose, Setinc. 269,270 MK-394131210
...
272
Exhaust Muffler, Usa, W/O Katinc. 205,213,263,264 MK-394174560
...
285
Foam-Insert MK-395173030

Makita DPC7331

...
...
230
Carburetor Wj-123 MK-395-151-050
...
230
Carburetor, Wj-123Inc. 232-236,238-250,251-261,274-285 MK-395151050
...
232
Pump Cover Cpl. MK-394-151-160
...
232
Pump Cover Cpl. MK-394151160
...
232
Pump Cover CPL MK-394151160
...
233
Screw MK-144-150-170
...
233
Screw MK-144150170
...
234
Diaphragm Cover MK-395-151-120
...
234
Diaphragm Cover MK-395151120
...
235
Screw MK-378-151-220
...
235
Screw MK-378151220
...
236
Set Diaphragm / Gaskets MK-957-151-180
...
236
Set Diaphragm / Gaskets, Inc. 237 MK-957151180
...
237
Pump Diaphragm MK-394-151-150
...
237
Pump Diaphragm MK-394151150
...
238
Throttle Shaft MK-394-151-300
...
238
Throttle Shaft MK-394151300
...
239
Spring MK-394-151-310
...
239
Spring MK-394151310
...
240
Bushing MK-394-151-315
...
240
Bushing MK-394151315
...
241
Bushing MK-394-151-315
...
241
Bushing MK-394151315
...
242
Packing Ring MK-394-151-330
...
242
Packing Ring MK-394151330
...
243
Throttle Shutter MK-394-151-320
...
243
Throttle Shutter MK-394151320
...
244
Screw MK-394-151-650
...
244
Screw MK-394151650
...
245
Screw MK-394-151-660
...
245
Screw MK-394151660
...
246
Packing Ring MK-394-151-330
...
246
Packing Ring MK-394151330
...
247
Disc MK-394-151-400
...
247
Disc MK-394151400
...
248
Shaft Clip MK-108-151-350
...
248
Shaft Clip MK-108151350
...
249
Shaft MK-394-151-250
...
249
Shaft MK-394151250
...
250
Choke Shutter MK-394-151-260
...
250
Choke Shutter MK-395151260
...
250a
Choke Shutter MK-395151265
...
251
Locking Spring MK-118-151-160
...
251
Locking Spring MK-118151160
...
252
Locking Ball MK-118-151-170
...
252
Locking Ball MK-118151170
...
253
Idle Stop Screw S MK-394-151-570
...
253
Idle Stop Screw MK-394151570
...
254
Idle Adjustment Screw L MK-394-151-470
...
255
Spring L MK-021-151-480
...
256
Control Parts MK-957-151-190
...
256
Control Parts MK-957151191
...
257
Screen MK-021-151-180
...
257
Screen MK-021151180
...
258
Cover Disc MK-394-151-040
...
258
Cover Disc MK-394151040
...
259
Locking Ball MK-394-151-510
...
259
Locking Ball MK-394151510
...
260
Main Adjustm. Screw H MK-001-151-450
...
261
Spring L MK-021-151-480
...
267
Screw MK-378-151-220
...
273a
Carburetor MK-395151025
...
274
Throttle Shaft MK-395151130
...
275
Choke Shaft MK-395151170
...
276
Fast Idle Lever MK-395151110
...
277
Torsion Spring MK-395151190
...
278
Shaft Clip MK-119151350
...
279
Choke Lever MK-395151180
...
280
Screw MK-394151660
...
281
Idle Stop Screw MK-395151140
...
282
Torsion Spring MK-395151150
...
283
Screw MK-394151660
...
284
Washer MK-170151290
...
285
Screw MK-378151220

Makita DPC7331

...
...
84
Kit Choke Shaft / Contact Spring MK-957395001
...
85
Cable With Plug MK-965605511
...
111
Starter Assy. MK-394-112-642
...
111
Starter Assy., Inc. 112-117,119-121,203 MK-394112642
...
112
Housing MK-394-112-621
...
112
Housing, Inc. 123 MK-394112621
...
113
Rewind Spring MK-394-163-020
...
113
Rewind Spring MK-394163020
...
114
Screw 3,5X9,5 MK-915-135-100
...
114
Screw, 3,5X9,5 MK-915135100
...
115
Cable Drum MK-394-162-040
...
115
Cable Drum MK-394162040
...
116
Snap Ring MK-929-314-100
...
116
Snap Ring MK-929314100
...
117
Starter Rope Black 4 X 1000Mm MK-394-164-020
...
117
Starter Rope Black, Diameter4 X 1000Mm MK-394164020
...
117
Starter Rope, Diameter4 X 1000Mm MK-122164010
...
117
Starter Ropelack, Diameter4 X 1000Mm MK-394164020
...
119
Starter Grip MK-001-161-020
...
119
Starter Grip MK-001161020
...
120
Disc MK-928-405-000
...
120
Disc MK-928405000
...
121
Air Guide Plate MK-394-112-141
...
121
Air Guide Plate MK-394112141
...
122
Label Makita MK-980-115-214
...
122
Label, Makita MK-980115214
...
123
Screw M5X20 MK-908-605-205
...
123
H.L. Socket Head Bolt, M5X20 MK-908605205
...
125
Starter Ratchet Cpl. MK-031-166-010
...
125
Starter Ratchet Cpl. MK-031166010
...
125
Starter Ratchet CPL MK-031166010
...
126
Hexagonal Nut M8X1 MK-920-208-024
...
126
Hexagonal Nut, M8X1 MK-920208024
...
127
Spring Washer B8 Din137 MK-926-208-001
...
127
Spring Washer, B8 MK-926208001
...
129
Ignition Cable 360Mm; 141/8" MK-970-310-200
...
129
Ignition Cable, 360Mm; 141/8" MK-970310200
...
130
Screw M5X20 MK-908-605-205
...
130
H.L. Socket Head Bolt, M5X20 MK-908605205
...
132
Rubber Bush MK-965-401-016
...
132
Rubber Bush MK-965401016
...
133
Contact Spring MK-394-146-013
...
133
Contact Spring MK-394146013
...
134
Spark Plug Cap Cpl. MK-957-604-260
...
134
Spark Plug Cap Cpl. MK-957604260
...
134
Spark Plug Cap CPL MK-957604260
...
135
Spark Plug MK-965-603-021
...
135
Spark Plug MK-965603021
...
203
Screw 3,5X9,5 MK-915-135-100
...
203
Screw, 3,5X9,5 MK-915135100
...
210
Flywheel Assy. MK-394-141-090
...
210
Flywheel Assy., Inc. 125 MK-394141090
...
211
Ignition Coil MK-394-143-030
...
211
Ignition Coil MK-394143030
...
212
Cable With Plug MK-965-605-510
...
212
Cable With Plug MK-965605510
...
223
Starter Assy. Blue, Blue, Highly Polishedinc. 116,117,120,224-228 MK-395160600
...
224
Housing, Blue, Highly Polishedinc. 123 MK-395160630
...
225
Starter Knob MK-181164010
...
226
Rewind Spring In Housing MK-181163050
...
227
Cable Drum Cpl. MK-395162020
...
227
Cable Drum CPL MK-395162020
...
228
Air Guide Plate MK-395118170
...
229
Label, Makita MK-980115760

Makita DPC7331

...
...
131
Piston Pin MK-119132030
...
136
Hood MK-395-131-040
...
136
Cooling Hood MK-395131041
...
137
Screw M5X14 MK-908-605-145
...
137
Bolt, M5X15 MK-909005155
...
138
Cylinder / Piston, Cpl. 50 Headdeco MK-394-130-140
...
138
Cylinder / Piston Cpl, Diameter 50 Headdecoinc. 139 MK-395130140
...
138
Cylinder / Piston CPL Diameter 50 Headdecoinc. 139 MK-395130140
...
139
Piston Cpl. 50 MK-394-132-112
...
139
Piston Cpl., Diameter 50Inc. 131,140,141 MK-395132050
...
139
Piston CPL , Diameter 50Inc. 131,140,141 MK-395132050
...
140
Piston Ring 50 MK-394-132-020
...
140
Piston Ring, Diameter50 MK-394132020
...
141
Spring Ring C12X1 MK-119-132-060
...
141
Spring Ring, C12X1 MK-119132060
...
142
Valve Headdeco MK-395-118-070
...
142
Valve, Headdeco MK-395118071
...
143
Gasket, Metal MK-965-531-160
...
143
Gasket, Metal MK-965531160
...
144
Screw M5X23 MK-908-805-235
...
144
Screw, M5X23 MK-908805235
...
145
Crankshaft Cpl. MK-394-120-011
...
145
Crankshaft Cpl. MK-394120011
...
145
Crankshaft CPL MK-394120011
...
146
Needle Cage MK-962-210-015
...
146
Needle Cage MK-962210121
...
147
Key MK-939-630-370
...
147
Key MK-939630370
...
148
Radial Ring 15/24X7 MK-962-900-052
...
148
Radial Ring, Diameter15/24X7 MK-962900052
...
149
Radial Ring 15/24X7 MK-962-900-052
...
149
Radial Ring, Diameter15/24X7 MK-962900052
...
150
Spring Ring MK-930-916-160
...
150
Spring Ring MK-930916160
...
151
Stop Ring MK-394-245-010
...
151
Stop Ring MK-394245010
...
152
Guide Disc MK-394-182-020
...
152
Guide Disc MK-394182020
...
153
Crankc., Mag. Side Incl. Page 3: Pos. 76,205,213 MK-326-111-731
...
153
Crankc., Mag. Side, Inc. 76,158,205,213 MK-326111731
...
154
Crankc., Clutch Side MK-326-111-740
...
154
Crankc., Clutch Side, Inc. 159 MK-326111740
...
155
Gasket MK-965-531-111
...
155
Gasket MK-965531111
...
156
Clamping Pin 3X16 MK-936-430-160
...
156
Clamping Pin, 3X16 MK-936430160
...
157
Screw M5X30 MK-908-005-305
...
157
Screw, M5X30 MK-908005305
...
158
Ball Bearing (Use Glue) 6202 MK-960-102-159
...
158
Ball Bearing (Use Glue), 6202 MK-960102152
...
159
Ball Bearing (Use Glue) 6202 MK-960-102-159
...
159
Ball Bearing (Use Glue), 6202 MK-960102152
...
160
Clutch Drum Cpl. MK-394-223-024
...
160
Clutch Drum Cpl., Inc. 204 MK-394223025
...
160
Clutch Drum CPL , Inc. 204 MK-394223025
...
161
Screw M5X14 MK-908-605-145
...
161
Screw, M5X14 MK-908605145
...
162
Disc MK-001-182-042
...
162
Disc, 44,5X1X12 MK-001182042
...
163
Clutch Assy. MK-010-180-023
...
163
Clutch Assy., Inc. 164 MK-010180024
...
164
Spring MK-024-184-021
...
164
Spring MK-024184021
...
165
Cover MK-394-213-671
...
165
Cover, Blue, Highly Polished MK-395213670
...
166
V-Belt MK-965-300-470
...
166
V-Belt MK-965300470
...
168
Rubber Plate Set=35 Pcs. MK-965-402-870
...
168
Rubber Plate, Set=35 Pcs. MK-965402870
...
204
Needle Bush MK-962-300-017
...
204
Needle Bush MK-962300017

Makita DPC7331

...
...
169
Hood 350Mm; 14" MK-394-341-051
...
169
Hood, Diameter 350Mm; 14" MK-394341051
...
170
Mounting, Cpl. MK-957-342-011
...
170
Prot. Hood Mounting, Cpl., Inc. 171-174 MK-957342011
...
170
Prot. Hood Mounting, CPL , Inc. 171-174 MK-957342011
...
171
Sliding Disc MK-394-342-180
...
171
Sliding Disc MK-394342180
...
172
Sliding Disc MK-394-342-180
...
172
Sliding Disc MK-394342180
...
173
Rubber Ring Ext. MK-965-404-900
...
173
Rubber Ring Ext. MK-965404900
...
173
Rubber Ring xt. MK-965404900
...
174
Rubber Ring Int. MK-965-404-920
...
174
Rubber Ring Int. MK-965404920
...
174
Rubber Ring nt. MK-965404920
...
175
Impact Plate MK-394-342-160
...
175
Impact Plate MK-394342160
...
176
Pressure Ring Cpl. MK-394-342-211
...
176
Pressure Ring Cpl. MK-394342211
...
176
Pressure Ring PL MK-394342211
...
177
Cutting Device Assy. MK-394-211-740
...
177
Cutting Device Assy. 12", 14"Inc. 178,179,182-184,190,193,194 MK-394211740
...
178
Bolt Cpl. MK-394-342-190
...
178
Bolt Cpl. MK-394342190
...
178
Bolt CPL MK-394342190
...
179
Screw MK-394-211-091
...
179
Tighten Locking Bolt MK-394211091
...
180
Axle 20Mm, (Dpc7331) MK-394-228-101
...
180
Axle 25,4Mm; 1", (Dh1337Cpd) MK-111-822-493
...
180
Axle MK-394228101
...
180
Axle MK-394228130
...
180
Axle MK-394228111
...
182
Packing Ring 9X2 MK-963-209-020
...
182
Packing Ring MK-963209020
...
183
Ball Bearing MK-960-102-176
...
183
Ball Bearing MK-960102176
...
184
Ball Bearing MK-960-102-176
...
184
Ball Bearing MK-960102176
...
185
Pressure Disc 12"-16" MK-326-228-010
...
185
Pressure Disc, 12"-16" MK-326228020
...
186
Pressure Disc 12"-16" MK-326-228-010
...
186
Pressure Disc, 12"-16" MK-326228020
...
187
Hexagonal Screw M8X25 MK-994-280-250
...
187
Hexagonal Screw, M8X25 MK-994280250
...
188
Hexagonal Screw M8X25 MK-994-280-250
...
188
Hexagonal Screw, M8X25 MK-994280250
...
189
Spacer MK-394-228-021
...
189
Spacer MK-394228022
...
190
Spacer MK-394-228-021
...
190
Spacer MK-394228022
...
193
Snap Ring MK-929-240-180
...
193
Snap Ring MK-929240180
...
194
Snap Ring MK-929-240-180
...
194
Snap Ring MK-929240180
...
197
Tensioning Screw MK-394-213-032
...
197
Tensioning Screw MK-394213032
...
198
Spring MK-394-342-120
...
198
Compressi On Spring MK-394342120
...
199
Square Nut M6 MK-921-906-004
...
199
Square Nut, M6 MK-921906004
...
200
Haxagonal Nut M8 MK-923-208-004
...
200
Hexagonal Nut, M8 MK-923208004
...
201
Safety Label 350/20,0Mm; 14"/.787", (Dpc7331) MK-980-114-974
...
201
Safety Label 350/25,4Mm; 14"/1", (Dpc7331Hd) MK-980-114-975
...
201
Safety Label, Diameter350/25,4Mm; Diameter14"/1" MK-980114975
...
201
Safety Label, Diameter350/20,0Mm; Diameter14"/.787" MK-980114974
...
202
Metal Sheet MK-394-213-021
...
202
Metal Sheet MK-394213021
...
206
Grip MK-326-341-300
...
206
Grip For Protective Hood MK-326341301
...
207
Screw M5X16 MK-908-605-165
...
207
Screw, M5X16 MK-908605165
...
218
Cover Cpl. MK-394-211-190
...
218
Cover Cpl. 12", 14", Blue, Highly Polishedinc.195,197-199,202,219 MK-395211640
...
218
Cover CPL 12", 14", Blue, Highly Polishedinc.195,197-199,202,219 MK-395211640
...
219
Cover MK-394-211-626
...
219
Cover, 12", 14", Blue, Highly Polished MK-395211620
...
221
Belt Pulley MK-394-221-050
...
221
Belt Pulley MK-394221050

Makita DPC7331

...
...
A01
Tools Cpl., Inc. A02-A05 MK-957004006
...
A02
Plastik Bag MK-950004002
...
A03
Universal Wrench, Sw 13/19 Mm MK-941719140
...
A04
Angled Screwdriver, T27 MK-940827000
...
A05
Screwdriver MK-944340001
...
A06
Adapter, Diameter 20/25,4 Mm MK-394228121
...
A07
Abras. Blade, Stone, 350/25,4Mm; 14" MK-966144120
...
A07
Abras. Blade, Steel, 350/25,4Mm; 14" MK-966144150
...
A07
Abras. Blade, Steel, 350/20Mm; 14" MK-966141150
...
A07
Abras. Blade, Stone, 350/20Mm; 14" MK-966141120
...
A01
Tools CPL , Inc. A02-A05 MK-957004006
...
303
Universal Wrench Sw 13/19 MK-941-719-140
...
304
Angled Screw Driver T27 MK-940-827-000
...
305
Screw Driver MK-944-340-001
...
350
Abras. Blade, Stone 350/25,4Mm; 14" MK-965-210-222

Makita DPC7331

...
...

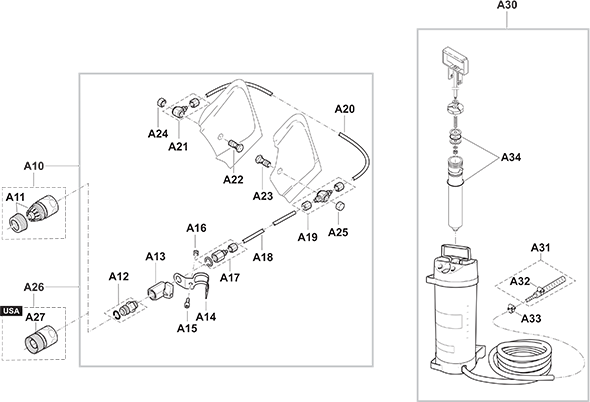

A12
Hose Connector MK-964802282
...
A13
Shut Off Cock MK-964802291
...
A14
Clamp MK-394365163
...
A15
Screw, M6X14 MK-909006145
...
A16
Square Nut, M6 MK-921906004
...
A17
Connecting Piece MK-964802410
...
A18
Hose, 405Mm; 16" MK-964802322
...
A19
Connecting Piece MK-964802332
...
A20
Hose, 210Mm; 8 1/4" MK-964802322
...
A21
Connecting Piece MK-964802342
...
A22
Hollow Screw, Bored MK-964802352
...
A23
Hollow Screw, Bored MK-964802352
...
A24
Cap Nut MK-964802362
...
A25
Cap Nut MK-964802362
...
A26
Water Attachment Kit, Inc. A12-A25,A27 MK-394365630
...
A27
Coupling Sleeve, Stop 1 1/16" MK-964802400
...
A30
Pressurised Water Tank, 10 Linc. A31-A34 MK-957802600
...
A31
Connecting Reducer MK-394365180
...
A32
Hose Clip, Diameter10-16 Mm MK-964802250
...
A33
Hose Clip, Diameter10-16 Mm MK-964802250
...
A34
Gasket Set MK-957963200
...
...
...
...
...
Processing
