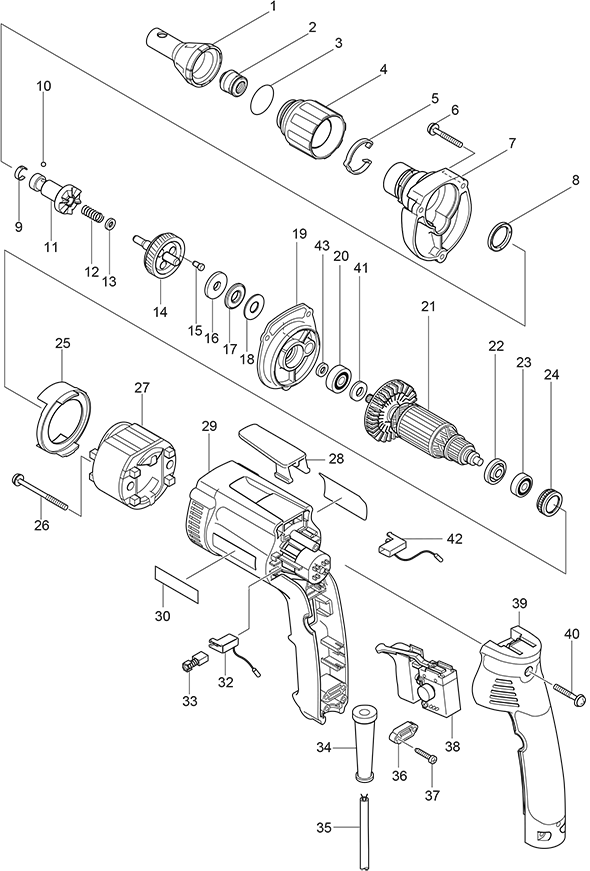

Makita 6825 Type 3 Electric Screwdriver

Model: 6825 Type 3

Save
 Part Not Listed?Part Not Listed?
product name

Makita 6825 Type 3

...
...
A02
Magnetic Bit Holder 6.35-76 MK-784801-1
...
A01
Phillips Insert Bit 2-25 MK-784211-2
...
1
Locator Complete MK-151726-8
...
2
Dust Seal Ring MK-421631-6
...
3
O Ring 22 MK-213373-4
...
4
Lock Ring MK-416994-3
...
5
Leaf Spring MK-232154-7
...
6
Tapping Screw 4X25 MK-265999-8
...
7
Gear Housing Complete MK-151720-0
...
9
Leaf Spring MK-232050-9
...
10
Steel Ball 3.5 MK-216001-0
...
11
Spindle Complete MK-151788-6
...
12
Compression Spring 8 MK-233257-0
...
13
Flat Washer 8 MK-267202-3
...
14
Gear Complete MK-151791-7
...
15
Shoulder Pin 4 (Old 256439-7 - N/L/A) MK-256467-2
...
16
Washer 824 MK-216213-5
...
17
Thrust Needle Gauge 821 MK-216415-3
...
18
Washer 821 MK-216212-7
...
19
Gear Housing Cover Complete MK-151722-6
...
20
Ball Bearing 608Vv MK-210007-0
...
21
Armature Ass'Y 115V MK-517326-8
...
21
Fan 52 MK-240022-0
...
22
Insulation Washer MK-681636-0
...
23
Ball Bearing 607Llb MK-211021-9
...
24
Rubber Ring 19 MK-421479-6
...
25
Baffle Plate MK-416993-5
...
26
Tapping Screw 4X55 MK-266147-2
...
27
Field 115V MK-633441-1
...
29
Motor Housing Complete MK-158709-9
...
30
Makita Label MK-819063-3
...
32
Brush Holder MK-643948-9
...
34
Cord Guard 8 MK-682559-5
...
36
Cord Clamp MK-687063-9
...
37
Tapping Screw 4X18 MK-265995-6
...
38
Switch C3Ma-2L MK-651978-6
...
39
Handle Cover Complete MK-158710-4
...
40
Tapping Screw 4X25 MK-265999-8
...
41
Flat Washer 8 MK-253139-0
...
42
Brush Holder MK-643951-0
...
43
Ring 8 MK-262087-2
...
...
...
...
...
