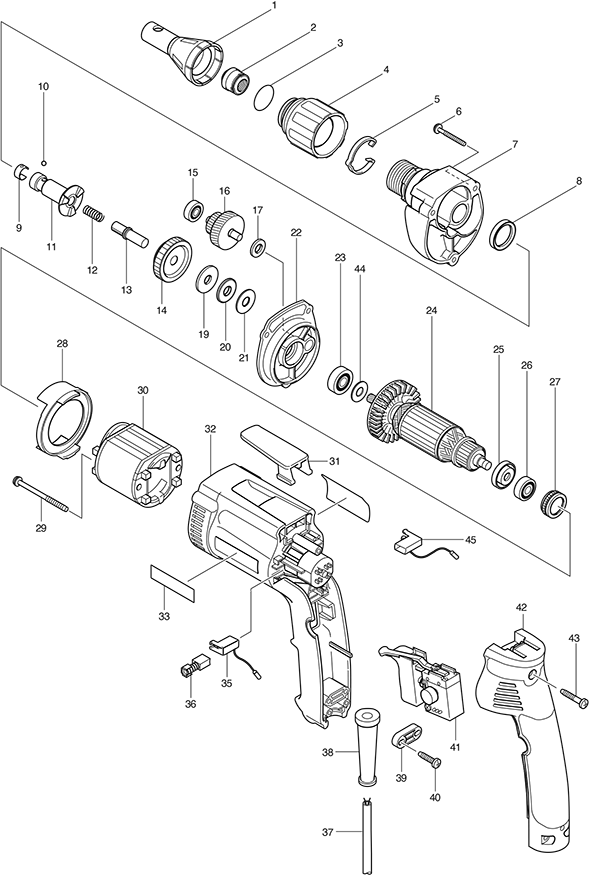

Makita 6823N Type 3 Electric Screwdriver

Model: 6823N Type 3

Save
 Part Not Listed?Part Not Listed?
product name

Makita 6823N Type 3

...
...
xxx
Magnetic Bit Holder 6.35-60 MK-784807-9
...
A02
Magnetic Bit Holder 6.35-76 MK-784801-1
...
xxx
Phillips Insert Bit 1-25 MK-784212-0
...
A01
Phillips Insert Bit 2-25 MK-784211-2
...
1
Locator Complete MK-151726-8
...
2
Dust Seal Ring MK-421631-6
...
3
O Ring 22 MK-213373-4
...
4
Lock Ring MK-416994-3
...
5
Leaf Spring MK-232154-7
...
6
Tapping Screw 4X30 MK-266050-7
...
7
Gear Housing Complete MK-153497-3
...
8
Ring 20 MK-421766-3
...
9
Leaf Spring MK-232050-9
...
10
Steel Ball 3.5 MK-216001-0
...
11
Spindle MK-324290-4
...
12
Compression Spring 6 MK-233126-5
...
13
Collared Pin 8 MK-268099-3
...
14
Spur Gear 36 MK-227056-0
...
16
Gear Complete 17-35 MK-226133-5
...
17
Flat Washer 8 MK-267017-8
...
19
Washer 824 MK-216213-5
...
20
Thrust Needle Gauge 821 MK-216415-3
...
21
Washer 821 MK-216212-7
...
22
Gear Housing Cover Complete MK-153499-9
...
24
Fan 52 MK-240022-0
...
24
Armature Ass'Y 115V MK-510053-6
...
25
Insulation Washer MK-681636-0
...
26
Ball Bearing 607Llb MK-211021-9
...
27
Rubber Ring 19 MK-421479-6
...
28
Baffle Plate MK-416993-5
...
29
Tapping Screw 4X55 MK-266147-2
...
30
Field 115V MK-633441-1
...
31
Hook MK-417625-7
...
32
Motor Housing MK-450718-7
...
33
Makita Label (F/ Type1 & 2 Motor Hsg) MK-819063-3
...
35
Brush Holder MK-643952-8
...
37
Cord W/Plug 2P-18-2.5M, Sj MK-664891-9
...
38
Cord Guard 8 MK-682559-5
...
39
Strain Relief MK-687063-9
...
40
Tapping Screw 4X18 MK-265995-6
...
41
Switch C3Ma-2L MK-651978-6
...
43
Tapping Screw 4X25 MK-265999-8
...
44
Flat Washer 8 MK-253139-0
...
45
Brush Holder MK-643953-6
...
46
Gasket (Added) MK-442136-3
...
47
Pin 3 (Added) MK-256157-7
...
...
...
...
...
