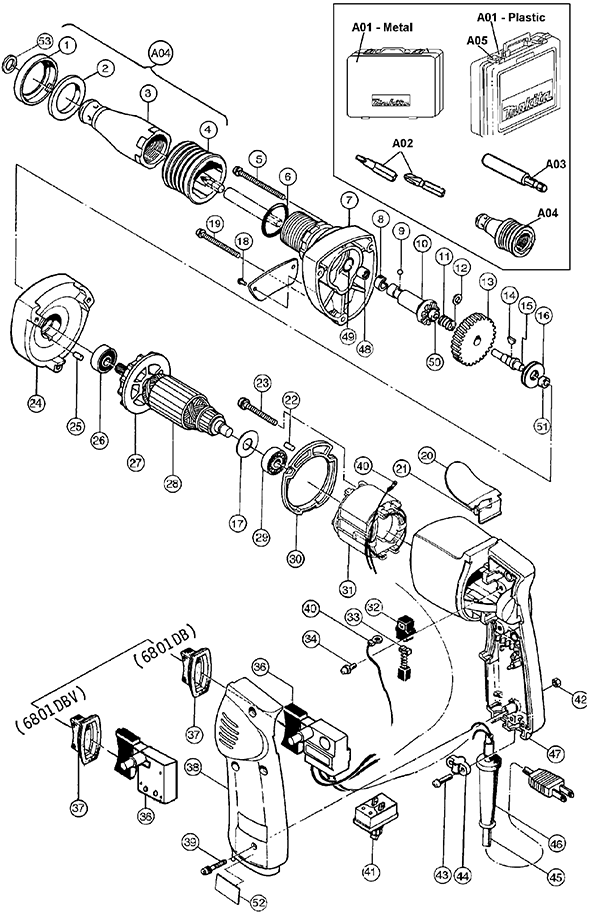

Makita 6801DBV Type 2 Electric Screwdriver

Model: 6801DBV Type 2

Save
 Part Not Listed?Part Not Listed?
product name

Makita 6801DBV Type 2

...
...
A05
Latch MK-417496-2
...
A04
Nose Piece Assy (Assembled Items 1-4) MK-122211-8
...
A03
Magnetic Bit Holder 6.35-76 MK-784801-1
...
xxx
Plastic Carrying Case (Includes Item A05) MK-824700-6
...
A01
Steel Carrying Case(Old 823036-0) MK-181949-4
...
xxx
Auto Cut-Off Carbon Brush Cb-63 (Optional) MK-181503-4
...
1
Felt Cover MK-411297-0
...
2
Felt Ring 30 MK-443028-9
...
3
Locator (With Item 53) MK-411292-0
...
4
Locking Sleeve MK-411293-8
...
5
P.H. Screw M4X55 MK-911181-4
...
6
O Ring 27 (Old 213363-7) MK-213404-9
...
7
Gear Housing (Aluminium) (With Items 48 & 49) MK-156353-6
...
8
Leaf Spring MK-232050-9
...
9
Steel Ball 3.5 MK-216001-0
...
10
Spindle (With Items 8, 9 & 50) MK-152158-2
...
11
Compression Spring 9 MK-231139-0
...
12
Thin Washer 8 MK-253324-5
...
13
Helical Gear 37 MK-221674-6
...
14
Woodruff Key 3 MK-254031-3
...
15
Gear Shaft MK-325485-2
...
16
Thrust Needle Bearing 1023 MK-212057-1
...
17
Insulation Washer MK-681617-4
...
18
Rivet 0-5 MK-953106-2
...
19
P.H. Screw M4X45 MK-911171-7
...
20
Hook (Type 2) MK-343693-3
...
21
Leaf Spring (Type 1) MK-232034-7
...
22
Rubber Pin 4 MK-263002-9
...
23
(+) P.H. Screw M4X50 (Old 925178-7) MK-911180-6
...
24
Gear Housing Cover (Aluminium) (With Items 25 & 51) MK-156354-4
...
25
Rubber Pin 4 MK-263002-9
...
26
Ball Bearing 608Lb MK-211033-2
...
27
Fan 58 MK-241803-5
...
28
Armature Assy (Includes Items 17, 26-29) MK-611302-5
...
29
Ball Bearing 627Lb MK-211028-5
...
30
Baffle Plate MK-414463-8
...
31
Field Assy [With Item 40 (1Pc.)] MK-593066-2
...
32
Brush Holder 5-8 MK-643552-4
...
33
Carbon Brush Cb-75 (Old 181028-8 - Cb-56) MK-191956-9
...
34
P.H. Screw M4X14 MK-911124-6
...
35
Sponge Sheet (Add.) MK-685717-2
...
36
Switch. MK-651314-6
...
37
Switch Cover/Dust Cover (6801Dbv) MK-421145-5
...
37
Dust Cover (6801Db) MK-421144-7
...
39
P.H. Screw M4 X 28 MK-911153-9
...
40
Insulated Terminal Fv1.25-M4 MK-654038-3
...
41
Reversing Switch (Old 651461-3) MK-651478-6
...
42
Hex Nut M4 MK-931102-0
...
43
P.H. Screw M4X18 (With Washer) MK-911131-9
...
44
Strain Relief MK-687002-9
...
45
Cord With Plug 2P-18-2.5 MK-664013-1
...
46
Cord Guard 8-85 MK-682502-4
...
48
Needle Bearing 1416 MK-212155-1
...
49
O Ring 14 MK-213154-6
...
50
Needle Bearing 509 MK-212015-7
...
51
Plane Bearing 6 MK-214012-9
...
52
Caution Label (Eng/Fr) MK-817613-8
...
53
Sponge Washer 11 MK-261058-6
...
100
(-) Set Screw M3X7.5 MK-652030-3
...
...
...
...
...
