product name

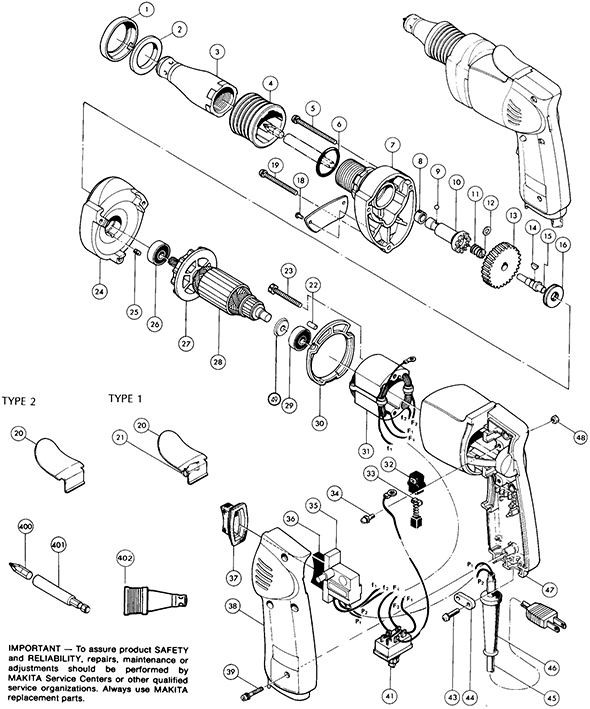

Makita 6801DB Electric Screwdriver

Model: 6801DB

Save
 Part Not Listed?Part Not Listed?
product name

Makita 6801DB

...
...
1
Felt Cover MK-411297-0
...
2
Felt Ring 30 MK-443028-9
...
3
Locator MK-411292-0
...
4
Locking Sleeve MK-411293-8
...
5
Screw M4X55 MK-911181-4
...
6
O Ring 23 MK-213404-9
...
7
Gear Housing (6801Db,6801Dbv)With Needle Bearing 1416(212155-1) & O Ring 14 (213154-6) MK-156353-6
...
8
Leaf Spring MK-232050-9
...
9
Steel Ball 3.5 MK-216001-0
...
11
Compression Spring 9 MK-231139-0
...
12
Washer 8 MK-253324-5
...
14
Woodruff Key 3 MK-254031-3
...
15
Gear Shaft MK-325485-2
...
16
Thrust Needle Bearing 1023 MK-212057-1
...
18
Rivet MK-953106-2
...
19
Screw Mx45 MK-911173-3
...
20
Carry Clip (Ti) MK-342422-1
...
20
Carry Clip (T2) MK-343693-3
...
21
Leaf Spring (T1) MK-232034-7
...
22
Rubber Pin 4 MK-263002-9
...
23
Bolt M4X50 With Washer 253926-7 MK-911180-6
...
24
Gear Hsg Cover (6901Db,6801Dbv)With Plane Bearing 6 (214012-9) MK-156354-4
...
25
Rubber Pin 4 MK-263002-9
...
26
B.Bearing 627Lb, (6800Db,6800Dbv) MK-211028-5
...
26
B.Bearing 608Lb, (608Db,6801Dbv) MK-211033-2
...
27
Fan MK-241803-5
...
28
Armature (6800Db,6800Dbv) Includes Fig 26,27,28,29 MK-611282-5
...
28
Armature (6801Db,6801Dbv) Includes Fig 26,27,28,29 MK-611302-5
...
29
Ball Bearing 627Lb MK-211028-5
...
32
Brush Holder MK-643552-4
...
33
Carbon Brush (Cb-56) MK-643056-6
...
34
P.N. Screw M4X14 With Washer 941051-3 MK-911124-6
...
36
Switch (6800Db, 6801Db) MK-651212-4
...
39
Screw M4X28 With Washer 941052-1 MK-911153-9
...
41
Rev. Switch 16800Db, 6801 Db) MK-531003-8
...
43
P.N. Screw M4X18 MK-911133-5
...
44
Strain Relief MK-687001-1
...
45
Cord With Plug MK-664013-1
...
46
Cord Guard MK-682502-4
...
48
Hex Nut MK-931102-0
...
49
Insulation Washer MK-681617-4
...
400
Insert Bit 2 Phillips MK-784211-2
...
401
Magnetic Bit Holder MK-784801-1
...
402
Nose Piece Assembly MK-122211-8
...
...
...
...
...
