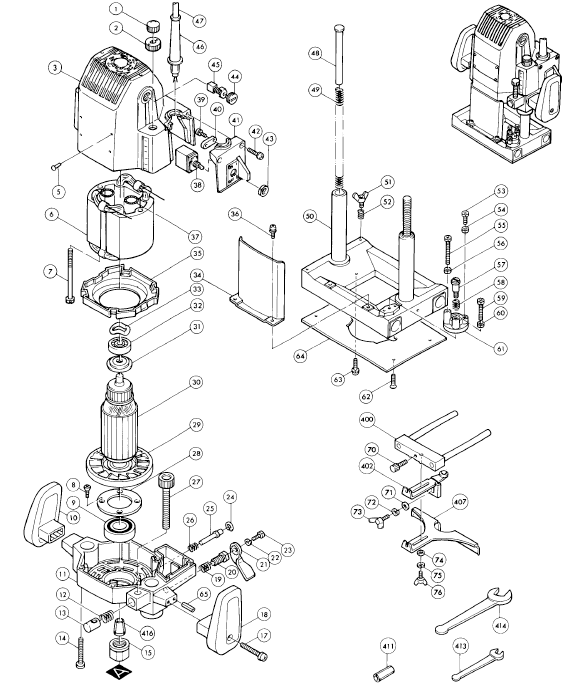

Makita 3612B Router

Model: 3612B

Save
 Part Not Listed?Part Not Listed?
product name

Makita 3612B

...
...
1
Nut M10 MK-252625-8
...
2
Nylon Nut Mi0 MK-410129-8
...
3
Motor Housing (With Label 816410-9, 2 Ea. Of Brush Holder 643653-8 & Screw 913206-0) MK-157109-0
...
5
Rivet MK-953106-2
...
6
Field Assembly (With Item No. 37) MK-624706-2
...
7
Hex. Bolt M5X85 MK-925901-0
...
8
Countersunk Head Screw M4X14 MK-912121-5
...
9
Ball Bearing 2012Ddw MK-211326-7
...
10
Knob (L) MK-410127-2
...
11
Motor Bracket MK-155763-4
...
12
Compression Spring 10 MK-231142-1
...
13
Half Nut MK-323559-3
...
14
Pan Head Screw M5X40 MK-911261-6
...
15
Collet Nut MK-763629-0
...
17
Pan Head Screw M6X40 MK-911363-8
...
18
Knob (R) MK-410126-4
...
19
Torsion Spring MK-231574-2
...
20
Set Bolt M10 MK-265813-8
...
21
Lock Lever MK-341933-3
...
22
Spring Washer MK-942101-7
...
23
Hex. Bolt M5X12 MK-265269-5
...
24
Retaining Ring R-12 MK-962062-5
...
25
Pin MK-256606-4
...
26
Compression Spring 7 MK-231037-8
...
27
Screw M10X77 MK-251861-3
...
28
Bearing Retainer MK-285657-0
...
29
Fan MK-241823-9
...
30
Armature Assembly (Includes #29-32) MK-614740-0
...
31
Insulation Washer MK-681624-7
...
32
Ball Bearing 6200Lb MK-211068-3
...
33
Wave Washer MK-253913-6
...
34
Chip Deflector MK-410822-4
...
35
Baffle Plate MK-410258-7
...
36
Pan Head Screw M5X12 MK-911214-5
...
37
Garter Spring MK-654020-2
...
38
Switch MK-651471-0
...
39
Pan Head Screw M4X14 MK-911121-2
...
40
Strain Relief MK-687001-1
...
41
Switch Cover MK-410297-7
...
42
Pan Head M4X20 MK-911138-5
...
43
Hex. Nut M12 MK-652102-4
...
44
Brush Holder Cap MK-643650-4
...
45
Carbon Brush (Cb-153) MK-643153-8
...
46
Cord Guard MK-682504-0
...
47
Cord With Plug (2X14X8; Sj) MK-664463-0
...
48
Pole MK-314062-5
...
49
Compression Spring 11 MK-231329-5
...
50
Base Complete MK-151239-9
...
51
Wing Bolt M6X15 MK-924316-8
...
52
Compression Spring 9 MK-231071-8
...
53
Hex. Bolt M5X16 MK-265333-2
...
54
Hex. Nut M5 MK-931202-6
...
55
Hex. Bolt M5X40 MK-265336-6
...
56
Hex. Nut M5 MK-931202-6
...
57
Flat Head Screw M6 MK-251423-7
...
58
Compression Spring 12 MK-231231-2
...
59
Hex, Bolt M5X28 MK-265335-8
...
60
Hex. Nut M5 MK-931202-6
...
61
Stopper Assembly (Includes #53-56, 59-61) MK-134205-1
...
62
Countersunk Head Screw M4X8 MK-912107-9
...
63
Pan Head Screw M5X10 MK-911206-4
...
64
Base Plate MK-413017-8
...
65
Spring Pin MK-951160-0
...
70
Screw M10X34 MK-251830-4
...
71
Flat Washer 5 MK-941101-4
...
72
Washer 5 MK-942101-7
...
73
Thumb Screw M5X10 MK-924206-5
...
74
Flat Washer 6 MK-941151-9
...
75
Spring Washer 6 MK-942151-2
...
76
Thumb Screw M6X12 MK-924311-8
...
400
Guide Base Assembly (Includes #70, 74-76) MK-132306-9
...
402
Trimmer Guide Assembly (Includes #71-73) MK-123022-4
...
407
Straight Guide MK-342428-9
...
411
1/4 Inch Collet Sleeve MK-763803-0
...
413
Wrench 8 MK-781213-9
...
414
Wrench 24 MK-781210-5
...
416
1/2 Inch Collet Cone MK-763622-4
...
...
...
...
...
