product name

Kirby Ultimate G Diamond (G7)

Model: G7

Save
 Part Not Listed?Part Not Listed?
product name

Kirby G7

...
...
01
Bag Mini Emtor Assembly KIR-187999G
...
02
Bag Assembly (With Latch Only) KIR-190099
...
03
Bag Top Cover KIR-191899
...
04
Latch Cloth Bag KIR-196499S
...
05
Bag Clamp Strap KIR-196599S
...
06
Fill Tube Mini Emtor Assembly KIR-185899S
...
07
Micron Magic HEPA Bag (6 pack) KIR-204811
...
08
Micron Magic HEPA Bag (2 pack) KIR-205811
...
09
Micron Magic HEPA Bag (6 pack) FNLA
...
10
Mini Emtor KIR-188999
...
11
Snap Fill Tube KIR-190399
...
12
Snap Top Adaptor KIR-190499
...
13
Fill Tube Tie KIR-191182S

Kirby G7

...
...
01
Base Pan Assembly KIR-604301S
...
02
0 Ring - Horn Adapter KIR-601996S
...
03
Rivet - Horn Adapter KIR-100689A
...
04
Exhaust Duct KIR-106393
...
05
Grill - Exhaust Duct - Ultimate G 104101S
...
05
Grill - Exhaust Duct - Diamond 104103S
...
06
Screw - Exhaust Duct KIR-605989A
...
09
Cord Set - 120 V KIR-192001
...
10
Cover - Cord Set (5 pack) KIR-196001S
...
11
Screw - Cord Cover (10 pack) KIR-232495S

Kirby G7

...
...
01
Fan Case Assembly KIR-119797S
...
02
Nozzle Lock Lever Assembly KIR-125297A
...
03
Screw - Nozzle Lock KIR-1211S
...
04
Spring - Nozzle Lock KIR-121297S
...
05
Nozzle Attachment Shaft KIR-121689S
...
06
Unigasket - Fan Case KIR-122097S
...
07
Volute Deflector - Fan Case KIR-125489
...
09
Front Wheel Shaft Assembly KIR-131694S
...
10
Hub Cap - Front Wheel KIR-131801S
...
11
Front Wheel Assembly KIR-131901
...
12
Screw - Front Wheel KIR-231695A
...
13
Spring - Ratchet Lock KIR-1331A
...
14
Clamp - Front Wheel Shaft KIR-134073A
...
15
Screw - Front Wheel Shaft Clamp KIR-231294A
...
16
Bezel - Power Switch (Fan Case) KIR-610001S
...
17
Ratchet Lock Assembly KIR-631589A
...
20
Screw - Fan Case/Slide Bracket Top KIR-231595S
...
21
Screw - Fan Case/Base Pan Flat Head KIR-234998S
...
22
Screw - Fan Case/Base Pan - Bottom KIR-234898S

Kirby G7

...
...
1
Power Drive Assy W/Rear Wheels KIR-552301S
...
2
Hubcap Rear Wheel KIR-555901A
...
3
Rear Wheel Light Gray KIR-556201
...
4
Clip - Rear Wheel KIR-601689A
...
5a
Primary Drive Belt for models made before 05/05 KIR-554189S
...
5b
Primary Drive Belt for models made after 07/05 KIR-554105S
...
6
Foot Pedal KIR-110301
...
7
Actuating Rod Foot Pedal to Power Switch. KIR-612400S
...
8
Bushing Rear Axle KIR-550889S
...
9
Right Retainer Axle KIR-555489S
...
10
Left Retainer Axle KIR-555589S
...
11
Screw Axle Retainer KIR-556589A
...
12
Spring Rear Axle KIR-556689S
...
13
Bracket Cam Assy Neutral Pedal KIR-557689A
...
14
Screw Neutral Pedal KIR-234097S
...
15
Bearing Rear Axle KIR-557889S
...
16
Neutral Pedal Cam Assy Diamond Edition KIR-558401A
...
17
Clutch Overload Gear Assy KIR-555211A
...
18
Rear Axle W/Balls KIR-555211A
...
19
Primary Gear Kit W/Snap Ring And Motor Gear KIR-243503S
...
20
Steel Ball KIR-561491A
...
21
Cup Washer KIR-561892S
...
23
Screw KIR-230693A

Kirby G7

...
...
xx
Motor Assembly Complete with Fan & Power Switch G3/UG KIR-101396A
...
01
Motor Housing w/Tolerance Ring 1001965
...
02
Ring Retainer - Front Bearing KIR-101076A
...
03
Screw - Motor Field 104689A
...
04
Bearing Plate Assembly w/Motor Seal KIR-105793S
...
05
Brush Holder w/Brush KIR-107189A
...
06
Screw - Brush Cartridge 107989A
...
07
Power Switch -120 V KIR-110590
...
08
Rear Bearing KIR-115589
...
09
Finger Spring KIR-314990A
...
10
Front Bearing KIR-116073
...
11

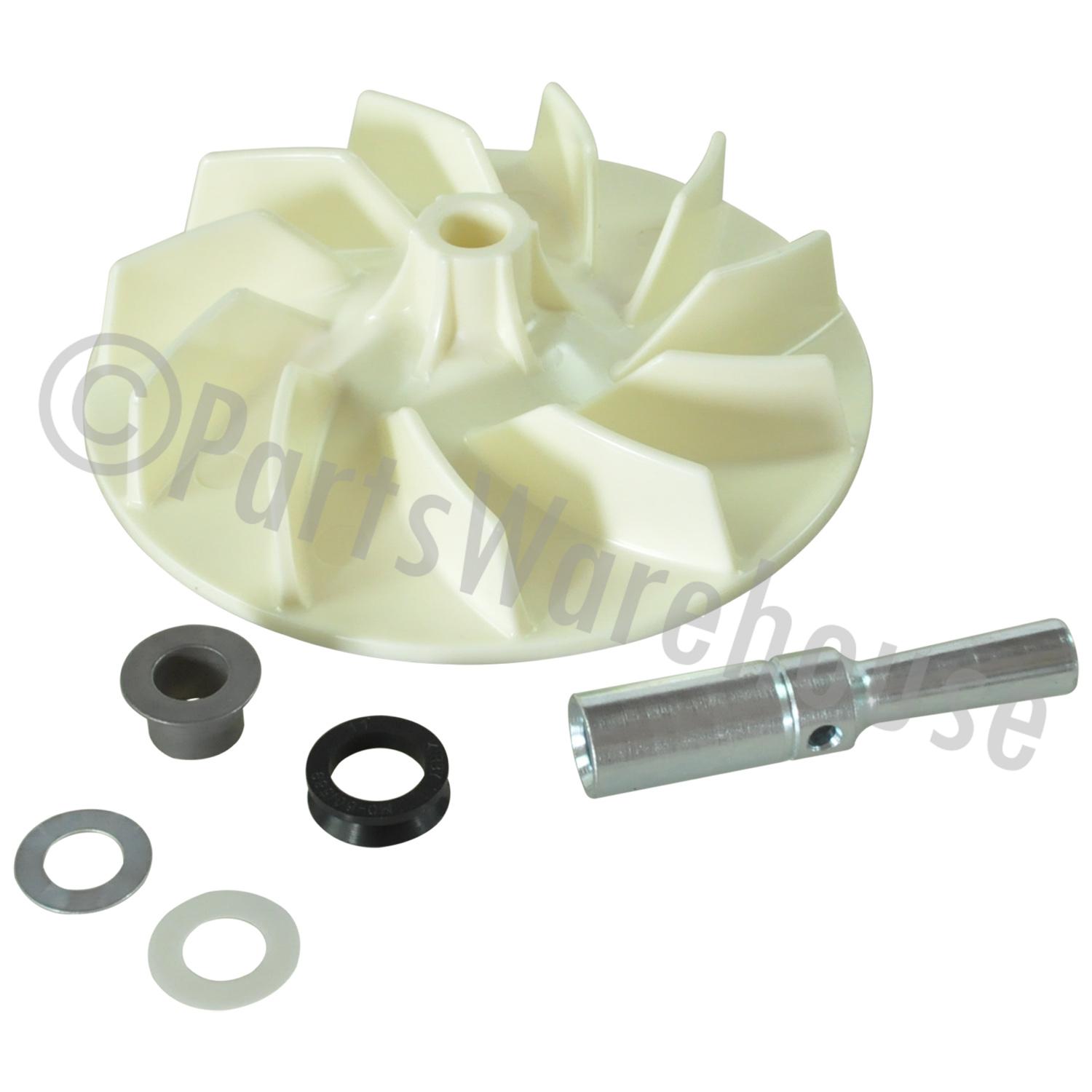

Fan Assembly w/Spacer Seal KIR-119096S
...
12
Clip and Screw - Front Motor Mount KIR-233100A
...
13
Sprocket Gear (N/A) Order P/N 243503S KIR-550603
...
14
Screw - Bearing Plate KIR-600189A
...
15
Motor Seal KIR-600389S
...
16
Nut - Field Screw and Bearing Plate KIR-600589A
...
17
Clip - Motor Drive KIR-601689A
...
18
Brush Lead Assembly - Right - 120 V KIR-602889A
...
19
Screw - Power Switch to Motor Housing KIR-605989A
...
20
Tie - Left Brush Lead 608089A
...
21
Wire Assembly - Static Discharge - 120 V (5 pack) KIR-603589A
...
22
Tolerance Ring - Bearing Well (5 pack) KIR-612795S
...
23
Armature (with Rear Bearing) KIR-114789
...
24
Circuit Board/Switch Assembly KIR-632703S

Kirby G7

...
...
01
Nozzle Assembly (Less Brush & Belt) KIR-141699S
...
02
Label Belt Lifter KIR-673699S
...
03
Screw (Torx) Belt Lifter KIR-232596S
...
04
Belt Lifter Body Assembly KIR-159299S
...
05
Flat Washer Belt Lifter KIR-144681A
...
06
Spring Washer Belt Lifter FNLA
...
07
Label Belt Lifter Instructions FNLA
...
08
Label Brush Adjustment FNLA
...
09
Bearing Belt Lifter KIR-145481S
...
10
Hook Belt Lifter KIR-144291
...
11
Rug Plate Latch Assembly KIR-640689A
...
12
Rivet Latch Assembly KIR-141381S
...
13
Nozzle Bumper KIR-140499
...
14
Kirby Bottom Plate G3-UU KIR-152604
...
15
Brush Roll Assembly KIR-152505G
...
16
Brush End Cap Small KIR-156393S
...
17
Brush End Cap Large KIR-156493S
...
18
Belt Knurled Brush Roll KIR-301291S
...
19
Sleeve Rug Plate Latch KIR-640589S
...
20
Brush Performance Indicator Assembly KIR-640303
...
21
Screw KIR-605989A

Kirby G7

...
...
01
Carpet Shampoo Nozzle Assembly Ultimate G, Diamond Edition FNLA
...
02
Belt Lifter Body Ultimate G, Diamond Edition W/Label KIR-159204
...
05
Label Arrow Melon KIR-640989S
...
06
Label Arrow Green KIR-640889S
...
07
Label Warning G3-Diamond Edition KIR-304301S
...
08
Spring Washer KIR-314890S
...
09
Belt Lifter Hook KIR-144291
...
10
Flat Washer KIR-144681A
...
11
Bearing Belt Lifter KIR-145481S
...
12
Screw Belt Lifter KIR-232596S
...
13
Stop Rivet Belt Lifter FNLA
...
14
Tray Assembly G3, Ultimate G, Diamond Edition KIR-304701S
...
15
Belt Baffle Strip G3-Diamond Edition KIR-305201
...
16
Suds Leveler Strip Ultimate G, Diamond Edition KIR-305401S
...
17
Shield G3, Ultimate G, Diamond Edition KIR-304401
...
18
Shampoo Brushroll Assembly KIR-305702
...
18
Polisher Brushroll Assembly KIR-313292S
...
19
Tank Assembly G3, Ultimate G, Diamond Edition KIR-306701S
...
20
Filter Sponge Tank KIR-307389S
...
21
Suds Screen Assembly G5-Diamond Edition KIR-316299S
...
22
Cap Tank G3, Ultimate G, Diamond Edition KIR-308901S
...
23
Hose Assembly G3, Ultimate G, Diamond Edition KIR-308001S
...
23
Hose Assembly UG Diamond 7' Light Gray KIR-223602S
...
24
Belt KIR-301289S
...
...
...
...
...
