Karcher iCapsol Deluxe

Model: iCapsol Deluxe

Save
 Part Not Listed?Part Not Listed?
product name

Karcher iCapsol Deluxe

...
...
1
Cover, Belt, Right WIN-86217340
...
2
Nut, M4, Lk, Sst WIN-86172630
...
3
Scr, M4X14, Phms, Din7985 Sst WIN-86172870
...
4
Spring Clip, Brush Icapsol WIN-86322460
...
5
Assy, Brush & Hub WIN-86214850
...
6
Cover, Belt, Left WIN-86217330
...
7
Asm, Brush Drive WIN-86345210
...
8
Scr, M5X10, Phs, Fhd, Sst WIN-86172840
...
9
Assy, Brush, Coast WIN-86214840

Karcher iCapsol Deluxe

...
...
1
Bracket, Crossover Push WIN-86215580
...
2
Ring, E-Type, 5Mm Id, Din6799 WIN-86172700
...
3
Brg, Flng, 6Mm Idx7Mm Long WIN-86215750
...
4
Spring, Cmp, 18Odx 6,1N WIN-86348880
...
5
Brg, Flng, 6Mm Idx24Mm Long WIN-86215740
...
6
Rod, Lifting WIN-86223620
...
7
Washer, Rod Wiper, 6Mm WIN-86348900

Karcher iCapsol Deluxe

...
...
1
Label, Chemical Instruction 86396640
...
2A
Label, Main, Icapsol Mini WIN-86396650
...
2B
Label, Procap Prochem 86396660

Karcher iCapsol Deluxe

...
...
1
Boot, 3/8 Circuit Breaker WIN-86002010
...
2
Cord Set, 18/3 X 40Ft Sjt, Yel WIN-86401120
...
3
Switch, W/Coupler, N.O. WIN-86314630
...
4
Nut, M3 Hex Nylock WIN-86329030
...
5
Nut, M4, Lk, Iso7040,Sst WIN-86172630
...
6
Clamp, 5/16 Nylon WIN-86198450
...
7
Tie, Cable Nylon WIN-86225320
...
8
Scr, M3X6, Bshcs, Sst WIN-86173100
...
9
Brkt, Mtr Brkt, Switch, Cvr WIN-86291470
...
10
Cover, Switch, Brkt WIN-86291490
...
11
Scr, M3X12, Bshcs, Sst WIN-86291880
...
12
Clip, Wire WIN-86216800
...
13
Scr, M4X20, Pphms, Sst WIN-86277600
...
14

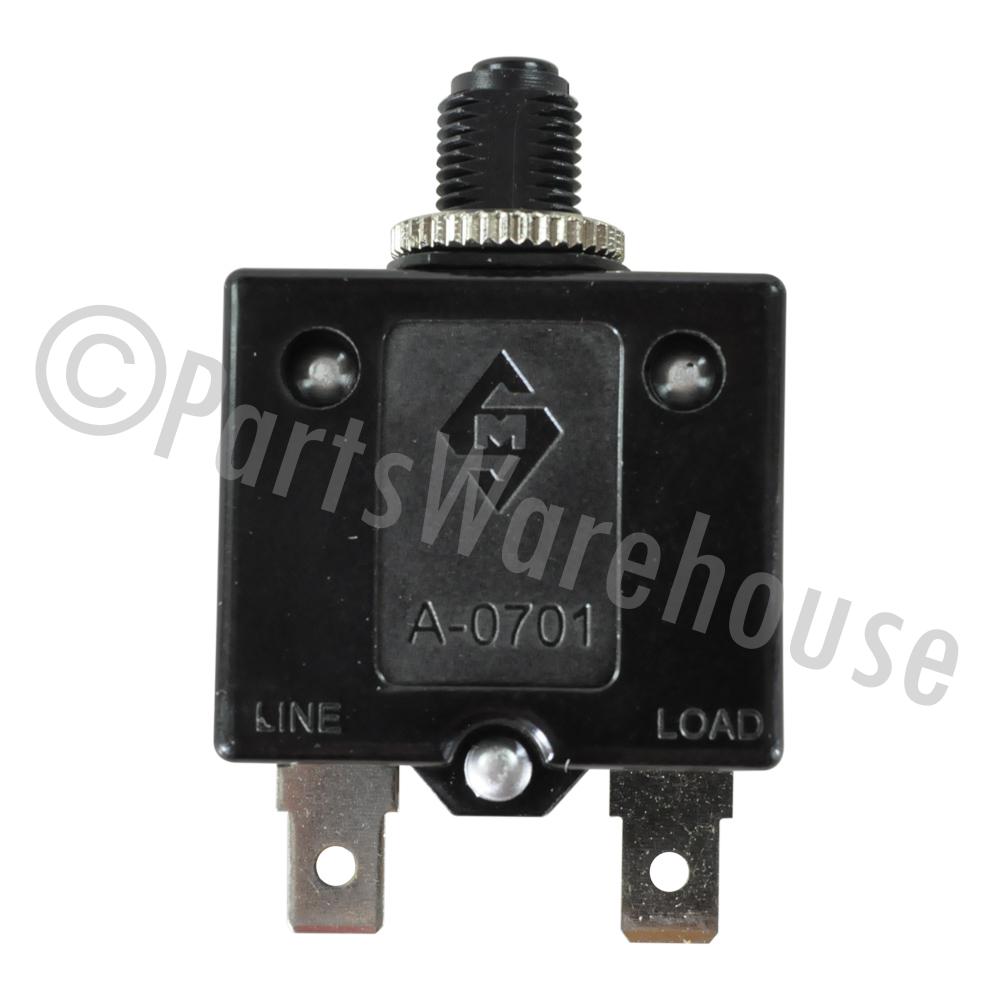

Breaker, 8A Vde Circuit WIN-86215670
...
15
Scr, M4X6, Bshcs, Sst WIN-86172880
...
16
Scr, M4X16, Bshcs, Sst WIN-86173200
...
17
Washer, M3, Fl, Iso7089, Sst WIN-86225850
...
18
Relay, 15A 120Vac Mini WIN-86223400
...
19
Rectifier, 50A 600V Bridge WIN-86223390
...
20
Scr, M5X10, Bshcs, Sst WIN-86173210
...
21
Switch, 125Vac Sp Nc Roller WIN-86291860
...
22
Plate, Base, Electrical Box WIN-86222680
...
23
Clamp, 17,7 Nylon WIN-86216740
...
24
Scr,M3X8, Bhcs, Iso 7380, Sst 86223850
...
26
Label, Ground Symbol 86299320
...
27
Switch, W/Coupler, N.C. WIN-86313930
...
28
Asm, Button, Blue, W/Bezel WIN-86295190
...
29
Asm, Button, Red, W/Bezel WIN-86295150
...
30
Asm, Button, Green, W/Bezel WIN-86295180

Karcher iCapsol Deluxe

...
...
1
Switch, Black, Rocker, Dpst WIN-86299810
...
2
Asm, Button, Green, W/Bezel WIN-86295180
...
3
Switch, W/Coupler, N.C. WIN-86313930
...
4
Scr, M4X6, Bshcs, Sst WIN-86172880
...
5
Clamp, 5/16 Dia Nylon WIN-86198450
...
6
Cord Set, Euro 1Mm X 40 Black WIN-86217200
...
7
Boot, 3/8 Circuit Breaker WIN-86002010
...
8
Clamp, 17,7 Nylon WIN-86216740
...
9
Label, Ground Symbol 86299320
...
10
Scr, M3X6, Bshcs, Iso7380, Sst WIN-86173100
...
11
Brkt, Mtr Brkt, Switch WIN-86291470
...
12
Nut, M4, Lk, Iso7040,Sst WIN-86172630
...
13
Clip, Wire WIN-86216800
...
14
Scr, M4X20, Pphms, Sst WIN-86277600
...
15
Asm, Filter, Emi Main WIN-86302450
...
16
Breaker, 5A Vde Circuit WIN-86215710
...
17
Scr, M5X10, Bshcs, Sst WIN-86173210
...
18
Plate, Base, Electrical Box WIN-86222680
...
19
Tie, Cable Nylon WIN-86225320
...
20
Cover, Switch, Brkt WIN-86291490
...
21
Scr, M3X12, Bshcs, Iso7380, Ss WIN-86291880
...
22
Relay, 10A 230V Mini Spdt WIN-86223420
...
23
Scr, M4 X 16, Bshcs, Sst WIN-86173200
...
24
Rectifier, 50A 1000V Bridge WIN-86223460
...
25
Washer, M3, Fl, Iso 7089, Sst WIN-86225850
...
26
Switch, 125Vac Sp Nc No-Roller WIN-86291860
...
27
Label, Ground Symbol 86299320
...
28
Cover, Switch, Pvc WIN-86299830
...
29
Cable Tie, 11.38" Ul/Csa WIN-86264940
...
30
Asm, Button, Blue, W/Bezel WIN-86295190
...
31
Scr,M3X8, Bhcs, Iso 7380, Sst 86223850
...
32
Nut, M3 Hex Nylock WIN-86329030

Karcher iCapsol Deluxe

...
...
1
Tray, Irenew Mini WIN-86225340
...
2
Frame, 3.5", Single Motor WIN-86217930
...
3
Cover, Frame, Brs 43/500 WIN-86336010
...
4
Scr, M4X20, Pphms, Sst WIN-86277600
...
5
Nut, M4X0.7, U-Clamp, 3Mm Panel WIN-86222360
...
6
Assy, Dome, Insulation WIN-86299440
...
7
Scr, M4 X 40 Pphms Iso7045,Ss WIN-86173050
...
8
Plate, Splash Guard WIN-86348890
...
9
Scr,M5X10,Bshcs,Iso7380,Ss WIN-86173210

Karcher iCapsol Deluxe

...
...
1
Scr, M4 X 40 Pphms, Ss WIN-86173050
...
2
Scr, M4 X 10 Shcsb Buthd WIN-86173040
...
3
Cover, Frame, Brs 43/500 WIN-86336010
...
4
Frame, 3.5, Single Motor WIN-86217930
...
5
Tray, Irenew Mini WIN-86225340
...
6
Jet, Promax, 11001 WIN-86012550
...
7
Jet Body, Mini Promax Body WIN-86004570
...
8
Manifold, Sprayer, Dlx, Imx WIN-86299460
...
9
Hosebarb, 1/8Mpt X 1/4 Dl WIN-86197520
...
10
Clamp, 1/4 Id Hose WIN-86233090
...
11
Scr, M6 X 8, Cp, Blk WIN-86290790
...
12
Scr, M4 X 20, Phms, Sst WIN-86277600
...
13
Nut, M4 X 0.7, U-Clamp, 3Mm Panel WIN-86222360
...
14
Assy, Dome, Insulation WIN-86299440
...
15
Plate, Splash Guard WIN-86348890
...
16
Scr,M5X10,Bshcs,Iso7380,Ss WIN-86173210

Karcher iCapsol Deluxe

...
...
1
Console, Top WIN-86400840
...
2
Console, Top WIN-86299780
...
3
Scr, M4X20, Pphms, Sst WIN-86277600
...
4
Cord Hook, Upper, Ylw, Sm WIN-86336020
...
5
Cord Hook, Lower WIN-86217220
...
6A
Handle, Extrusion, Left WIN-86218680
...
6B
Handle, Extrusion, Left WIN-86218510
...
7
Grip, Handle WIN-86299750
...
8A
Pivot Casting, Karcher WIN-86299790
...
9
Scr, 10M8X55, Shld, Blk WIN-86173180
...
10
Lifting Cam, Left WIN-86221800
...
11
Nut, M8, Lk, Sst WIN-86172640
...
12
Lifting Cam, Right WIN-86221810
...
13
Strap, Sprayer Hold Down WIN-86224970
...
14
Rubber Strap Hook WIN-86223640
...
15A
Handle, Extrusion, Right WIN-86218690
...
15B
Handle, Extrusion, Right WIN-86218520
...
16
Spring, Comp, 11.56D X 19.05L WIN-86224680
...
17
Retainer, Spring, Cord Hook WIN-86223450
...
18
Scr, Ka40X35, Pt Oval, Wn1412, Pl WIN-86012940
...
19
Scr, M5X20, Pphms, Sst WIN-86172820
...
20
Scr, M5X30,Csk, Ovl, Iso7047,Ss WIN-86308740
...
21
Scr, M4X14, Pphms, Iso7045, Sst WIN-86172870
...
22
Scr, M5X12, W/Loctite WIN-86294260
...
23A
Console, Bottom, Karcher WIN-86299770
...
23B
Console, Bottom, Icapsol WIN-86402800
...
24
Scr, M5X30,Csk, Ovl, Iso7047,Ss WIN-86308740

Karcher iCapsol Deluxe

...
...
1
Asm, Guide, Hopper WIN-86214790
...
2
Scr, M4X10, Bshcs, Sst WIN-86173040
...
3
Asm, Hopper Frame & Plate WIN-86299490
...
4
Scr, 4.2 X 9.5, Tap, Zn WIN-86173080
...
5
Bumper, Stop, Hopper WIN-86216310
...
6
Nut, M4, Lk, Sst WIN-86172630
...
7
Cover, Front, Hopper WIN-86299500

Karcher iCapsol Deluxe

...
...
-
Brush Set, 120V Vac, Im WIN-86216180
...
-
Kit, 87/100 Belt Conversion WIN-86352340
...
1
Belt, Flex-V, Pj-6, 293 WIN-86343290
...
2
Belt, Flex-V, Pj-6, 319 WIN-86343300
...
3
Brkt, Mtr Mount, Rh WIN-86215960
...
4
Washer, Spring Lk, 6Mm, Ss WIN-86173310
...
5
Scr, Shcs, M6X60, Sst WIN-86173060
...
6
Flange, Brg, Pivot WIN-86217890
...
7
Cvr Plate, 1.5Mm Thk, Plastic WIN-86217590
...
8
Scr, Shcs, M6X80, Sst WIN-86173090
...
9
Pdl, Foot, Hndl Rlease, Ylw WIN-86335830
...
10
Brkt, Foot Pedal, Switch WIN-86291480
...
11
Scr, M3X6, Bshcs, Sst WIN-86173100
...
12
Scr, Shldr, 11.00Diaxm8X40 WIN-86223870
...
13
Spring, Torsion, 19.38 Od WIN-86224620
...
14
Brkt, Mtr Mount, Lh WIN-86215950
...
15A
Motor, Single, 3.5" Dia WIN-86222200
...
15B
Motor, 230V, Imie WIN-86222210
...
16
Scr,M6X8,Iso4029,Cp,Blk WIN-86290790
...
17
Pulley, Pj-6, 27Mm WIN-86343270
...
18
Set Scr, M6 X 25 Cp WIN-86253200
...
19
Brkt, Mot0R Adjustment WIN-86343310

Karcher iCapsol Deluxe

...
...
1
Scr, Shcs, M8X50, Iso4762, Blk WIN-86172790
...
2
Bushing, 11.25Mm X 8.0Mm, Sst WIN-86216450
...
3
Wheel, 3" Dia. Cushion Rubber WIN-86011020
...
4
Washer, M8, Fl, Iso7089, Sst WIN-86173300
...
5
Nut, M8, Nylock, Iso7040, Sst WIN-86172640

Karcher iCapsol Deluxe

...
...
1
Cplr, Body, 1/4" Barb, Gry WIN-86299710
...
2
Cplr, Pnl Mnt, 1/4" Barb, Gry WIN-86299720
...
3
Seal, Coupler, Epdm Rubber WIN-86012500
...
4
Hose, Suction, Tank, Deluxe WIN-86219230
...
5
Tank, Dlx (Mach) WIN-86225300
...
6
Washer, M6, Fndr, Ss WIN-86013850
...
7
Scr, M5 X 20, Phms, Iso7045, Sst WIN-86172820
...
8
Strap, Chemical Bottles, Dlx WIN-86012570
...
9
Scr, Ka40X35, Pt Ovl, Pl WIN-86012940
...
10
Clamp, Tube 1/4" WIN-86216780
...
11
Scr, M4X14 Phms, Sst WIN-86172870
...
12
Cover, Pump, Top, Karcher WIN-86299740
...
13
Gasket, Seal, Neoprene, Rbr WIN-86012520
...
14A
Pump, 220/240V 50Hz Flojet WIN-86201120
...
14B
Pump, 110/120 60Hz Flojet WIN-86201110
...
15
Hosebarb, 1/8Mpt X 1/4 90D WIN-86240520
...
16
Scr, M6 X 12 Bhcs, Iso 7380, Ss WIN-86172990
...
17
Washer Spring Lck, Smm WIN-86013840
...
18
Cover, Pump, Karcher WIN-86299730
...
19
Grommet, 9.3Mm Id X 23Mm Od WIN-86012530
...
20
Strainer, Small, 60 Mesh WIN-86012560
...
21
Clamp, 1/4 Id Hose WIN-86233090
...
22
Washer, M5, Fndr, Ss WIN-86012970
...
23
Scr, 10-32 X 1/4 Phtr Pltd WIN-86006770
...
24
Strap, Sprayer Hold Down WIN-86224970
...
25
Cap, 2-1/4, Power Grip, Ylw WIN-86335840
...
26
Hose, 3/8Od X 1/4Id Urthn X 30" WIN-86290030
...
27
Hose, 3/8Od X 1/4Id Urthn X 8" WIN-86290010
...
28
Hose, 3/8Od X 1/4Id Urthn X 27" WIN-86290020
...
29
Label, Ground Symbol 86299320
...
30
Tie-Cable, Nylon WIN-86225320
...
31
Washer, #10 Lock Ext Star Ss WIN-86010640
...
32
Bottle, 500 Ml WIN-86372120

Karcher iCapsol Deluxe

...
...
1
Harness, Main WIN-86218820
...
2
Wire, 10" Blk/18 76040 WIN-86226220
...
3
Wire, 15" Org/18 76040 X 76040 WIN-86226260
...
4
Wire, 18" Org/18 WIN-86226270
...
5
Wire, 9" Blk/18 76040 X 76040 WIN-86226280

Karcher iCapsol Deluxe

...
...
1
Harness, Main WIN-86218820
...
2
Wire, 10" Blk/18 76040 WIN-86226220
...
3
Wire, 15" Org/18 76040 X 76040 WIN-86226260
...
4
Wire, 18" Org/18 WIN-86226270
...
5
Wire, 9" Blk/18 76040 X 76040 WIN-86226280
...
6
Harness, Pump Housing, Dlx WIN-86013120
...
7
Wire, 9.5" Grn/18 WIN-86013090
...
8
Wire, 4 W/Wire Joint, Blk WIN-86013110
...
9
Wire Assy, W/2 Pin Conn, Dlx WIN-86013950

Karcher iCapsol Deluxe

...
...
-xx
= Not shown on schematic. FNLA
...
1
Harness, Main, 230Vac, Imie WIN-86218880
...
2
Wire, 10" Blk/18 76040 X 76040 WIN-86226220
...
3
Wire, Org/18 76040 X 76040 WIN-86226260
...
4
Wire, 18" Org/18 76040 X 76040 WIN-86226270
...
5
Wire, 9" Blk/18 76040 X 76040 WIN-86226280
...
6
Asm, Filter, Emi Main WIN-86302450
...
7
Assy, Filter, Emi Mtr WIN-86310150
...
8
Wire Assy, W/2 Pin Conn, Dlx WIN-86013950
...
9
Harness, Pump Housing, Dlx 230 86306770
...
10
Wire, 9.5" Grn/18 WIN-86013090
...
11
Wire, 4 W/Wire Joint, Blk 86306760
...
...
...
...
...
