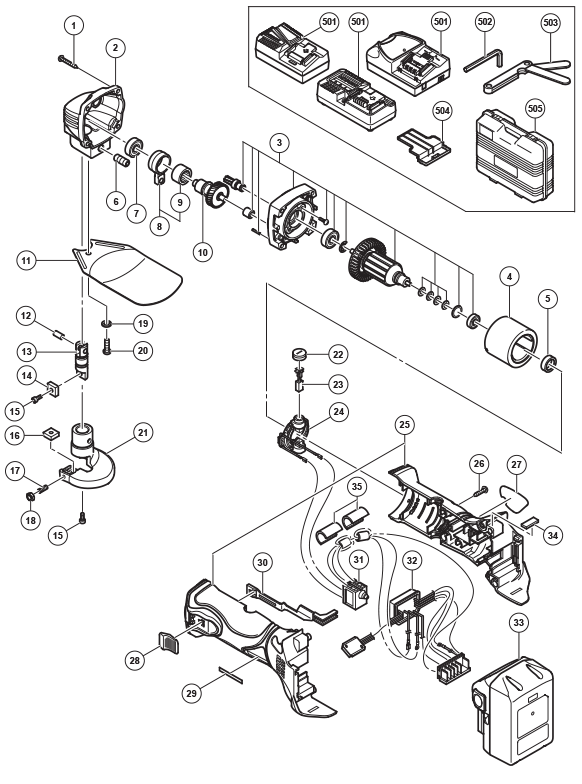

Hitachi Metabo CE18DSL Cordless Shear

Model: CE18DSL

Save
 Part Not Listed?Part Not Listed?
product name

Hitachi CE18DSL

...
...
1
Tapping Screw (W/Flange) D4 X 35 (Black) HIT-303694
...
2
Gear Cover HIT-339994
...
3
Armature And Pinion Set HIT-339998
...
4
Magnet HIT-328195
...
5
Bushing HIT-338867
...
6
Hex. Socket Set Screw M8 X 20 HIT-998008
...
7
Ball Bearing 608Vv HIT-333945
...
8
Connecting Rod Assembly, Includes 9 HIT-998004
...
9
Needle Bearing (M152112) HIT-993163
...
10
Spindle And Gear Set HIT-339999
...
11
Protector HIT-998010
...
12
Pin D6 HIT-993546
...
13
Piston HIT-998005
...
14
Moving Blade HIT-998000
...
15
Hex. Socket Hd. Bolt M4 X 10 (10 Pcs.) HIT-949812
...
16
Stationary Blade HIT-998001
...
17
Slotted Hd. Set Screw M4 X 14 HIT-998009
...
18
Lock Nut M4 (10 Pcs.) HIT-949565
...
19
Spring Washer M5 (10 Pcs.) HIT-949454
...
20
Machine Screw M5 X 12 (10 Pcs.) HIT-949237
...
21
Blade Holder HIT-998007
...
22
Brush Cap HIT-328200
...
23
Carbon Brush 5 X 6 X 11.5 (1 Pair) HIT-999054
...
24
Brush Block, For Europe, Gbr HIT-334696
...
24
Brush Block HIT-328202
...
25
Housing (A).(B) Set HIT-370161
...
26
Tapping Screw (W/Flange) D4 X 20 (Black) HIT-301653
...
28
Slide Knob HIT-314428
...
30
Slide Bar HIT-328199
...
31
Pushing Button Switch HIT-329057
...
32
Controller Terminal Set HIT-370162
...
32
Controller Terminal Set, For Europe, Gbr HIT-370163
...
33
Battery Bsl 1850 (Europe,Aus,Nzl) (2 Pcs.), Includes 504 HIT-336385
...
33
Battery Bsl 1850 (Chn), Includes 504 HIT-336265
...
33
Battery Bsl 1830 (Europe,Aus,Nzl), Includes 504 HIT-330068
...
33
Battery Bsl 1815 (Europe), Includes 504 HIT-333352
...
34
Packing HIT-328709
...
35
Support (D), For Europe, Gbr HIT-339343
...
502
Hex. Bar Wrench 3Mm HIT-943277
...
503
Thickness Gauge HIT-949128
...
504
Battery Cover HIT-329897
...
505
Case HIT-339992
...
...
...
...
...
