Haier QAS740RM1SS Electric Range

Model: QAS740RM1SS

Save
 Part Not Listed?Part Not Listed?
product name

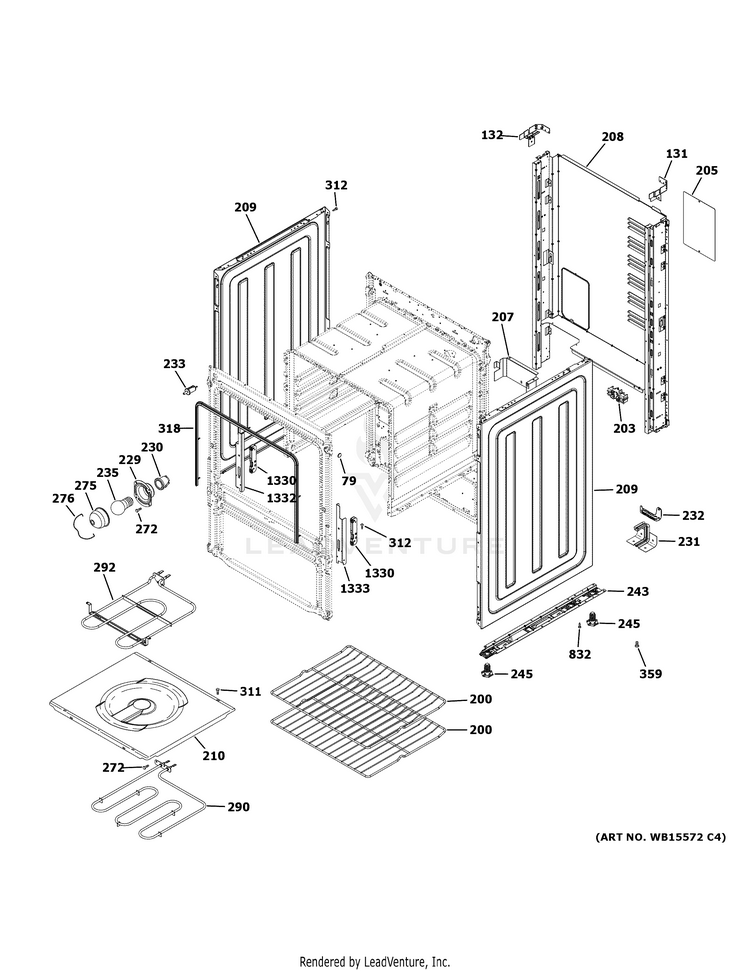

BODY PARTS

...
...
79
HARNESS THERMOSTAT GEH-WB18X31073
...
131
BRACKET COOKTOP GEH-WB37X30909
...
132
BRACKET COOKTOP GEH-WB37X30910
...
200
RACK OVEN GEH-WB48X30918
...
203
TERMINAL BLOCK ASM GEH-WB18X40708
...
205
TABLET COVER GEH-WB34X31919
...
207
COVER KNOCKOUT GEH-WB34X30898
...
208
COVER BACK GEH-WB34X30901
...
209
BLACK PANEL SIDE AND FOIL GEH-WB56X45649
...
210
OVEN BOTTOM GEH-WB63X31081
...
229
HOUSING RECEPTABLE GEH-WB08K10010
...
230
RECEPTACLE PUSH-IN GEH-WB08T10026
...
231
BRACKET ASM ANTI-TIP GEH-WB37X30912
...
232
ARM ANTI TIP GEH-WB02K10235
...
233
PLUNGER SWITCH GEH-WB24K10068
...
235
40A15 GEH-STD372401
...
243
SUPPORT BASE GEH-WB37X30907
...
245
LEG LEVELER GEH-WB02K10182
...
272
SCREW 8-18X5/8 HXW GEH-WZ04X0345
...
275
GLASS OVEN LAMP GEH-WB08K0005
...
276
BAIL GEH-WB02K0027
...
290
ELEMENT HIDDEN GEH-WB44X31080
...
292
HEATER & SUPPORT BROIL ASM GEH-WB44X30930
...
311
SCR 8-18 AB X 5/16S GEH-WB01X26995
...
312
SCREW GEH-WB01K10091
...
318
GASKET DOOR GEH-WB32X31916
...
359
SCREW 12-14, 5/8S GEH-WB01K0078
...
832
SCREW GEH-WB01K0021
...
1330
RECEIVER HINGE GEH-WB10X31976
...
1332
GUSSET HINGE LH GEH-WB10X30947
...
1333
GUSSET HINGE RH GEH-WB10X30946

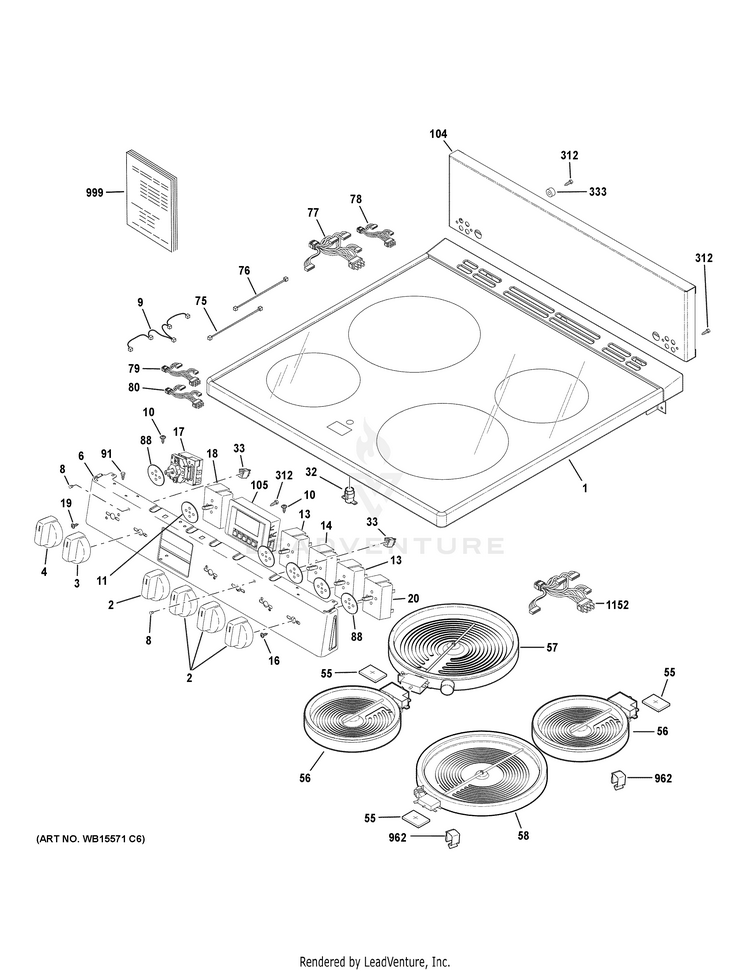

CONTROL PANEL & COOKTOP

...
...
1
RANGE TOP & GLASS ASM GEH-WB62X31184
...
2
KNOB ASM GEH-WB03X31071
...
3
OVEN MODE SELECTOR KNOB GEH-WB03X31070
...
4
KNOB ASM GEH-WB03X31072
...
6
MANIFOLD PANEL GEH-WB36X31069
...
8
LENS GEH-WB25X29379
...
9
HARNESS PILOT GEH-WB18X30892
...
10
SCREW 10-16 SHLDR TYPE A GEH-WB01T10009
...
11
SEAL VALVE GEH-WB02X32333
...
13
SWITCH INFINITE GEH-WB24X31917
...
14
SWITCH INFINITE GEH-WB24X31928
...
16
SCREW 8-32 TPT FLR 215 S GEH-WB01T10020
...
17
COVER DIELECTRIC & THERMOSTAT ASM GEH-WB24X44746
...
18
OVEN MODE SELECTOR SWITCH GEH-WB24X31083
...
19
SCREW THERMOSTAT GEH-WB01K0008
...
20
SWITCH INFINITE GEH-WB24X31082
...
32
LIGHT INDICATOR GEH-WB27T10668
...
33
LIGHT INDICATOR PILOT GEH-WB25K10010
...
55
PAD. RADIANT ELEMENT GEH-WB02X35325
...
56
ELEMENT HALIANT & PAD ASM GEH-WB30X30921
...
57
ELEMENT HALIANT & PAD ASM GEH-WB30X30934
...
58
ELEMENT HALIANT & PAD ASM GEH-WB30X31078
...
75
HARNESS GROUND GEH-WB18X30896
...
76
HARNESS GROUND GEH-WB18X30895
...
77
HARNESS MAIN GEH-WB18X31074
...
78
HARNESS COOKTOP GEH-WB18X30897
...
79
HARNESS THERMOSTAT GEH-WB18X31073
...
80
HARNESS CONMUTATOR GEH-WB18X31075
...
88
SEAL VALVE GEH-WB02X31933
...
91
SCREW GROUND GEH-WB01X1261
...
104
BACKGUARD RANGE GEH-WB36X31079
...
105
TIMER-CLOCK & OVERLAY ASM GEH-WB24X31108
...
312
SCREW GEH-WB01K10091
...
333
SPACER-HANDLE GEH-WB01K10020
...
962
RADIANT ELEMENT SPRING GEH-WB10X32419
...
999
PM OWNERS MANUAL GEH-49-2001024
...
999
PM MINI MANUAL AND WIRING GEH-31-2001058
...
999
PM QUICK OWNERS MANUAL GEH-49-2001033
...
999
PM INSTALL INSTRUCTIONS GEH-31-11135
...
1152
HARNESS INFINITE GEH-WB18X30894

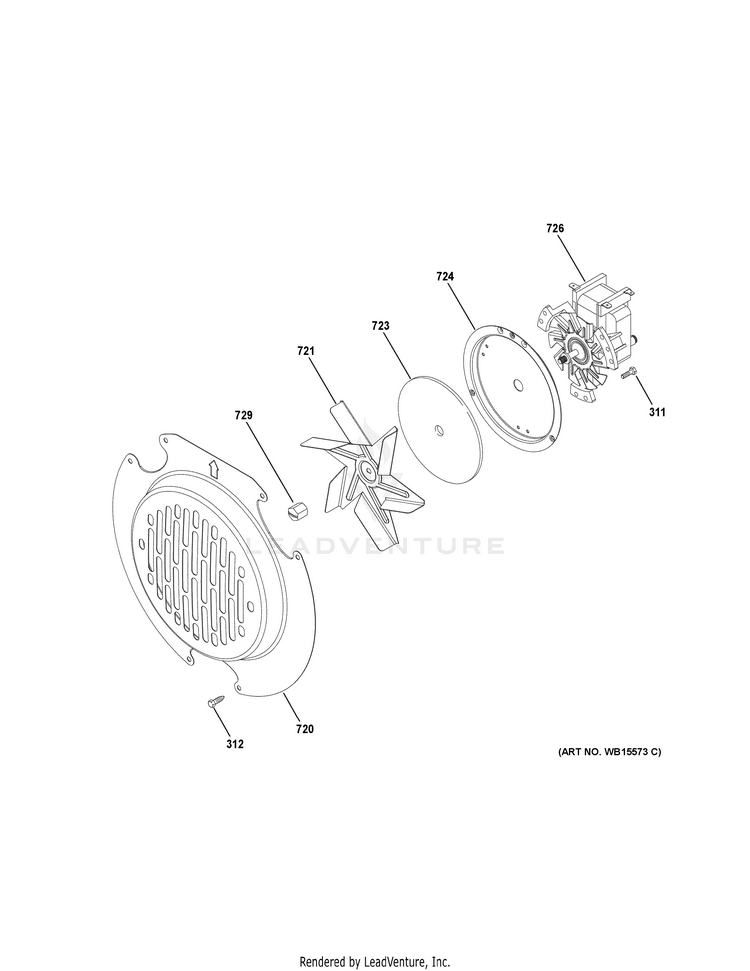

CONVECTION FAN

...
...
311
SCR 8-18 AB X 5/16S GEH-WB01X26995
...
312
SCREW GEH-WB01K10091
...
720
FAN COVER GEH-WB34X31084
...
721
FAN BLADE GEH-WB02X8351
...
723
FAN INSULATION GEH-WB35K10013
...
724
FAN SUPPORT GEH-WB02K10034
...
726
FAN MOTOR CONVECT GEH-WB26X28953
...
729
NUT GEH-WB02T10017

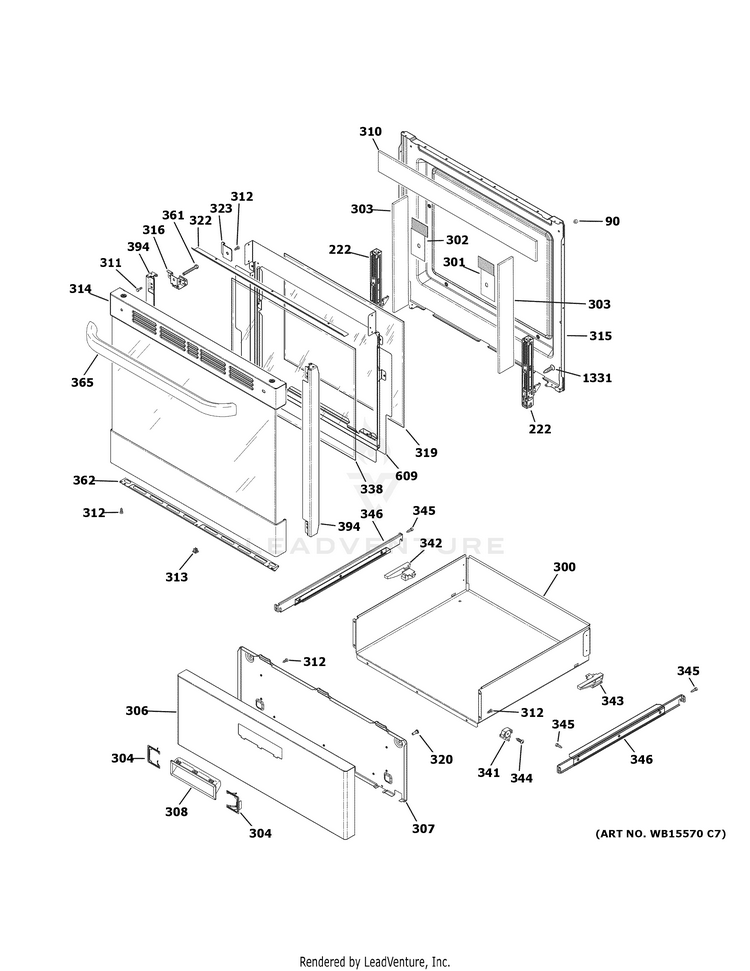

DOOR & DRAWER PARTS

...
...
90
FRAME FRONT BUMPER GEH-WB02X28737
...
222
HINGE DOOR GEH-WB10X30929
...
300
BODY DRAWER GEH-WB63X30936
...
301
INSULATION VENT TRIM GEH-WB35X31931
...
302
INSULATION VENT TRIM GEH-WB35X31934
...
303
DOOR INSULATION GEH-WB35X30903
...
304
CLIP BROIL HANDLE GEH-WB01X26891
...
306
PANEL DRAWER GEH-WB56X30920
...
307
LINER DRAWER GEH-WB56X30925
...
308
HANDLE BROIL GEH-WB15X26672
...
310
INSULATION DOOR GEH-WB35X32513
...
311
SCR 8-18 AB X 5/16S GEH-WB01X26995
...
312
SCREW GEH-WB01K10091
...
313
GROMMET GEH-WB02K0008
...
314
GLASS OVEN DOOR ASM GEH-WB56X31077
...
315
LINER DOOR GEH-WB56X30926
...
316
BRACKET BACKER GEH-WB37X30911
...
319
GLASS LINER DOOR GEH-WB56X30906
...
320
BUMPER, BLACK GEH-WB02K0015
...
322
DEFLECTOR UPPER DOOR GEH-WB34X30935
...
323
BRACKET GLASS GEH-WB02K10350
...
338
GLASS LINER DOOR GEH-WB56X30905
...
341
DRAWER SUPPORT GEH-WB02K10186
...
342
GLIDER DRAWER LEFT GEH-WB02K10062
...
343
GLIDER DRAWER RIGHT GEH-WB02K10061
...
344
SCREW GEH-WB01X30915
...
345
SCREW (BLK) GEH-WB01K0042
...
346
RAIL & BRACKET GUIDE DRAWER ASM GEH-WB37X30908
...
361
SCREW GEH-WB01X30980
...
362
BARRIER DOOR GEH-WB56X31921
...
365
HANDLE DOOR GEH-WB15X31076
...
394
TRIM POST DOOR GEH-WB07X31067
...
609
GUARD INSULATION GEH-WB34X30933
...
1331
SCREW GEH-WB01K0081
...
...
...
...
...
