Haier HCR2250AES Electric Range

Model: HCR2250AES

Save
 Part Not Listed?Part Not Listed?
product name

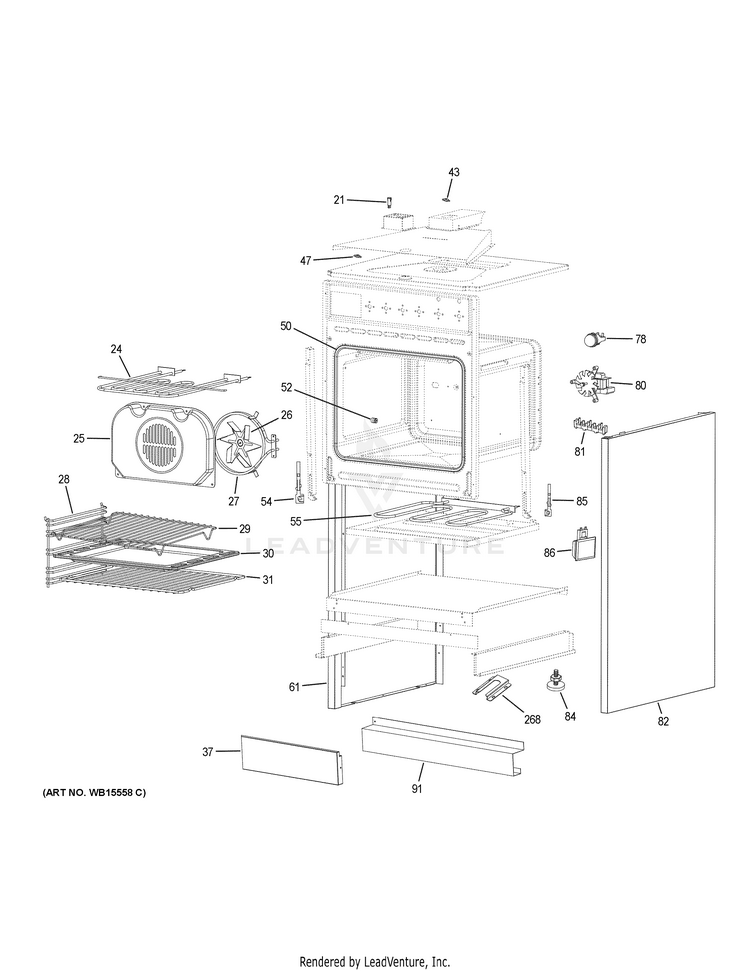

BODY PARTS

...
...
21
HOT LIGHT INDICATOR GEH-WB25X28403
...
24
BROIL ELEMENT GEH-WB44X28270
...
25
CONVECTION FAN COVER GEH-WB34X28278
...
26
CONVECTION FAN BLADE GEH-WB02X28397
...
27
CONVECTION HEATING ELEMENT GEH-WB44X28279
...
28
OVEN RACK GUIDE GEH-WB48X28408
...
29
GRILL RACK GEH-WB48X28348
...
30
GREASE COLLECTOR PAN GEH-WB32X28296
...
31
OVEN RACK GEH-WB48X28313
...
37
FRONT BOTTOM TRIM GEH-WB07X28291
...
43
COOLING FAN THERMOSTAT GEH-WB24X28282
...
47
THERMAL CUTOUT GEH-WB24X28417
...
50
DOOR GASKET GEH-WB35X28399
...
52
GUIDE RAIL NUT GEH-WB02X28297
...
54
HINGE RECEIVER LT GEH-WB10X28401
...
55
HIDDEN BAKE ELEMENT GEH-WB44X28298
...
61
SIDE PANEL LT GEH-WB56X28317
...
78
LAMP SOCKET AND LENS ASM GEH-WB18X28307
...
80
CONVECTION MOTOR AND FAN ASM GEH-WB26X28280
...
81
TERMINAL BLOCK GEH-WB18X28416
...
82
SIDE PANEL RT GEH-WB56X28318
...
84
LEVELING LEG GEH-WB02X28308
...
85
HINGE RECEIVER RT GEH-WB10X28402
...
86
SIDE LAMP SOCKET AND LENS ASM GEH-WB18X28415
...
91
TOE KICK GEH-WB07X28385
...
268
BRACKET ANTI-TIP ASM GEH-WB02T10578

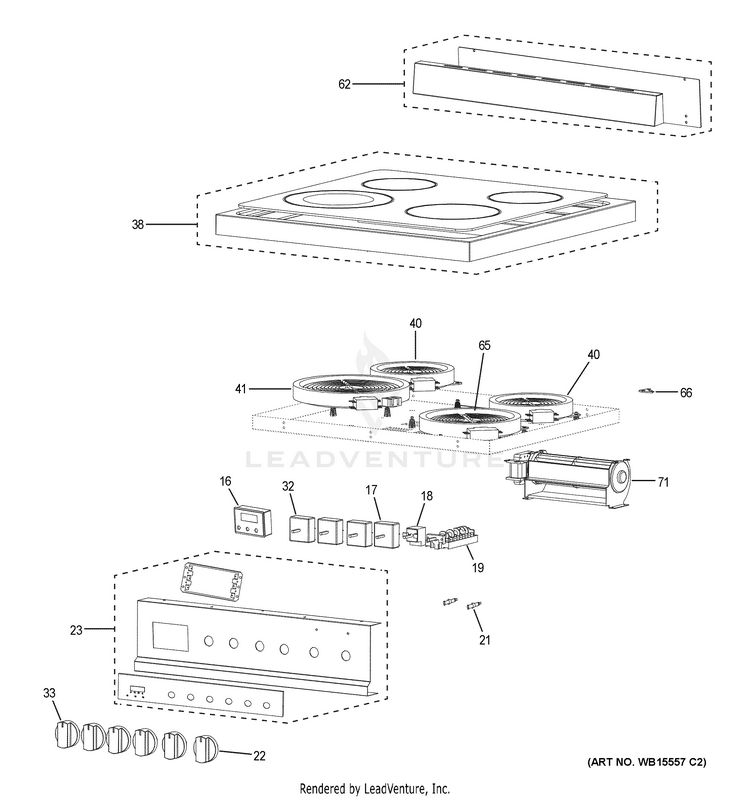

CONTROL PANEL & COOKTOP

...
...
16
TIMER GEH-WB24X28323
...
17
INFINITE SWITCH GEH-WB24X28404
...
18
OVEN THERMOSTAT GEH-WB24X28409
...
19
SELECTOR SWITCH GEH-WB24X28414
...
21
HOT LIGHT INDICATOR GEH-WB25X28403
...
22
KNOB GEH-WB03X28306
...
23
CONTROL PANEL OVERLAY GEH-WB07X30670
...
32
INFINITE SWITCH GEH-WB24X28405
...
33
KNOB GEH-WB03X28407
...
38
MAINTOP ASM GEH-WB62X30674
...
40
RADIANT ELEMENT GEH-WB30X28410
...
41
RADIANT ELEMENT DOUBLE GEH-WB30X28413
...
62
BACKSPLASH GEH-WB36X30663
...
65
RADIANT ELEMENT GEH-WB30X28411
...
66
RADIANT ELEMENT BRACKET GEH-WB02X28412
...
71
COOLING FAN GEH-WB26X28281

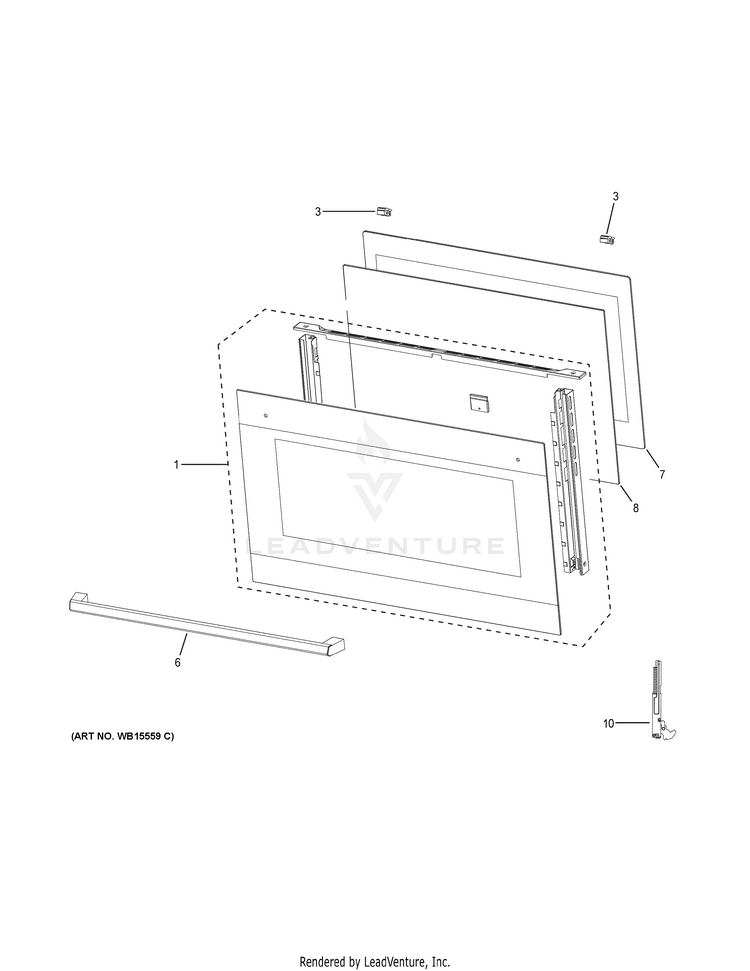

DOOR

...
...
1
OUTER DOOR ASM GEH-WB56X30680
...
3
GLASS SPACER GEH-WB02X28400
...
6
HANDLE ASM GEH-WB15X28352
...
7
INNER DORR GLASS GEH-WB56X28406
...
8
MIDDLE DOOR GLASS GEH-WB56X28360
...
10
DOOR HINGE ASM GEH-WB10X28288
...
...
...
...
...
