Haier AS09TB1HRH Room Air Conditioner Built In

Model: AS09TB1HRH

Save
 Part Not Listed?Part Not Listed?
product name

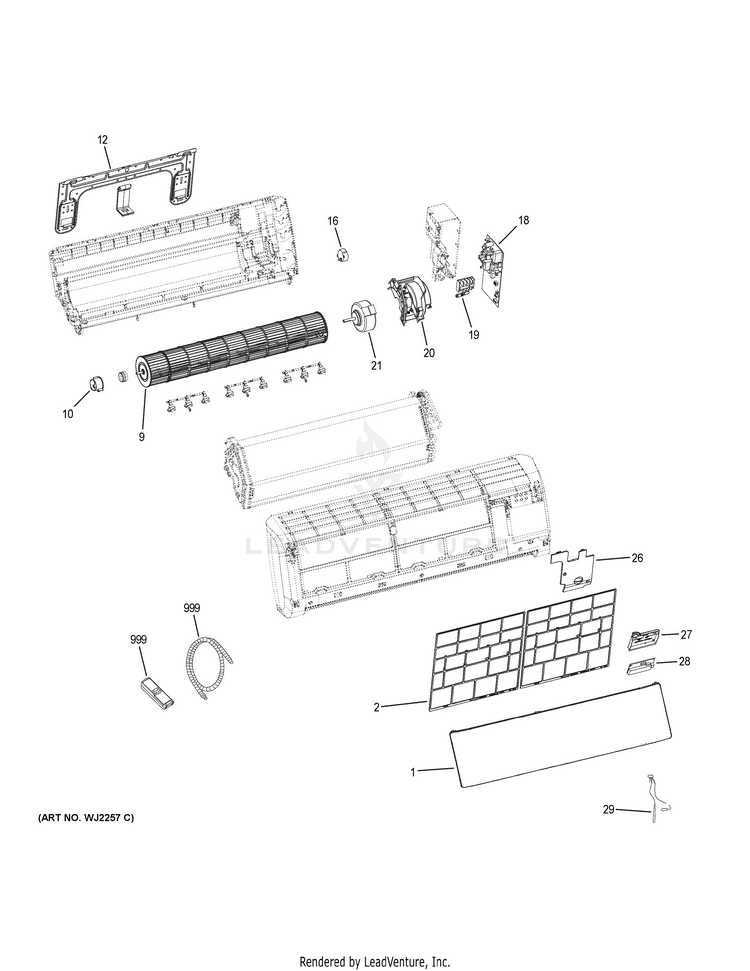

ROOM AIR CONDITIONER

...
...
1
TOP COVER GEH-WJ71X23263
...
2
AIR FILTER GEH-WJ85X23232
...
9
CROSS FLOW FAN GEH-WJ73X23234
...
10
CROSS FLOW FAN BEARING GEH-WJ73X23028
...
12
MOUNTING BRACKET GEH-WJ65X23240
...
16
STEPPER MOTOR GEH-WJ94X23241
...
18
INDOOR POWER CONTROL BOARD GEH-WJ26X23238
...
19
TERMINAL BLOCK GEH-WJ26X23043
...
20
MOTOR COVER GEH-WJ76X23239
...
21
INDOOR FAN MOTOR GEH-WJ94X23237
...
26
BOARD COVER GEH-WJ76X23233
...
27
DISPLAY BOARD BOX GEH-WJ76X23235
...
28
DISPLAY PANEL GEH-WJ26X23236
...
29
TEMPERATURE SENSOR GEH-WJ26X23242
...
999
DRAIN HOSE GEH-WJ53X23032
...
999
REMOTE CONTROL GEH-WJ01X23262
...
...
...
...
...
