Greenworks 80V Cordless Snow Thrower GW80VSNW200

Model: GW80VSNW200

Save
 Part Not Listed?Part Not Listed?
product name

Greenworks GW80VSNW200

...
...
1
Left Side Cover GWK-332041205
...
2
Screw GWK-32205877
...
3
Belt GWK-329051205
...
4
Screw M5X8 GWK-32206575
...
5
Washer GWK-3290250
...
6
Front Cover Assembly GWK-311011205
...
7
Rear Cover Assembly GWK-311021205
...
8
Motor GWK-361011205
...
9
Motor Clamp GWK-332031205
...
10
Wire Clamp GWK-3410801
...
11
Split Pin GWK-3290135
...
12
7" Wheel Assembly GWK-311031205
...
13
Rubber Sleeve GWK-332151205
...
14
Wheel Bracket Assembly GWK-332021205
...
15
Screw GWK-32201699
...
16
Lower Handle GWK-333031205
...
17
Nut M6 GWK-32222301A
...
18

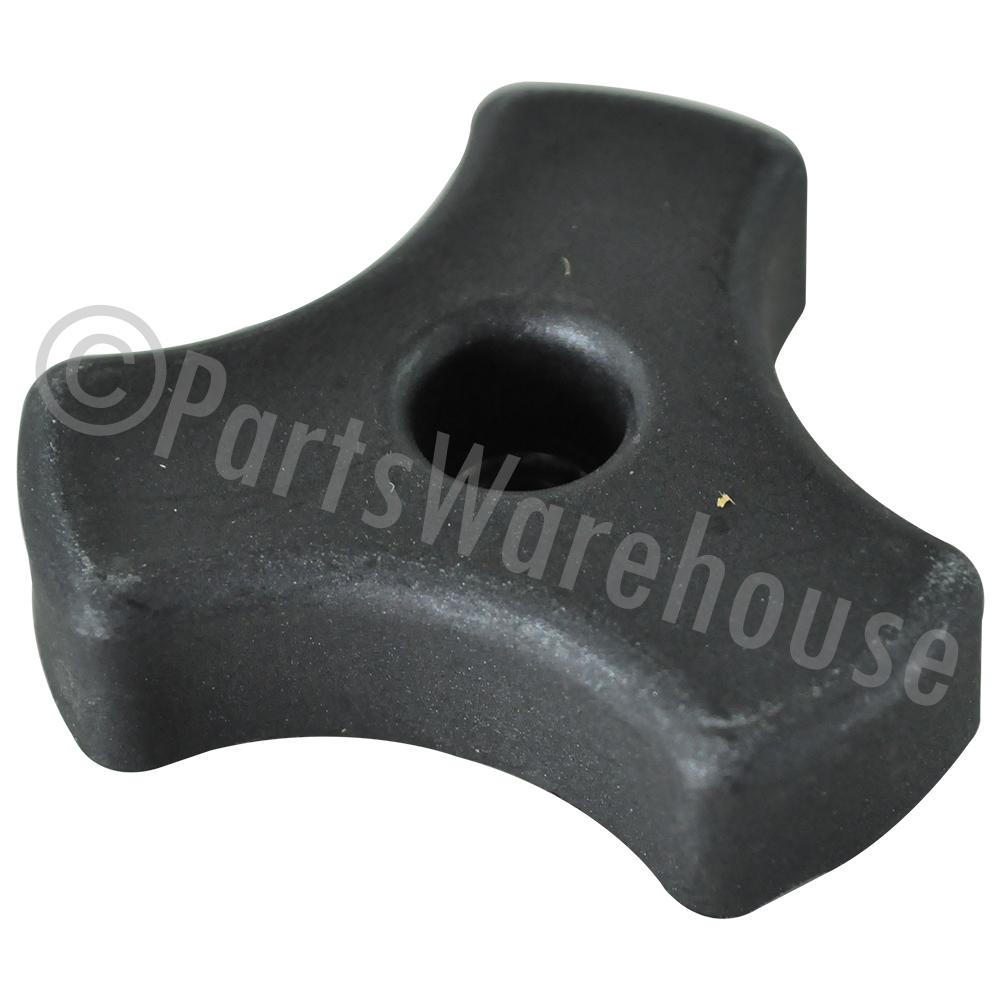

Knob GWK-3410835-4
...
19
Right Side Cover GWK-332051205
...
20
Bolt M6X35 GWK-32204234
...
21
U Bolt GWK-333041205
...
22
Middle Handle GWK-333021205
...
23
Screw GWK-32226121
...
24
Bracket For The Chute Control Rod GWK-341131205
...
25
Nut GWK-32219121
...
26
Hitch Pin GWK-3320643
...
27
Lower Chute Control Rod GWK-333111205-2
...
28
Upper Chute Control Rod GWK-333201205
...
29
Handle For Chute Control Rod GWK-311041205
...
30
Handle Bar Assembly GWK-311051205
...
31
Cam Lock Block GWK-34103466-1
...
32
Cam Lock Assembly GWK-31102467
...
33
Rubber Bushing GWK-342011205

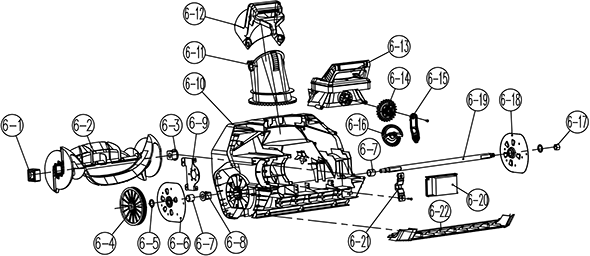

Greenworks GW80VSNW200

...
...
6-12
Chute Deflector GWK-31121205
...
6-13
Discharge Chute Base GWK-341061205
...
6-14
Small Gear GWK-341071205
...
6-15
Gear Seat GWK-341091205
...
6-16
Big Gear GWK-341081205
...
6-6
Left Side Plate GWK-311111205
...
6-17
Nut M12 GWK-32902250A
...
6-18
Right Side Plate GWK-311131205
...
6-19
Axle For The Impeller GWK-332121205
...
6-20
Pcb Board GWK-362011205
...
6-21
Motor Support GWK-341101205
...
6-22
Scraper GWK-341111205
...
6-10
Front Cover GWK-341011205
...
6-9
Motor Fixed Plate GWK-332011205
...
6-8
Left Driving Block GWK-339021205
...
6-7
Bushing GWK-332111205
...
6-5
Washer GWK-32217100
...
6-4
Drive Wheel GWK-34109100-12
...
6-3
Right Driving Block GWK-339011205
...
6-2
Impeller GWK-341171205
...
6-1
Link Block GWK-332061205
...
6
Front Cover Assembly GWK-311011205
...
6-11
Discharge Chute GWK-341031205

Greenworks GW80VSNW200

...
...
7-2
Rear Cover GWK-341021205
...
7-5
Greenworks 80V Charger GWK-311011010
...
7-4
Greenworks 80V Battery GWK-311011009
...
7-3
Battery Compartment Assembly GWK-311061205
...
7-1
Connecting Base GWK-341121205
...
7
Rear Cover Assembly GWK-311021205

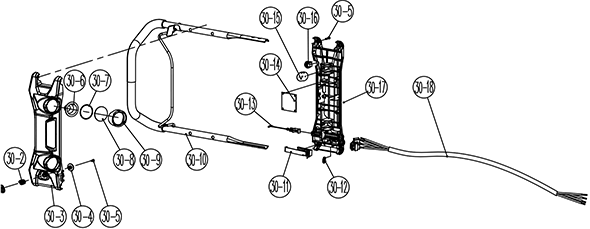

Greenworks GW80VSNW200

...
...
30-18
Cord Assembly GWK-311101205
...
30-17
Lower Cover GWK-341151205
...
30-16
Switch GWK-363051205
...
30-15
Led And Aluminum Substrate GWK-362011108
...
30-14
Circuit Board GWK-362021205
...
30-13
Start Cable Assembly GWK-311091205
...
30-12
Wire Clamp GWK-3410801
...
30-11
Slider Block Assembly GWK-311081205
...
30-10
Upper Handle Assembly GWK-311071205
...
30-9
Light Head Housing GWK-341061108-3
...
30-8
Lamp Screen GWK-341051108
...
30-7
Rubber Gasket GWK-342011108
...
30-6
Parabolic Reflector GWK-333011108
...
30-5
Screw GWK-32205877
...
30-4
Switch Pressure Head GWK-341201205
...
30-3
Faceplate GWK-341141205
...
30-2
Spring GWK-33401229A
...
30-1
Safety Switch Button GWK-34136486-2
...
30
Handle Bar Assembly GWK-311051205
...
...
...
...
...
