Greenworks 25012 Lawn Mower

Model: 25012

Save
 Part Not Listed?Part Not Listed?
product name

Greenworks 25012

...
...
1
18" Motor Cover GWK-31301221-1
...
2
Screw M5x15 GWK-3220435
...
3
Screw St4.2x25-F GWK-3220404
...
4
Rectifier GWK-3690135
...
5
Rectifier Heat Radiator GWK-3331035
...
6
Screw M4X12 GWK-3220511
...
7
Resistor GWK-36901227
...
8
Heat Radiator GWK-3331437
...
9
Lock Nut M4 GWK-3221237
...
10
Screw M5X20 GWK-3220850
...
11
Lock Nut M5 GWK-3220439
...
12
Resistance Clamp GWK-3410290-1
...
13
Screw St4.9X16-C GWK-3220951
...
14
Side Discharge Cover GWK-3410537-1
...
15
Spring GWK-3340237
...
16
Side Discharge Axle GWK-3320338
...
17
Side Discharge Bracket GWK-3330637
...
18
Bolt M6X8 GWK-3220136
...
19
Side Discharge Chute GWK-3410637-1
...
20
Motor GWK-3610138-1
...
21
Lock Nut M6 GWK-3220537
...
22
Screw St4.2x16-C GWK-3220105
...
23
Cord Clip GWK-3410403
...
24
Bolt M6x12 GWK-3220137
...
25
Screw M5X12 GWK-3221137
...
26
Cord Guide GWK-3410137
...
27
Deck GWK-34101221-1
...
28
Screw M5X12 GWK-32206250
...
29
Front Wheel Axle GWK-3110137
...
30
Wheel Bushing GWK-3320237
...
31
7" Wheel Assy. GWK-34203229-5
...
32
Washer GWK-3331638
...
33
Cotter Pin GWK-3290135
...
34
7" Wheel Cover GWK-34203229-7
...
35
Bolt M10X20 GWK-3221637
...
36
Height Adjustment Plate (L) GWK-3330737-2
...
37
Nut M10 GWK-3220737
...
38
Knob GWK-3410835-8
...
39
Motor Bushing GWK-3320238
...
40
Fan GWK-3410237
...
41
Blade GWK-33303463
...
42
Blade Baffle GWK-3410535
...
43
Square Baffle GWK-3331435
...
44
Nut M10X1.25 GWK-3221037
...
45
Link Bar GWK-3330537-3
...
46
Extension Spring GWK-3340137-1
...
47
Cord Clamp GWK-3330490
...
48
Rear Shield GWK-34105466
...
49
Height Adjustment Plate (R) GWK-3330837-2
...
50
Rear Wheel Axle GWK-3110237-2
...
51
Spring Board GWK-3330437-1
...
52
Height Adjustment Shaft GWK-3220137-2
...
53
Height Adjustment Handle (Lower) GWK-34114227-2
...
54
Height Adjustment Handle (Upper) GWK-34113227-2
...
55
Lower Handle GWK-3330290-1
...
56
Cord Retainer GWK-34120227
...
57
Cord Guide GWK-3411135
...
58
Upper Handle GWK-31103227-2
...
59
Cam Lock Assy. GWK-31101466

Greenworks 25012

...
...
58-10
Upper Handle Assy. GWK-31102466
...
58-19
Switch Handle Left Cover GWK-34202281-3
...
58-18
Switch Handle Knob GWK-34211281-3
...
58-17
Switch Handle Right Cover GWK-34203281-3
...
58-16
Waterproof Cap GWK-36502227
...
58-15
Switch Left Box GWK-34208281-1
...
58-14
Over-Current Protecter GWK-36501227
...
58-13
Screw St4x16-F GWK-3220505
...
58-12
Cord Holder GWK-3411435
...
58-11
Cord Assy. GWK-31102464
...
58-1
Screw St3.5x25 GWK-3220937
...
58-9
Handle Bar GWK-33308227
...
58-8
Power Button GWK-34205281-3
...
58-7
Spring GWK-33903281
...
58-6
Spring GWK-33902281
...
58-5

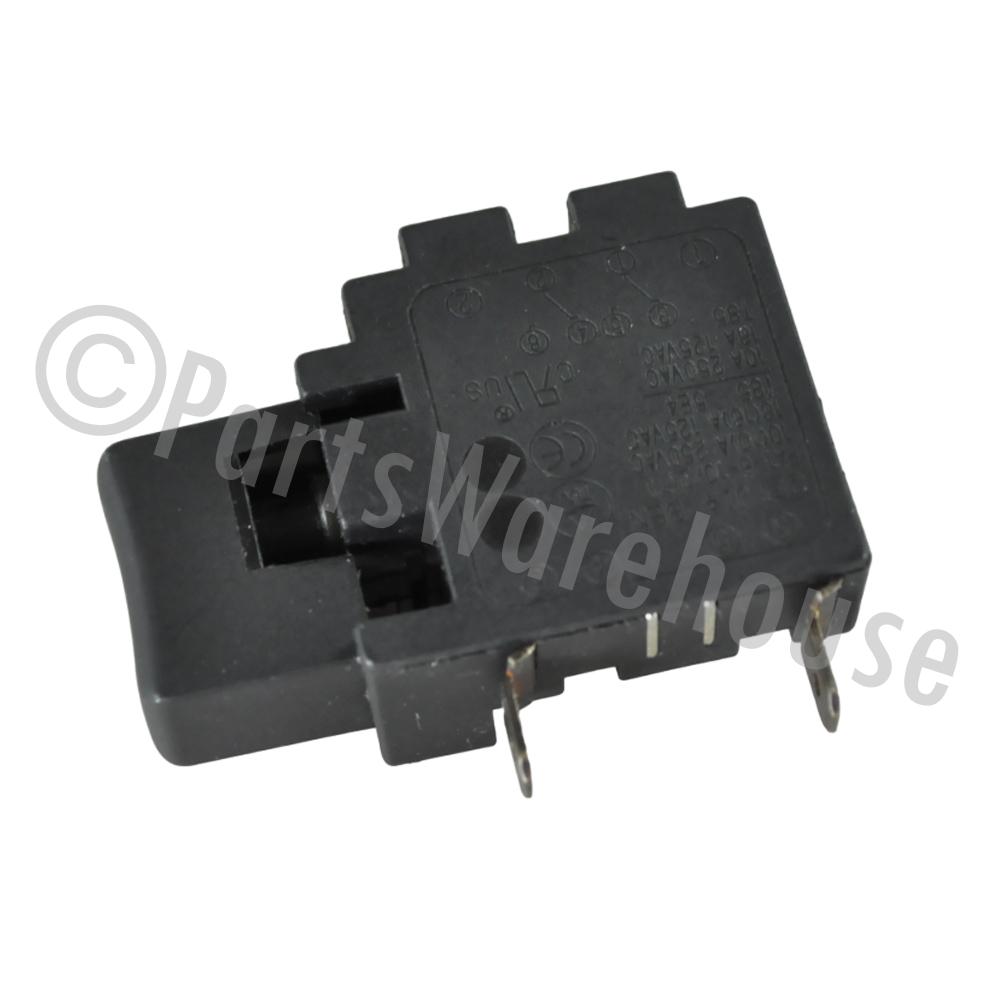

Switch GWK-3630135-1
...
58-4
Screw Knob GWK-34206281-2
...
58-3
Screw M4x12 GWK-3220518
...
58-2
Switch Right Box GWK-34204281-1
...
...
...
...
...
