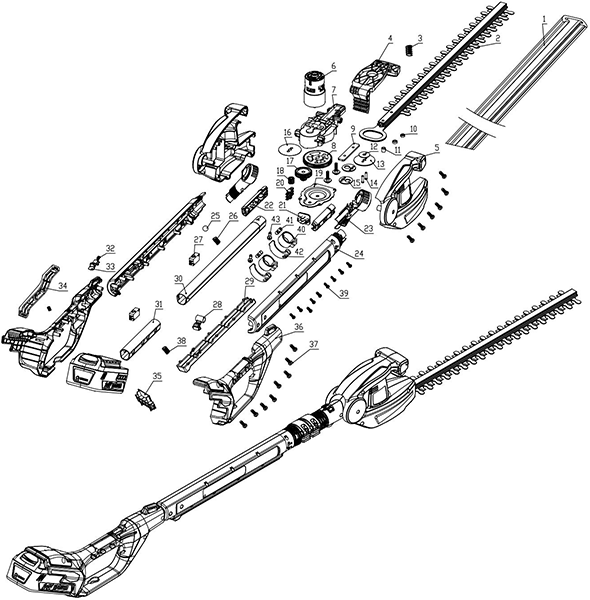

Greenworks 22212 Hedge Trimmer

Model: 22212

Save
 Part Not Listed?Part Not Listed?
product name

Greenworks 22212

...
...
1
Blade Cover GWK-34108648
...
2
Blade Assy. GWK-33101652-1
...
3
Spring GWK-33901648
...
4
Rotating Handle GWK-34105648
...
5
Motor Housing Assy. GWK-31101648
...
6
Motor GWK-36101459-1
...
7
Gear Box GWK-34111459-1
...
8
Gear GWK-33200451
...
9
Pressing Board GWK-33307453
...
10
Shaft Cover2 GWK-33202453
...
11
Shaft Cover3 GWK-33902459
...
12
Small Washer GWK-33302453
...
13
Big Washer GWK-33301453
...
14
Pin GWK-33203161
...
15
Eccentric Block GWK-33304453-1
...
16
Spacing Block GWK-33305453
...
17
Dual Gear GWK-33201451-1
...
18
Pinion GWK-33202451
...
19
Gear Box Cover GWK-33303453
...
20
Female Insert GWK-33314470
...
21
Male Plug GWK-34106646
...
22
L/R Female Insert GWK-34107646/34108646
...
23
Rotating Assy. GWK-31102648
...
24
L/R Assistant Handle GWK-34102646/34103646
...
25
Steel Ball GWK-33201648
...
26
Spring GWK-33902648
...
27
Switch GWK-36301454-1
...
28
Eccentric Knob GWK-34105646
...
29
Switch Trigger GWK-34104646
...
30
Glide Tube GWK-33102646
...
31
Connection Tube GWK-33101646
...
32
Spring GWK-3340287
...
33
Anti-Lock Off Button GWK-34113505-1
...
34
Switch Button GWK-34121708
...
35
Motor Housing Insert Board GWK-34104978
...
36
Handle Assy. GWK-31103648
...
37
Nut GWK-32201517
...
38
Trigonal Spring GWK-33201646
...
39
Screw GWK-32201715
...
40
Clamp Tube GWK-33302505
...
41
Fixing Shaft GWK-33203334
...
42
Wrench GWK-33104505
...
43
Bolt GWK-33202648
...
...
...
...
...
