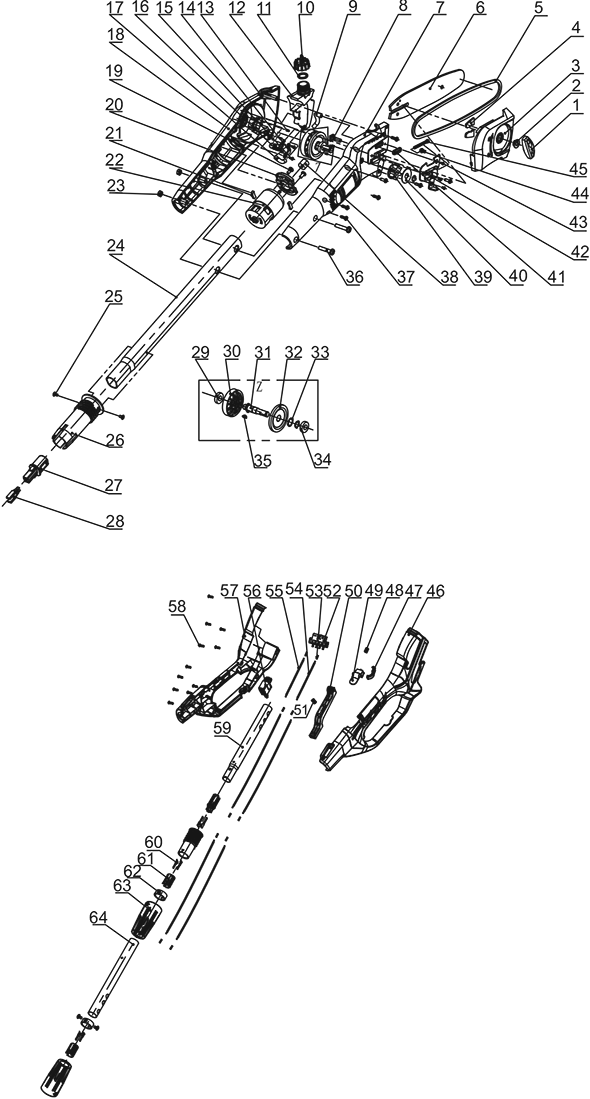

Greenworks 20642 Pole Saw

Model: 20642

Save
 Part Not Listed?Part Not Listed?
product name

Greenworks 20642

...
...
1
Side Cover Knob GWK-34117586
...
2
Bush GWK-33902152
...
3
Side Cover GWK-34116586
...
4
Rubber Pad GWK-34288586
...
5
Chain GWK-32901320
...
6
Bar GWK-32902320-3
...
7
Right Housing GWK-34102582
...
8
Chain Bar Stud GWK-33203152
...
9
Input Oil Pipe GWK-34203152
...
10
Oil Can Lip GWK-34106583
...
11
Oil Gasket GWK-34202583
...
12
Oil Tank GWK-34111586
...
13
Rubber Pin GWK-34201152
...
14
Oil Pump Board GWK-34109152-1
...
15
Screw GWK-32201152
...
16
Oil Pump GWK-34906320
...
17
Output Oil Pipe GWK-34205152
...
18
Left Housing GWK-34101582
...
19
Screw GWK-32201152
...
20
Motor Bracket GWK-33203155
...
21
Rubber Pad GWK-34201320
...
22
Motor GWK-34103420-1
...
23
Nut GWK-3220537
...
24
Upper Handle Assy GWK-33211320
...
25
Screw GWK-3220840-1
...
26
Locking Connector GWK-34108320-2
...
27
Connector GWK-34107320
...
28
Connector Board GWK-33207177
...
29
Bearing GWK-32904152
...
30
Oil Pump Cam GWK-34112455
...
31
Output Shaft GWK-33202452-1
...
32
Big Bevel Gear GWK-33901152A
...
33
Wave Washer GWK-32903152
...
34
The Circlip For Shaft GWK-32905302A
...
35
Woodruff Key GWK-32902452
...
36
Screw GWK-3220450
...
37
Screw GWK-3220313
...
38
Small Bevel Gear GWK-33200580
...
39
Chain Wheel GWK-33902102
...
40
Washer GWK-33302102
...
41
Rubber Pad GWK-34201583
...
42
Bar Washer GWK-33302586
...
43
Screw GWK-3220403
...
44
Tension Block GWK-33303152A
...
45
Tension Screw GWK-33204152A
...
46
Left Handle Assy GWK-34101582
...
47
Board GWK-34103708
...
48
Lock-Off Spring GWK-3340287
...
49
Self-Lock Handle GWK-34117586
...
50
Switch Trigger GWK-34121708
...
51
Spring GWK-3340287
...
52
Connector Socket GWK-34104978
...
53
Pyrocondensation Tube Red Lead GWK-3420740
...
54
Red Lead GWK-30302271
...
55
Black Lead GWK-30301271
...
56
Switch GWK-36301320
...
57
Right Handle Assy GWK-34102582
...
58
Screw GWK-3220313
...
59
Handle Pole Assy GWK-33213320-1
...
60
Connector Board GWK-33233320
...
61
Connector GWK-34110320
...
62
Retaining Ring GWK-34111320
...
63
Locking Cap GWK-34109320-2
...
64
Middle Pole Assy GWK-33212320
...
...
...
...
...
